Aluminum - Polymer Capacitors
| Photo | Mfr. Part # | Availability | Quantity | Datasheet | Series | Packaging | Product Status | Type | Capacitance | Tolerance | Voltage - Rated | ESR (Equivalent Series Resistance) | Lifetime @ Temp. | Operating Temperature | Ratings | Applications | Features | Ripple Current @ Low Frequency | Ripple Current @ High Frequency | Impedance | Lead Spacing | Size / Dimension | Height - Seated (Max) | Surface Mount Land Size | Mounting Type |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
EEF-CX0J151XRCAP ALUM POLY 150UF 20% 6.3V SMD Panasonic Electronic Components |
8,519 |
|
Datasheet |
SP-Cap CX | Tape & Reel (TR) | Active | Polymer | 150 µF | ±20% | 6.3 V | 12mOhm | 2000 Hrs @ 105°C | -55°C ~ 105°C | - | General Purpose | - | - | 5.6 A @ 100 kHz | - | - | 0.287" L x 0.169" W (7.30mm x 4.30mm) | 0.075" (1.90mm) | 0.287" L x 0.169" W (7.30mm x 4.30mm) | Surface Mount |
|
35SEPF22M+TSSCAP ALUM POLY 22UF 20% 35V TH Panasonic Electronic Components |
4,574 |
|
Datasheet |
OS-CON™, SEPF | Cut Tape (CT) | Active | Polymer | 22 µF | ±20% | 35 V | 35mOhm | 5000 Hrs @ 105°C | -55°C ~ 105°C | - | General Purpose | - | 130 mA @ 120 Hz | 2.6 A @ 100 kHz | - | 0.098" (2.50mm) | 0.248" Dia (6.30mm) | 0.236" (6.00mm) | - | Through Hole |
|

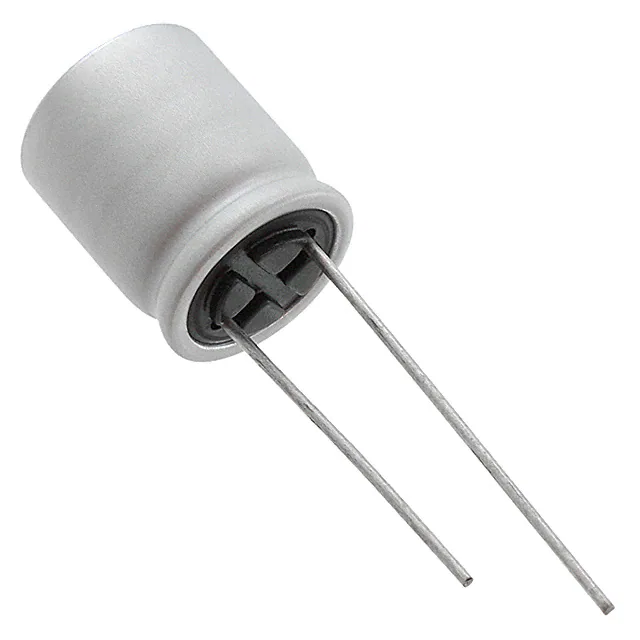

16SEP330M+TCAP ALUM POLY 330UF 20% 16V TH Panasonic Electronic Components |
2,396 |
|
Datasheet |
OS-CON™, SEP | Cut Tape (CT) | Active | Polymer | 330 µF | ±20% | 16 V | 16mOhm | 3000 Hrs @ 105°C | -55°C ~ 105°C | - | General Purpose | - | 236 mA @ 120 Hz | 4.72 A @ 100 kHz | - | 0.197" (5.00mm) | 0.394" Dia (10.00mm) | 0.512" (13.00mm) | - | Through Hole |
|
6SEPC470MW+TSSCAP ALUM POLY 470UF 20% 6.3V TH Panasonic Electronic Components |
2,152 |
|
Datasheet |
OS-CON™, SEPC | Cut Tape (CT) | Active | Polymer | 470 µF | ±20% | 6.3 V | 7mOhm | 5000 Hrs @ 105°C | -55°C ~ 105°C | - | General Purpose | - | 280 mA @ 120 Hz | 5.6 A @ 100 kHz | - | 0.098" (2.50mm) | 0.248" Dia (6.30mm) | 0.354" (9.00mm) | - | Through Hole |
|
|
EEF-CX0G151RCAP ALUM POLY 150UF 20% 4V SMD Panasonic Electronic Components |
11,799 |
|
Datasheet |
SP-Cap CX | Tape & Reel (TR) | Active | Polymer | 150 µF | ±20% | 4 V | 15mOhm | 2000 Hrs @ 105°C | -55°C ~ 105°C | - | General Purpose | - | - | 5.1 A @ 100 kHz | - | - | 0.287" L x 0.169" W (7.30mm x 4.30mm) | 0.075" (1.90mm) | 0.287" L x 0.169" W (7.30mm x 4.30mm) | Surface Mount |
|
EEH-ZC1J220XPCAP ALUM HYBRID 22UF 20% 63V SMD Panasonic Electronic Components |
795 |
|
Datasheet |
ZC | Tape & Reel (TR) | Active | Hybrid | 22 µF | ±20% | 63 V | 80mOhm | 4000 Hrs @ 125°C | -55°C ~ 125°C | AEC-Q200 | Automotive | - | 90 mA @ 100 Hz | 900 mA @ 100 kHz | - | - | 0.248" Dia (6.30mm) | 0.315" (8.00mm) | 0.260" L x 0.260" W (6.60mm x 6.60mm) | Surface Mount |
|

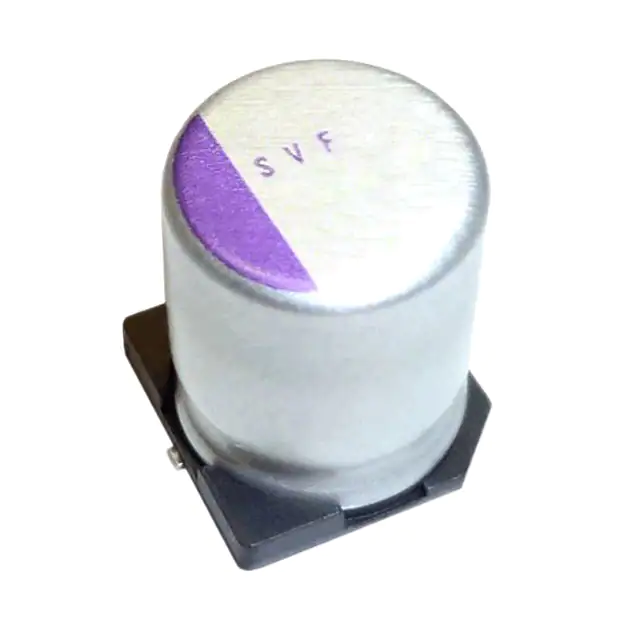

25SVF100MCAP ALUM POLY 100UF 20% 25V SMD Panasonic Electronic Components |
5,065 |
|
Datasheet |
OS-CON™, SVF | Tape & Reel (TR) | Active | Polymer | 100 µF | ±20% | 25 V | 24mOhm | 1000 Hrs @ 125°C | -55°C ~ 125°C | - | General Purpose | - | 50.5 mA @ 120 Hz | 1.01 A @ 100 kHz | - | - | 0.315" Dia (8.00mm) | 0.276" (7.00mm) | 0.327" L x 0.327" W (8.30mm x 8.30mm) | Surface Mount |
|
20SVPG33MCAP ALUM POLY 33UF 20% 20V SMD Panasonic Electronic Components |
29,623 |
|
Datasheet |
OS-CON™, SVPG | Tape & Reel (TR) | Active | Polymer | 33 µF | ±20% | 20 V | 27mOhm | 5000 Hrs @ 105°C | -55°C ~ 105°C | - | General Purpose | - | 150 mA @ 120 Hz | 3 A @ 100 kHz | - | - | 0.197" Dia (5.00mm) | 0.177" (4.50mm) | 0.209" L x 0.209" W (5.30mm x 5.30mm) | Surface Mount |
|
EEH-ZKV121XUPCAP ALUMHYB 120UF 20% 35V SMD Panasonic Electronic Components |
747 |
|
Datasheet |
ZKU | Tape & Reel (TR) | Active | Hybrid | 120 µF | ±20% | 35 V | 35mOhm | 4000 Hrs @ 125°C | -55°C ~ 125°C | AEC-Q200 | Automotive | - | 255 mA @ 100 Hz | 1.7 A @ 100 kHz | - | - | 0.248" Dia (6.30mm) | 0.315" (8.00mm) | 0.260" L x 0.260" W (6.60mm x 6.60mm) | Surface Mount |
|
16SEPG150MCAP ALUM POLY 150UF 20% 16V TH Panasonic Electronic Components |
657 |
|
Datasheet |
OS-CON™, SEPG | Bulk | Active | Polymer | 150 µF | ±20% | 16 V | 12mOhm | 5000 Hrs @ 105°C | -55°C ~ 105°C | - | General Purpose | - | 225 mA @ 120 Hz | 4.5 A @ 100 kHz | - | 0.079" (2.00mm) | 0.197" Dia (5.00mm) | 0.354" (9.00mm) | - | Through Hole |
