Aluminum - Polymer Capacitors
| Photo | Mfr. Part # | Availability | Quantity | Datasheet | Series | Packaging | Product Status | Type | Capacitance | Tolerance | Voltage - Rated | ESR (Equivalent Series Resistance) | Lifetime @ Temp. | Operating Temperature | Ratings | Applications | Features | Ripple Current @ Low Frequency | Ripple Current @ High Frequency | Impedance | Lead Spacing | Size / Dimension | Height - Seated (Max) | Surface Mount Land Size | Mounting Type |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
EEH-ZC1V680XPCAP ALUM HYBRID 68UF 20% 35V SMD Panasonic Electronic Components |
3,567 |
|
Datasheet |
ZC | Tape & Reel (TR) | Active | Hybrid | 68 µF | ±20% | 35 V | 35mOhm | 4000 Hrs @ 125°C | -55°C ~ 125°C | AEC-Q200 | Automotive | - | 210 mA @ 100 Hz | 1.4 A @ 100 kHz | - | - | 0.248" Dia (6.30mm) | 0.315" (8.00mm) | 0.260" L x 0.260" W (6.60mm x 6.60mm) | Surface Mount |
|
20SVPF56MXCAP ALUM POLY 56UF 20% 20V SMD Panasonic Electronic Components |
6,162 |
|
Datasheet |
OS-CON™, SVPF | Tape & Reel (TR) | Active | Polymer | 56 µF | ±20% | 20 V | 30mOhm | 5000 Hrs @ 105°C | -55°C ~ 105°C | - | General Purpose | - | 140 mA @ 120 Hz | 2.8 A @ 100 kHz | - | - | 0.197" Dia (5.00mm) | 0.236" (6.00mm) | 0.209" L x 0.209" W (5.30mm x 5.30mm) | Surface Mount |
|

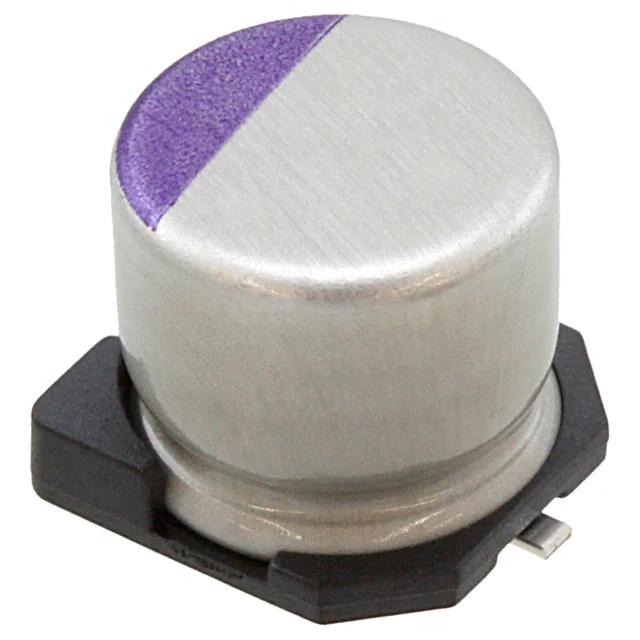

20SVP22MCAP ALUM POLY 22UF 20% 20V SMD Panasonic Electronic Components |
2,913 |
|
Datasheet |
OS-CON™, SVP | Tape & Reel (TR) | Active | Polymer | 22 µF | ±20% | 20 V | 60mOhm | 2000 Hrs @ 105°C | -55°C ~ 105°C | - | General Purpose | - | 72.5 mA @ 120 Hz | 1.45 A @ 100 kHz | - | - | 0.248" Dia (6.30mm) | 0.236" (6.00mm) | 0.260" L x 0.260" W (6.60mm x 6.60mm) | Surface Mount |
|
EEF-CX0E331RCAP ALUM POLY 330UF 20% 2.5V SMD Panasonic Electronic Components |
20,721 |
|
Datasheet |
SP-Cap CX | Tape & Reel (TR) | Active | Polymer | 330 µF | ±20% | 2.5 V | 15mOhm | 2000 Hrs @ 105°C | -55°C ~ 105°C | - | General Purpose | - | - | 5.1 A @ 100 kHz | - | - | 0.287" L x 0.169" W (7.30mm x 4.30mm) | 0.075" (1.90mm) | 0.287" L x 0.169" W (7.30mm x 4.30mm) | Surface Mount |
|
16SVP150MCAP ALUM POLY 150UF 20% 16V SMD Panasonic Electronic Components |
5,584 |
|
Datasheet |
OS-CON™, SVP | Tape & Reel (TR) | Active | Polymer | 150 µF | ±20% | 16 V | 30mOhm | 2000 Hrs @ 105°C | -55°C ~ 105°C | - | General Purpose | - | 151 mA @ 120 Hz | 3.02 A @ 100 kHz | - | - | 0.394" Dia (10.00mm) | 0.315" (8.00mm) | 0.406" L x 0.406" W (10.30mm x 10.30mm) | Surface Mount |
|
6SVPE180MCAP ALUM POLY 180UF 20% 6.3V SMD Panasonic Electronic Components |
4,550 |
|
Datasheet |
OS-CON™, SVPE | Tape & Reel (TR) | Active | Polymer | 180 µF | ±20% | 6.3 V | 15mOhm | 2000 Hrs @ 105°C | -55°C ~ 105°C | - | General Purpose | - | 157.5 mA @ 120 Hz | 3.15 A @ 100 kHz | - | - | 0.197" Dia (5.00mm) | 0.236" (6.00mm) | 0.209" L x 0.209" W (5.30mm x 5.30mm) | Surface Mount |
|
16SVPC39MVCAP ALUM POLY 39UF 20% 16V SMD Panasonic Electronic Components |
3,791 |
|
Datasheet |
OS-CON™, SVPC | Tape & Reel (TR) | Active | Polymer | 39 µF | ±20% | 16 V | 27mOhm | 2000 Hrs @ 105°C | -55°C ~ 105°C | - | General Purpose | - | 117.5 mA @ 120 Hz | 2.35 A @ 100 kHz | - | - | 0.197" Dia (5.00mm) | 0.236" (6.00mm) | 0.209" L x 0.209" W (5.30mm x 5.30mm) | Surface Mount |
|

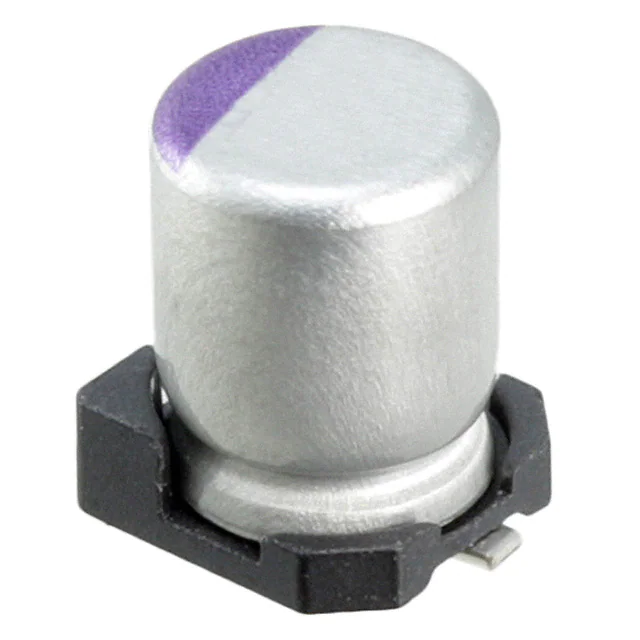

16SVP3R3MCAP ALUM POLY 3.3UF 20% 16V SMD Panasonic Electronic Components |
5,120 |
|
Datasheet |
OS-CON™, SVP | Tape & Reel (TR) | Active | Polymer | 3.3 µF | ±20% | 16 V | 260mOhm | 2000 Hrs @ 105°C | -55°C ~ 105°C | - | General Purpose | - | 33 mA @ 120 Hz | 660 mA @ 100 kHz | - | - | 0.157" Dia (4.00mm) | 0.217" (5.50mm) | 0.169" L x 0.169" W (4.30mm x 4.30mm) | Surface Mount |
|

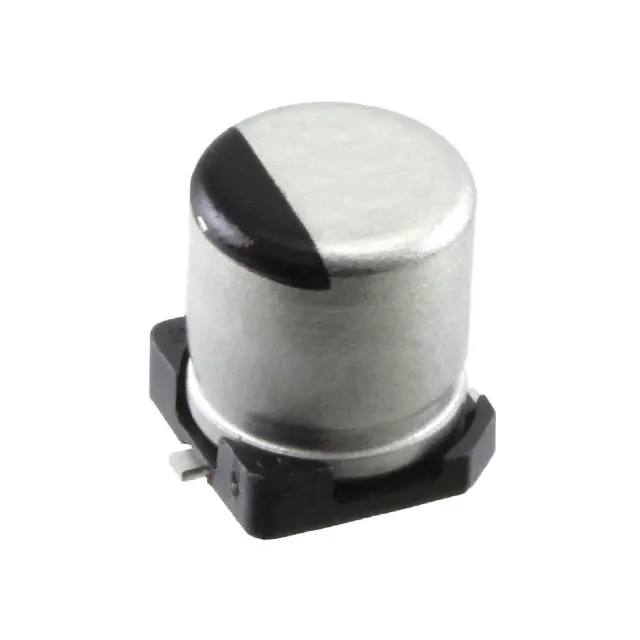

EEH-ZK1E470RCAP ALUM HYBRID 47UF 20% 25V SMD Panasonic Electronic Components |
7,993 |
|
Datasheet |
ZK | Tape & Reel (TR) | Active | Hybrid | 47 µF | ±20% | 25 V | 80mOhm | 4000 Hrs @ 125°C | -55°C ~ 125°C | AEC-Q200 | Automotive | - | 127.5 mA @ 100 Hz | 850 mA @ 100 kHz | - | - | 0.197" Dia (5.00mm) | 0.240" (6.10mm) | 0.209" L x 0.209" W (5.30mm x 5.30mm) | Surface Mount |
|
|
10SVP330MXCAP ALUM POLY 330UF 20% 10V SMD Panasonic Electronic Components |
1,618 |
|
Datasheet |
OS-CON™, SVP | Tape & Reel (TR) | Active | Polymer | 330 µF | ±20% | 10 V | 25mOhm | 2000 Hrs @ 105°C | -55°C ~ 105°C | - | General Purpose | - | 185 mA @ 120 Hz | 3.7 A @ 100 kHz | - | - | 0.394" Dia (10.00mm) | 0.315" (8.00mm) | 0.406" L x 0.406" W (10.30mm x 10.30mm) | Surface Mount |
