Aluminum - Polymer Capacitors
| Photo | Mfr. Part # | Availability | Quantity | Datasheet | Series | Packaging | Product Status | Type | Capacitance | Tolerance | Voltage - Rated | ESR (Equivalent Series Resistance) | Lifetime @ Temp. | Operating Temperature | Ratings | Applications | Features | Ripple Current @ Low Frequency | Ripple Current @ High Frequency | Impedance | Lead Spacing | Size / Dimension | Height - Seated (Max) | Surface Mount Land Size | Mounting Type |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
EEH-ZS1H221VCAP ALUMHYB 220UF 20% 50V SMD Panasonic Electronic Components |
1,056 |
|
Datasheet |
ZS, Anti-Vibration | Tape & Reel (TR) | Active | Hybrid | 220 µF | ±20% | 50 V | 13mOhm | 4000 Hrs @ 125°C | -55°C ~ 125°C | AEC-Q200 | Automotive | - | 555 mA @ 100 Hz | 3.7 A @ 100 kHz | - | - | 0.394" Dia (10.00mm) | 0.661" (16.80mm) | 0.406" L x 0.406" W (10.30mm x 10.30mm) | Surface Mount |
|
EEF-JZ0D561RBCAP ALUM POLY 560UF 20% 2V SMD Panasonic Electronic Components |
1,750 |
|
Datasheet |
SP-Cap JZ | Tape & Reel (TR) | Active | Polymer | 560 µF | ±20% | 2 V | 3mOhm | 3000 Hrs @ 125°C | -55°C ~ 125°C | - | General Purpose | - | - | 10.2 A @ 100 kHz | - | - | 0.287" L x 0.169" W (7.30mm x 4.30mm) | 0.091" (2.30mm) | - | Surface Mount |
|
EEH-ZS1E102UVCAP ALUMHYB 1000UF 20% 25V SMD Panasonic Electronic Components |
335 |
|
Datasheet |
ZSU Anti-Vibration | Tape & Reel (TR) | Active | Hybrid | 1000 µF | ±20% | 25 V | 11mOhm | 4000 Hrs @ 125°C | -55°C ~ 125°C | AEC-Q200 | Automotive | - | 800 mA @ 120 Hz | 4 A @ 100 kHz | - | - | 0.394" Dia (10.00mm) | 0.673" (17.10mm) | 0.406" L x 0.406" W (10.30mm x 10.30mm) | Surface Mount |
|
|
EEH-ZT1V391UVCAP ALUMHYB 390UF 20% 35V SMD Panasonic Electronic Components |
696 |
|
Datasheet |
ZTU | Tape & Reel (TR) | Active | Hybrid | 390 µF | ±20% | 35 V | 16mOhm | 4000 Hrs @ 135°C | -55°C ~ 135°C | AEC-Q200 | Automotive | - | 330 mA @ 100 Hz | 2.2 A @ 100 kHz | - | - | 0.394" Dia (10.00mm) | 0.425" (10.80mm) | 0.406" L x 0.406" W (10.30mm x 10.30mm) | Surface Mount |
|
10SVP33MCAP ALUM POLY 33UF 20% 10V SMD Panasonic Electronic Components |
2,918 |
|
Datasheet |
OS-CON™, SVP | Tape & Reel (TR) | Active | Polymer | 33 µF | ±20% | 10 V | 70mOhm | 2000 Hrs @ 105°C | -55°C ~ 105°C | - | General Purpose | - | 55 mA @ 120 Hz | 1.1 A @ 100 kHz | - | - | 0.197" Dia (5.00mm) | 0.236" (6.00mm) | 0.209" L x 0.209" W (5.30mm x 5.30mm) | Surface Mount |
|
25SVPF56MCAP ALUM POLY 56UF 20% 25V SMD Panasonic Electronic Components |
11,934 |
|
Datasheet |
OS-CON™, SVPF | Tape & Reel (TR) | Active | Polymer | 56 µF | ±20% | 25 V | 30mOhm | 5000 Hrs @ 105°C | -55°C ~ 105°C | - | General Purpose | - | 140 mA @ 120 Hz | 2.8 A @ 100 kHz | - | - | 0.248" Dia (6.30mm) | 0.236" (6.00mm) | 0.260" L x 0.260" W (6.60mm x 6.60mm) | Surface Mount |
|
16SEPC220MDCAP ALUM POLY 220UF 20% 16V TH Panasonic Electronic Components |
1,383 |
|
Datasheet |
OS-CON™, SEPC | Bulk | Active | Polymer | 220 µF | ±20% | 16 V | 13mOhm | 5000 Hrs @ 105°C | -55°C ~ 105°C | - | General Purpose | - | 207.5 mA @ 120 Hz | 4.15 A @ 100 kHz | - | 0.138" (3.50mm) | 0.315" Dia (8.00mm) | 0.276" (7.00mm) | - | Through Hole |
|

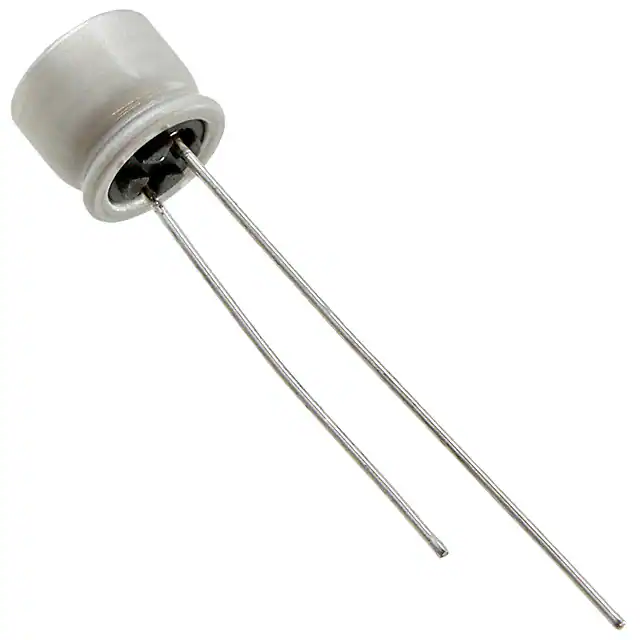

20SEP22MCAP ALUM POLY 22UF 20% 20V TH Panasonic Electronic Components |
26,507 |
|
Datasheet |
OS-CON™, SEP | Bulk | Active | Polymer | 22 µF | ±20% | 20 V | 60mOhm | 3000 Hrs @ 105°C | -55°C ~ 105°C | - | General Purpose | - | 72.5 mA @ 120 Hz | 1.45 A @ 100 kHz | - | 0.098" (2.50mm) | 0.248" Dia (6.30mm) | 0.236" (6.00mm) | - | Through Hole |
|

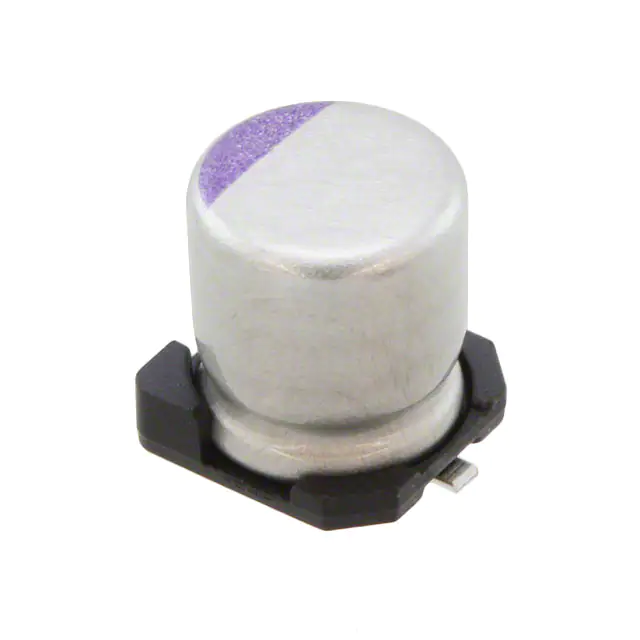

16SVP22MCAP ALUM POLY 22UF 20% 16V SMD Panasonic Electronic Components |
11,213 |
|
Datasheet |
OS-CON™, SVP | Tape & Reel (TR) | Active | Polymer | 22 µF | ±20% | 16 V | 90mOhm | 2000 Hrs @ 105°C | -55°C ~ 105°C | - | General Purpose | - | 53 mA @ 120 Hz | 1.06 A @ 100 kHz | - | - | 0.197" Dia (5.00mm) | 0.236" (6.00mm) | 0.209" L x 0.209" W (5.30mm x 5.30mm) | Surface Mount |
|
4SVPC330MVCAP ALUM POLY 330UF 20% 4V SMD Panasonic Electronic Components |
8,093 |
|
Datasheet |
OS-CON™, SVPC | Tape & Reel (TR) | Active | Polymer | 330 µF | ±20% | 4 V | 15mOhm | 2000 Hrs @ 105°C | -55°C ~ 105°C | - | General Purpose | - | 158 mA @ 120 Hz | 3.16 A @ 100 kHz | - | - | 0.248" Dia (6.30mm) | 0.236" (6.00mm) | 0.260" L x 0.260" W (6.60mm x 6.60mm) | Surface Mount |
