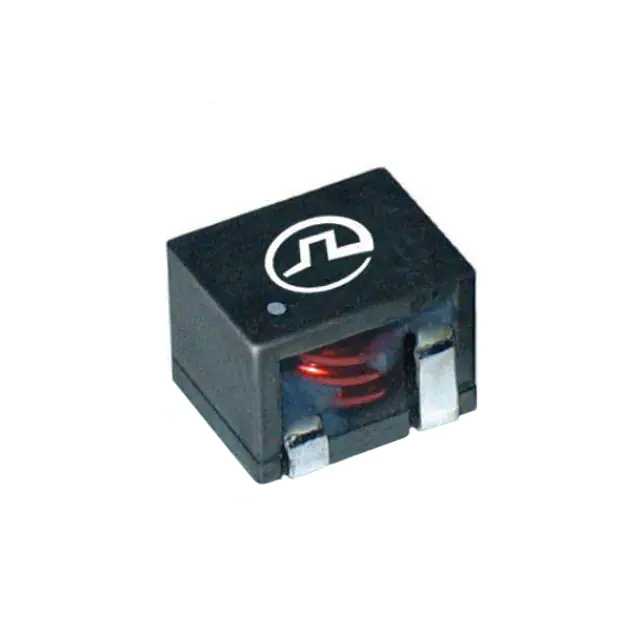

    Pulse Electronics PG1096.682NLT

    Part No.:
    PG1096.682NLT
    Manufacturer:
    Pulse Electronics
    Category:
    Fixed Inductors
    Package:
    Nonstandard
    Datasheet:
    AO YUET (HK)ELECTRONICS LIMITEDPG1096.682NLT.pdf
    Description:
    PULSE XFMR 6UH
    Quantity:
    Payment:
    Payment
    Shipping:
    Shipping

    Inventory:577

    Please send an inquiry. Send us your inquiry, and we will respond immediately.

    Part Number
    Quantity*
    Price
    Name*
    Company*
    Email*
    Comments
    • Specifications
    • FAQ
    • Product Comparison
    • Tags
    Product attributes
    Attribute value
    Manufacturer:
    Pulse Electronics
    Series:
    PG1096NL
    Package/Case:
    Nonstandard
    Packaging:
    Tape & Reel (TR)
    Product Status:
    Active
    Type:
    Wirewound
    Material - Core:
    -
    Inductance:
    6 µH
    Tolerance:
    ±20%
    Current Rating (Amps):
    30 A
    Current - Saturation (Isat):
    35A
    Shielding:
    Unshielded
    DC Resistance (DCR):
    2mOhm Max
    Q @ Freq:
    -
    Frequency - Self Resonant:
    -
    Ratings:
    -
    Operating Temperature:
    -40°C ~ 130°C
    Inductance Frequency - Test:
    100 kHz
    Features:
    -
    Mounting Type:
    Surface Mount
    Supplier Device Package:
    -
    Size / Dimension:
    1.024" L x 1.024" W (26.00mm x 26.00mm)
    Height - Seated (Max):
    0.583" (14.80mm)
