RF Antennas
| Photo | Mfr. Part # | Availability | Quantity | Datasheet | Series | Packaging | Product Status | RF Family/Standard | Frequency Group | Frequency (Center/Band) | Frequency Range | Antenna Type | Number of Bands | VSWR | Return Loss | Gain | Power - Max | Features | Termination | Ingress Protection | Grade | Qualification | Mounting Type | Height (Max) | Applications |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
YCGO009AAPATCH ACTIVE GNSS L1 UFL 15X15 |
0 |
|
Datasheet |
- | Bag | Active | Navigation | UHF (1GHz ~ 2GHz) | 1.5825GHz | 1.559GHz ~ 1.606GHz | Ceramic Patch | 1 | - | - | - | - | Cable - 50mm | I-PEX | - | - | - | Adhesive | 0.256" (6.50mm) | GNSS, GPS |
|
RST-W2A1-195013-22M-GE-001RF ANT 2.4GHZ WHIP TILT SMA MALE |
0 |
|
Datasheet |
RST | Bulk | Active | 802.15.4, Bluetooth, WiFi | UHF (2GHz ~ 3GHz) | 2.4GHz | 2.4GHz ~ 2.5GHz | Whip, Tilt | 1 | 2 | - | 5dBi | - | - | SMA Male | IP65 | - | - | Connector Mount | 7.677" (195.00mm) | 802.15.4, Bluetooth, Wi-Fi |
|
FLEXI-SMA90-433RF ANT 433MHZ WHIP TILT SMA MALE |
3 |
|
Datasheet |
- | Bulk | Active | - | UHF (300MHz ~ 1GHz) | 433MHz | - | Whip, Tilt | 1 | 2 | - | - | - | - | SMA Male | - | - | - | Connector Mount | 5.354" (136.00mm) | - |
|
|
FXP450.07.0100C450MHZ FLEXIBLE PCB ANTENNA |
0 |
|
Datasheet |
- | Bulk | Active | Cellular | UHF (300MHz ~ 1GHz) | 420MHz, 432.5MHz, 460MHz | 410MHz ~ 430MHz, 430MHz ~ 435MHz, 450MHz ~ 470MHz | PCB Trace | 3 | - | - | -0.36dBi, -1.57dBi, -0.05dBi | 10 W | Cable - 100mm | I-PEX MHF1 (U.FL) | - | - | - | Adhesive | 0.003" (0.08mm) | Cellular |
|

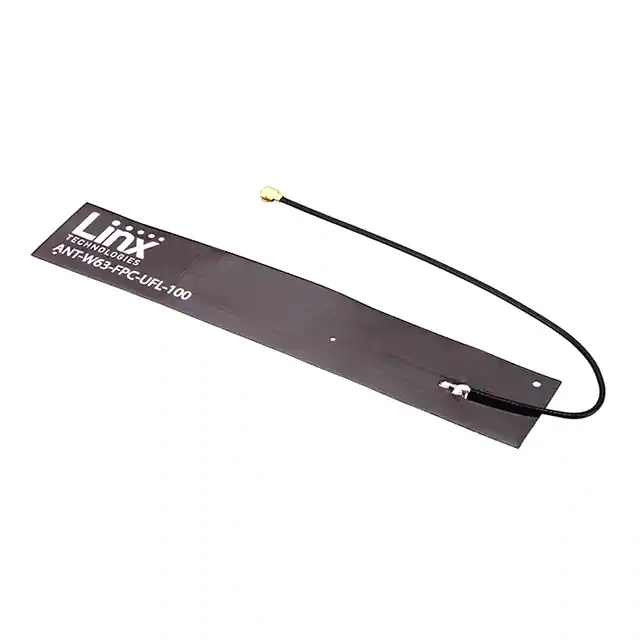

ANT-W63-FPC-UFL-100RF ANT WIFI 6GHZ FLEX ADHES UFL |
0 |
|
Datasheet |
FPC | Bag | Active | WiFi | Wide Band | 2.4GHz, 5GHz, 6GHz | 2.4GHz ~ 2.5GHz, 5.15GHz ~ 5.85GHz, 5.925GHz ~ 7.125GHz | Flat Patch | 3 | 1.2, 3.3, 2.6 | -20.8dB, -5.4dB, -7dB | 6.1dBi, 6.1dBi, 6.9dBi | 2 W | Cable - 100mm | U.FL (UMCC), I-PEX MHF1 | - | - | - | Adhesive | 0.010" (0.20mm) | 802.11ax, 802.15.4, Bluetooth, Wi-Fi, Wi-Fi 4, Wi-Fi 5, Wi-Fi 6, Wi-Fi 6E |
|
|
1100615024G ANTENNA KIT FOR RETERMINAL DM |
9 |
|
Datasheet |
- | Bulk | Active | Cellular | UHF (300MHz ~ 1GHz) | 891.5MHz | 868MHz ~ 915MHz | Whip, Tilt | 1 | 3 | - | 2dBi | 10 W | - | I-PEX, SMA | - | - | - | Connector Mount | 6.220" (158.00mm) | 4G |
|
|
110061501LORA ANTENNA KIT RETERMINAL DM |
0 |
|
Datasheet |
- | Bulk | Active | General ISM | Wide Band | 892MHz, 2.205GHz | 824MHz ~ 960MHz, 1.71GHz ~ 2.7GHz | Whip, Tilt | 2 | 3 | - | 2dBi, 2dBi | 5 W | - | I-PEX, SMA | - | - | - | Connector Mount | 7.677" (195.00mm) | LoRa |
|
SRFC015-100RF ANT 892MHZ/1.85GHZ FLAT CAB |
0 |
|
Datasheet |
Zhengi | Bulk | Active | Cellular | Wide Band | 892MHz, 1.85GHz, 2.14GHz, 2.35GHz, 2.6GHz | 824MHz ~ 960MHz, 1.71GHz ~ 1.99GHz, 2.11GHz ~ 2.17GHz, 2.3GHz ~ 2.4GHz, 2.5GHz ~ 2.69GHz | Flat Patch | 5 | 2.1 | -8dB | 3.5dBi | - | Cable - 100mm | U.FL (UMCC), I-PEX MHF1 | - | - | - | Adhesive | 0.006" (0.15mm) | GSM, LTE, W-CDMA |
|
|
ANT-W63-CW-RCS-SMAWIFI6/6E/7 COMPACT RIGHT ANGLE W |
10 |
|
Datasheet |
CW-RCS | Bag | Active | 802.15.4, Bluetooth, WiFi | Wide Band | 2.44GHz, 5.5GHz, 6.525GHz | 2.4GHz ~ 2.485GHz, 5.15GHz ~ 5.85GHz, 5.925GHz ~ 7.125GHz | Whip, Right Angle | 3 | 2.2, 2.7 | - | 7.7dBi, 5.4dBi, 6dBi | 5 W | - | SMA Male | - | - | - | Connector Mount | 2.126" (54.00mm) | Bluetooth, Wi-Fi, WLAN, Zigbee™ |
|
|
YXH001AAANTENNA,700-5000MHZ,1M,SMA(M) |
0 |
|
Datasheet |
- | Bag | Active | Cellular | Wide Band | 829MHz, 830MHz, 1.228GHz, 1.505GHz, 1.94GHz, 2.2GHz, 2.43GHz, 3.65GHz, 4.15GHz, 4.5GHz, 5.5GHz | 698MHz ~ 960MHz, 700MHz ~ 960MHz, 1.176GHz ~ 1.28GHz, 1.4GHz ~ 1.61GHz, 1.71GHz ~ 2.17GHz, 1.71GHz ~ 2.69GHz, 2.17GHz ~ 2.69GHz, 3.3GHz ~ 4GHz, 3.3GHz ~ 5GHz, 4GHz ~ 5GHz, 5GHz ~ 6GHz | Whip, Straight | 11 | 4 | - | 3.3dBi, 4.5dBi, 4.5dBi, 4.5dBi, 4.5dBi, 3.3dBi, 4.5dBi, 3.1dBi | - | Cable - 1m | SMA Male | IP65 | - | - | Magnetic | 1.772" (45.00mm) | 5G |
|
X9001248-4GMSMB1000RANTENNA,LTE MAGNETIC 1000 |
0 |
|
Datasheet |
- | Box | Active | 802.15.4, Cellular | Wide Band | 700MHz, 800MHz, 900MHz, 1.8GHz, 2.1GHz, 2.6GHz | 698MHz ~ 960MHz, 1.71GHz ~ 2.69GHz | Whip, Straight | 6 | - | -5.2dB, -5.8dB, -6dB | -0.5dBi, -0.2dBi, 1.8dBi, 1.9dBi | - | - | SMA Male | IP65 | - | - | Magnetic | 4.409" (112.00mm) | LTE, LoRa, Sigfox |
|
2161960011MOLEX LORA EXTERNAL ANTENNA_F |
0 |
|
Datasheet |
216196 | Bag | Active | General ISM | UHF (300MHz ~ 1GHz) | 915MHz | 905MHz ~ 925MHz | Whip, Tilt | 1 | - | -8dB | 1.7dBi | - | - | RP-SMA Male | - | - | - | Connector Mount | 7.717" (196.00mm) | ISM, LoRa |
|
ANT-315-CW-RCSRF ANT 315MHZ WHIP RA RP-SMA MAL |
6 |
|
Datasheet |
RCS | Bulk | Active | General ISM | UHF (300MHz ~ 1GHz) | 315MHz | 310MHz ~ 320MHz | Whip, Right Angle | 1 | 2 | - | - | - | - | RP-SMA Male | - | - | - | Connector Mount | 2.106" (53.50mm) | Alarms, ISM, Remote Control, Security Systems |
|
|
GPVBSF.25.8.AGPS L1/L5 STACKED PATCH |
0 |
|
Datasheet |
- | Tray | Not For New Designs | Navigation | Wide Band | 1.176GHz, 1.561GHz, 1.575GHz | - | Ceramic Patch | 3 | 2 | - | 2.5dBi, 3.4dBi, 3.1dBi | - | - | Pin | - | - | - | Adhesive | 0.320" (8.12mm) | BeiDou, Galileo, GLONASS, GNSS, GPS, IRNSS, QZSS, SBAS |
|
CGGBP.35.3.A.02RF ANT 1.575/1.602GHZ CER PATCH |
0 |
|
Datasheet |
- | Tray | Active | Navigation | UHF (1GHz ~ 2GHz) | 1.575GHz, 1.602GHz | 1.575GHz ~ 1.602GHz | Ceramic Patch | 2 | 2.5 | - | 4dBi | - | - | Pin | - | - | - | Surface Mount | 0.118" (3.00mm) | Beidou, GLONASS, GPS |
|
W5010RF ANT 2.4GHZ WHIP STR RP-SMA ML |
0 |
|
Datasheet |
- | Bulk | Active | 802.15.4 | UHF (2GHz ~ 3GHz) | 2.4GHz | 2.4GHz ~ 2.5GHz | Whip, Straight | 1 | - | -10dB | 1.5dBi | - | - | RP-SMA Male | IP65 | - | - | Connector Mount | 5.122" (130.09mm) | ZigBee™ |
|
WCM.01.0151RF ANT 2.4GHZ MODULE RP-SMA MALE |
0 |
|
Datasheet |
- | Bag | Active | Bluetooth, WiFi | UHF (2GHz ~ 3GHz) | 2.4GHz | 2.4GHz ~ 2.5GHz | Module | 1 | - | - | 5.4dBi | 10 W | - | RP-SMA Male | IP67 | - | - | Connector Mount | 0.646" (16.40mm) | Bluetooth, Wi-Fi |
|
WCM.01.0111WCM.01.0111 - 2.4GHZ BUTTON ANTE |
0 |
|
Datasheet |
- | Bag | Active | Bluetooth, WiFi | UHF (2GHz ~ 3GHz) | 2.45GHz | 2.4GHz ~ 2.5GHz | Whip, Straight | 1 | - | -6dB | 0.89dBi, 0.4dBi, 0.12dBi | 10 W | - | SMA Male | IP67 | - | - | Connector Mount | 0.646" (16.40mm) | Bluetooth, Wi-Fi |
|
|
001-0001-LRF ANT 2.4GHZ WHIP TILT RP-SMA |
0 |
|
Datasheet |
- | Bulk | Active | - | UHF (2GHz ~ 3GHz) | 2.4GHz | 2.4GHz ~ 2.5GHz | Whip, Tilt | 1 | 2.5 | - | 2dBi | - | - | RP-SMA Male | - | - | - | Connector Mount | 4.134" (105.00mm) | - |
|
DELTA5A/X/SMAM/S/S/17RF ANT 868MHZ WHIP STR SMA MALE |
0 |
|
Datasheet |
DELTA 5A | Bulk | Active | General ISM | UHF (300MHz ~ 1GHz) | 868MHz | - | Whip, Straight | 1 | 2.1 | - | 3dBi | - | - | SMA Male | - | - | - | Connector Mount | 3.937" (100.00mm) | ISM |
