RF Antennas
| Photo | Mfr. Part # | Availability | Quantity | Datasheet | Series | Packaging | Product Status | RF Family/Standard | Frequency Group | Frequency (Center/Band) | Frequency Range | Antenna Type | Number of Bands | VSWR | Return Loss | Gain | Power - Max | Features | Termination | Ingress Protection | Grade | Qualification | Mounting Type | Height (Max) | Applications |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
GL7X1AX-SFRF ANT 657.5MHZ DOME SMA MALE |
0 |
|
Datasheet |
Coach™ II | Box | Active | Cellular, Navigation, WiFi | Wide Band | 657.5MHz, 750MHz, 767.5MHz, 892MHz, 1.586GHz, 1.955GHz, 2.002GHz, 2.4GHz, 2.545GHz, 3.6GHz, 5.4GHz, 5.95GHz | 617MHz ~ 698MHz, 698MHz ~ 802MHz, 733MHz ~ 802MHz, 824MHz ~ 960MHz, 1.565GHz ~ 1.608GHz, 1.71GHz ~ 2.2GHz, 1.805GHz ~ 2.2GHz, 2.3GHz ~ 2.5GHz, 2.4GHz ~ 2.69GHz, 3.4GHz ~ 3.8GHz, 4.9GHz ~ 5.9GHz, 5.15G | Dome | 12 | 2 | - | -0.2dBi, -1.4dBi, 1.1dBi, 0dBi, 0dBi, 2.1dBi, -2dBic, 3dBic, 4.4dBi, 1.7dBi, 1.5dBi, 4.8dBi, 9.1dBi, 2.2dBi, 4.7dBi, 11.4dBi, 2.6dBi, 5.8dBi | 50 W | Cable - 5.18m | SMA Male (2), RP-SMA Male (1) | IP67 | - | - | Panel Mount | 3.012" (76.50mm) | 2G, 3G, 5G, Bluetooth, Cellular, GNSS, GPS, LTE |
|
Y1505RF ANT 162MHZ YAGI N FEM BRKT MT |
0 |
|
Datasheet |
- | Bulk | Active | - | VHF (f < 300MHz) | 162MHz | 150MHz ~ 174MHz | Yagi, 5-Element | 1 | 2 | -10dB | 9.2dBd | 300 W | - | N Type Female | - | - | - | Bracket Mount | 39.500" (100.33cm) | - |
|
33-HC979XF-35FULL GNSS SPECTRUM + L-BAND WITH |
1 |
|
Datasheet |
- | Bag | Active | Cellular, Navigation | UHF (1GHz ~ 2GHz) | 1.232GHz, 1.582GHz | 1.164GHz ~ 1.559GHz, 1.559GHz ~ 1.606GHz | Dome | 2 | 2 | - | 35dBi, 35dBi | - | LNA, Filter | SMA Male | IP69K | - | - | Screw Mount | 2.457" (62.40mm) | Beidou, Galileo, GLONASS, GNSS, GPS, IRNSS, LTE, NavIC, QZSS, SBAS |
|

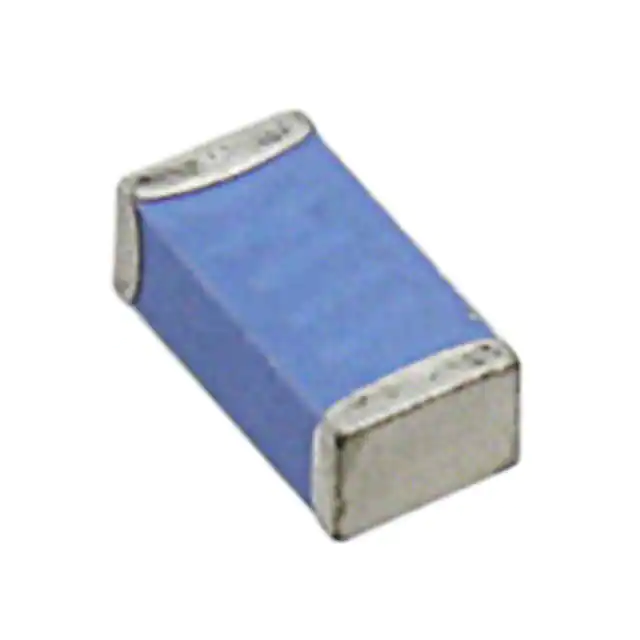

RFANT3216120A5TRF ANT 2.4GHZ CHIP SOLDER SMD |
0 |
|
Datasheet |
- | Tape & Reel (TR) | Active | Bluetooth, WiFi | UHF (2GHz ~ 3GHz) | 2.4GHz | 2.4GHz ~ 2.5GHz | Chip | 1 | 2 | - | 2dBi | - | - | Solder | - | - | - | Surface Mount | 0.047" (1.20mm) | Bluetooth, WLAN |
|
ANT-868-USP-TRF ANT 868MHZ CHIP SOLDER SMD |
0 |
|
Datasheet |
microSplatch™ | Tape & Reel (TR) | Active | General ISM | UHF (300MHz ~ 1GHz) | 868MHz | 859MHz ~ 877MHz | Chip | 1 | 1.9 | - | 0.2dBi | - | - | Solder | - | - | - | Surface Mount | 0.100" (2.54mm) | ISM, LoRa, Sensor Networks, SigFox |
|
|
YFGA005AAGNSS FPC ANTENNA, 61.15 11.24, |
0 |
|
Datasheet |
- | Bulk | Active | Navigation | UHF (1GHz ~ 2GHz) | 1.58GHz | 1.56GHz ~ 1.61GHz | Flat Patch | 1 | - | - | - | - | Cable - 100mm | I-PEX-1 | - | - | - | Adhesive | - | GNSS |
|
|
YFCA002HAEMBEDDED, 700~2690, LTE (4G), FP |
0 |
|
Datasheet |
- | Bulk | Active | Cellular | Wide Band | 1.69GHz | 700MHz ~ 2.69GHz | Flat Patch | 1 | - | - | - | - | Cable - 86.5mm | I-PEX-1 | - | - | - | Adhesive | 0.005" (0.12mm) | 4G, LTE |
|
|
2450AD47A1590001ERF ANT 1.561GHZ/1.575GHZ CHIP |
0 |
|
Datasheet |
- | Tape & Reel (TR) | Active | Bluetooth, Navigation, WiFi | UHF (1GHz ~ 2GHz), UHF (2GHz ~ 3GHz) | 1.561GHz, 1.575GHz, 1.602GHz, 2.4GHz | 1.561GHz ~ 1.602GHz, 2.4GHz ~ 2.5GHz | Chip | 4 | - | -9dB | 0.5dBi, 1.5dBi, 1.5dBi, 1dBi | 2 W | - | Solder | - | - | - | Surface Mount | 0.059" (1.50mm) | Beidou, Bluetooth, GLONASS, GPS, Wi-Fi |
|
3180202692.8DBI LORA ANTENNA - SMA MALE - |
0 |
|
- |
- | Bulk | Active | General ISM | UHF (300MHz ~ 1GHz) | 868MHz | - | Whip, Tilt | 1 | - | - | 2.8dBi | 10 W | - | SMA Male | - | - | - | Connector Mount | 7.677" (195.00mm) | LoRa |
|
YE0008AAEXTERNAL CELLULAR ANTENNA |
0 |
|
Datasheet |
- | Bag | Not For New Designs | Cellular | UHF (300MHz ~ 1GHz), UHF (1GHz ~ 2GHz) | 892MHz, 1.94GHz | 824MHz ~ 960MHz, 1.71GHz ~ 2.17GHz | Whip, Straight | 2 | 3.5 | - | 3dBi | - | - | SMA Male | IP65 | - | - | Connector Mount | 2.047" (52.00mm) | 3G |
|
2006RF ANTENNA WHIP STR |
16 |
|
Datasheet |
- | Bag | Active | - | VHF (f < 300MHz) | - | - | Whip, Straight | 1 | - | - | - | - | - | - | - | - | - | Solder | 19.291" (490.00mm) | - |
|
1461680001RF ANT 1.575GHZ CER PATCH SLD |
0 |
|
Datasheet |
146168 | Tray | Active | Navigation | UHF (1GHz ~ 2GHz) | 1.575GHz | 1.572GHz ~ 1.578GHz | Ceramic Patch | 1 | - | - | 5.5dBi | 2 W | - | Solder | - | - | - | Surface Mount | 0.157" (4.00mm) | GNSS, GPS |
|
1461870300RF ANT 2.4/5.5GHZ PCB TRACE U.FL |
0 |
|
Datasheet |
146187 | Bulk | Active | WiFi | UHF (2GHz ~ 3GHz), SHF (f > 4GHz) | 2.4GHz, 5.5GHz | 2.4GHz ~ 2.48GHz, 5.15GHz ~ 5.85GHz | PCB Trace | 2 | - | -10dB | 3.5dBi | - | Cable - 300mm | U.FL | - | - | - | Surface Mount | 0.004" (0.10mm) | WLAN |
|
RST-GS-P-51-SMA-HRFANT 890-960MHZ WHIP SMA 51MM |
0 |
|
Datasheet |
RST | Bulk | Active | - | UHF (300MHz ~ 1GHz) | 925MHz | 890MHz ~ 960MHz | Whip, Straight | 1 | 1.5 | - | 2dBi | 50 W | - | SMA Male | - | - | - | Connector Mount | 2.008" (51.00mm) | General Purpose |
|
|
FXP895.07.0200C868/915MHZ FLEX PCB ANTENNA WITH |
1 |
|
Datasheet |
- | Bag | Active | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - |
|
|
YF0006AAFLEX ANTENNA LTE 30MM UFL |
0 |
|
Datasheet |
- | Bag | Active | Cellular | Wide Band | 780MHz, 1.45GHz, 2.2GHz | 600MHz ~ 960MHz, 1.4GHz ~ 1.5GHz, 1.71GHz ~ 2.69GHz | Flat Patch | 3 | 4 | - | 3dBi, 3dBi, 3dBi | - | Cable - 30mm | U.FL | - | - | - | Adhesive | 0.005" (0.13mm) | LTE |
|
RST-MA11-109010-22M-GE-001RF ANT 868MHZ ISM BAND 115MM SM |
0 |
|
Datasheet |
RST | Bulk | Active | General ISM | UHF (300MHz ~ 1GHz) | 868MHz | 868MHz | Whip, Tilt | 1 | 2 | - | 2dBi ~ 3dBi | - | - | SMA Male | IP65 | - | - | Connector Mount | 4.291" (109.00mm) | ISM |
|
RST-W2B2-3208-23M-GE-001RF ANT 2.5GHZ WHIP RA MALE 28MM |
0 |
|
Datasheet |
RST | Bulk | Active | Bluetooth, WiFi | UHF (2GHz ~ 3GHz) | 2.4GHz | 2.4GHz | Whip, Right Angle | 1 | - | - | - | - | - | SMA Male | IP61 | - | - | Connector Mount | 1.280" (32.50mm) | Bluetooth, Wi-Fi |
|
DELTA1D/X/SMAM/S/S/34RF ANT 800/900MHZ WHIP STR 51MM |
0 |
|
Datasheet |
Delta 1D | Bulk | Active | Cellular | Wide Band | 800MHz, 900MHz, 1.8GHz, 1.9GHz, 2.1GHz | - | Whip, Straight | 5 | 2 | - | 2dBi | - | - | SMA Male | - | - | - | Connector Mount | 2.047" (52.00mm) | GSM |
|
ANT-2DIP2R-SMA2.4GHZ 2.5DBI HINGED WHIP ANTENN |
13 |
|
Datasheet |
- | Bag | Active | WiFi | UHF (2GHz ~ 3GHz) | 2.4415GHz | 2.4GHz ~ 2.483GHz | Whip, Tilt | 1 | 1.8 | - | 2.5dBi | - | - | SMA Male | - | - | - | Connector Mount | 4.331" (110.00mm) | Wi-Fi |
