Fixed Inductors
| Photo | Mfr. Part # | Availability | Quantity | Datasheet | Series | Package/Case | Packaging | Product Status | Type | Material - Core | Inductance | Tolerance | Current Rating (Amps) | Current - Saturation (Isat) | Shielding | DC Resistance (DCR) | Q @ Freq | Frequency - Self Resonant | Ratings | Operating Temperature | Inductance Frequency - Test | Features | Mounting Type | Supplier Device Package | Size / Dimension | Height - Seated (Max) |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|

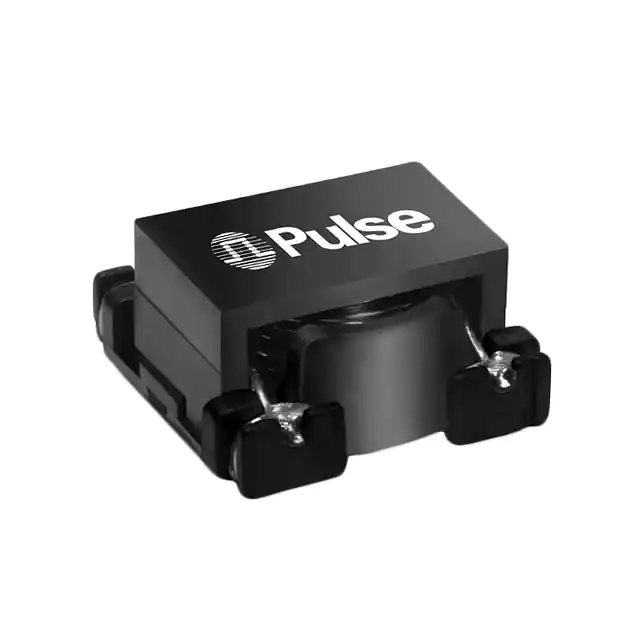

PD0120.113NLFIXED IND 12.2UH 7.6A 16MOHM SMD Pulse Electronics |
825 |
|
Datasheet |
PD0120NL | Nonstandard | Tray | Active | Wirewound | - | 12.2 µH | ±10% | 7.6 A | 9A | Unshielded | 16mOhm Max | - | - | - | -40°C ~ 125°C | - | - | Surface Mount | - | 0.638" L x 0.628" W (16.20mm x 15.95mm) | 0.323" (8.20mm) |
|
PE-53826SNLTFIXED IND 377UH 680MA 1 OHM SMD Pulse Electronics |
0 |
|
Datasheet |
- | Nonstandard | Tape & Reel (TR) | Active | Toroidal | - | 377 µH | ±20% | 680 mA | - | Shielded | 1Ohm | - | - | - | -40°C ~ 130°C | - | - | Surface Mount | - | 0.620" L x 0.600" W (15.75mm x 15.24mm) | 0.390" (9.91mm) |
|

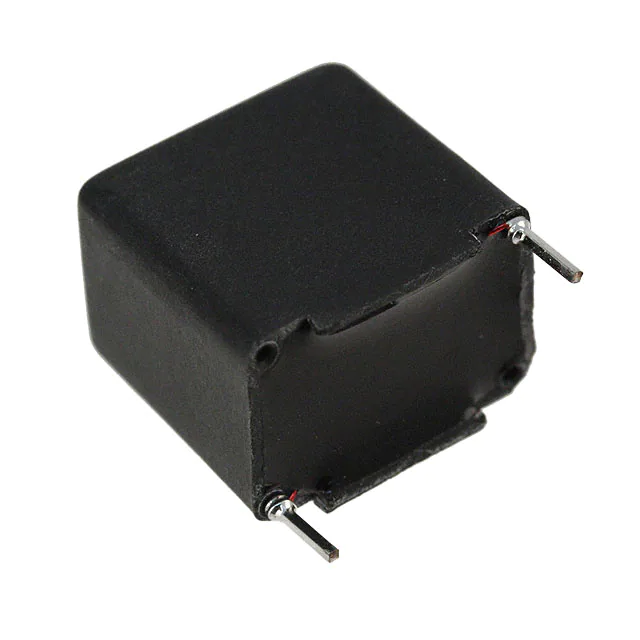

PE-52647NLFIXED IND 330UH 1A 780 MOHM TH Pulse Electronics |
2,145 |
|
Datasheet |
- | Radial, Vertical - Corner Terminals | Tube | Active | Toroidal | - | 330 µH | ±20% | 1 A | - | Unshielded | 780mOhm Max | - | - | - | -40°C ~ 130°C | 20 kHz | - | Through Hole | - | 0.710" L x 0.510" W (18.03mm x 12.95mm) | 0.710" (18.03mm) |
|

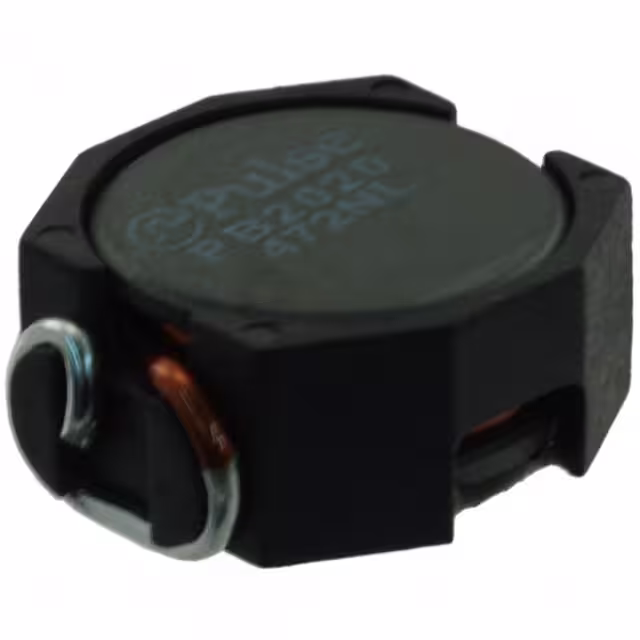

PB2020.472NLFIXED IND 4.7UH 16.8A 4.5MOHM SM Pulse Electronics |
957 |
|
Datasheet |
PB2020NL | Nonstandard | Tube | Active | Wirewound | - | 4.7 µH | ±20% | 16.8 A | 28A | Unshielded | 4.5mOhm Max | - | - | - | -40°C ~ 130°C | - | - | Surface Mount | - | 0.940" L x 0.820" W (23.87mm x 20.83mm) | 0.400" (10.16mm) |
|

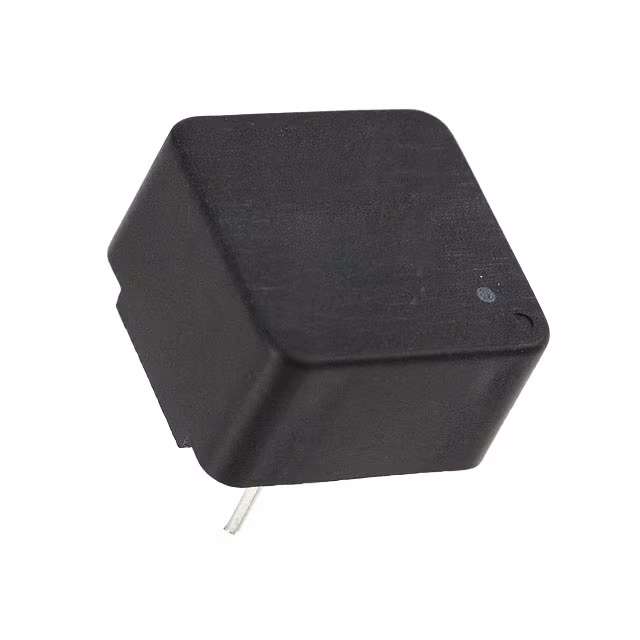

PE-52625NLFIXED IND 150UH 1.7A 420 MOHM TH Pulse Electronics |
108 |
|
Datasheet |
- | Radial, Horizontal - Corner Terminals | Tube | Active | Toroidal | - | 150 µH | ±20% | 1.7 A | - | Unshielded | 420mOhm Max | - | - | - | -40°C ~ 130°C | 20 kHz | - | Through Hole | - | 0.710" L x 0.710" W (18.03mm x 18.03mm) | 0.460" (11.68mm) |
|

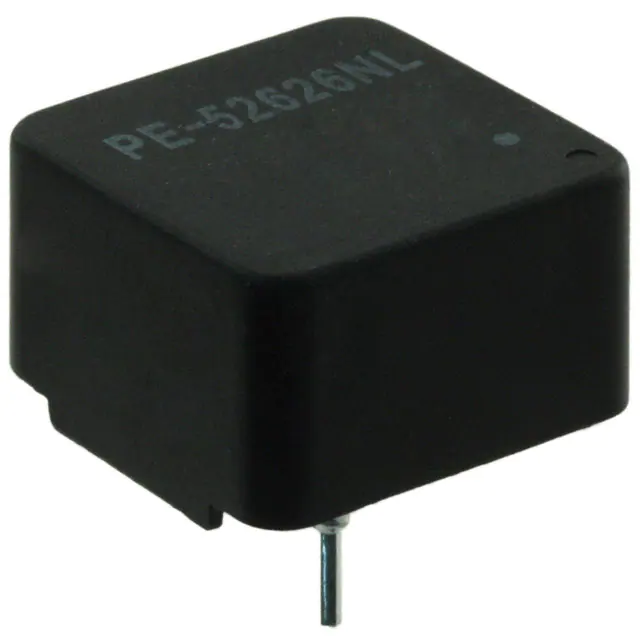

PE-52626NLFIXED IND 220UH 1.5A 420 MOHM TH Pulse Electronics |
1,251 |
|
Datasheet |
- | Radial, Horizontal - Corner Terminals | Tube | Active | Toroidal | - | 220 µH | ±20% | 1.5 A | - | Unshielded | 420mOhm Max | - | - | - | -40°C ~ 130°C | 20 kHz | - | Through Hole | - | 0.710" L x 0.710" W (18.03mm x 18.03mm) | 0.460" (11.68mm) |
|
PA4344.332NLTFIXED IND 3.3UH 28A 3.9 MOHM SMD Pulse Electronics |
510 |
|
Datasheet |
PA4344.XXXNLT | Nonstandard | Tape & Reel (TR) | Active | Molded | - | 3.3 µH | - | 28 A | 45A | Shielded | 3.9mOhm Max | - | - | AEC-Q200 | -40°C ~ 125°C | 100 kHz | - | Surface Mount | - | 0.697" L x 0.677" W (17.70mm x 17.20mm) | 0.276" (7.00mm) |
|
|
PA4344.473NLTFIXED IND 47UH 8.7A 55 MOHM SMD Pulse Electronics |
1,231 |
|
Datasheet |
PA4344.XXXNLT | Nonstandard | Tape & Reel (TR) | Active | Molded | - | 47 µH | - | 8.7 A | 9.5A | Shielded | 55mOhm Max | - | - | AEC-Q200 | -40°C ~ 125°C | 100 kHz | - | Surface Mount | - | 0.697" L x 0.677" W (17.70mm x 17.20mm) | 0.276" (7.00mm) |
|
|
PA4344.683NLTFIXED IND 68UH 7A 80 MOHM SMD Pulse Electronics |
197 |
|
Datasheet |
PA4344.XXXNLT | Nonstandard | Tape & Reel (TR) | Active | Molded | - | 68 µH | - | 7 A | 8A | Shielded | 80mOhm Max | - | - | AEC-Q200 | -40°C ~ 125°C | 100 kHz | - | Surface Mount | - | 0.697" L x 0.677" W (17.70mm x 17.20mm) | 0.276" (7.00mm) |
|

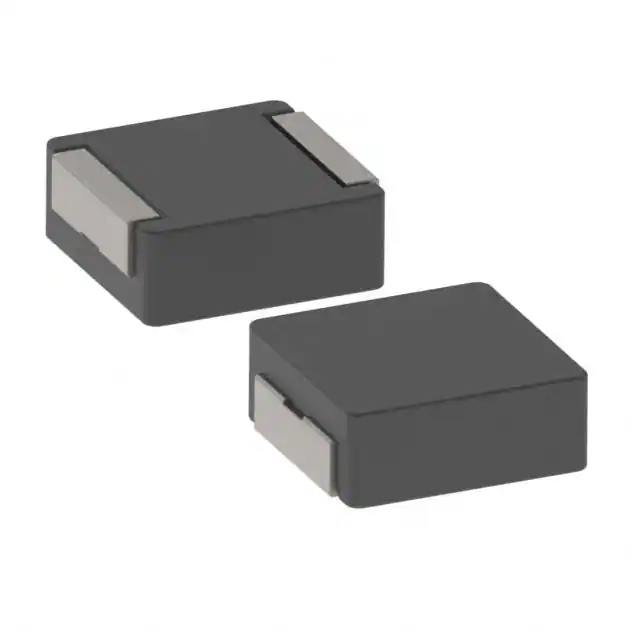

PM4344.104NLTFIXED IND 100UH 5.3A 118MOHM SMD Pulse Electronics |
2,707 |
|
Datasheet |
PM4344.XXXNLT | Nonstandard | Tape & Reel (TR) | Active | Molded | - | 100 µH | ±20% | 5.3 A | 6.5A | Shielded | 118mOhm Max | - | - | AEC-Q200 | -55°C ~ 125°C | 100 kHz | - | Surface Mount | - | 0.697" L x 0.677" W (17.70mm x 17.20mm) | 0.276" (7.00mm) |
