Fixed Inductors
| Photo | Mfr. Part # | Availability | Quantity | Datasheet | Series | Package/Case | Packaging | Product Status | Type | Material - Core | Inductance | Tolerance | Current Rating (Amps) | Current - Saturation (Isat) | Shielding | DC Resistance (DCR) | Q @ Freq | Frequency - Self Resonant | Ratings | Operating Temperature | Inductance Frequency - Test | Features | Mounting Type | Supplier Device Package | Size / Dimension | Height - Seated (Max) |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|

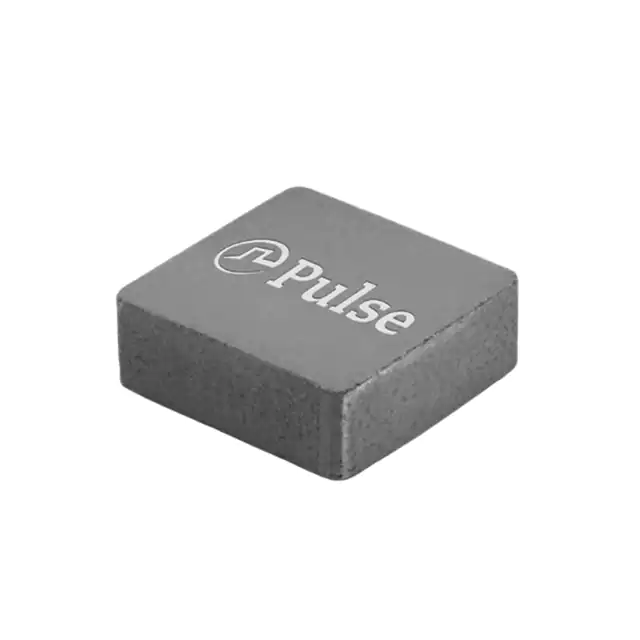

PM2201.102NLTFIXED IND 1UH 9.6A 14.6MOHM SMD Pulse Electronics |
2,671 |
|
Datasheet |
PM2201.XXXNLT | Nonstandard | Tape & Reel (TR) | Active | - | - | 1 µH | ±20% | 9.6 A | 9.6A | Unshielded | 14.6mOhm Max | - | - | AEC-Q200 | -55°C ~ 155°C | 100 kHz | - | Surface Mount | SMD | 0.161" L x 0.161" W (4.10mm x 4.10mm) | 0.083" (2.10mm) |
|

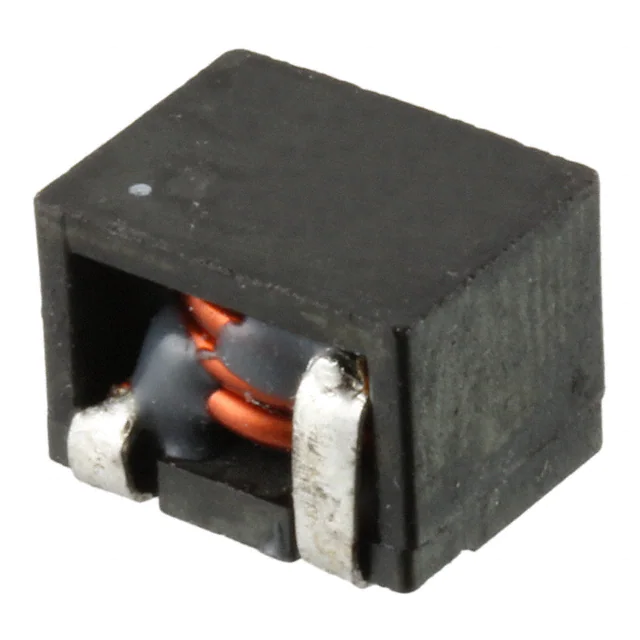

PG0702.682NLFIXED IND 6.8UH 8.5A 7.7MOHM SMD Pulse Electronics |
877 |
|
Datasheet |
PG0702NL | Nonstandard | Tray | Active | Wirewound | - | 6.8 µH | ±20% | 8.5 A | 8.5A | Shielded | 7.7mOhm | - | - | - | -40°C ~ 130°C | 100 kHz | - | Surface Mount | - | 0.425" L x 0.362" W (10.80mm x 9.20mm) | 0.315" (8.00mm) |
|

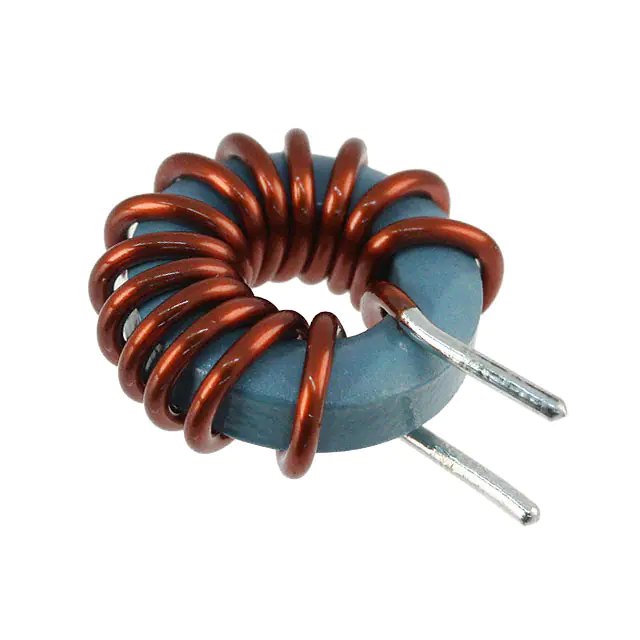

PA0431LNLFIXED IND 7.8UH 20.5A 5.5MOHM TH Pulse Electronics |
3,187 |
|
Datasheet |
Bare Coil | Radial, Vertical (Open) | Tray | Active | Toroidal | - | 7.8 µH | ±20% | 20.5 A | - | Unshielded | 5.5mOhm Max | - | - | - | -40°C ~ 130°C | - | - | Through Hole | - | 0.874" Dia x 0.374" W (22.20mm x 9.50mm) | - |
|

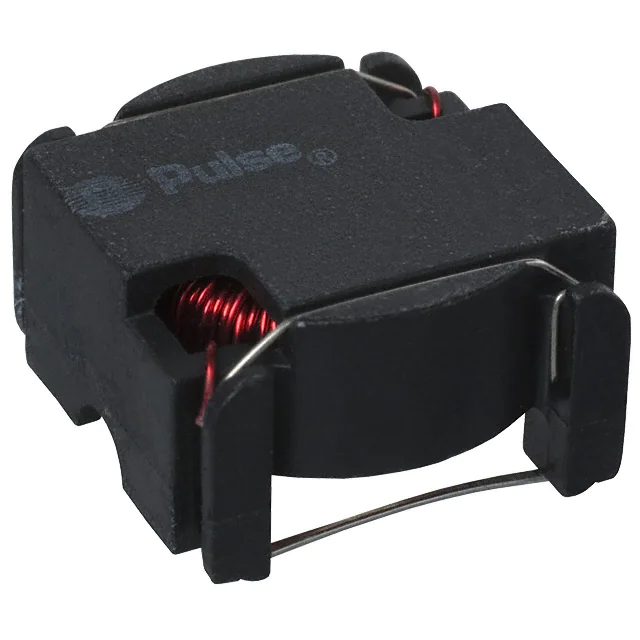

PE-53661NLFIXED IND 2.5UH 8A 8.3 MOHM SMD Pulse Electronics |
553 |
|
Datasheet |
SLIC | Nonstandard | Bulk | Active | Toroidal | - | 2.5 µH | - | 8 A | - | Unshielded | 8.3mOhm Max | - | - | - | -40°C ~ 130°C | - | - | Surface Mount | - | 0.570" L x 0.565" W (14.48mm x 14.35mm) | 0.360" (9.14mm) |
|
|
PM2205.332NLTFIXED IND 3.3UH 11A 12.5MOHM SMD Pulse Electronics |
2,665 |
|
Datasheet |
PM2205.XXXNLT | Nonstandard | Tape & Reel (TR) | Active | - | - | 3.3 µH | ±20% | 11 A | 12.5A | Shielded | 12.5mOhm Max | - | - | AEC-Q200 | -55°C ~ 155°C | 100 kHz | - | Surface Mount | SMD | 0.260" L x 0.252" W (6.60mm x 6.40mm) | 0.197" (5.00mm) |
|
PA4320.154NLTFIXED IND 150UH 2.3A 185MOHM SMD Pulse Electronics |
2,069 |
|
Datasheet |
PA4320 | Nonstandard | Tape & Reel (TR) | Active | Wirewound | - | 150 µH | ±20% | 2.3 A | 2.6A | Shielded | 185mOhm Max | - | - | - | -40°C ~ 125°C | 100 kHz | - | Surface Mount | - | 0.472" L x 0.472" W (12.00mm x 12.00mm) | 0.402" (10.20mm) |
|
|
PA4320.105NLTFIXED IND 1MH 1A 960 MOHM SMD Pulse Electronics |
486 |
|
Datasheet |
PA4320 | Nonstandard | Tape & Reel (TR) | Active | Wirewound | - | 1 mH | ±20% | 1 A | 980mA | Shielded | 960mOhm Max | - | - | - | -40°C ~ 125°C | 100 kHz | - | Surface Mount | - | 0.472" L x 0.472" W (12.00mm x 12.00mm) | 0.402" (10.20mm) |
|

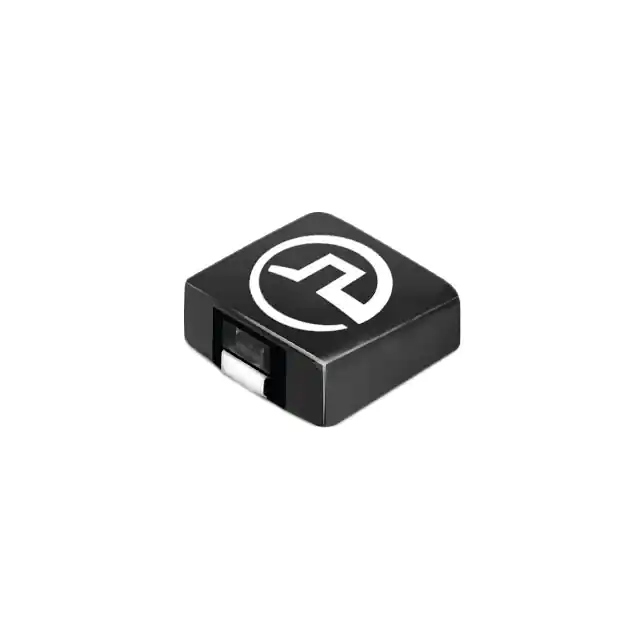

PG0426.681NLTFIXED IND 680NH 15.5A 5.4MOHM SM Pulse Electronics |
1,125 |
|
Datasheet |
PG0426NL | Nonstandard | Tape & Reel (TR) | Active | Wirewound | - | 680 nH | ±20% | 15.5 A | 25A | Shielded | 5.4mOhm Max | - | - | - | -40°C ~ 130°C | 100 kHz | - | Surface Mount | - | 0.295" L x 0.276" W (7.50mm x 7.00mm) | 0.126" (3.20mm) |
|
|
PA4320.334NLTFIXED IND 330UH 1.7A 340MOHM SMD Pulse Electronics |
4,511 |
|
Datasheet |
PA4320 | Nonstandard | Tape & Reel (TR) | Active | Wirewound | - | 330 µH | ±20% | 1.7 A | 1.7A | Shielded | 340mOhm Max | - | - | - | -40°C ~ 125°C | 100 kHz | - | Surface Mount | - | 0.472" L x 0.472" W (12.00mm x 12.00mm) | 0.402" (10.20mm) |
|
|
PA4320.473NLTFIXED IND 47UH 4.2A 56 MOHM SMD Pulse Electronics |
3,677 |
|
Datasheet |
PA4320 | Nonstandard | Tape & Reel (TR) | Active | Wirewound | - | 47 µH | ±20% | 4.2 A | 4.5A | Shielded | 56mOhm Max | - | - | - | -40°C ~ 125°C | 100 kHz | - | Surface Mount | - | 0.472" L x 0.472" W (12.00mm x 12.00mm) | 0.402" (10.20mm) |
