Fixed Inductors
| Photo | Mfr. Part # | Availability | Quantity | Datasheet | Series | Package/Case | Packaging | Product Status | Type | Material - Core | Inductance | Tolerance | Current Rating (Amps) | Current - Saturation (Isat) | Shielding | DC Resistance (DCR) | Q @ Freq | Frequency - Self Resonant | Ratings | Operating Temperature | Inductance Frequency - Test | Features | Mounting Type | Supplier Device Package | Size / Dimension | Height - Seated (Max) |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
PE-0603CDR12JTTFIXED IND 120NH 300MA 650MOHM SM Pulse Electronics |
0 |
|
Datasheet |
0603CD | 0603 (1608 Metric) | Tape & Reel (TR) | Obsolete | Drum Core, Wirewound | Ceramic | 120 nH | ±5% | 300 mA | - | Unshielded | 650mOhm Max | 32 @ 150MHz | 1.3GHz | - | -40°C ~ 125°C | 150 MHz | - | Surface Mount | 0603 (1608 Metric) | 0.071" L x 0.049" W (1.80mm x 1.24mm) | 0.040" (1.02mm) |
|
P1167.394NLTFIXED IND 390UH 320MA 1.57 OHM Pulse Electronics |
0 |
|
Datasheet |
P1167NL | Nonstandard | Tape & Reel (TR) | Active | Wirewound | - | 390 µH | ±20% | 320 mA | 320mA | Shielded | 1.57Ohm Max | - | 2.8MHz | - | -40°C ~ 130°C | 100 kHz | - | Surface Mount | - | 0.297" L x 0.297" W (7.54mm x 7.54mm) | 0.177" (4.50mm) |
|

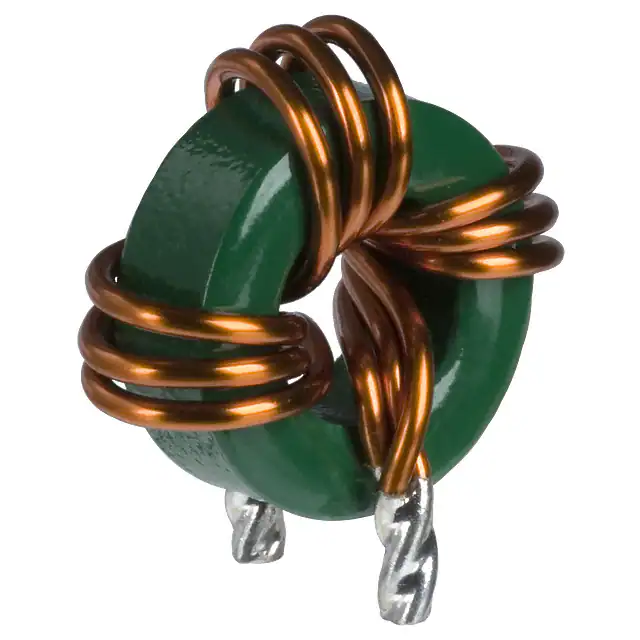

PG0122FIXED IND 480NH 30.5A 2 MOHM TH Pulse Electronics |
0 |
|
Datasheet |
Bare Coil | Radial, Vertical (Open) | Tray | Obsolete | Toroidal | - | 480 nH | - | 30.5 A | - | Unshielded | 2mOhm Max | - | - | - | -40°C ~ 130°C | - | - | Through Hole | - | 0.807" Dia x 0.374" W (20.50mm x 9.50mm) | - |
|

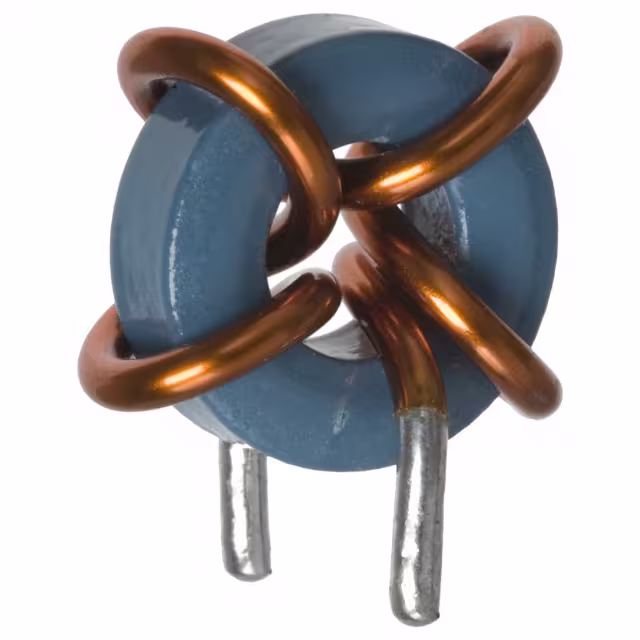

PA0690FIXED IND 880NH 22.5A 1.5MOHM TH Pulse Electronics |
0 |
|
Datasheet |
Bare Coil | Radial, Vertical (Open) | Tray | Obsolete | Toroidal | - | 880 nH | ±20% | 22.5 A | - | Unshielded | 1.5mOhm Max | - | - | - | -40°C ~ 130°C | - | - | Through Hole | - | 0.626" Dia x 0.346" W (15.90mm x 8.80mm) | - |
|

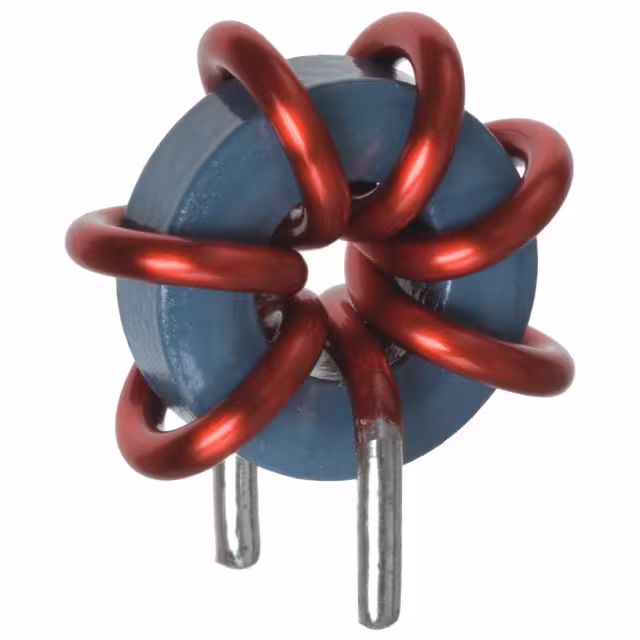

PA0689FIXED IND 1.7UH 21.5A 2 MOHM TH Pulse Electronics |
0 |
|
Datasheet |
Bare Coil | Radial, Vertical (Open) | Tray | Obsolete | Toroidal | - | 1.7 µH | ±20% | 21.5 A | - | Unshielded | 2mOhm Max | - | - | - | -40°C ~ 130°C | - | - | Through Hole | - | 0.626" Dia x 0.346" W (15.90mm x 8.80mm) | - |
|

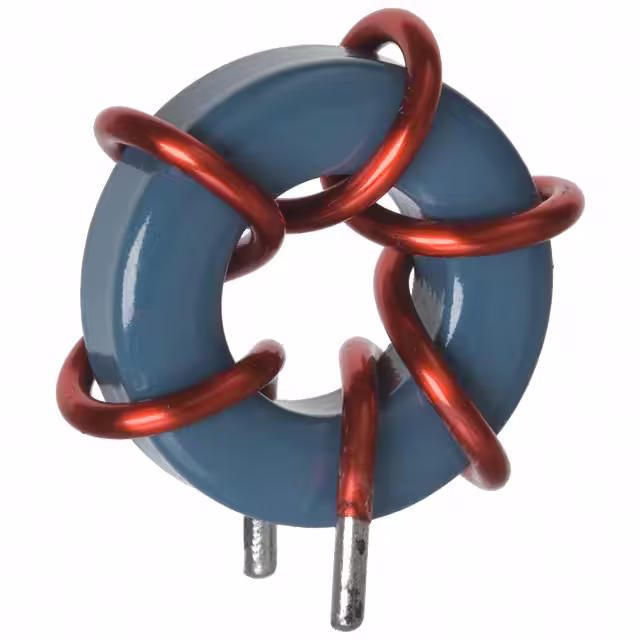

P1967LFIXED IND 1.44UH 23.8A 3.8 MOHM Pulse Electronics |
0 |
|
Datasheet |
Bare Coil | Radial, Vertical (Open) | Tray | Obsolete | Toroidal | - | 1.44 µH | ±20% | 23.8 A | - | Unshielded | 3.8mOhm Max | - | - | - | -40°C ~ 130°C | - | - | Through Hole | - | 0.906" Dia x 0.492" W (23.00mm x 12.50mm) | - |
|

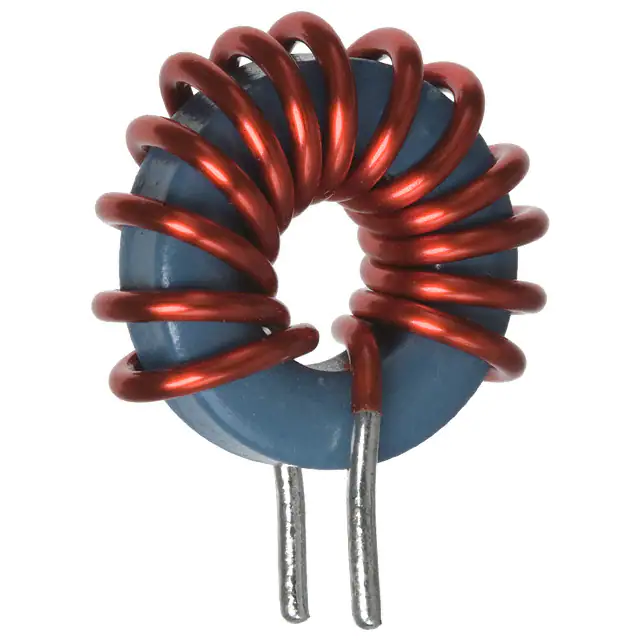

PA0431LFIXED IND 7.8UH 20.5A 5.5MOHM TH Pulse Electronics |
0 |
|
Datasheet |
Bare Coil | Radial, Vertical (Open) | Bag | Active | Toroidal | - | 7.8 µH | ±20% | 20.5 A | - | Unshielded | 5.5mOhm Max | - | - | - | -40°C ~ 130°C | - | - | Through Hole | - | 0.874" Dia x 0.374" W (22.20mm x 9.50mm) | - |
|
PE-53662FIXED IND 4.9UH 7.8A 12.4MOHM SM Pulse Electronics |
0 |
|
Datasheet |
SLIC | Nonstandard | Bulk | Obsolete | Toroidal | - | 4.9 µH | - | 7.8 A | - | Unshielded | 12.4mOhm Max | - | - | - | -40°C ~ 130°C | - | - | Surface Mount | - | 0.620" L x 0.600" W (15.75mm x 15.24mm) | 0.390" (9.91mm) |
|
PE-53651FIXED IND 5.1UH 5.4A 17.7MOHM SM Pulse Electronics |
0 |
|
Datasheet |
SLIC | Nonstandard | Bulk | Obsolete | Toroidal | - | 5.1 µH | - | 5.4 A | - | Unshielded | 17.7mOhm Max | - | - | - | -40°C ~ 130°C | - | - | Surface Mount | - | 0.570" L x 0.565" W (14.48mm x 14.35mm) | 0.360" (9.14mm) |
|
|
PE-53652FIXED IND 9UH 5.5A 28 MOHM SMD Pulse Electronics |
0 |
|
Datasheet |
SLIC | Nonstandard | Bulk | Obsolete | Toroidal | - | 9 µH | - | 5.5 A | - | Unshielded | 28mOhm Max | - | - | - | -40°C ~ 130°C | - | - | Surface Mount | - | 0.620" L x 0.600" W (15.75mm x 15.24mm) | 0.390" (9.91mm) |
