Fixed Inductors
| Photo | Mfr. Part # | Availability | Quantity | Datasheet | Series | Package/Case | Packaging | Product Status | Type | Material - Core | Inductance | Tolerance | Current Rating (Amps) | Current - Saturation (Isat) | Shielding | DC Resistance (DCR) | Q @ Freq | Frequency - Self Resonant | Ratings | Operating Temperature | Inductance Frequency - Test | Features | Mounting Type | Supplier Device Package | Size / Dimension | Height - Seated (Max) |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
AFDI00303012330M04INDUCTOR CHOKE Pulse Electronics |
0 |
|
Datasheet |
AFDI | Radial | Tape & Reel (TR) | Active | Drum Core, Wirewound | Metal | 33 µH | ±20% | 18 A | 18A | Shielded | 11.3mOhm Max | - | - | AEC-Q200 | -50°C ~ 155°C | 100 kHz | - | Through Hole | Radial | 1.181" L x 1.181" W (30.00mm x 30.00mm) | 0.500" (12.70mm) |
|
|
AFDI003030126R8M04INDUCTOR CHOKE Pulse Electronics |
0 |
|
Datasheet |
AFDI | Radial | Tape & Reel (TR) | Active | Drum Core, Wirewound | Metal | 6.8 µH | ±20% | 45 A | 44A | Shielded | 1.9mOhm Max | - | - | AEC-Q200 | -50°C ~ 155°C | 100 kHz | - | Through Hole | Radial | 1.181" L x 1.181" W (30.00mm x 30.00mm) | 0.500" (12.70mm) |
|
|
AFDI003030124R7M04INDUCTOR CHOKE Pulse Electronics |
0 |
|
Datasheet |
AFDI | Radial | Tape & Reel (TR) | Active | Drum Core, Wirewound | Metal | 4.7 µH | ±20% | 54 A | 53A | Shielded | 1.4mOhm Max | - | - | AEC-Q200 | -50°C ~ 155°C | 100 kHz | - | Through Hole | Radial | 1.181" L x 1.181" W (30.00mm x 30.00mm) | 0.500" (12.70mm) |
|
|
AFDI00303012680M04INDUCTOR CHOKE Pulse Electronics |
0 |
|
Datasheet |
AFDI | Radial, 3 Leads | Tape & Reel (TR) | Active | Drum Core, Wirewound | Metal | 68 µH | ±20% | 12 A | 11A | Shielded | 27mOhm Max | - | - | AEC-Q200 | -50°C ~ 155°C | 100 kHz | - | Through Hole | Radial - 3 Leads | 1.181" L x 1.181" W (30.00mm x 30.00mm) | 0.500" (12.70mm) |
|
|
AFDI00303012470M04INDUCTOR CHOKE Pulse Electronics |
0 |
|
Datasheet |
AFDI | Radial | Tape & Reel (TR) | Active | Drum Core, Wirewound | Metal | 47 µH | ±20% | 16 A | 16.2A | Shielded | 14.6mOhm Max | - | - | AEC-Q200 | -50°C ~ 155°C | 100 kHz | - | Through Hole | Radial | 1.181" L x 1.181" W (30.00mm x 30.00mm) | 0.500" (12.70mm) |
|
|
AFDI00303012100M04INDUCTOR CHOKE Pulse Electronics |
0 |
|
- |
AFDI | Radial | Tape & Reel (TR) | Active | Drum Core, Wirewound | Metal | 10 µH | ±20% | 34 A | 32A | Shielded | 3.6mOhm Max | - | - | AEC-Q200 | -50°C ~ 155°C | 100 kHz | - | Through Hole | Radial | 1.181" L x 1.181" W (30.00mm x 30.00mm) | 0.500" (12.70mm) |
|
|
AFDI00303012101M04INDUCTOR CHOKE Pulse Electronics |
0 |
|
Datasheet |
AFDI | Radial, 3 Leads | Tape & Reel (TR) | Active | Drum Core, Wirewound | Metal | 100 µH | ±20% | 11 A | 9A | Shielded | 32mOhm Max | - | - | AEC-Q200 | -50°C ~ 155°C | 100 kHz | - | Through Hole | Radial - 3 Leads | 1.181" L x 1.181" W (30.00mm x 30.00mm) | 0.500" (12.70mm) |
|
|
AFDI00303012121M04INDUCTOR CHOKE Pulse Electronics |
0 |
|
Datasheet |
AFDI | Radial, 3 Leads | Tape & Reel (TR) | Active | Drum Core, Wirewound | Metal | 120 µH | ±20% | 9 A | 8A | Shielded | 36mOhm Max | - | - | AEC-Q200 | -50°C ~ 155°C | 100 kHz | - | Through Hole | Radial - 3 Leads | 1.181" L x 1.181" W (30.00mm x 30.00mm) | 0.500" (12.70mm) |
|
PG0434.801NLTFIXED IND 800NH 35A 1.3 MOHM SMD Pulse Electronics |
0 |
|
Datasheet |
PG0434NL | Nonstandard | Tape & Reel (TR) | Active | Wirewound | - | 800 nH | ±20% | 35 A | 38A | Shielded | 1.3mOhm Max | - | - | - | -40°C ~ 130°C | 100 kHz | - | Surface Mount | - | 0.571" L x 0.512" W (14.50mm x 13.00mm) | 0.256" (6.50mm) |
|

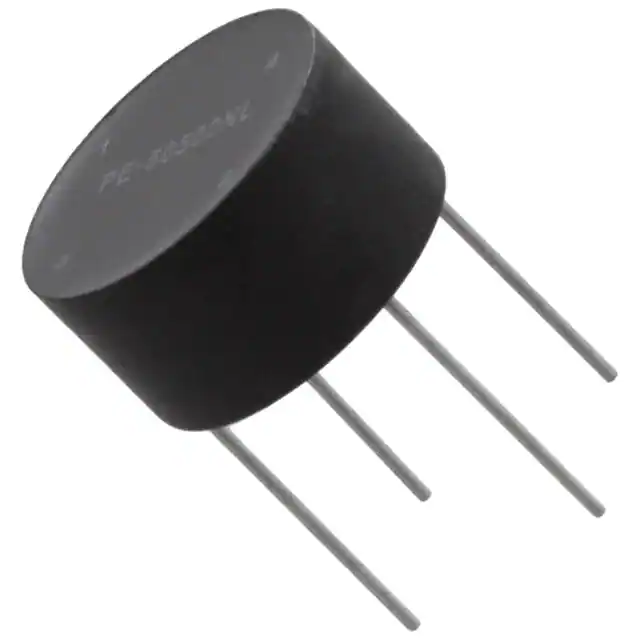

PE-50502NLFIXED IND 2MH 250MA 1.3 OHM TH Pulse Electronics |
0 |
|
Datasheet |
- | Radial, Vertical Cylinder, 4 Leads | Tube | Active | Toroidal | - | 2 mH | - | 250 mA | - | Unshielded | 1.3Ohm Max | - | - | - | -55°C ~ 70°C | 20 kHz | - | Through Hole | - | 0.754" Dia (19.15mm) | 0.400" (10.16mm) |
