RF Antennas
| Photo | Mfr. Part # | Availability | Quantity | Datasheet | Series | Packaging | Product Status | RF Family/Standard | Frequency Group | Frequency (Center/Band) | Frequency Range | Antenna Type | Number of Bands | VSWR | Return Loss | Gain | Power - Max | Features | Termination | Ingress Protection | Grade | Qualification | Mounting Type | Height (Max) | Applications |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
318020692LORA FIBERGLASS ANTENNA KIT; 863 |
141 |
|
Datasheet |
- | Bulk | Active | General ISM | UHF (300MHz ~ 1GHz) | 866.5MHz | 863MHz ~ 870MHz | Whip, Straight | 1 | 2.5 | - | 8dBi | - | Cable - 1m | N Type Male | - | - | - | Bracket Mount | 31.496" (800.00mm) | LoRa |
|
WA700/2700SMARF ANT MOLDED SMA MALE CHAS MT |
39 |
|
Datasheet |
- | Bulk | Active | Cellular | Wide Band | - | 700MHz ~ 960MHz, 1.71GHz ~ 1.99GHz, 2.11GHz ~ 2.17GHz, 2.5GHz ~ 2.7GHz | Molded | 4 | 2.5 | - | 2.5dBi, 3.5dBi | 2 W | Cable - 1m | SMA Male | - | - | - | Chassis Mount | 0.201" (5.10mm) | LTE |
|
LP406NMOBLACK NMO LOW PROFILE, UNITY, 40 |
26 |
|
Datasheet |
- | Bag | Active | - | UHF (300MHz ~ 1GHz) | 413MHz | 406MHz ~ 420MHz | Dome | 1 | - | - | 2dBi | 100 W | - | NMO | - | - | - | Panel Mount | 1.500" (38.10mm) | - |
|
AP-DIPOLE-NEXT-C-O-S6-F-GRANTENNA PLUS NEXT 5G OUTDOOR DIP |
31 |
|
Datasheet |
OMNIMAX® | Box | Active | Cellular | Wide Band | 617MHz, 850MHz, 1.45GHz, 1.75GHz, 1.95GHz, 2.25GHz, 2.45GHz, 3.7GHz, 5.5GHz | 600MHz ~ 6GHz | Whip, Straight | 9 | - | - | 1dBi, 1.8dBi, 1.5dBi, 0.8dBi, 3.2dBi, 4.3dBi, 3.8dBi, 4dBi, 3.5dBi | - | - | N Type Female | - | - | - | Connector Mount | 11.811" (300.00mm) | 2G, 3G, 4G, 5G, CDMA, DCS, GPRS, GSM, IoT, M2M, PCS |
|
GA.170.305111LTE MONSOON WITH 3000MM TGC-200 |
63 |
|
Datasheet |
- | Bag | Active | Cellular | Wide Band | 761MHz,869MHz, 920MHz, 1.795GHz, 1.92GHz, 2.045GHz, 2.59GHz | 698MHz ~ 824MHz, 824MHz ~ 894MHz, 880MHz ~ 960MHz, 1.71GHz ~ 1.88GHz, 1.85GHz ~ 1.99GHz, 1.92GHz ~ 2.17GHz, 2.49GHz ~ 2.69GHz | Dome | 7 | - | -3dB | 2.28dBi, 2.74dBi, 1.47dBi, 2.36dBi, 3.28dBi, 3.28dBi, 5.93dBi | - | Cable - 3m | SMA Male | IP69K | - | - | Panel Mount | 1.220" (31.00mm) | LTE |
|
KGU825UDON GLASS, UNITY, 806 - 896 MHZ, |
53 |
|
Datasheet |
- | Bag | Active | Cellular | UHF (300MHz ~ 1GHz) | 851MHz | 806MHz ~ 896MHz | Whip, Straight | 1 | 1.5 | - | 2dBi | 60 W | - | FME Female | - | - | - | Glass | 4.500" (114.30mm) | Cellular |
|

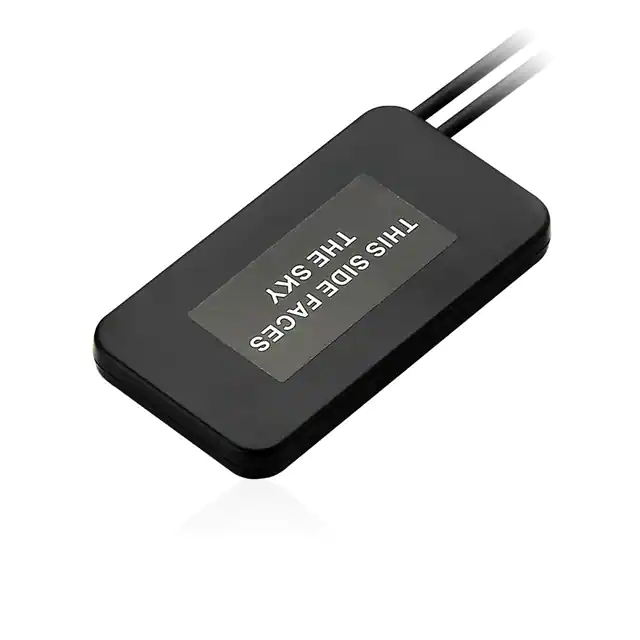

MA251.A.BI.001RF ANT 750MHZ/892MHZ MOD SMA ADH |
300 |
|
Datasheet |
- | Bag | Active | Cellular | Wide Band | 750MHz, 892MHz, 1.9GHz, 2.6GHz | 698MHz ~ 803MHz, 824MHz ~ 960MHz, 1.71GHz ~ 2.17GHz, 2.5GHz ~ 2.69GHz | Module | 5 | - | -6dB | 5.6dBi | 5 W | Cable - 2m | SMA Male | IP67 | - | - | Adhesive | 0.551" (14.00mm) | LTE |
|
AECR1808X4S-3000SRF ANT 4IN1 4X5G NR / 4G / LTE D |
30 |
|
Datasheet |
AECR | Bulk | Active | Cellular | UHF (3GHz ~ 4GHz) | 3.3GHz | 600MHz ~ 6GHz | Dome | 1 | 4 | - | 4dBi | 10 W | Cable - 3m | SMA Male (4) | IP67 | - | - | Screw Mount | 3.346" (85.00mm) | 4G, 5G, LTE |
|
NMOWB450CCOIL/STAINLESS WHIP, 3.5 DB, 450 |
48 |
|
Datasheet |
- | Bag | Active | - | UHF (300MHz ~ 1GHz) | 462.5MHz | 450MHz ~ 475MHz | Whip, Straight | 1 | - | - | 5.5dBi | 200 W | - | NMO | - | - | - | Magnetic | 35.500" (901.70mm) | - |
|

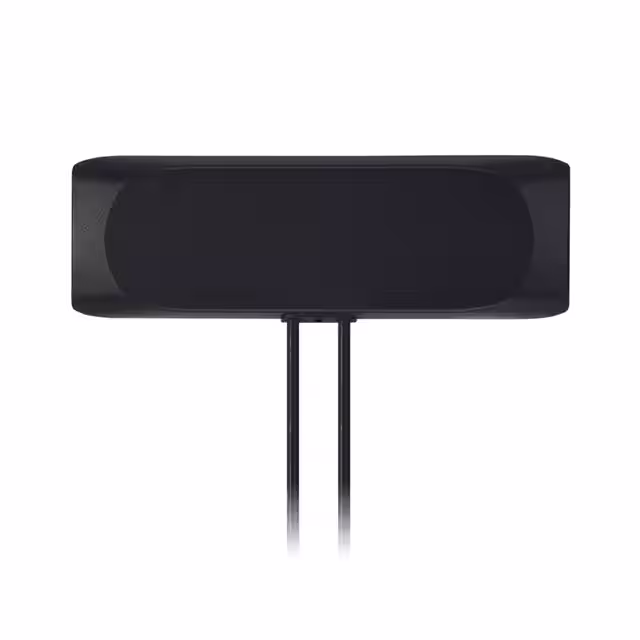

MA241.BI.001RF ANT 797MHZ/2.2GHZ FLAT BAR |
105 |
|
Datasheet |
Genesis | Bag | Active | Cellular | UHF (300MHz ~ 1GHz), UHF (2GHz ~ 3GHz) | 797MHz, 2.2GHz | 698MHz ~ 896MHz, 1.71GHz ~ 2.7GHz | Flat Bar | 2 | 3.5 | -10dB | 5.87dBi | - | - | SMA Male | IP67 | - | - | Adhesive | 0.488" (12.40mm) | LTE |
|
8171D-HRRF ANT 1.5845GHZ PUCK TNC FEM TH |
73 |
|
Datasheet |
- | Box | Active | Navigation | UHF (1GHz ~ 2GHz) | 1.5845GHz | 1.559GHz ~ 1.61GHz | Puck | 1 | - | - | 2dBic | - | - | TNC Female | IP67 | - | - | Through Hole | 0.827" (21.00mm) | Beidou, Galileo, GLONASS, GNSS, GPS |
|

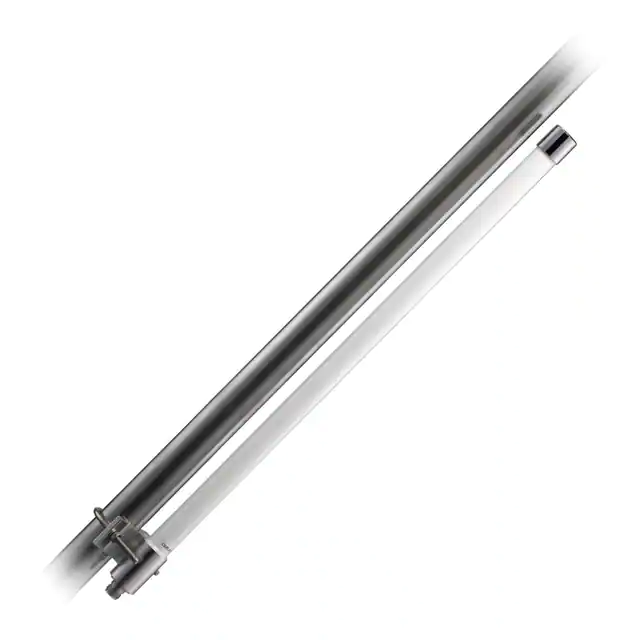

OMB.8912.03F21RF ANT 892MHZ/1.9GHZ WHIP STR N |
35 |
|
Datasheet |
- | Tube | Active | Cellular | UHF (300MHz ~ 1GHz), UHF (1GHz ~ 2GHz) | 892MHz, 1.9GHz | 824MHz ~ 960MHz, 1.71GHz ~ 2.17GHz | Whip, Straight | 2 | 2 | - | 2.13dBi, 4.89dBi | 50 W | - | N Type Female | - | - | - | Bracket Mount | 20.748" (527.00mm) | CDMA, GSM |
|

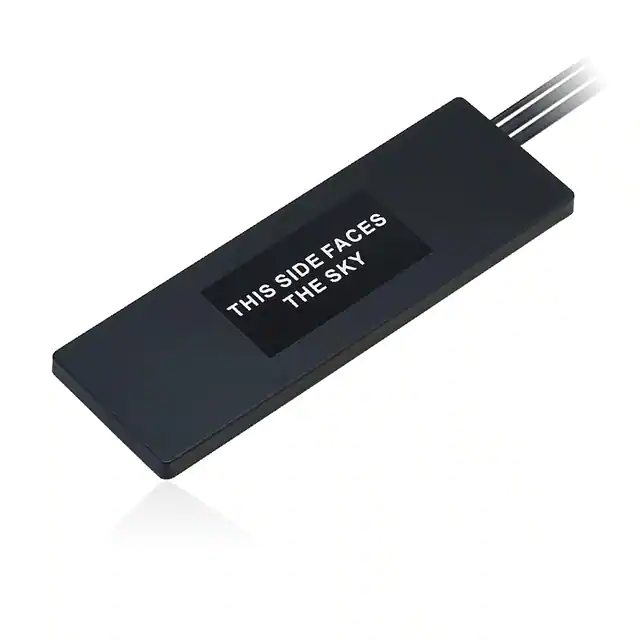

MA231.LBC.003RF ANT 830MHZ/1.575GHZ BAR 3M |
118 |
|
Datasheet |
Stream | Bag | Active | Navigation | Wide Band | 830MHz, 1.575GHz, 1.602GHz, 1.94GHz, 2.4GHz, 2.6GHz, 5.5GHz | 700MHz ~ 960MHz, 1.575GHz, 1.602GHz, 1.71GHz ~ 2.17GHz, 2.4GHz ~ 2.48GHz, 2.5GHz ~ 2.69GHz, 5.15GHz ~ 5.85GHz | Flat Bar | 6 | 3 | - | 2.9dBi | - | - | RP-SMA Male, SMA Male | IP67 | - | - | Adhesive | 0.354" (9.00mm) | Galileo, GLONASS, GPS |
|

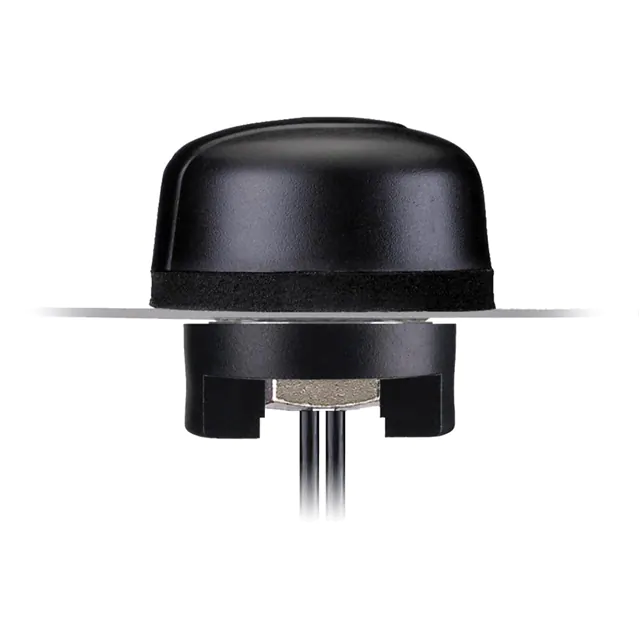

MA104.C.AB.015RF ANT 892MHZ/1.9GHZ DOME SMA ML |
121 |
|
Datasheet |
Hercules | Bag | Active | Cellular, Navigation | UHF (300MHz ~ 1GHz), UHF (1GHz ~ 2GHz) | 892MHz, 1.9GHz | 824MHz ~ 960MHz, 1.71GHz ~ 2.17GHz | Dome | 2 | 3.5 | -14dB, -25dB | 5dBi, 4dBi | 10 W | LNA, Filter | SMA Male | IP69K | - | - | Panel Mount | 1.122" (28.50mm) | GPS, GSM |
|

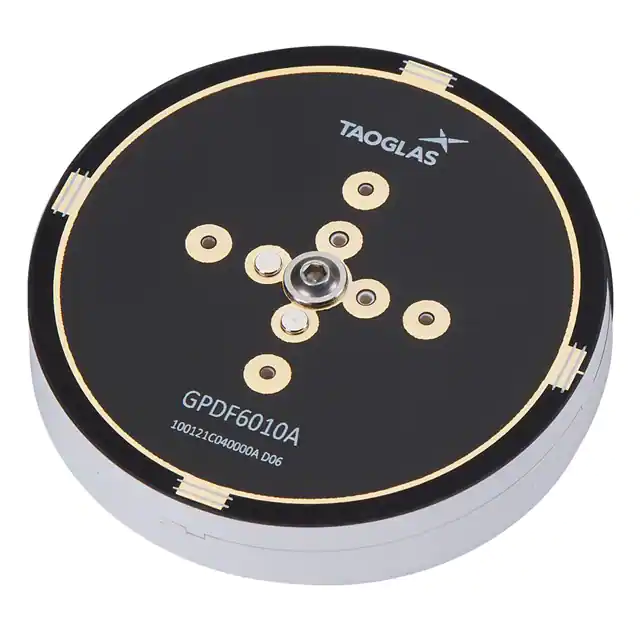

GPDF6010.ACIRCULAR TRIPLE BAND DUAL FEED S |
77 |
|
Datasheet |
- | Bulk | Active | Navigation | UHF (1GHz ~ 2GHz) | 1.17645GHz, 1.2276GHz, 1.278GHz, 1.525GHz, 1.561GHz, 1.57542GHz, 1.602GHz | - | Ceramic Patch | 7 | 1.5 | - | -1.5dBic, 1.8dBic, -1.5dBic, 2.6dBic, 4.2dBic, 4dBic, 2.7dBic | - | - | Solder | - | - | - | Surface Mount | 0.394" (10.00mm) | Beidou, Galileo, GLONASS, GNSS, GPS |
|
MAT.176A4-IN-1 5G MULTI-ANTENNA BOARD (6 |
42 |
|
- |
- | Bulk | Active | Cellular | Wide Band | 1.795GHz, 1.92GHz, 2.045GHz, 2.495GHz, 3.4GHz, 3.925GHz, 5.537GHz | 1.71GHz ~ 1.88GHz, 1.85GHz ~ 1.99GHz, 1.92GHz ~ 2.17GHz, 2.3GHz ~ 2.69GHz, 3.2GHz ~ 3.5GHz, 3.3GHz ~ 4.65GHz, 5.15GHz ~ 5.925GHz | PCB Trace | 7 | 3 | - | 6.37dBi, 6.3dBi, 5.89dBi, 5.29dBi, 3.59dBi, 5.79dBi, 6.34dBi | - | Cable - 100mm | I-PEX MHF4L | - | - | - | Surface Mount | 0.157" (4.00mm) | 5G, HSPA, HSPA+, LTE, WCDMA |
|
VFD69383W1NJN-518QANT LOW PROFILE 2-PORT SHARKFIN |
31 |
|
Datasheet |
- | Bulk | Active | Cellular, General ISM, Navigation | Wide Band | 752MHz, 859MHz, 920MHz, 1.561GHz, 1.575GHz, 1.602GHz, 1.785GHz, 1.92GHz, 2.045GHz, 2.4GHz, 2.6GHz, 3.55GHz | 698MHz ~ 806MHz, 824MHz ~ 894MHz, 880MHz ~ 960MHz, 1.559GHz ~ 1.606GHz, 1.69GHz ~ 1.88GHz, 1.85GHz ~ 1.99GHz, 1.91GHz ~ 2.18GHz, 2.3GHz ~ 2.5GHz, 2.5GHz ~ 2.7GHz, 3.3GHz ~ 3.8GHz | Dome | 12 | 2 | - | 0.9dBi, 1.7dBi, 1.9dBi, 3.7dBi, 4.7dBi, 5.6dBi, 4.3dBi, 3.8dBi, 3.8dBi, 5.1dBi, 5.5dBi, 7dBi | 10 W | Cable - 5.18m, LNA | SMA Male (2) | IP67 | - | - | Panel Mount | 1.890" (48.00mm) | 3G, 4G, 5G, Beidou, GLONASS, GNSS, GPS, ISM, LTE |
|
MFB4605RF ANT 465MHZ WHIP STR N TYPE |
54 |
|
Datasheet |
MFB | Tube | Active | General ISM | UHF (300MHz ~ 1GHz) | 465MHz | 460MHz ~ 470MHz | Whip, Straight | 1 | 1.5 | - | 5dB | 250 W | - | N Type Male | - | - | - | Pole Mount | 77.000" (195.58cm) | ISM, LoRa, LPWAN |
|
ARM52211DMRF ANT 829MHZ/1.582GHZ MOD PANEL |
28 |
|
Datasheet |
ARMADILLO | Bulk | Active | Cellular, Navigation, WiFi | Wide Band | 829MHz, 1.582GHz, 2.2GHz, 2.45GHz, 5.537GHz | 698MHz ~ 960MHz, 1.559GHz ~ 1.606GHz, 1.71GHz ~ 2.69GHz, 2.4GHz ~ 2.5GHz, 5.15GHz ~ 5.925GHz | Module | 5 | 2, 2.5 | - | 4.9dBi, 5.3dBi, 4.6dBi, 6.6dBi | - | Cable - 5.18m, LNA | SMA Male (3), RP-SMA Male (2) | IP67 | - | - | Panel Mount | 1.772" (45.00mm) | GPS, LTE, Wi-Fi |
|
GPS-TMG-HR-26NRF ANT 1.575GHZ DOME N TYP F POL |
39 |
|
Datasheet |
GPS-TMG-HR-26N | Bulk | Active | Navigation | UHF (1GHz ~ 2GHz) | 1.575GHz | 1.565GHz ~ 1.585GHz | Dome | 1 | 1.5 | - | 3.5dBic | - | LNA, Filter | N Type Female | - | - | - | Pole Mount | 4.961" (126.00mm) | GNSS, GPS |
