RF Antennas
| Photo | Mfr. Part # | Availability | Quantity | Datasheet | Series | Packaging | Product Status | RF Family/Standard | Frequency Group | Frequency (Center/Band) | Frequency Range | Antenna Type | Number of Bands | VSWR | Return Loss | Gain | Power - Max | Features | Termination | Ingress Protection | Grade | Qualification | Mounting Type | Height (Max) | Applications |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
MEA-1621-CM/100-00266-01Iridium connector Mount antenna |
5 |
|
Datasheet |
- | Tape & Box (TB) | Active | General ISM | UHF (1GHz ~ 2GHz) | 1.621GHz | 1.616GHz ~ 1.627GHz | Whip, Straight | 1 | 1.4 | -14.8dB | 2.5dBi | - | - | SMA Male | - | - | - | Connector Mount | 5.315" (135.00mm) | Iridium™ |
|
|
8117D-3M-RPTNC8117D GPS/GLONASS, 3M RG-174 SIZ |
0 |
|
Datasheet |
- | Bulk | Active | Navigation | UHF (1GHz ~ 2GHz) | 1.593GHz | 1.568GHz ~ 1.618GHz | Module | 1 | - | - | 3dBic | - | Cable - 3m, LNA, Filter | SMA Male | IP67 | - | - | Magnetic, Screw | 0.535" (13.60mm) | GLONASS, GNSS, GPS, QZSS |
|
|
8117D-2.2M-FAKRA-C8117D GPS/GLONASS, 2.2M RG-174 S |
0 |
|
Datasheet |
- | Bulk | Active | Navigation | UHF (1GHz ~ 2GHz) | 1.593GHz | 1.568GHz ~ 1.618GHz | Module | 1 | - | - | 3dBic | - | Cable - 2.2m, LNA, Filter | SMA Male | IP67 | - | - | Magnetic, Screw | 0.535" (13.60mm) | GLONASS, GNSS, GPS, QZSS |
|
GPSDM04BLACK GPS DIRECT MOUNT, 1575.4 M |
0 |
|
Datasheet |
- | Bag | Active | Navigation | UHF (1GHz ~ 2GHz) | 1.575GHz | - | Dome | 1 | - | - | 5dBi | - | Cable - 431.8mm, LNA | MMCX | - | - | - | Adhesive | 0.700" (17.78mm) | GPS |
|
|
LCANLP10115725-5850 MHZ, 16 DBI, GAIN, V-P |
0 |
|
- |
LCAN | Bag | Active | Cellular, WiFi | SHF (f > 4GHz) | 5.787GHz | 5.725GHz ~ 5.85GHz | Log Periodic | 1 | 1.5 | - | 16.5dBi | 100 W | Cable - 231.14mm | N Type Female | - | - | - | Bracket Mount | 15.800" (401.32mm) | 5G, 802.11a/n/ac/ah/ax, CMDA, IoT, LoRa, LTE, M2M, NB-IoT, Wi-Fi, WLAN |
|
|
HG132PSGI-NMOANT 2 DBI POLY SPRING VEHICULAR |
0 |
|
- |
HG | Bag | Active | General ISM | VHF (f < 300MHz) | 153MHz | 132MHz ~ 174MHz | Whip, Straight | 1 | 2 | - | 2dBi | 150 W | - | NMO | - | - | - | Connector Mount | 0.193" (4.90mm) | General Purpose |
|
|
TRAB41038UMANT PHANTOM NMO 410-430MHZ BK |
0 |
|
- |
Phantom® | Bulk | Active | - | UHF (300MHz ~ 1GHz) | 417.5MHz | 410MHz ~ 425MHz | Dome | 1 | - | - | 3dBi | 150 W | - | NMO | - | - | - | Base Mount | 3.400" (86.36mm) | - |
|
|
TRAB47038UMANT OMNI PH MNO 470-490MHZ BK |
0 |
|
- |
Phantom® | Bulk | Active | - | UHF (300MHz ~ 1GHz) | 480MHz | 470MHz ~ 490MHz | Dome | 1 | - | - | 3dBi | 150 W | - | NMO | - | - | - | Base Mount | 3.400" (86.36mm) | - |
|
|
TRAB80638UMANT PHANTOM SB 806-866MHZ BLACK |
0 |
|
- |
Phantom® | Bulk | Active | - | UHF (300MHz ~ 1GHz) | 836MHz | 806MHz ~ 866MHz | Dome | 1 | - | - | 3dBi | 150 W | - | NMO | - | - | - | Base Mount | 2.700" (68.58mm) | - |
|
|
ANT-GNRM-L15A-5ANTENNA, REMOTE ACTIVE CERAMIC P |
0 |
|
Datasheet |
GNRM | Bag | Active | Navigation | UHF (1GHz ~ 2GHz) | 1.176GHz, 1.561GHz, 1.575GHz, 1.6015GHz | 1.202GHz ~ 1.207GHz, 1.246GHz ~ 1.248GHz, 1.601GHz ~ 1.602GHz | Module | 4 | 1.2, 1.3 | -16.6dB, -18.4dB, -22.7dB | 28.9dBi, 27.2dBi, 30.5dBi, 30.5dBi | - | Cable - 5m, LNA | SMA Male | - | - | - | Magnetic | 0.642" (16.30mm) | Beidou, Galileo, GLONASS, GNSS, GPS |
|
TANGO41/5M/SMAM/S/S/33RF ANT 829MHZ/1.94GHZ WHIP STR |
0 |
|
Datasheet |
TANGO 41 | Bulk | Active | WiFi | Wide Band | 829MHz, 1.94GHz, 2.5GHz | 698MHz ~ 960MHz, 1.71GHz ~ 2.17GHz, 2.3GHz ~ 2.7GHz | Whip, Straight | 3 | 3 | - | - | - | - | SMA Male | - | - | - | Panel Mount | 3.067" (77.90mm) | WLAN |
|
|
OD617-6000M2NFANT DAS OMNI 4G LTE 5G CBRS MIMO |
0 |
|
Datasheet |
- | Box | Active | Cellular | Wide Band | 711.5MHz, 883MHz, 1.45GHz, 2.195GHz, 3.55GHz, 5.45GHz | 617MHz ~ 806MHz, 806MHz ~ 960MHz, 1.35GHz ~ 1.55GHz, 1.69GHz ~ 2.7GHz, 3.3GHz ~ 3.8GHz, 4.9GHz ~ 6GHz | Module | 6 | 1.8 | - | 1.5dBi, 2.2dBi, 3.5dBi, 4.5dBi, 6dBi, 6dBi | 50 W | Cable - 300mm | N Type Female | IP50 | - | - | Through Hole | 0.709" (18.00mm) | 4G, 5G |
|
|
WV-COVDB2458-17COVERT DUAL BAND WI-FI QMA GLASS |
0 |
|
Datasheet |
- | Bulk | Active | Bluetooth, General ISM, WiFi | Wide Band | 2.4GHz, 5.445GHz | 2.3GHz ~ 2.5GHz, 4.9GHz ~ 5.99GHz | Module | 2 | 2 | - | 6dBi, 3.5dBi | 10 W | Cable - 914.4mm | RP-SMA Male | IP67 | - | - | Bracket Mount | 0.170" (4.32mm) | Bluetooth, DSRC, IoT, Wi-Fi |
|
|
FMMARGPS1000ANTENNA SMA1.57242 MHZ-1.57842 G |
0 |
|
Datasheet |
- | Bag | Active | Navigation | UHF (1GHz ~ 2GHz) | 1.575GHz | 1.572GHz ~ 1.578GHz | Module | 1 | 1.5 | - | 28dBi | 5 W | Cable - 10m | SMA | - | - | - | Connector Mount | 5.120" (130.05mm) | GPS |
|

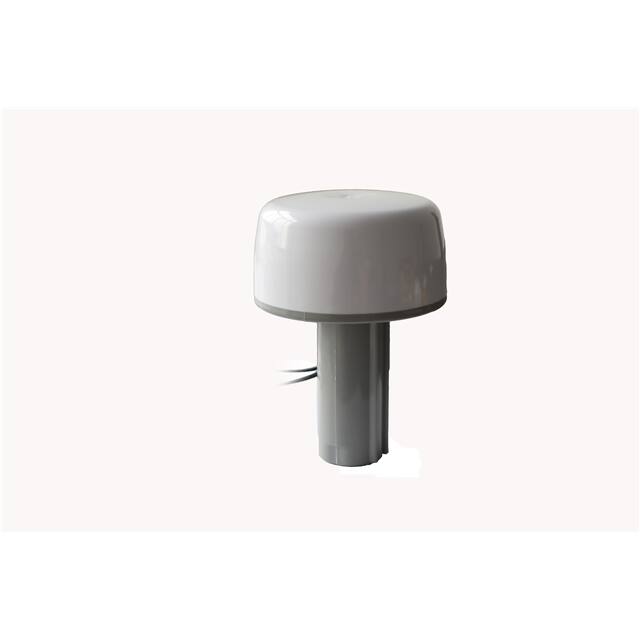

AN_GPS_GSM_0052 COMBO ANTENNA SCREW Mount |
5 |
|
Datasheet |
- | Bulk | Active | Cellular, Navigation | Wide Band | 829MHz, 1.575GHz, 1.94GHz, 2.44GHz | 698MHz ~ 960MHz, 1.572GHz ~ 1.578GHz, 1.71GHz ~ 2.17GHz, 2.4GHz ~ 2.4835GHz | Dome | 3 | 1.5, 2 | - | 2dBi, 5dBic | - | Cable - 5m, LNA | SMA Male (2) | IP67 | - | - | Screw Mount | 2.020" (51.30mm) | 4G, GPS, GSM, LTE |
|
|
NMO2/70SHANT SPG COIL-WHP ENC UTY 144-1 |
0 |
|
Datasheet |
- | Bag | Active | - | VHF (f < 300MHz), UHF (300MHz ~ 1GHz) | 146MHz, 445MHz | 144MHz ~ 148MHz, 440MHz ~ 450MHz | Whip, Straight | 2 | - | -10dB | 2.14dBi, 4dBi | 200 W | - | NMO | - | - | - | Magnetic | 19.000" (482.60mm) | - |
|
|
FM51GPS1004ANTENNA SMA PLUG 1.575 MHZ-1.615 |
0 |
|
Datasheet |
- | Bag | Active | Navigation | UHF (1GHz ~ 2GHz) | 1.595GHz | 1.575GHz ~ 1.615GHz | Module | 1 | 2 | - | 30dBi | - | Cable - 5m | SMA | - | - | - | Magnetic | 0.600" (15.24mm) | GNSS, GPS |
|
|
GD5W-29FEEDFEED,WB,LRG,WIRE GRID |
0 |
|
- |
* | Bulk | Active | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - |
|
|
NMO34CANTENNA COIL-WHP UTY 34-40 MHZ |
0 |
|
Datasheet |
- | Bag | Active | - | VHF (f < 300MHz) | 37MHz | 34MHz ~ 40MHz | Whip, Straight | 1 | - | -10dB | 2dBi | 150 W | - | NMO | - | - | - | Magnetic | 57.500" (146.05cm) | General Purpose |
|
WRL-14868915MHZ LORA FIBERGLASS ANTENNA T |
0 |
|
Datasheet |
- | Bulk | Obsolete | - | UHF (300MHz ~ 1GHz) | 915MHz | - | Whip, Straight | 1 | - | - | 6dBi | - | - | N Type Male | - | - | - | Connector Mount | 15.748" (400.00mm) | General Purpose |
