RF Antennas
| Photo | Mfr. Part # | Availability | Quantity | Datasheet | Series | Packaging | Product Status | RF Family/Standard | Frequency Group | Frequency (Center/Band) | Frequency Range | Antenna Type | Number of Bands | VSWR | Return Loss | Gain | Power - Max | Features | Termination | Ingress Protection | Grade | Qualification | Mounting Type | Height (Max) | Applications |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
4-2042986-1RF ANT 2.4GHZ/5.5GHZ WHIP TILT |
0 |
|
Datasheet |
- | Bulk | Active | WiFi | UHF (2GHz ~ 3GHz), SHF (f > 4GHz) | 2.4GHz, 5.5GHz | 2.4GHz ~ 2.5GHz, 5.15GHz ~ 5.875GHz | Whip, Tilt | 2 | 2 | -10dB | 4dBi | - | Cable - 190mm | - | - | - | - | Connector Mount | 3.150" (80.00mm) | WLAN |
|
|
PCTCN8090CHROME NUT ANTENNAS |
0 |
|
Datasheet |
PCTCN | Bag | Active | - | UHF (300MHz ~ 1GHz) | 883MHz | 806MHz ~ 960MHz | Whip, Straight | 1 | 2 | - | 1dBi | 150 W | - | - | - | - | - | Magnetic | 3.000" (76.20mm) | - |
|
|
PCTCN1620CHROME NUT ANTENNAS |
0 |
|
Datasheet |
PCTCN | Bag | Active | - | VHF (f < 300MHz) | 168MHz | 162MHz ~ 174MHz | Whip, Straight | 1 | 2 | - | 1dBi | 150 W | - | - | - | - | - | Magnetic | 18.000" (457.20mm) | - |
|
|
PCTCN4750CHROME NUT ANTENNAS |
0 |
|
Datasheet |
PCTCN | Bag | Active | - | UHF (300MHz ~ 1GHz) | 491MHz | 470MHz ~ 512MHz | Whip, Straight | 1 | 2 | - | 1dBi | 150 W | - | - | - | - | - | Magnetic | 5.600" (142.24mm) | - |
|
|
PCTCN3840CHROME NUT ANTENNAS |
0 |
|
Datasheet |
PCTCN | Bag | Active | - | UHF (300MHz ~ 1GHz) | 405MHz | 380MHz ~ 430MHz | Whip, Straight | 1 | 2 | - | 1dBi | 150 W | - | - | - | - | - | Magnetic | 7.380" (187.45mm) | - |
|
|
ANT-433-CW-RCS-SMA433MHZ RCS SERIES REDUCED HEIGHT |
0 |
|
- |
- | Bulk | Active | General ISM | UHF (300MHz ~ 1GHz) | 432.5MHz | 425MHz ~ 440MHz | Whip, Right Angle | 1 | 2 | - | -2.9dBi | - | - | SMA | - | - | - | Connector Mount | 2.110" (53.59mm) | General Purpose |
|
|
ST0443-10-N01-BRF ANTENNA EMBEDDED NB-IOT LTE |
0 |
|
Datasheet |
- | Tape & Reel (TR) | Active | Cellular | Wide Band | 788.5MHz, 1.94GHz, 2.495GHz, 4.15GHz, 5.537GHz | 617MHz ~ 960MHz, 1.71GHz ~ 2.17GHz, 2.3GHz ~ 2.69GHz, 3.3GHz ~ 5GHz, 5.15GHz ~ 5.925GHz | Chip | 5 | - | -4dB | 2.5dBi, 4.7dBi, 4.3dBi, 5.5dBi, 3.8dBi | 5 W | - | Solder | - | - | - | Surface Mount | 0.236" (6.00mm) | 5G |
|

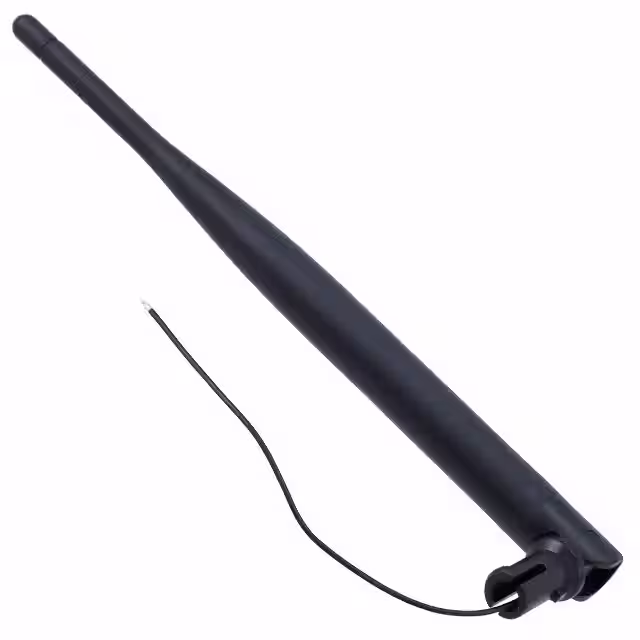

RFDPA171310NNAB3G1RF ANT 2.4GHZ WHIP/TILT CONN MT |
0 |
|
Datasheet |
- | Bulk | Active | - | UHF (2GHz ~ 3GHz) | 2.4GHz | 2.4GHz ~ 2.5GHz | Whip, Tilt | 1 | 2 | -10dB | 3dBi | - | Cable - 100mm | - | - | - | - | Connector Mount | 6.791" (172.50mm) | - |
|
APAMP-107RF ANT 1.575GHZ MOD SMA MALE ADH |
0 |
|
Datasheet |
APAMP | Bulk | Active | Navigation | UHF (1GHz ~ 2GHz) | 1.575GHz | 1.574GHz ~ 1.576GHz | Module | 1 | 1.5 | -26dB | 5dBic | - | - | SMA Male | - | - | - | Adhesive | 0.598" (15.20mm) | GPS |
|
RN-SMA-RARF ANT 2.4GHZ WHP RA SMA ML 2.5" |
0 |
|
Datasheet |
- | Bulk | Obsolete | - | UHF (2GHz ~ 3GHz) | 2.4GHz | 2.2GHz ~ 2.7GHz | Whip, Right Angle | 1 | 1.9 | - | -1.2dBi | - | - | SMA Male | - | - | - | Connector Mount | 2.106" (53.50mm) | - |
|
|
OPT1-ANT-GNS-20OPT1-ANT-GNS-20 |
0 |
|
Datasheet |
- | Bulk | Active | Navigation | UHF (1GHz ~ 2GHz) | 1.588GHz | 1.575GHz ~ 1.602GHz | Module | 1 | 2 | - | 0.8dBi | - | Cable - 2m, LNA | SMA Male | IP66 | - | - | Magnetic | 0.511" (12.99mm) | GLONASS, GNSS, GPS |
|
|
YEMN013AAYEMN013AA |
0 |
|
- |
- | Retail Package | Active | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - |
|
|
2J0B15-915-C884GDEBA 915/SIGFOX/LORA/LPWA/RFID/I |
0 |
|
Datasheet |
- | Active | General ISM | UHF (300MHz ~ 1GHz) | 915MHz | 902MHz ~ 928MHz | Whip, Tilt | 1 | 1.6 | -12.3dB | 3dBi | 25 W | - | SMA Male | - | - | - | Connector Mount | 1.732" (44.00mm) | ISM, LoRa, Sigfox, Zigbee™ | |
|
|
AREC0ANTENNAS |
0 |
|
- |
- | Bulk | Active | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - |
|
|
HG5158-03PU-100IPEXANT PCB 5200-5800MHZ 2/3DBI IPEX |
0 |
|
- |
HG | Bag | Active | WiFi | SHF (f > 4GHz) | 5.5GHz | 5.15GHz ~ 5.85GHz | PCB Trace | 1 | 2 | - | 3dBi | - | Cable - 305mm, Cable - 1.524m, Cable - 3.048m, Cable - 7.62m | I-PEX | - | - | - | Connector Mount | - | WLAN |
|
|
2J0B24-C885GDEBA 4GLTE/3G/2G SMA |
0 |
|
Datasheet |
- | Active | Cellular | Wide Band | 829MHz, 1.94GHz, 2.6GHz | 698MHz ~ 960MHz, 1.71GHz ~ 2.17GHz, 2.5GHz ~ 2.7GHz | Whip, Straight | 3 | 2, 3.8, 7.5 | -11.4dB, -4.9dB, -2.3dB | 1.2dBi, 3.7dBi, -6.3dBi | 25 W | - | SMA Male | - | - | - | Connector Mount | 1.890" (48.00mm) | 2G, 3G, 4G, CDMA, DCS, EVDO, GPRS, GSM, HSPA, LTE, PCS, UMTS, WCDMA | |
|
|
2J0A02-5.0-C166GDEBA WIFI/BT 5.0 SMA RP |
10 |
|
Datasheet |
- | Bag | Active | General ISM, WiFi | SHF (f > 4GHz) | 5.422GHz | 4.92GHz ~ 5.925GHz | Whip, Straight | 1 | 1.6 | -12.7dB | 5.3dBi | 25 W | - | RP-SMA Male | - | - | - | Connector Mount | 1.732" (44.00mm) | ISM, Wi-Fi |
|
X9001376-4GDRMWANTENNA, WHIP PENLT SMA STRAIGHT |
0 |
|
Datasheet |
- | Box | Active | 802.15.4, Cellular | UHF (300MHz ~ 1GHz), UHF (2GHz ~ 3GHz) | 875MHz, 2.2GHz | 790MHz ~ 960MHz, 1.71GHz ~ 2.69GHz | Whip, Straight | 2 | - | -3dB, -7.33dB | 1.16dBi, 2.5dBi | - | - | RP-SMA | IP67 | - | - | Connector Mount | 7.087" (180.00mm) | LTE, LoRa, LPWAN, Sigfox |
|
ANT-B8-PW-QWRF ANT LTE B8 WHIP STR CAB PAN |
0 |
|
Datasheet |
PW | Bag | Active | Cellular | UHF (300MHz ~ 1GHz) | 920MHz | 870MHz ~ 960MHz | Whip, Straight | 1 | 2 | - | 1.6dBi | 10 W | Cable - 216mm, O-Ring Compatible | Solder | - | - | - | Panel Mount | 3.555" (90.30mm) | Cellular, GSM, LTE, NB-IoT, UMTS |
|
ANT-B13-PW-QWRF ANT LTE B13 WHIP STR CAB PAN |
0 |
|
Datasheet |
PW | Bag | Active | Cellular | UHF (300MHz ~ 1GHz) | 765MHz | 740MHz ~ 790MHz | Whip, Straight | 1 | 1.9 | - | 1.7dBi | 10 W | Cable - 216mm, O-Ring Compatible | Solder | - | - | - | Panel Mount | 3.874" (98.40mm) | Cellular, LTE, NB-IoT, UMTS |
