RF Antennas
| Photo | Mfr. Part # | Availability | Quantity | Datasheet | Series | Packaging | Product Status | RF Family/Standard | Frequency Group | Frequency (Center/Band) | Frequency Range | Antenna Type | Number of Bands | VSWR | Return Loss | Gain | Power - Max | Features | Termination | Ingress Protection | Grade | Qualification | Mounting Type | Height (Max) | Applications |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
0479500001RF ANT 2.4/5GHZ PCB TRC CAB .34" |
0 |
|
Datasheet |
47950 | Tray | Obsolete | 802.15.4, Bluetooth, WiFi | UHF (2GHz ~ 3GHz), SHF (f > 4GHz) | 2.4GHz, 5GHz | 2.4GHz ~ 2.483.5GHz, 4.8GHz ~ 5.9GHz | PCB Trace | 2 | - | -10dB, -9dB | 3dBi, 4.6dBi | 2 W | Cable - 100mm | SMT Male | - | - | - | Adhesive | 0.004" (0.10mm) | Bluetooth, WLAN, Zigbee™ |
|
YFGC225WWAINT,GPS&GNSS,CERAMIC,-,NA,1559-1 |
0 |
|
- |
- | Bulk | Active | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - |
|
|
2118309-8DUAL BAND WIFI, 2.4 & 5GHZ, PCB |
0 |
|
- |
- | Bag | Active | 802.15.4, Bluetooth, WiFi | UHF (2GHz ~ 3GHz), SHF (f > 4GHz) | 2.44GHz, 5.387GHz | 2.4GHz ~ 2.483GHz, 4.9GHz ~ 5.875GHz | PCB Trace | 2 | 2 | - | 3.7dBi, 3.7dBi | 3 W | Cable - 60.96mm | MHF4L | - | - | - | Adhesive | 0.039" (1.00mm) | 802.11a/b/g/n/ac/ad, Bluetooth, Wi-Fi, WLAN, Zigbee™ |
|
PRO-OB-585ONBOARD SMD GSM/NB-IOT |
0 |
|
Datasheet |
Embedded Antenna | Tape & Reel (TR) | Obsolete | Cellular | UHF (300MHz ~ 1GHz), UHF (1GHz ~ 2GHz) | 875.5MHz, 1.94GHz | 791MHz ~ 960MHz, 1.71GHz ~ 2.17GHz | Stamped Metal | 2 | - | -5dB, -6dB, 1dB | - | - | - | Solder | - | - | - | Surface Mount | 0.394" (10.00mm) | EDGE, GPRS, GSM, LTE, UMTS |
|
1003893FT-AA10L0150ANTENNA ASSY, WLANB FT AA10 0150 |
0 |
|
Datasheet |
- | Box | Active | - | UHF (2GHz ~ 3GHz) | 2.4425GHz | 2.4GHz ~ 2.485GHz | PCB Trace | 1 | 1.5 | - | 3.3dBi | 500 mW | Cable - 150mm | U.FL | - | - | - | Adhesive | 0.005" (0.12mm) | WLAN |
|
1003893PT-AA10L0100ANTENNA ASSY, WLANB PT 100 |
0 |
|
Datasheet |
- | Box | Active | 802.15.4, Bluetooth, WiFi | UHF (2GHz ~ 3GHz) | 2.4425GHz | 2.4GHz ~ 2.485GHz | PCB Trace | 1 | 1.5 | - | 3.3dBi | 500 mW | - | U.FL | - | - | - | Adhesive | 0.016" (0.40mm) | Bluetooth, Wi-Fi, WLAN, Zigbee™ |
|
1001932PT-AA10L0050ANTENNA ASSY WLAN T 50 |
0 |
|
Datasheet |
- | Box | Active | 802.15.4, Bluetooth, WiFi | UHF (2GHz ~ 3GHz), SHF (f > 4GHz) | 2.4GHz, 5GHz | 2.4GHz ~ 2.585GHz, 5.15GHz ~ 5.825GHz | PCB Trace | 2 | 2 | - | 2.5dBi, 4.4dBi | 500 mW | Cable - 50mm | U.FL | - | - | - | Adhesive | 0.063" (1.60mm) | Bluetooth, Wi-Fi, WLAN, Zigbee™ |
|
|
1001932PT-AA10L0025ANTENNA ASSY, WLAN T 25 |
0 |
|
Datasheet |
- | Box | Active | 802.15.4, Bluetooth, WiFi | UHF (2GHz ~ 3GHz), SHF (f > 4GHz) | 2.4GHz, 5GHz | 2.4GHz ~ 2.585GHz, 5.15GHz ~ 5.825GHz | PCB Trace | 2 | 2 | - | 2.5dBi, 4.4dBi | 500 mW | Cable - 25mm | U.FL | - | - | - | Adhesive | 0.063" (1.60mm) | Bluetooth, Wi-Fi, WLAN, Zigbee™ |
|
1513165-1RF ANT 920MHZ PCB TRACE SLDR SMD |
0 |
|
Datasheet |
- | Bulk | Obsolete | - | UHF (300MHz ~ 1GHz) | 920MHz | 880MHz ~ 960MHz | PCB Trace | 1 | 2.5 | - | 0dB | - | - | Solder | - | - | - | Surface Mount | 0.595" (15.11mm) | - |
|
|
ST0543-00-N05-URF ANTENNA PASSIVE PATCH 1575.42 |
0 |
|
- |
- | Tray | Active | Navigation | UHF (1GHz ~ 2GHz) | 1.575GHz | 1.574GHz ~ 1.576GHz | Ceramic Patch | 1 | - | -10dB | 3.5dBi | - | - | Pin | - | - | - | - | 0.157" (4.00mm) | GPS |
|
|
ST0225-10-401-UINTERNAL ANTENNA2400-2500 MHZ |
0 |
|
- |
- | Bulk | Active | 802.15.4, Bluetooth, WiFi | UHF (2GHz ~ 3GHz) | 2.45GHz | 2.4GHz ~ 2.5GHz | PCB Trace | 1 | - | -10dB | 1.8dBi | 1 W | Cable - 100mm | I-PEX MHF1 | - | - | - | Adhesive | 0.031" (0.80mm) | Bluetooth, Wi-Fi, Zigbee™ |
|
SRFC011-200RF ANT 892MHZ/1.9GHZ FLAT PATCH |
0 |
|
Datasheet |
- | Bulk | Active | Cellular | UHF (300MHz ~ 1GHz), UHF (1GHz ~ 2GHz) | 892MHz, 1.9GHz | 824MHz ~ 960MHz, 1.71GHz ~ 2.17GHz | Flat Patch | 2 | 2.2 | -12dB | 4dBi | - | - | U.FL (UMCC), I-PEX MHF1 | - | - | - | Adhesive | 0.006" (0.15mm) | GSM, WCDMA |
|
|
1462362001NFC COIL WITH AWG 28 CABLE 102MM |
0 |
|
- |
- | Tray | Active | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - |
|
|
YC0018AA0.6-6G WIDEBAND 5G SMD ANTENNA ( |
0 |
|
- |
- | Bulk | Not For New Designs | Cellular | Wide Band | 780MHz, 1.57GHz, 1.94GHz, 2.5GHz, 4.15GHz, 5.55GHz | 600MHz ~ 960MHz, 1.43GHz ~ 1.71GHz, 1.71GHz ~ 2.17GHz, 2.3GHz ~ 2.7GHz, 3.3GHz ~ 5GHz, 5.1GHz ~ 6GHz | Chip | 6 | 4 | - | 0.82dBi, 2.15dBi, 2.19dBi, 3.29dBi, 5.16dBi, 4.24dBi, 2.59dBi | - | - | SMA Female | - | - | - | Surface Mount | 0.118" (3.00mm) | 2G, 3G, 4G, 5G |
|
|
1001932P0-AA10L0100WLAN/BLUETOOTH/ZIGBEE/WI-FI EMBE |
0 |
|
Datasheet |
- | Box | Active | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - |
|
RFDPA151300SBLB8G1RF ANT 2.4GHZ/5.2GHZ WHIP TILT |
0 |
|
Datasheet |
- | Bulk | Active | - | UHF (2GHz ~ 3GHz), SHF (f > 4GHz) | 2.4GHz, 5.2GHz, 5.8GHz | 2.4GHz ~ 2.5GHz, 5.15GHz ~ 5.85GHz | Whip, Tilt | 3 | 2 | -10dB | 3dBi | - | - | RP-SMA Male | - | - | - | Connector Mount | 6.201" (157.50mm) | - |
|

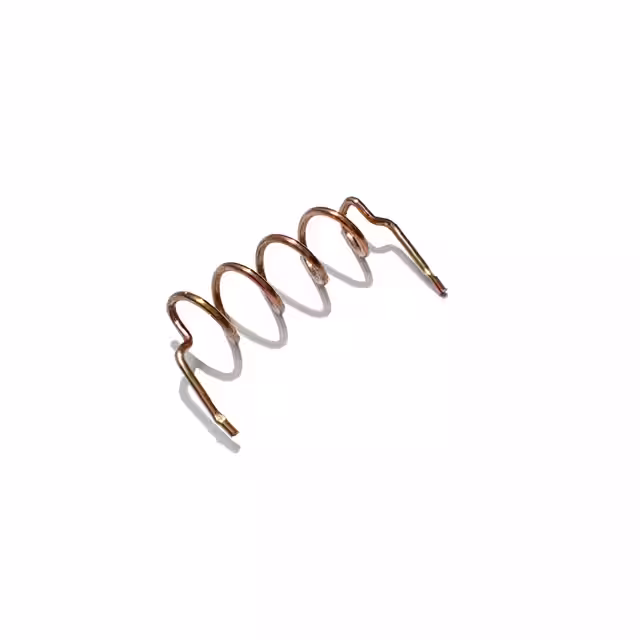

RFMTA010504NNRB002RF ANT 863-928MHZ METAL |
0 |
|
Datasheet |
- | Bulk | Active | - | UHF (300MHz ~ 1GHz) | 895.5MHz | 863MHz ~ 928MHz | Helical | 1 | 1.5, 2 | -10dB | 1.64dBi, 2.05dBi | 1 W | Cable - 285mm | Solder | - | - | - | Surface Mount | 0.975" (24.77mm) | - |
|
M310210RF ANT 2.4GHZ CHIP SOLDER SMD |
0 |
|
Datasheet |
Savvi™ | Tape & Reel (TR) | Obsolete | 802.15.4, Bluetooth, WiFi | UHF (2GHz ~ 3GHz) | 2.4GHz | 2.4GHz ~ 2.5GHz | Chip | 1 | 1.02 | - | -1.3dB | - | - | Solder | - | - | - | Surface Mount | 0.043" (1.08mm) | Bluetooth, Wi-Fi, WLAN, Zigbee™ |
|
M620710RF ANT 915MHZ CHIP SOLDER SMD |
0 |
|
Datasheet |
Savvi™ | Tape & Reel (TR) | Obsolete | General ISM | UHF (300MHz ~ 1GHz) | 915MHz | 902MHz ~ 928MHz | Chip | 1 | 2.6 | - | 2.56dB | - | - | Solder | - | - | - | Surface Mount | 0.043" (1.10mm) | ISM, LoRa, LPWAN, Sigfox |
|
|
SLDA52-2R450G-31TFMULTILAYER LTCC ANTENNA, 2400~25 |
0 |
|
- |
SLDA | Tape & Reel (TR) | Active | Bluetooth | - | 2.45GHz | - | Chip | 1 | 2 | - | 2.5dBi | - | LNA, Filter | Solder | - | - | - | Surface Mount | 0.039" (1.00mm) | Bluetooth, WLAN |
