RF Antennas
| Photo | Mfr. Part # | Availability | Quantity | Datasheet | Series | Packaging | Product Status | RF Family/Standard | Frequency Group | Frequency (Center/Band) | Frequency Range | Antenna Type | Number of Bands | VSWR | Return Loss | Gain | Power - Max | Features | Termination | Ingress Protection | Grade | Qualification | Mounting Type | Height (Max) | Applications |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
W3086RF ANT |
0 |
|
- |
- | Tape & Reel (TR) | Active | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - |
|
|
YFGC009WWAINT,GPS&GNSS,CERAMIC,-,NA,1559-1 |
0 |
|
- |
- | Bulk | Active | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - |
|
|
YFGC009WWBINT,GPS&GNSS,CERAMIC,-,NA,1559-1 |
0 |
|
- |
- | Bulk | Active | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - |
|
|
W3020RF ANT 2.6GHZ CHIP SOLDER SMD |
0 |
|
Datasheet |
- | Tape & Reel (TR) | Active | - | UHF (2GHz ~ 3GHz) | 2.6GHz | 2.5GHz ~ 2.69GHz | Chip | 1 | - | -5.5dB | 2.8dBi | - | - | Solder | - | - | - | Surface Mount | 0.043" (1.10mm) | - |
|
|
1513433-1RF ANT 1.9GHZ CHIP SOLDER SMD |
0 |
|
Datasheet |
- | Bulk | Active | - | UHF (1GHz ~ 2GHz) | 1.9GHz | 1.85GHz ~ 1.99GHz | Chip | 1 | - | - | - | - | - | Solder | - | - | - | Surface Mount | 0.062" (1.57mm) | - |
|
|
1600AT45A0040001ERF ANT 1.6GHZ CHIP SOLDER SMD |
0 |
|
Datasheet |
- | Tape & Reel (TR) | Active | - | UHF (1GHz ~ 2GHz) | 1.6GHz | 1.58GHz ~ 1.62GHz | Chip | 1 | - | -9.5dB | 0dBi | 2 W | - | Solder | - | - | - | Surface Mount | 0.047" (1.20mm) | - |
|
ANT016008LCD2442MA1RF ANT 2.4GHZ/5.5GHZ CHIP SLD |
0 |
|
Datasheet |
- | Tape & Reel (TR) | Obsolete | WiFi | UHF (2GHz ~ 3GHz), SHF (f > 4GHz) | 2.4GHz, 5.5GHz | 2.4GHz ~ 2.485GHz, 5.15GHz ~ 5.85GHz | Chip | 2 | 6.5, 4 | - | 2.27dBi, 5.18dBi | - | - | Solder | - | - | - | Surface Mount | 0.016" (0.40mm) | WLAN |
|
AMCA31-2R450G-S1F-TRF ANT 2.4GHZ CHIP SOLDER SMD |
0 |
|
Datasheet |
AMCA | Tape & Reel (TR) | Obsolete | Bluetooth, WiFi | UHF (2GHz ~ 3GHz) | 2.4GHz | 2.405GHz ~ 2.495GHz | Chip | 1 | 2 | - | 0.5dBi | 3 W | - | Solder | - | - | - | Surface Mount | 0.047" (1.20mm) | Bluetooth, WLAN |
|
|
1227AT45A0042001EIC |
0 |
|
- |
- | Tape & Reel (TR) | Active | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - |
|

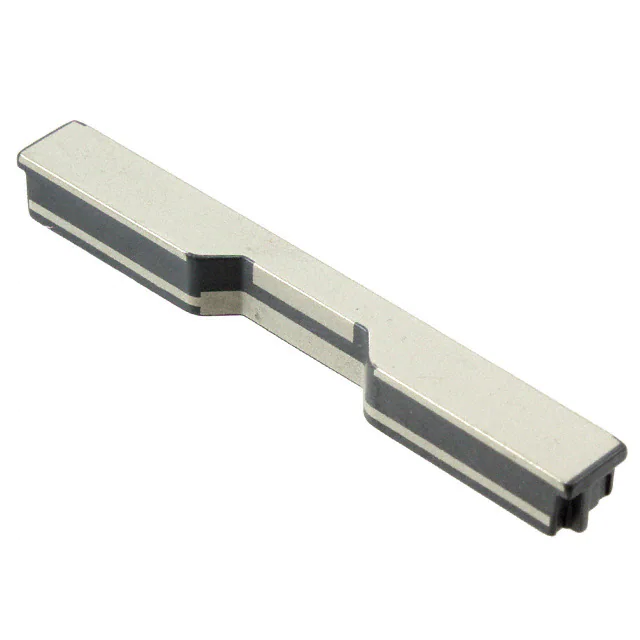

0479510001RF ANT 635MHZ MOLD C-SPRING 50MM |
0 |
|
Datasheet |
47951 | Tray | Obsolete | - | UHF (300MHz ~ 1GHz) | 635MHz | 470MHz ~ 800MHz | Molded | 1 | - | -2dB | - | 2 W | - | C-Spring | - | - | - | Snap-In | 0.197" (5.00mm) | - |
|
|
2108965-5FPC ANT, MHF 4L, 50MM, UWB 6~8.5 |
0 |
|
Datasheet |
- | Bag | Active | Ultra Wide Band | Wide Band | 7.2GHz | 6GHz ~ 8.5GHz | Flat Patch | 1 | 2 | - | 4.2dBi | 10 W | Cable - 50mm | MHF4L | - | - | - | Adhesive | 0.006" (0.15mm) | UWB |
|
M830110-10KRF ANT 1.561GHZ/1.575GHZ CHIP |
0 |
|
Datasheet |
Savvi™ | Tape & Reel (TR) | Not For New Designs | Navigation | UHF (1GHz ~ 2GHz) | 1.561GHz, 1.575GHz, 1.602GHz | 1.561GHz ~ 1.602GHz | Chip | 1 | 1.7 | - | 1.78dBi | 500 mW | - | Solder | - | - | - | Surface Mount | 0.051" (1.30mm) | Beidou, GLONASS, GPS |
|
M830510-10KRF ANT 2.4GHZ/5.4GHZ CHIP SLD |
0 |
|
Datasheet |
Savvi™ | Tape & Reel (TR) | Not For New Designs | 802.15.4, Bluetooth, WiFi | UHF (2GHz ~ 3GHz), SHF (f > 4GHz) | 2.4GHz, 5.4GHz | 2.4GHz ~ 2.5GHz, 4.9GHz ~ 5.8GHz | Chip | 2 | 2.6, 3 | - | 1.1dBi, 3.2dBi | - | - | Solder | - | - | - | Surface Mount | 0.052" (1.33mm) | Bluetooth, Wi-Fi, WLAN, Zigbee™ |
|
|
21199690505.8-8.5GHZ AUTO FLEXIBLE ANTENNA |
0 |
|
Datasheet |
211996 | Tray | Active | 802.15.4, Bluetooth, WiFi | Wide Band | 5.9GHz, 7GHz | 5.8GHz ~ 8.5GHz | Flat Patch | 2 | - | -10dB, -5dB | 5.75dBi, 6.75dBi | - | Cable - 50mm | MHF1 | - | - | - | Adhesive | 0.079" (2.00mm) | Bluetooth, UWB, Wi-Fi, Zigbee™ |
|
|
2118788-2ASSY DUAL BAND WIFI 2.4/5GHZ PCB |
0 |
|
Datasheet |
- | Tray | Active | - | UHF (2GHz ~ 3GHz), SHF (f > 4GHz) | 2.4GHz, 5GHz | - | Chip | 2 | - | - | - | - | - | Solder | - | - | - | Surface Mount | 0.169" (4.28mm) | General Purpose |
|
|
4000AT44A1800001ERF ANT 4GHZ CHIP SOLDER SMD |
0 |
|
Datasheet |
- | Tape & Reel (TR) | Active | - | UHF (3GHz ~ 4GHz), SHF (f > 4GHz) | 4GHz | 3.1GHz ~ 4.9GHz | Chip | 1 | - | -7.4dB | 2.7dBic | 3 W | - | Solder | - | - | - | Surface Mount | 0.039" (1.00mm) | - |
|
|
21199600505.8-8.5GHZ FLEXIABLE ANTENNA 50M |
0 |
|
Datasheet |
* | Bulk | Active | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - |
|
|
2084829150WIFI6E AUTO 2X2 MIMO FLEXIBLE AN |
0 |
|
Datasheet |
208482 | Tray | Active | 802.15.4, Bluetooth, WiFi | Wide Band | 2.45GHz, 5.5GHz, 6.525GHz | 2.4GHz ~ 2.5GHz, 5.15GHz ~ 5.85GHz, 5.925GHz ~ 7.125GHz | Flat Patch | 3 | - | -13dB, -10dB, -9dB, -8dB | - | - | Cable - 150mm | MHF1 | - | - | - | Adhesive | 0.079" (2.00mm) | Bluetooth, Wi-Fi, Zigbee™ |
|
|
2079019050600-6000MHZ AUTO FLEXIBLE ANTENN |
0 |
|
Datasheet |
207901 | Tray | Active | Cellular | Wide Band | 780MHz, 2.25GHz, 4.5GHz | 600MHz ~ 960MHz, 1.5GHz ~ 3GHz, 3GHz ~ 6GHz | Flat Patch | 3 | - | -5dB, -3dB | 2.7dBi, 5dBi, 5.6dBi | - | Cable - 50mm | MHF1 | - | - | - | Adhesive | 0.079" (2.00mm) | LTE |
|
|
ANT2525B00FTGNSSSRF ANT 1.58GHZ CER PATCH PIN ADH |
0 |
|
Datasheet |
2525 | Tray | Active | Navigation | UHF (1GHz ~ 2GHz) | 1.58GHz | 1.559GHz ~ 1.610GHz | Ceramic Patch | 1 | 2 | - | 5.16dBi | 1 W | - | Pin | - | - | - | Adhesive | 0.157" (4.00mm) | GPS |
