RF Antennas
| Photo | Mfr. Part # | Availability | Quantity | Datasheet | Series | Packaging | Product Status | RF Family/Standard | Frequency Group | Frequency (Center/Band) | Frequency Range | Antenna Type | Number of Bands | VSWR | Return Loss | Gain | Power - Max | Features | Termination | Ingress Protection | Grade | Qualification | Mounting Type | Height (Max) | Applications |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
DBA6927C1-FTNCMRF ANT 700MHZ/850MHZ WHIP TILT |
51 |
|
Datasheet |
- | Bulk | Obsolete | Cellular, WiFi | Wide Band | 700MHz, 850MHz, 900MHz, 1.8GHz, 1.9GHz, 2.1GHz, 2.3GHz, 2.5GHz, 2.6GHz | 698MHz ~ 960MHz, 1.71GHz ~ 2.7GHz | Whip, Tilt | 2 | 2.5 | - | 0.5dBi, 2.2dBi | 3 W | - | TNC Male | - | - | - | Connector Mount | 9.016" (229.00mm) | AWS, GSM, LTE, PCS, UMTS, WiMax™ |
|
AN_GPS_A003 MMCXGPS Antenna Cylinder Screw Mount |
16 |
|
Datasheet |
- | Bulk | Active | Navigation | UHF (1GHz ~ 2GHz) | 1.575GHz | 1.574GHz ~ 1.576GHz | Module | 1 | 1.5, 2 | - | 2dBic | - | LNA | MMCX Male | IP65, IP66, IP67 | - | - | Screw Mount | 0.571" (14.50mm) | GPS |
|

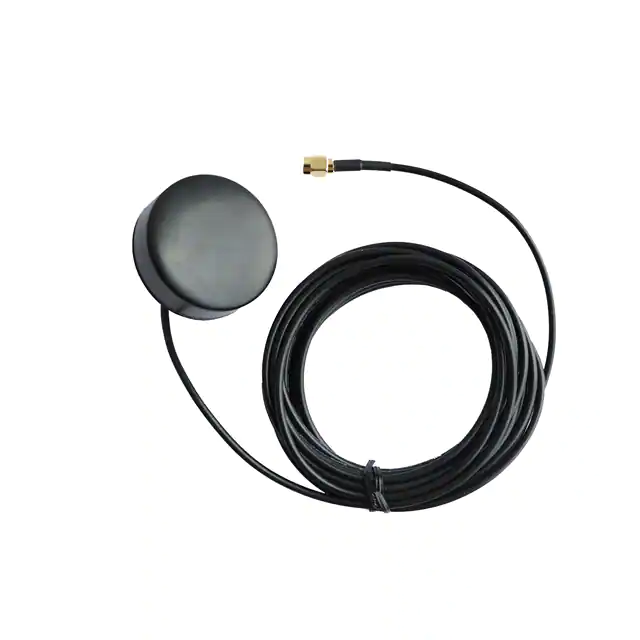

AN_GPS_A003 SMAGPS Antenna Cylinder Screw Mount |
34 |
|
Datasheet |
- | Bulk | Active | Navigation | UHF (1GHz ~ 2GHz) | 1.575GHz | 1.574GHz ~ 1.576GHz | Module | 1 | 1.5, 2 | - | 2dBic | - | LNA | SMA Male | IP65, IP66, IP67 | - | - | Screw Mount | 0.571" (14.50mm) | GPS |
|

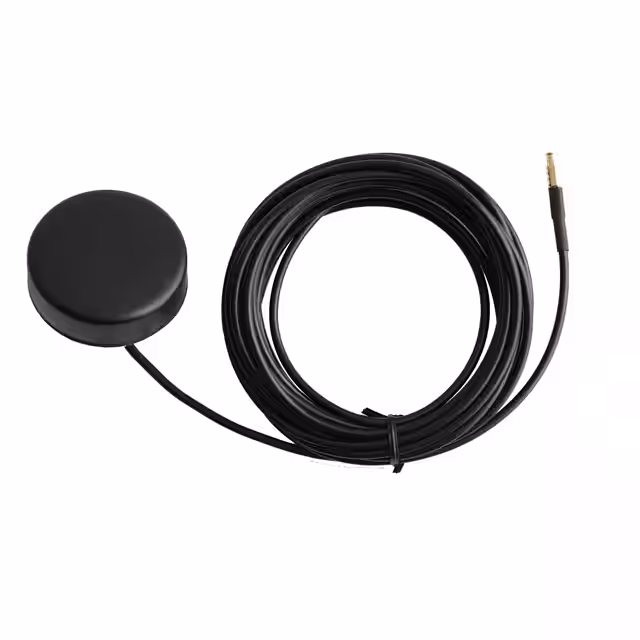

AN_GPS_A003 MCXGPS Antenna Cylinder Screw Mount |
13 |
|
Datasheet |
- | Bulk | Active | Navigation | UHF (1GHz ~ 2GHz) | 1.575GHz | 1.574GHz ~ 1.576GHz | Module | 1 | 1.5, 2 | - | 2dBic | - | LNA | MCX Male | IP65, IP66, IP67 | - | - | Screw Mount | 0.571" (14.50mm) | GPS |
|
EXC806MDRF ANT 836MHZ WHIP STR MD CONN |
20 |
|
Datasheet |
EXC | Bulk | Obsolete | Bluetooth, WiFi | UHF (300MHz ~ 1GHz) | 836MHz | 806MHz ~ 866MHz | Whip, Straight | 1 | 1.5 | - | - | 50 W | - | MD | - | - | - | Connector Mount | 4.600" (116.84mm) | Bluetooth, Wi-Fi |
|
2J5524PMINI-I-BAR 4GLTE/3G/2G PEEL-AND- |
8 |
|
Datasheet |
- | Bag | Active | Cellular | Wide Band | 829MHz, 1.94GHz, 2.6GHz | 698MHz ~ 960MHz, 1.71GHz ~ 2.17GHz, 2.5GHz ~ 2.7GHz | Module | 3 | 1.6, 1.8, 2.2 | -13.3dB, -12.5dB, -9.7dB | 2.3dBi, 2.7dBi, 2.5dBi | 25 W | Cable - 3m | SMA Male | - | - | - | Adhesive | 0.185" (4.70mm) | 2G, 3G, 4G, LTE |
|
MCMI24583RPSMARF ANT 4.15GHZ MOD RP-SMA CEILNG |
44 |
|
Datasheet |
- | Box | Obsolete | WiFi | UHF (2GHz ~ 3GHz), SHF (f > 4GHz) | 4.15GHz | 2.3GHz ~ 6GHz | Module | 1 | 2 | - | 3.5dBic | 10 W | - | RP-SMA | - | - | - | Ceiling Mount | 0.181" (4.60mm) | Bluetooth, Wi-Fi |
|
|
H2P139BA110100PB40D9NS (40X40X6MM); GPS(L1+L5) |
10 |
|
Datasheet |
- | Bag | Active | Navigation | UHF (1GHz ~ 2GHz) | 1.176GHz, 1.575GHz | - | Ceramic Patch | 2 | - | -10dB | 5.4dBi | - | - | - | - | - | - | - | 0.236" (6.00mm) | BDS, Galileo, GPS, IRNSS, QZSS |
|
|
2JF0383PHIGH-PERFORMANCE 5GNR/4G LTE/3G/ |
75 |
|
Datasheet |
- | Bag | Active | Cellular | Wide Band | 788.5MHz, 2.059GHz, 4.15GHz, 5.538GHz | 617MHz ~ 960MHz, 1.427GHz ~ 2.69GHz, 3.3GHz ~ 5GHz, 5.15GHz ~ 5.925GHz | Flat Patch | 4 | 1.9, 2.3, 2.5, 2.6 | -11.6dB, -8.7dB, -8dB, -7.8dB | 2dBi, 2.8dBi, 3.3dBi, 5.3dBi | 25 W | Cable - 180mm | U.FL | - | - | - | Adhesive | 0.054" (1.38mm) | 2G, 3G, 4G, 5G, LTE |
|
MIKE2A/5M/FMEF/S/S/26RF ANT 850MHZ/868MHZ WHIP STR |
7 |
|
Datasheet |
MIKE 2A | Bulk | Active | Cellular | UHF (300MHz ~ 1GHz), UHF (1GHz ~ 2GHz) | 850MHz, 868MHz, 900MHz, 1.8GHz, 1.9GHz, 2.1GHz | - | Whip, Straight | 6 | 2 | - | 5dBi | - | - | FME Female | - | - | - | Magnetic | 12.244" (311.00mm) | GPRS, GSM, UMTS |
|
|
MEA-915-SM/100-00156-01High Performance 915 MHz ISM Ant |
10 |
|
Datasheet |
- | Tape & Box (TB) | Active | General ISM | UHF (300MHz ~ 1GHz) | 915MHz | 902MHz ~ 928MHz | Module | 1 | - | - | 5dBi | - | - | SMA Male | IP67 | - | - | Screw | 3.228" (82.00mm) | ISM |
|
MIKE13/2.5M/SMAM/S/S/17SMALL MAGNETIC MOUNT GPS ANTENNA |
10 |
|
Datasheet |
MIKE 13 | Bulk | Obsolete | Navigation | UHF (1GHz ~ 2GHz) | 1.575GHz | 1.572GHz ~ 1.578GHz | Module | 1 | 1.5, 2 | - | 1dBi | - | - | SMA Male | - | - | - | Magnetic | 0.547" (13.90mm) | GLONASS, GPS |
|
|
AN_GPS_A001 GT5GPS ACTIVE ANTENNA MAGNET MOUNT |
10 |
|
Datasheet |
- | Bulk | Active | Navigation | UHF (1GHz ~ 2GHz) | 1.575GHz | 1.574GHz ~ 1.576GHz | Module | 1 | 1.5 | - | 2dBic | - | Cable - 3m, LNA | GT5 Female | IP66 | - | - | Magnetic | 0.587" (14.90mm) | GPS |
|
S161AH-868RRF ANT 868MHZ WHIP RA RP-SMA |
47 |
|
Datasheet |
- | Bulk | Active | General ISM | UHF (300MHz ~ 1GHz) | 868MHz | 867MHz ~ 869MHz | Whip, Right Angle | 1 | 2 | - | 2.5dBi | - | - | RP-SMA Male | - | - | - | Connector Mount | 6.299" (160.00mm) | ISM |
|
|
M1575HCT-22-P-E1/108-00033-01Helical Passive GPS Antenna |
85 |
|
Datasheet |
- | Tape & Box (TB) | Active | Navigation | UHF (1GHz ~ 2GHz) | 1.575GHz | - | Module | 1 | 1.5 | - | -0.5dBic | - | - | U.FL | - | - | - | - | 0.957" (24.30mm) | GPS |
|
|
2JW1683KATANA 5GNR/4G LTE/3G/2G ULTRA-W |
55 |
|
Datasheet |
- | Bag | Active | Cellular | Wide Band | 788.5MHz, 2.059GHz, 4.15GHz, 5.537GHz | 617MHz ~ 960MHz, 1.427GHz ~ 2.69GHz, 3.3GHz ~ 5GHz, 5.15GHz ~ 5.925GHz | Whip, Tilt | 4 | 1.7, 3.4, 4.4, 7 | -14.5dB, -5.3dB, -4.8dB, -2.5dB | 0.6dBi, 2.9dBi, 0.2dBi, -6dBi | 35 W | - | SMA Male | - | - | - | Connector Mount | 3.150" (80.00mm) | 2G, 3G, 4G, 5G, LTE |
|
|
M1575HCT-22-P-E4/108-00033-04Helical Passive GPS Antenna |
47 |
|
Datasheet |
- | Tape & Box (TB) | Active | Navigation | Wide Band | 1.575GHz | - | Module | 1 | 1.5 | - | -0.5dBi | - | - | Pin | - | - | - | - | 0.957" (24.30mm) | GPS, M2M |
|
|
MEA-868-915-SMA/100-00153-01SigFox/LoRA/ISM antenna |
9 |
|
Datasheet |
- | Tape & Box (TB) | Active | General ISM | UHF (300MHz ~ 1GHz) | 891.5MHz | 868MHz ~ 915MHz | Module | 1 | - | - | 3dBi | 50 W | Cable - 3m | SMA Male | IP67 | - | - | Screw | 3.228" (82.00mm) | ISM |
|
|
2J3524MMINI-POINTER 4GLTE/3G/2G MAGNETI |
10 |
|
Datasheet |
- | Bag | Active | Cellular | Wide Band | 829MHz, 1.94GHz, 2.6GHz | 698MHz ~ 960MHz, 1.71GHz ~ 2.17GHz, 2.5GHz ~ 2.7GHz | Whip, Straight | 3 | 1.7, 1.8 | -12.3dB, -12.2dB, -11dB | 2.2dBi, 2.2dBi, 2.7dBi | 35 W | Cable - 3m | SMA Male | - | - | - | Magnetic | 3.690" (93.73mm) | 2G, 3G, 4G, LTE |
|
|
MEA-GPS-SM/189-00017-01L1 GPS Active External patch Ant |
49 |
|
Datasheet |
- | Tape & Box (TB) | Active | Navigation | UHF (1GHz ~ 2GHz) | 1.575GHz | - | Dome | 1 | - | - | 28dBi | - | - | SMA, TNC | - | - | - | Connector Mount | 1.178" (29.93mm) | GPS |
