RF Antennas
| Photo | Mfr. Part # | Availability | Quantity | Datasheet | Series | Packaging | Product Status | RF Family/Standard | Frequency Group | Frequency (Center/Band) | Frequency Range | Antenna Type | Number of Bands | VSWR | Return Loss | Gain | Power - Max | Features | Termination | Ingress Protection | Grade | Qualification | Mounting Type | Height (Max) | Applications |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|

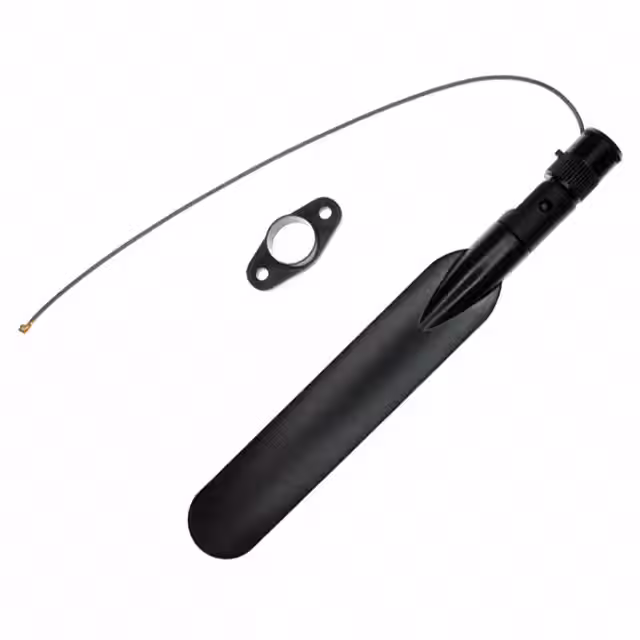

T614FC-7-PX-2.4/4.9/5.X-SRF ANT 2.4/5.5GHZ WHIP TILT 7" |
516 |
|
Datasheet |
- | Bulk | Active | - | UHF (2GHz ~ 3GHz), SHF (f > 4GHz) | 2.4GHz, 5.5GHz | 2.4GHz ~ 2.5GHz, 5.15GHz ~ 5.85GHz | Whip, Tilt | 2 | 2 | - | 4dBi, 5dBi | - | - | U.FL (UMCC), I-PEX MHF1 | - | - | - | Connector Mount | 6.083" (154.50mm) | - |
|
EXC902BNRF ANT 931MHZ WHIP STR BNC MALE |
129 |
|
Datasheet |
EXC | Bulk | Obsolete | Bluetooth, WiFi | UHF (300MHz ~ 1GHz) | 931MHz | 902MHz ~ 960MHz | Whip, Straight | 1 | 1.5 | - | - | 50 W | - | BNC Male | - | - | - | Connector Mount | 3.650" (92.71mm) | Bluetooth, Wi-Fi |
|
2108912-1ACTIVE ANT.,MHF,55MM,L1 |
531 |
|
Datasheet |
- | Tray | Active | Navigation | UHF (1GHz ~ 2GHz) | 1.576GHz | 1.574GHz ~ 1.578GHz | Flat Patch | 1 | 2:1 | - | 11.1dBic | - | LNA, Filter | RP-SMA Female | - | - | - | Adhesive | 0.205" (5.20mm) | GNSS |
|
PE51083RUBBER DUCK PORTABLE DUAL BAND A |
281 |
|
Datasheet |
- | Retail Package | Active | General ISM | UHF (2GHz ~ 3GHz), SHF (f > 4GHz) | 2.45GHz, 5.36GHz | 2.4GHz ~ 2.5GHz, 4.9GHz ~ 5.8GHz | Whip, Tilt | 2 | 2 | - | 2dBi, 2dBi | 30 W | - | SMA Male | - | - | - | Connector Mount | 4.250" (107.95mm) | General Purpose |
|
ANT-GPS-SH2-SMARF ANT 1.575GHZ/1.602GHZ MOD 3M |
236 |
|
Datasheet |
- | Bulk | Obsolete | Navigation | UHF (1GHz ~ 2GHz) | 1.575GHz, 1.602GHz | 1.570GHz ~ 1.580GHz, 1.597GHz ~ 1.607GHz | Module | 2 | 1.5 | - | 5dB | - | Cable - 3m, LNA | SMA Male | IP66 | - | - | Magnetic | 0.492" (12.50mm) | GPS |
|
|
ZGX-1023NF3WANT 5G FIBERGLASS N JACK FEMALE |
198 |
|
Datasheet |
1023 | Box | Active | Cellular | Wide Band | 657.5MHz, 829MHz, 2.2GHz, 3.75GHz, 4.7GHz, 5.5GHz, 6.525GHz | 617MHz ~ 960MHz, 1.71GHz ~ 2.69GHz, 3.3GHz ~ 4.2GHz, 4.4GHz ~ 5GHz, 5.15GHz ~ 5.85GHz, 5.925GHz ~ 7.125GHz | Fiberglass Radome | 8 | 2.2, 2.7, 2.3, 2.8, 2.4, 2.5 | -8.5dB, -6.8dB, -8.1dB, -6.5dB, -7.7dB, -7.4dB | 2.4dBi, 2.7dBi, 3.3dBi, 4.3dBi, 4.8dBi, 3.8dBi | 10 W | - | N Type Female | IP67 | - | - | Connector Mount | 5.709" (145.00mm) | 2G, 3G, 4G, 5G, LTE |
|
|
ZHX-3802NF3BANT 5G DOME N JACK FEMALE |
387 |
|
Datasheet |
3802 | Bag | Active | Cellular | Wide Band | 657.5MHz, 829MHz, 2.2GHz, 3.75GHz, 4.7GHz, 5.5GHz, 6.525GHz | 617MHz ~ 698MHz, 698MHz ~ 960MHz, 1.71GHz ~ 2.69GHz, 3.3GHz ~ 4.2GHz, 4.4GHz ~ 5GHz, 5.15GHz ~ 5.85GHz, 5.925GHz ~ 7.125GHz | Dome | 8 | 3.6, 2.8, 2.3, 2.5, 2, 2.8 | -5dB, -6.5dB, -8.1dB, -7.4dB, -9.5dB, -6.5dB | 4.1dBi, 7.1dBi, 6.8dBi, 6.2dBi, 10dBi, 8.9dBi | 10 W | - | N Type Female | IP67 | - | - | Panel Mount | 3.059" (77.70mm) | 2G, 3G, 4G, 5G, LTE |
|
|
ZGX-1123NX3WANT 5G FIBERGLASS N PLUG MALE |
192 |
|
Datasheet |
1123 | Box | Active | Cellular | Wide Band | 657.5MHz, 829MHz, 2.2GHz, 3.75GHz, 4.7GHz, 5.5GHz, 6.525GHz | 617MHz ~ 698MHz, 698MHz ~ 960MHz, 1.71GHz ~ 2.69GHz, 3.3GHz ~ 4.2GHz, 4.4GHz ~ 5GHz, 5.15GHz ~ 5.85GHz, 5.925GHz ~ 7.125GHz | Fiberglass Radome | 8 | 2.1, 2.5, 2.3, 3.0, 2.4, 2.0 | -9dB, -7.4dB, -8dB, -6dB, -7.7dB, -9.5dB | 2.7dBi, 3.4dBi, 2.2dBi, 3.6dBi, 4dBi, 4.5dBi | 10 W | - | N Type Male | IP67 | - | - | Connector Mount | 5.984" (152.00mm) | 2G, 3G, 4G, 5G, LTE |
|
|
FXUB63.01.0150CWIDE BAND FLEX ANTENNA |
568 |
|
- |
* | Bulk | Active | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - |
|
ANT-433-SPS1-1RF ANT 410/433 MHZ PUCK 1M SMA |
207 |
|
Datasheet |
ANT-433-SPS1 | Bag | Obsolete | General ISM | UHF (300MHz ~ 1GHz) | 433MHz | 430MHz ~ 435MHz | Dome | 1 | 1.7 | - | -1.3dBi | 15 W | Cable - 1m | SMA Male | IP67 | - | - | Panel Mount | 0.917" (23.30mm) | LoRaWAN, LPWA |
|
ATGGBL24138M-SMA-3RF ANT GPS L1+L2/GNSS SMA 3M |
283 |
|
Datasheet |
ATGGB | Bulk | Active | Navigation | UHF (1GHz ~ 2GHz) | 1.227GHz, 1.561GHz, 1.575GHz, 1.602GHz | 1.217GHz ~ 1.237GHz, 1.559GHz ~ 1.563GHz, 1.574GHz ~ 1.576GHz, 1.594GHz ~ 1.61GHz | Module | 4 | 2 | -3.85dB, -15.41dB, -18.37dB, -39.62dB | 2.09dBi, -3.22dBi, 1.39dBi, 1.56dBi | - | Cable - 3m, LNA, Filter | SMA Male | - | - | - | Magnetic | 0.642" (16.30mm) | Beidou, Galileo, GLONASS, GPS |
|
|
PEANGPS101031 dBi Active GPS/GLONASS Magnet |
138 |
|
Datasheet |
- | Retail Package | Active | Navigation | UHF (1GHz ~ 2GHz) | 1.59GHz | 1.574GHz ~ 1.607GHz | Module | 1 | 2 | - | 31dBi | - | Cable - 5m | SMA Male | IPX6 | - | - | Magnetic | 0.490" (12.44mm) | GLONASS, GNSS, GPS |
|
|
PEANGPS101331.5 DBI ACTIVE GPS MAGNET MOUNT |
117 |
|
Datasheet |
- | Retail Package | Active | Navigation | UHF (1GHz ~ 2GHz) | 1.575GHz | 1.574GHz ~ 1.577GHz | Module | 1 | 2 | - | 31.5dBi | - | Cable - 1m | Fakra | IP66 | - | - | Magnetic | 0.669" (17.00mm) | GNSS, GPS |
|
2108840-1CERAMIC PATCH ANT, SMD, L1+G1 & |
142 |
|
Datasheet |
- | Tray | Active | Navigation | UHF (1GHz ~ 2GHz) | 1.5845GHz | 1.559GHz ~ 1.61GHz | Flat Patch | 2 | 1.3, 1.4 | - | 5.1dBic, 5.6dBic | - | - | - | - | - | - | Adhesive | 0.512" (13.00mm) | GNSS |
|
|
AN240206-01HPATCH ARRAY 2400MHZ with Switch |
103 |
|
Datasheet |
AN240206 | Bulk | Active | WiFi | UHF (2GHz ~ 3GHz) | 2.45GHz | 2.4GHz ~ 2.5GHz | Patch, 4-Element | 1 | 1.43 | -15dB | 1.1dBi | 10 W | Cable - 150mm | U.FL (UMCC), I-PEX MHF1 | - | - | - | Screw Mount | 0.079" (2.00mm) | Bluetooth LE 5.1/5.2, AoA |
|
|
MM-ANT-NM-915-3dBi-IOTIOT Tuned Mining External 3DBi |
13,499 |
|
Datasheet |
- | Bulk | Active | General ISM | UHF (300MHz ~ 1GHz) | 915.5MHz | 902MHz ~ 929MHz | Whip, Straight | 1 | 1.07 | - | 3dBi | 50 W | - | N Type Male | - | - | - | Bracket Mount | 11.811" (300.00mm) | General Purpose |
|
|
MM-ANT-NM-915-3dBi-LORALoRa Freqency External LoRaWAN |
13,493 |
|
Datasheet |
- | Bulk | Active | General ISM | UHF (300MHz ~ 1GHz) | 915.5MHz | 902MHz ~ 929MHz | Whip, Straight | 1 | 1.07 | - | 3dBi | 50 W | - | N Type Male | - | - | - | Bracket Mount | 11.811" (300.00mm) | LoRa |
|
|
MM-ANT-NM-868-3dBi-LORALoRa Freqency External LoRaWAN |
13,254 |
|
Datasheet |
- | Bulk | Active | General ISM | UHF (300MHz ~ 1GHz) | 867.5MHz | 865MHz ~ 870MHz | Whip, Straight | 1 | 1.5 | - | 3dBi | 50 W | - | N Type Male | - | - | - | Bracket Mount | 11.811" (300.00mm) | LoRa |
|
|
MM-ANT-NM-868-4dBi-LORALoRa Freqency External LoRaWAN |
6,699 |
|
Datasheet |
- | Bulk | Active | General ISM | UHF (300MHz ~ 1GHz) | 867.5MHz | 865MHz ~ 870MHz | Whip, Straight | 1 | 1.5 | - | 4dBi | 50 W | - | N Type Male | - | - | - | Bracket Mount | 20.472" (520.00mm) | LoRa |
|

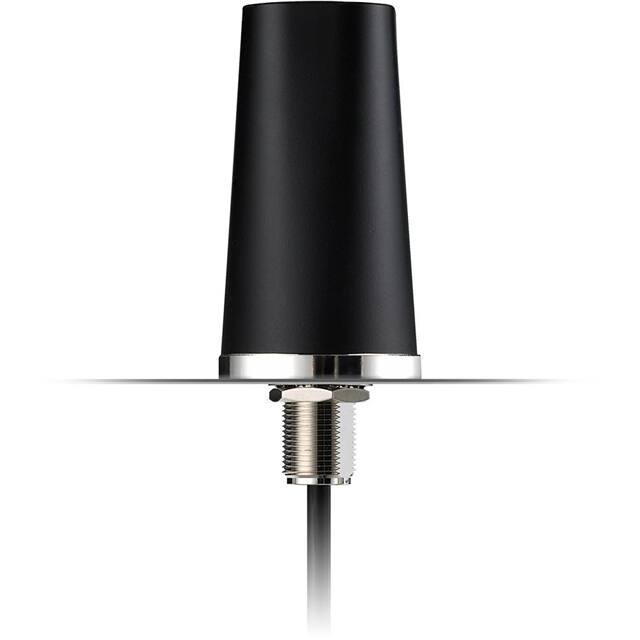

FNS.01.30WW111FIRSTNET BAND 14 TERMINAL SCREW |
9 |
|
Datasheet |
- | Bulk | Obsolete | Cellular | Wide Band | 752MHz, 860MHz, 920MHz, 1.575GHz, 1.795GHz, 1.92GHz, 2.045GHz, 2.3325GHz, 2.495GHz, 3.5GHz | 698MHz ~ 806MHz, 824MHz ~ 896MHz, 880MHz ~ 960MHz, 1.71GHz ~ 1.88GHz, 1.85GHz ~ 1.99GHz, 1.92GHz ~ 2.17GHz, 2.3GHz ~ 2.69GHz, 2.305GHz ~ 2.36GHz, 3.4GHz ~ 3.6GHz | Dome | 10 | - | -8dB, -10dB, -10dB, -10dB, -10dB, -10dB, -10dB, -10dB | 2.42dBi, 2.42dBi, 2.25dBi, 0.88dBi, 2.5dBi, 2.32dBi, 2.23dBi, 3.02dBi | 100 W | Cable - 3m | SMA Male | IP67, IP69K | - | - | Panel Mount | 3.128" (79.45mm) | DCS, GPS, GSM, LTE, PCS, WCDMA |
