RF Antennas
| Photo | Mfr. Part # | Availability | Quantity | Datasheet | Series | Packaging | Product Status | RF Family/Standard | Frequency Group | Frequency (Center/Band) | Frequency Range | Antenna Type | Number of Bands | VSWR | Return Loss | Gain | Power - Max | Features | Termination | Ingress Protection | Grade | Qualification | Mounting Type | Height (Max) | Applications |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
X9000984-4GDRMWANTENNA WHIP HINGED, 4G WHITE RP |
465 |
|
Datasheet |
- | Bag | Active | 802.15.4, Bluetooth, WiFi | UHF (300MHz ~ 1GHz), UHF (2GHz ~ 3GHz) | 875MHz, 2.2GHz | 790MHz ~ 960MHz, 1.71GHz ~ 2.69GHz | Whip, Tilt | 2 | - | -4dB, -5dB, -6dB | 2.2dBi, 3.4dBi, 3.8dBi, 4.7dBi | - | - | RP-SMA Male | - | - | - | Connector Mount | 7.717" (196.00mm) | 4G, Cellular, LTE Cat 1, LTE-M, NB-IoT, loRa, SigFox |
|
|
X9000984-4GDSMWRF ANTENNA SMA MALE WHITE |
368 |
|
Datasheet |
- | Bulk | Active | Cellular | UHF (300MHz ~ 1GHz), UHF (2GHz ~ 3GHz) | 875MHz, 2.2GHz | 790MHz ~ 960MHz, 1.71GHz ~ 2.69GHz | Whip, Tilt | 2 | - | -4dB, -5dB, -6dB | 2.2dBi, 3.8dBi, 3.4dBi, 4.7dBi | - | - | SMA Male | - | - | - | Connector Mount | 7.717" (196.00mm) | LoRa, LPWAN, LTE, Sigfox |
|
APARM1504-SG3RF ANT MULTIBAND GNSS CER PATCH |
1,706 |
|
Datasheet |
APAR | Bulk | Active | Navigation | UHF (1GHz ~ 2GHz) | 1.561GHz, 1.575GHz, 1.602GHz | 1.561GHz ~ 1.602GHz | Ceramic Patch | 3 | 1.8 | - | -3dBi, -4.5dBi, 0.8dBi | - | - | Solder | - | - | - | Through Hole | 0.157" (4.00mm) | Beidou, Galileo, GLONASS, GNSS, GPS |
|

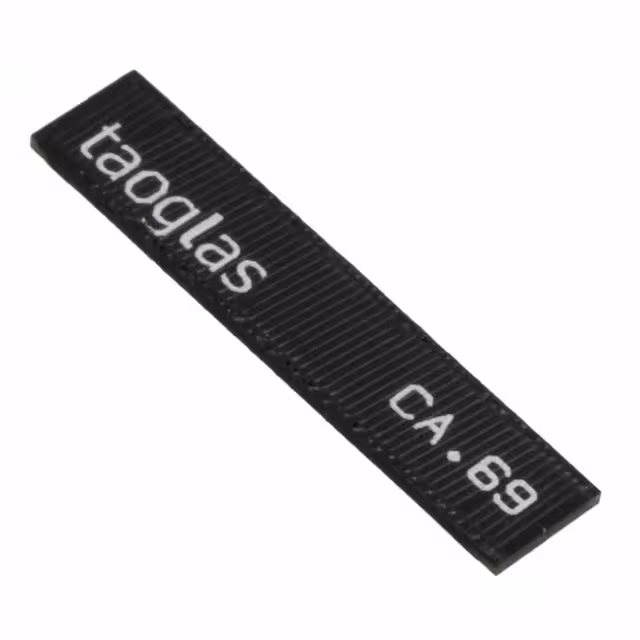

CA.69RF ANT 169MHZ CHIP SOLDER SMD |
3,931 |
|
Datasheet |
- | Tape & Reel (TR) | Active | - | VHF (f < 300MHz) | 169MHz | 165MHz ~ 173MHz | Chip | 1 | 2 | -10dB | -7dBi | - | - | Solder | - | - | - | Surface Mount | 0.031" (0.80mm) | - |
|
RFA-150-020SMA ANTENNA,WITH ELBOW, 2.4 - 7. |
733 |
|
Datasheet |
RFA | Bag | Active | General ISM | UHF (2GHz ~ 3GHz), SHF (f > 4GHz) | 2.44GHz, 5.49GHz, 6.53GHz | 2.4GHz ~ 2.48GHz, 2.15GHz ~ 5.83GHz, 5.94GHz ~ 7.13GHz | Whip, Tilt | 3 | 2.5 | - | 3.83dBi, 3.83dBi, 3.83dBi | 1 W | - | RP-SMA | - | - | - | Connector Mount | 5.354" (136.00mm) | General Purpose |
|
|
ST0412-20-001-ARF ANTENNA INTERNAL AMC PLUG WID |
480 |
|
Datasheet |
- | Bag | Active | Cellular | Wide Band | 825MHz, 2.95GHz | 690MHz ~ 960MHz, 1.7GHz ~ 4.2GHz | PCB Trace | 2 | - | -6dB | 3.1dBi | 1 W | Cable - 100mm | - | - | - | - | Adhesive | 0.008" (0.20mm) | 5G, LTE |
|
ACR3705LZRF ANT 4G/LTE CERAMIC CHIP |
1,350 |
|
Datasheet |
ACR | Tape & Reel (TR) | Active | Cellular | Wide Band | 830MHz, 1.94GHz, 2.6GHz | 700MHz ~ 960MHz, 1.71GHz ~ 2.17GHz, 2.5GHz ~ 2.7GHz | Chip | 3 | 4.5 | - | -2.47dBi, -2.49dBi, -3.46dBi, -2.42dBi, -1.67dBi, -1.13dBi, -2.46dBi, -3.77dBi | - | - | Solder | - | Automotive | AEC-Q200 | Surface Mount | 0.197" (5.00mm) | 2G, 3G, 4G, GSM, LTE |
|
|
TG.31.8113W5G/4G TERMINAL MOUNT WHITE |
110 |
|
Datasheet |
- | Bag | Active | Cellular, Navigation | Wide Band | 657.5MHz, 761MHz, 892MHz, 1.472GHz, 1.955GHz, 2.495GHz, 4.15GHz, 5.537GHz | 617MHz ~ 698MHz, 698MHz ~ 824MHz, 824MHz ~ 960MHz, 1.427GHz ~ 1.518GHz, 1.71GHz ~ 2.2GHz, 2.3GHz ~ 2.69GHz, 3.3GHz ~ 5GHz, 5.15GHz ~ 5.925GHz | Whip, Straight | 8 | - | - | -1.9dBi, 1.2dBi, 0.8dBi, -1.2dBi, 4.6dBi, 4.2dBi, 3.2dBi, 4.4dBi | 10 W | - | SMA Male | - | - | - | Connector Mount | 8.295" (210.70mm) | 2G, 3G, 4G, 5G, GPS, HSPA, HSPA+, LTE, WCDMA, Wi-Fi |
|
|
1005460F0-AC10L01005G/4G FPC ANTENNA, 100MM SIDE CA |
956 |
|
Datasheet |
- | Bag | Active | Cellular | Wide Band | 788.5MHz, 1.8GHz, 2.5GHz, 3.55GHz, 5.5GHz | 617MHz ~ 960MHz, 1.4GHz ~ 2.2GHz, 2.3GHz ~ 2.7GHz, 3.3GHz ~ 3.8GHz, 5GHz ~ 6GHz | Flat Patch | 5 | 2, 2.1, 2.4 | - | 3.4dBi, 4dBi, 3dBi, 2.5dBi, 4.2dBi | 2 W | Cable - 100mm | MHF4L, MMCX, U.FL | - | - | - | Adhesive | 0.063" (1.60mm) | 4G, 5G, LoRa, LTE, Sigfox |
|
|
2108936-2TERMINAL ANTENNA, RP SMA, WLAN D |
2,321 |
|
Datasheet |
- | Bag | Active | 802.15.4, Bluetooth, WiFi | UHF (2GHz ~ 3GHz), SHF (f > 4GHz) | 2.45GHz, 5.512GHz | 2.4GHz ~ 2.5GHz, 5.15GHz ~ 5.875GHz | Whip, Straight | 2 | 1.7 | - | 3.7dB, 3.7dB | - | - | RP-SMA Female | - | - | - | Connector Mount | 4.291" (109.00mm) | 802.11a/b/g/n/ac/ad, Bluetooth, Wi-Fi, WLAN, Zigbee™ |
|
|
AFB7006A2-0200WFPC ANT WI-FI6E/7 TRI-BAND 2.4/ |
1,000 |
|
Datasheet |
AFB7006A2 | Bag | Active | 802.15.4, Bluetooth, WiFi | UHF (2GHz ~ 3GHz), SHF (f > 4GHz) | 2.442GHz, 5.5GHz, 6.525GHz | 2.4GHz ~ 2.485GHz, 5.15GHz ~ 5.85GHz, 5.925GHz ~ 7.125GHz | Flat Patch | 3 | 2.5 | - | 2.2dBi, 3.6dBi, 3.8dBi | - | Cable - 200mm | I-PEX MHF4 (U.FL) | - | - | - | Adhesive | 0.008" (0.20mm) | 802.11b/be/g/n/ac/ax, Bluetooth, Wi-Fi, WLAN, Zigbee™ |
|
|
AFB7006A2-0200IFPC ANT WI-FI6E/7 TRI-BAND 2.4/ |
500 |
|
Datasheet |
AFB7006A2 | Bag | Active | 802.15.4, Bluetooth, WiFi | UHF (2GHz ~ 3GHz), SHF (f > 4GHz) | 2.442GHz, 5.5GHz, 6.525GHz | 2.4GHz ~ 2.485GHz, 5.15GHz ~ 5.85GHz, 5.925GHz ~ 7.125GHz | Flat Patch | 3 | 2.5 | - | 2.2dBi, 3.6dBi, 3.8dBi | - | Cable - 200mm | I-PEX MHF1 (U.FL) | - | - | - | Adhesive | 0.008" (0.20mm) | 802.11b/be/g/n/ac/ax, Bluetooth, Wi-Fi, WLAN, Zigbee™ |
|
|
X9001748-W3DSMBWI-FI DUAL BAND WHIP EXTERNAL AN |
1,114 |
|
Datasheet |
- | Bag | Active | WiFi | UHF (2GHz ~ 3GHz), SHF (f > 4GHz) | 2.44GHz, 5.5GHz | 2.4GHz ~ 2.48GHz, 5.15GHz ~ 5.85GHz | Whip, Straight | 2 | - | -9dB, -7.33dB | 3.2dBi, 3.6dBi | - | - | SMA | IP67 | - | - | Connector Mount | 7.087" (180.00mm) | Bluetooth, Zigbee™ |
|
TSA6NA4L2G45NS0S1TRF ANT 2.4GHZ CHIP SOLDER SMD |
2,000 |
|
- |
TSA6 | Tape & Reel (TR) | Active | 802.15.4, Bluetooth, WiFi | UHF (2GHz ~ 3GHz) | 2.45GHz | 2.4GHz ~ 2.5GHz | Chip | 1 | - | - | - | - | - | Solder | - | - | - | Surface Mount | 0.039" (1.00mm) | Bluetooth, WLAN, Zigbee™ |
|
|
ST0628-30-002-ARF ANTENNA EXTERNAL |
1,994 |
|
Datasheet |
- | Box | Active | General ISM, Lora | UHF (300MHz ~ 1GHz) | 868MHz | 863MHz ~ 873MHz | Whip, Right Angle | 1 | - | -5.1dB | 1.9dBi | 1 W | - | SMA | - | - | - | Connector Mount | 4.291" (109.00mm) | IoT, ISM, LoRa, LPWAN, RFID |
|
X9001376-4GDRMBANTENNA, WHIP PENLT SMA STRAIGHT |
2,098 |
|
Datasheet |
- | Bag | Active | 802.15.4, Cellular | UHF (300MHz ~ 1GHz), UHF (2GHz ~ 3GHz) | 875MHz, 2.2GHz | 790MHz ~ 960MHz, 1.71GHz ~ 2.69GHz | Whip, Straight | 2 | - | -3dB, -7.33dB | 1.16dBi, 2.5dBi | - | - | RP-SMA | IP67 | - | - | Connector Mount | 7.087" (180.00mm) | LTE, LoRa, LPWAN, Sigfox |
|
|
W5029RPG2.4-2.5 / 5.15-5.925 GHZ STICK A |
135 |
|
Datasheet |
External Antenna | Bulk | Active | 802.15.4, General ISM, WiFi | UHF (2GHz ~ 3GHz), SHF (f > 4GHz) | 2.45GHz, 5.538GHz | 2.4GHz ~ 2.5GHz, 5.15GHz ~ 5.925GHz | Whip, Straight | 2 | - | -10dB, -4dB | 1.8dBi, 2.55dBi | 1 W | - | RP-SMA Male | IP65 | - | - | Connector Mount | 2.992" (76.00mm) | DSRC, WLAN, Zigbee™ |
|
|
ST0347-10-001-ARF ANTENNA CHIP PCB SURFACE MOUN |
1,000 |
|
Datasheet |
- | Bulk | Active | Bluetooth, Cellular, WiFi | Wide Band | 825MHz, 1.95GHz, 2.5GHz | 690MHz ~ 960MHz, 1.7GHz ~ 2.2GHz, 2.3GHz ~ 2.7GHz | Chip | 3 | - | -8dB, -7dB, -4dB | 4.7dBi, 3.6dBi, 4.3dBi | 1 W | - | - | - | - | - | Surface Mount | 0.126" (3.20mm) | 4G, 5G, Bluetooth, GNSS, LoRa, LTE, Wi-Fi |
|
|
ST0324-30-401-AWIDE BAND INTERNAL RF ANTENNA NB |
995 |
|
Datasheet |
- | Box | Active | Cellular | Wide Band | 829MHz, 1.94GHz, 2.495GHz | 698MHz ~ 960MHz, 1.71GHz ~ 2.17GHz, 2.3GHz ~ 2.69GHz | Flat Patch | 3 | - | -6dB | 2.2dBi, 4.5dBi, 3dBi | 1 W | Cable - 180mm | I-PEX MHF1 | - | - | - | - | 0.010" (0.25mm) | 4G, LTE |
|
|
ST1124-00-401-ARF ANTENNA INTERNAL UWB FPC 6.2- |
1,000 |
|
Datasheet |
- | Tray | Active | Cellular | Wide Band | 7.13GHz, 8.185GHz | 6.35GHz ~ 7.91GHz, 7.93GHz ~ 8.44GHz | Flat Patch | 2 | - | -10dB | 6dBi, 5.1dBi | 1 W | Cable - 95mm | I-PEX MHF1 | - | - | - | Adhesive | 0.008" (0.20mm) | UWB |
