Analog Switches, Multiplexers, Demultiplexers
| Photo | Mfr. Part # | Availability | Quantity | Datasheet | Series | Packaging | Product Status | Switch Circuit | Multiplexer/Demultiplexer Circuit | Number of Circuits | On-State Resistance (Max) | Channel-to-Channel Matching (ΔRon) | Voltage - Supply, Single (V+) | Voltage - Supply, Dual (V±) | Switch Time (Ton, Toff) (Max) | -3db Bandwidth | Charge Injection | Channel Capacitance (CS(off), CD(off)) | Current - Leakage (IS(off)) (Max) | Crosstalk | Operating Temperature | Grade | Qualification | Mounting Type | Supplier Device Package |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
CD4097BEIC MUX DUAL 8:1 240OHM 24DIP |
0 |
|
Datasheet |
- | Tube | Obsolete | - | 8:1 | 2 | 240Ohm | 5Ohm | 3V ~ 18V | - | - | 20MHz | - | 0.2pF, 35pF | 100nA | - | -55°C ~ 125°C (TA) | - | - | Through Hole | 24-PDIP |
|

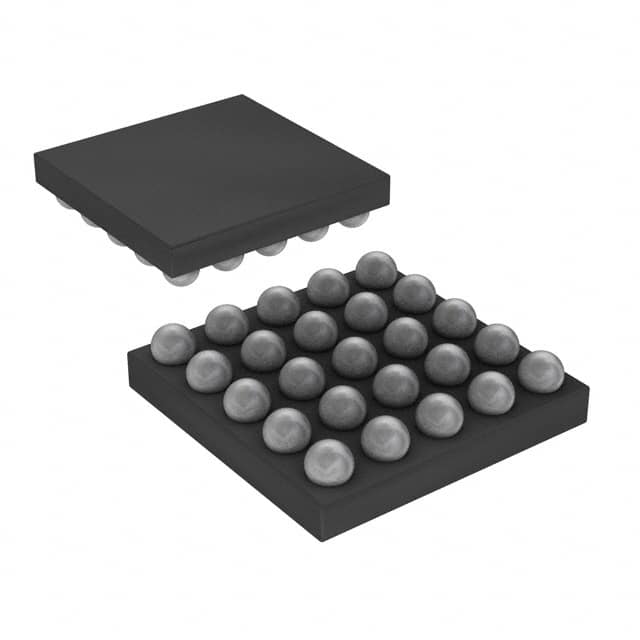

MAX4947EBA+TIC SWITCH DPDT X 3 5.5OHM 25UCSP |
0 |
|
Datasheet |
- | Tape & Reel (TR) | Obsolete | DPDT | 2:2 | 3 | 5.5Ohm | 300mOhm | 1.8V ~ 5.5V | - | 800ns, 800ns | 300MHz | 10pC | 15pF | 3nA | -90dB @ 1MHz | -40°C ~ 85°C (TA) | - | - | Surface Mount | 25-UCSP (2.54x2.54) |
|
DG408EJIC SWITCH SP8T 100OHM 16DIP |
901 |
|
Datasheet |
- | Bulk | Active | SP8T | 8:1 | 1 | 100Ohm | 15Ohm | 15V | ±15V | 150ns, 150ns | - | 20pC | 3pF, 26pF | 500pA (Typ) | - | -40°C ~ 85°C | - | - | Through Hole | 16-PDIP |
|
MAX4602CPEIC SWITCH SPST-NOX4 2.5OHM 16DIP |
0 |
|
Datasheet |
- | Tube | Obsolete | SPST - NO | 1:1 | 4 | 2.5Ohm | 100mOhm | 4.5V ~ 36V | ±4.5V ~ 20V | 250ns, 350ns | - | 120pC | 55pF, 55pF | 500pA | -59dB @ 1MHz | 0°C ~ 70°C (TA) | - | - | Through Hole | 16-PDIP |
|
|
DG409EJIC SWITCH 4PST X 2 100OHM 16DIP |
369 |
|
Datasheet |
- | Bulk | Active | - | 4:1 | 2 | 100Ohm | 15Ohm | 15V | ±15V | 150ns, 150ns | - | 20pC | 3pF, 26pF | 500pA (Typ) | - | -40°C ~ 85°C | - | - | Through Hole | 16-PDIP |
|
ISL43141IVZIC SW SPST-NOX4 65OHM 16TSSOP |
1,918 |
|
Datasheet |
- | Tube | Obsolete | SPST - NO | 1:1 | 4 | 65Ohm | 2Ohm | 2.7V ~ 12V | ±2.6V ~ 6V | 80ns, 30ns | - | 1pC | 7pF, 7pF | 1nA | -90dB @ 100kHz | -40°C ~ 85°C (TA) | - | - | Surface Mount | 16-TSSOP |
|
|
MAX4053AEPEIC SWITCH SPDT X 3 100OHM 16DIP |
0 |
|
Datasheet |
- | Tube | Obsolete | SPDT | 2:1 | 3 | 100Ohm | 6Ohm (Max) | 2V ~ 16V | ±2.7V ~ 8V | 175ns, 150ns | - | 2pC | 2pF, 2pF | 100pA | -90dB @ 100kHz | -40°C ~ 85°C (TA) | - | - | Through Hole | 16-PDIP |
|
ADG774BRQIC SWITCH SPDT X 4 2.2OHM 16QSOP |
0 |
|
Datasheet |
- | Tube | Obsolete | SPDT | 2:1 | 4 | 2.2Ohm (Typ) | 150mOhm | 3V ~ 5V | - | 15ns, 8ns | 240MHz | 10pC | 10pF, 20pF | 500pA | -75dB @ 10MHz | -40°C ~ 125°C (TA) | - | - | Surface Mount | 16-QSOP |
|
ADG212AKPIC SW SPST-NOX4 115OHM 20PLCC |
0 |
|
Datasheet |
- | Tube | Obsolete | SPST - NO | 1:1 | 4 | 115Ohm | 5.75Ohm | 15V | ±15V | 600ns, 450ns | - | 20pC | 5pF, 5pF | 5nA | -80dB @ 100kHz | -40°C ~ 85°C (TA) | - | - | Surface Mount | 20-PLCC (9x9) |
|
|
ADG211AKPIC SW SPST-NCX4 115OHM 20PLCC |
0 |
|
Datasheet |
- | Tube | Obsolete | SPST - NC | 1:1 | 4 | 115Ohm | 5.75Ohm | 15V | ±15V | 600ns, 450ns | - | 20pC | 5pF, 5pF | 5nA | -80dB @ 100kHz | -40°C ~ 85°C (TA) | - | - | Surface Mount | 20-PLCC (9x9) |
|
ADG733BRU-REELIC SWITCH TRIPLE SPDT 16TSSOP |
0 |
|
Datasheet |
- | Cut Tape (CT) | Obsolete | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | Surface Mount | 16-TSSOP |
|
ADG409BRIC SWITCH SP4T X 2 100OHM 16SOIC |
0 |
|
Datasheet |
- | Tube | Obsolete | SP4T | 4:1 | 2 | 100Ohm | 15Ohm (Max) | 12V | ±15V | - | - | 20pC | 11pF, 20pF | 500pA | -85dB @ 100kHz | -40°C ~ 85°C (TA) | - | - | Surface Mount | 16-SOIC |
|
ISL43L220IRZIC SWITCH SPDTX2 350MOHM 10TDFN |
1,801 |
|
Datasheet |
- | Bulk | Obsolete | SPDT | 2:1 | 2 | 350mOhm | 30mOhm | 1.1V ~ 4.5V | - | 17ns, 10ns | - | 128pC | 115pF | 60nA | -95dB @ 100kHz | -40°C ~ 85°C (TA) | - | - | Surface Mount | 10-TDFN (3x3) |
|
|
MAX4592EUEIC SW SPST-NOX4 20OHM 16TSSOP |
0 |
|
Datasheet |
- | Tube | Obsolete | SPST - NO | 1:1 | 4 | 20Ohm | 500mOhm | 3V ~ 16V | - | 80ns, 45ns | - | 2pC | 9pF, 9pF | 100pA | -85dB @ 10MHz | -40°C ~ 85°C (TA) | - | - | Surface Mount | 16-TSSOP |
|
DG308ACY+IC SW SPST-NOX4 100OHM 16SOIC |
0 |
|
Datasheet |
- | Tube | Obsolete | SPST - NO | 1:1 | 4 | 100Ohm | - | 5V ~ 30V | ±5V ~ 20V | 250ns, 150ns | - | -10pC | 11pF, 8pF | 5nA | - | 0°C ~ 70°C (TA) | - | - | Surface Mount | 16-SOIC |
|
ISL84517IHZ-TIC SWITCH SPST-NC X 1 20OHM 5SOT |
2,064 |
|
Datasheet |
- | Tape & Reel (TR) | Obsolete | SPST - NC | 1:1 | 1 | 20Ohm | - | - | ±1.5V ~ 6V | 100ns, 75ns | - | 10pC | 9pF, 9pF | 1nA | - | -40°C ~ 85°C (TA) | - | - | Surface Mount | 5-SOT |
|
ADG512BNIC SWITCH QUAD SPST 16DIP |
16,133 |
|
Datasheet |
LC²MOS | Tube | Obsolete | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | Through Hole | 16-PDIP |
|
ISL54056IRUZ-TIC SWITCH SPDTX4 550MOHM 16UTQFN |
3,800 |
|
Datasheet |
- | Bulk | Obsolete | SPDT | 2:1 | 4 | 550mOhm | 50mOhm | 1.65V ~ 4.5V | - | 33ns, 16ns | - | 248pC | 38pF | 70nA | -85dB @ 100kHz | -40°C ~ 85°C (TA) | - | - | Surface Mount | 16-UTQFN (2.6x1.8) |
|
|
ADG661BRU-REEL7IC SW QUAD PREC 5V SPST 16TSSOP |
2,616 |
|
Datasheet |
- | Bulk | Obsolete | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | Surface Mount | 16-TSSOP |
|
|
HI3-0509A-5IC SWITCH SP4T X 2 1.8KOHM 16DIP |
2,012 |
|
Datasheet |
- | Bulk | Active | SP4T | 4:1 | 2 | 1.8kOhm | - | 15V | ±15V | 500ns, 500ns | - | - | 10pF, 12pF | 30pA (Typ) | - | 0°C ~ 75°C (TA) | - | - | Through Hole | 16-PDIP |
