Fixed Inductors
| Photo | Mfr. Part # | Availability | Quantity | Datasheet | Series | Package/Case | Packaging | Product Status | Type | Material - Core | Inductance | Tolerance | Current Rating (Amps) | Current - Saturation (Isat) | Shielding | DC Resistance (DCR) | Q @ Freq | Frequency - Self Resonant | Ratings | Operating Temperature | Inductance Frequency - Test | Features | Mounting Type | Supplier Device Package | Size / Dimension | Height - Seated (Max) |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
B82464G2472MFIXED IND 4.7UH 3.1A 33 MOHM SMD |
0 |
|
Datasheet |
B82464G2 | Nonstandard | Tape & Reel (TR) | Obsolete | Drum Core, Wirewound | Ferrite | 4.7 µH | ±20% | 3.1 A | 3.1A | Shielded | 33mOhm Max | - | - | AEC-Q200 | -55°C ~ 150°C | 100 kHz | - | Surface Mount | - | 0.409" L x 0.409" W (10.40mm x 10.40mm) | 0.118" (3.00mm) |
|
|
B82464G2473MFIXED IND 47UH 1.12A 235MOHM SMD |
0 |
|
Datasheet |
B82464G2 | Nonstandard | Tape & Reel (TR) | Obsolete | Drum Core, Wirewound | Ferrite | 47 µH | ±20% | 1.12 A | 1.1A | Shielded | 235mOhm Max | - | - | AEC-Q200 | -55°C ~ 150°C | 100 kHz | - | Surface Mount | - | 0.409" L x 0.409" W (10.40mm x 10.40mm) | 0.118" (3.00mm) |
|
|
B82464G2474MFIXED IND 470UH SMD |
0 |
|
Datasheet |
B82464G2 | Nonstandard | Tape & Reel (TR) | Obsolete | Drum Core, Wirewound | Ferrite | 470 µH | ±20% | - | - | Shielded | - | - | - | AEC-Q200 | -55°C ~ 150°C | 100 kHz | - | Surface Mount | - | 0.409" L x 0.409" W (10.40mm x 10.40mm) | 0.118" (3.00mm) |
|
|
B82464G2682MFIXED IND 6.8UH SMD |
0 |
|
- |
B82464G2 | Nonstandard | Tape & Reel (TR) | Obsolete | Drum Core, Wirewound | Ferrite | 6.8 µH | ±20% | - | - | Shielded | - | - | - | AEC-Q200 | -55°C ~ 150°C | 100 kHz | - | Surface Mount | - | 0.409" L x 0.409" W (10.40mm x 10.40mm) | 0.118" (3.00mm) |
|
|
B82464G2683MFIXED IND 68UH 910MA 370MOHM SMD |
0 |
|
Datasheet |
B82464G2 | Nonstandard | Tape & Reel (TR) | Obsolete | Drum Core, Wirewound | Ferrite | 68 µH | ±20% | 910 mA | 880mA | Shielded | 370mOhm Max | - | - | AEC-Q200 | -55°C ~ 150°C | 100 kHz | - | Surface Mount | - | 0.409" L x 0.409" W (10.40mm x 10.40mm) | 0.118" (3.00mm) |
|
|
B82464G2752MFIXED IND 7.5UH 2.6A 47 MOHM SMD |
0 |
|
Datasheet |
B82464G2 | Nonstandard | Tape & Reel (TR) | Obsolete | Drum Core, Wirewound | Ferrite | 7.5 µH | ±20% | 2.6 A | 2.65A | Shielded | 47mOhm Max | - | - | AEC-Q200 | -55°C ~ 150°C | 100 kHz | - | Surface Mount | - | 0.409" L x 0.409" W (10.40mm x 10.40mm) | 0.118" (3.00mm) |
|
|
B82464G2821MFIXED IND 820NH 6.2A 7.5MOHM SMD |
0 |
|
Datasheet |
B82464G2 | Nonstandard | Tape & Reel (TR) | Obsolete | Drum Core, Wirewound | Ferrite | 820 nH | ±20% | 6.2 A | 7.5A | Shielded | 7.5mOhm Max | - | - | AEC-Q200 | -55°C ~ 150°C | 100 kHz | - | Surface Mount | - | 0.409" L x 0.409" W (10.40mm x 10.40mm) | 0.118" (3.00mm) |
|

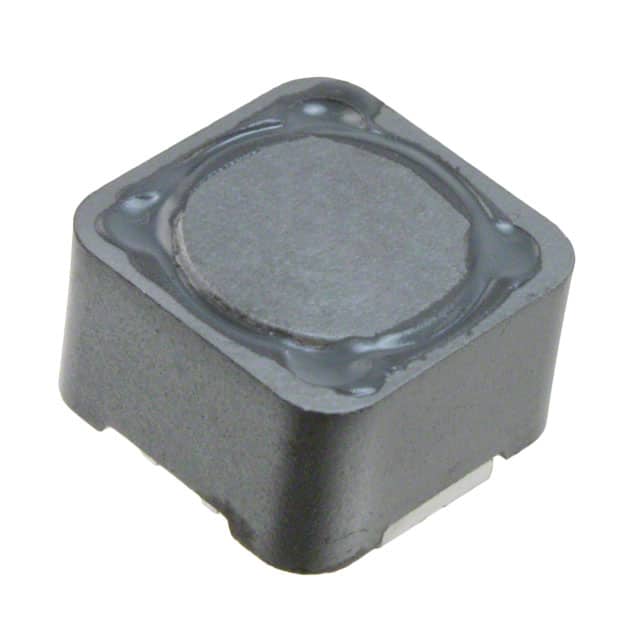

B82477G4652M000FIXED IND 5.6UH 6.7A 14.2MOHM SM |
0 |
|
Datasheet |
B82477G4 | Nonstandard | Tape & Reel (TR) | Active | Drum Core, Wirewound | Ferrite | 5.6 µH | ±20% | 6.7 A | 8.4A | Shielded | 14.2mOhm Max | - | - | - | -55°C ~ 125°C | 100 kHz | - | Surface Mount | - | 0.484" L x 0.484" W (12.30mm x 12.30mm) | 0.236" (6.00mm) |
|

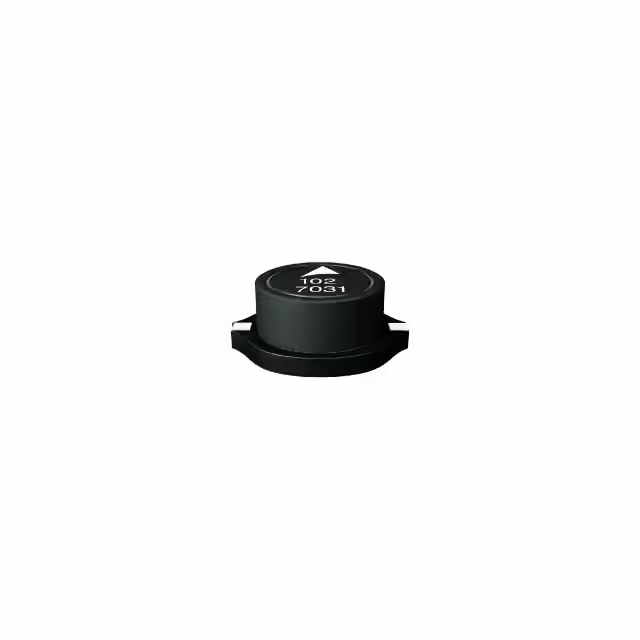

B82479G1104M000FIXED IND 100UH 1.7A 207MOHM SMD |
0 |
|
Datasheet |
B82479G1 | Nonstandard | Tape & Reel (TR) | Obsolete | Drum Core, Wirewound | Ferrite | 100 µH | ±20% | 1.7 A | 2.4A | Shielded | 207mOhm Max | - | - | - | -55°C ~ 150°C | 100 kHz | - | Surface Mount | - | 0.730" L x 0.600" W (18.54mm x 15.24mm) | 0.280" (7.11mm) |
|
B82479G1105M000FIXED IND 1MH 530MA 2.01 OHM SMD |
0 |
|
Datasheet |
B82479G1 | Nonstandard | Tape & Reel (TR) | Obsolete | Drum Core, Wirewound | Ferrite | 1 mH | ±20% | 530 mA | 800mA | Shielded | 2.01Ohm Max | - | - | - | -55°C ~ 150°C | 100 kHz | - | Surface Mount | - | 0.730" L x 0.600" W (18.54mm x 15.24mm) | 0.280" (7.11mm) |
|
|
B82479G1153M000FIXED IND 15UH 3.4A 48 MOHM SMD |
0 |
|
Datasheet |
B82479G1 | Nonstandard | Tape & Reel (TR) | Obsolete | Drum Core, Wirewound | Ferrite | 15 µH | ±20% | 3.4 A | 7A | Shielded | 48mOhm Max | - | - | - | -55°C ~ 150°C | 100 kHz | - | Surface Mount | - | 0.730" L x 0.600" W (18.54mm x 15.24mm) | 0.280" (7.11mm) |
|
|
B82479G1154M000FIXED IND 150UH 1.3A 293MOHM SMD |
0 |
|
Datasheet |
B82479G1 | Nonstandard | Tape & Reel (TR) | Obsolete | Drum Core, Wirewound | Ferrite | 150 µH | ±20% | 1.3 A | 2.1A | Shielded | 293mOhm Max | - | - | - | -55°C ~ 150°C | 100 kHz | - | Surface Mount | - | 0.730" L x 0.600" W (18.54mm x 15.24mm) | 0.280" (7.11mm) |
|
|
B82479G1224M000FIXED IND 220UH 1.1A 470MOHM SMD |
0 |
|
Datasheet |
B82479G1 | Nonstandard | Tape & Reel (TR) | Obsolete | Drum Core, Wirewound | Ferrite | 220 µH | ±20% | 1.1 A | 1.9A | Shielded | 470mOhm Max | - | - | - | -55°C ~ 150°C | 100 kHz | - | Surface Mount | - | 0.730" L x 0.600" W (18.54mm x 15.24mm) | 0.280" (7.11mm) |
|
|
B82479G1333M000FIXED IND 33UH 2.8A 75 MOHM SMD |
0 |
|
Datasheet |
B82479G1 | Nonstandard | Tape & Reel (TR) | Obsolete | Drum Core, Wirewound | Ferrite | 33 µH | ±20% | 2.8 A | 5A | Shielded | 75mOhm Max | - | - | - | -55°C ~ 150°C | 100 kHz | - | Surface Mount | - | 0.730" L x 0.600" W (18.54mm x 15.24mm) | 0.280" (7.11mm) |
|
|
B82479G1473M000FIXED IND 47UH 2.4A 97 MOHM SMD |
0 |
|
Datasheet |
B82479G1 | Nonstandard | Tape & Reel (TR) | Obsolete | Drum Core, Wirewound | Ferrite | 47 µH | ±20% | 2.4 A | 4A | Shielded | 97mOhm Max | - | - | - | -55°C ~ 150°C | 100 kHz | - | Surface Mount | - | 0.728" L x 0.600" W (18.50mm x 15.24mm) | 0.285" (7.25mm) |
|
|
B82479G1474M000FIXED IND 470UH 730MA 1.08OHM SM |
0 |
|
Datasheet |
B82479G1 | Nonstandard | Tape & Reel (TR) | Obsolete | Drum Core, Wirewound | Ferrite | 470 µH | ±20% | 730 mA | 1.1A | Shielded | 1.08Ohm Max | - | - | - | -55°C ~ 150°C | 100 kHz | - | Surface Mount | - | 0.730" L x 0.600" W (18.54mm x 15.24mm) | 0.280" (7.11mm) |
|
|
B82479G1683M000FIXED IND 68UH 2A 138 MOHM SMD |
0 |
|
Datasheet |
B82479G1 | Nonstandard | Tape & Reel (TR) | Obsolete | Drum Core, Wirewound | Ferrite | 68 µH | ±20% | 2 A | 3A | Shielded | 138mOhm Max | - | - | - | -55°C ~ 150°C | 100 kHz | - | Surface Mount | - | 0.730" L x 0.600" W (18.54mm x 15.24mm) | 0.280" (7.11mm) |
|
|
B82479G1684M000FIXED IND 680UH 640MA 1.4OHM SMD |
0 |
|
Datasheet |
B82479G1 | Nonstandard | Tape & Reel (TR) | Obsolete | Drum Core, Wirewound | Ferrite | 680 µH | ±20% | 640 mA | 960mA | Shielded | 1.4Ohm Max | - | - | - | -55°C ~ 150°C | 100 kHz | - | Surface Mount | - | 0.730" L x 0.600" W (18.54mm x 15.24mm) | 0.280" (7.11mm) |
|
B82496C3221J008FIXED IND 220NH 110MA 7 OHM SMD |
0 |
|
Datasheet |
SIMID | 0603 (1608 Metric) | Tape & Reel (TR) | Active | Drum Core, Wirewound | Ceramic | 220 nH | ±5% | 110 mA | - | Unshielded | 7Ohm Max | 4 @ 25.2MHz | 1.3GHz | AEC-Q200 | -55°C ~ 150°C | 25.2 MHz | - | Surface Mount | 0603 (1608 Metric) | 0.063" L x 0.031" W (1.60mm x 0.80mm) | 0.035" (0.90mm) |
|
|
B82496C3560J008FIXED IND 56NH 250MA 1.2 OHM SMD |
0 |
|
Datasheet |
SIMID | 0603 (1608 Metric) | Tape & Reel (TR) | Active | Drum Core, Wirewound | Ceramic | 56 nH | ±5% | 250 mA | - | Unshielded | 1.2Ohm Max | 35 @ 100MHz | 2.5GHz | AEC-Q200 | -55°C ~ 150°C | 100 MHz | - | Surface Mount | 0603 (1608 Metric) | 0.063" L x 0.031" W (1.60mm x 0.80mm) | 0.035" (0.90mm) |
