Fixed Inductors
| Photo | Mfr. Part # | Availability | Quantity | Datasheet | Series | Package/Case | Packaging | Product Status | Type | Material - Core | Inductance | Tolerance | Current Rating (Amps) | Current - Saturation (Isat) | Shielding | DC Resistance (DCR) | Q @ Freq | Frequency - Self Resonant | Ratings | Operating Temperature | Inductance Frequency - Test | Features | Mounting Type | Supplier Device Package | Size / Dimension | Height - Seated (Max) |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
CEP12D38NP-0R6MC-HFIXED IND 600NH 11.5A 6 MOHM SMD |
0 |
|
Datasheet |
CEP12D38 | Nonstandard | Tape & Reel (TR) | Obsolete | - | Ferrite | 600 nH | ±20% | 11.5 A | 24.4A | Shielded | 6mOhm Max | - | - | - | -40°C ~ 125°C | 100 kHz | - | Surface Mount | - | 0.492" L x 0.492" W (12.50mm x 12.50mm) | 0.157" (4.00mm) |
|
|
CEP12D38NP-1R8MC-HFIXED IND 1.8UH 9.5A 8.6MOHM SMD |
0 |
|
Datasheet |
CEP12D38 | Nonstandard | Tape & Reel (TR) | Obsolete | - | Ferrite | 1.8 µH | ±20% | 9.5 A | 13.9A | Shielded | 8.6mOhm Max | - | - | - | -40°C ~ 125°C | 100 kHz | - | Surface Mount | - | 0.492" L x 0.492" W (12.50mm x 12.50mm) | 0.157" (4.00mm) |
|
|
CEP12D38NP-2R6MC-HFIXED IND 2.6UH 8A 12.1 MOHM SMD |
0 |
|
Datasheet |
CEP12D38 | Nonstandard | Tape & Reel (TR) | Obsolete | - | Ferrite | 2.6 µH | ±20% | 8 A | 12.2A | Shielded | 12.1mOhm Max | - | - | - | -40°C ~ 125°C | 100 kHz | - | Surface Mount | - | 0.492" L x 0.492" W (12.50mm x 12.50mm) | 0.157" (4.00mm) |
-1,45mm.jpg)
|
HK212533NJ-TFIXED IND 33NH 300MA 600MOHM SMD |
0 |
|
Datasheet |
HK | 0805 (2012 Metric) | Tape & Reel (TR) | Obsolete | Multilayer | Ferrite | 33 nH | ±5% | 300 mA | - | Unshielded | 600mOhm Max | 18 @ 100MHz | 1.2GHz | - | -40°C ~ 85°C | 100 MHz | - | Surface Mount | 0805 (2012 Metric) | 0.079" L x 0.049" W (2.00mm x 1.25mm) | 0.041" (1.05mm) |
|
|
HK212568NJ-TFIXED IND 68NH 300MA 800MOHM SMD |
0 |
|
Datasheet |
HK | 0805 (2012 Metric) | Tape & Reel (TR) | Obsolete | Multilayer | Ferrite | 68 nH | ±5% | 300 mA | - | Unshielded | 800mOhm Max | 18 @ 100MHz | 700MHz | - | -40°C ~ 85°C | 100 MHz | - | Surface Mount | 0805 (2012 Metric) | 0.079" L x 0.049" W (2.00mm x 1.25mm) | 0.047" (1.20mm) |
|
|
HK2125R12J-TFIXED IND 120NH 300MA 950MOHM SM |
0 |
|
Datasheet |
HK | 0805 (2012 Metric) | Tape & Reel (TR) | Obsolete | Multilayer | Ferrite | 120 nH | ±5% | 300 mA | - | Unshielded | 950mOhm Max | 13 @ 50MHz | 500MHz | - | -40°C ~ 85°C | 50 MHz | - | Surface Mount | 0805 (2012 Metric) | 0.079" L x 0.049" W (2.00mm x 1.25mm) | 0.047" (1.20mm) |
|
|
HK2125R27J-TFIXED IND 270NH 300MA 1.3OHM SMD |
0 |
|
Datasheet |
HK | 0805 (2012 Metric) | Tape & Reel (TR) | Obsolete | Multilayer | Ferrite | 270 nH | ±5% | 300 mA | - | Unshielded | 1.3Ohm Max | 12 @ 50MHz | 300MHz | - | -40°C ~ 85°C | 50 MHz | - | Surface Mount | 0805 (2012 Metric) | 0.079" L x 0.049" W (2.00mm x 1.25mm) | 0.047" (1.20mm) |
|
CW201212-1R0GFIXED IND 1NH 600MA SMD |
0 |
|
Datasheet |
CW201212 | 0805 (2012 Metric) | Tape & Reel (TR) | Active | Drum Core, Wirewound | Ceramic | 1 nH | ±2% | 600 mA | - | Unshielded | - | - | - | - | -40°C ~ 125°C | 250 MHz | - | Surface Mount | 0805 (2012 Metric) | 0.083" L x 0.059" W (2.10mm x 1.50mm) | 0.059" (1.50mm) |
|
CW252016-1R0GFIXED IND 1UH 330MA 1.75 OHM SMD |
0 |
|
Datasheet |
CW252016 | 1008 (2520 Metric) | Tape & Reel (TR) | Active | Drum Core, Wirewound | Ferrite | 1 µH | ±2% | 330 mA | - | Unshielded | 1.75Ohm Max | 25 @ 50MHz | 290MHz | - | -40°C ~ 125°C | 25 MHz | - | Surface Mount | 1008 (2520 Metric) | 0.098" L x 0.079" W (2.50mm x 2.00mm) | 0.071" (1.80mm) |
|
|
CW252016-6R8JFIXED IND 6.8NH 150MA 6 OHM SMD |
0 |
|
Datasheet |
CW252016 | 1008 (2520 Metric) | Tape & Reel (TR) | Obsolete | Drum Core, Wirewound | Ceramic | 6.8 nH | ±5% | 150 mA | - | Unshielded | 6Ohm | 18 @ 7.9MHz | 25MHz | - | -40°C ~ 125°C | 7.9 MHz | - | Surface Mount | 1008 (2520 Metric) | 0.098" L x 0.079" W (2.50mm x 2.00mm) | 0.071" (1.80mm) |
|

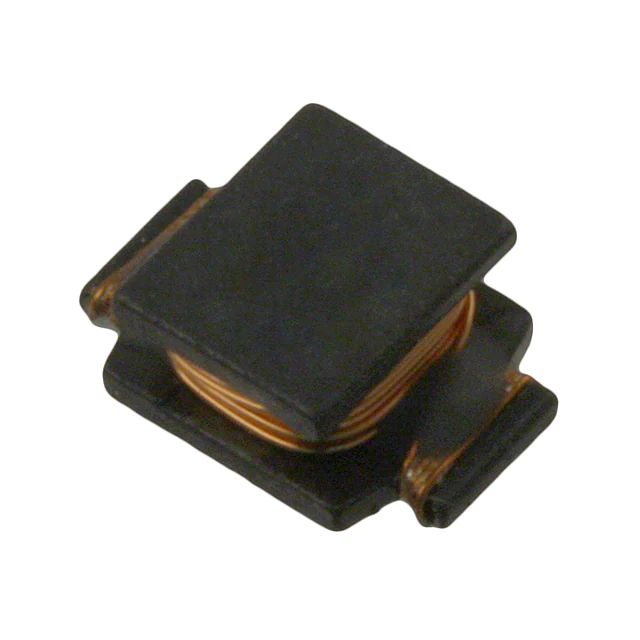

SDR0703-100MLFIXED IND 10UH 1A 170 MOHM SMD |
0 |
|
Datasheet |
SDR0703 | Nonstandard | Tape & Reel (TR) | Active | Drum Core, Wirewound | Ferrite | 10 µH | ±20% | 1 A | 1.4A | Unshielded | 170mOhm Max | 23 @ 2.52MHz | 36MHz | - | -40°C ~ 125°C | 100 kHz | - | Surface Mount | - | 0.256" L x 0.177" W (6.50mm x 4.50mm) | 0.106" (2.70mm) |
|
HCP0703-100-RFIXED IND 10UH 3A 105 MOHM SMD |
0 |
|
Datasheet |
HCP0703 | Nonstandard | Tape & Reel (TR) | Obsolete | Drum Core, Wirewound | Iron Powder | 10 µH | ±20% | 3 A | 7A | Shielded | 105mOhm Max | - | - | - | -55°C ~ 125°C | 100 kHz | - | Surface Mount | - | 0.287" L x 0.276" W (7.30mm x 7.00mm) | 0.118" (3.00mm) |
|
HCP0703-1R0-RFIXED IND 1UH 11A 10 MOHM SMD |
0 |
|
Datasheet |
HCP0703 | Nonstandard | Tape & Reel (TR) | Obsolete | Drum Core, Wirewound | Iron Powder | 1 µH | ±20% | 11 A | 22A | Shielded | 10mOhm Max | - | - | - | -55°C ~ 125°C | 100 kHz | - | Surface Mount | - | 0.287" L x 0.276" W (7.30mm x 7.00mm) | 0.118" (3.00mm) |
|
HCP0703-1R5-RFIXED IND 1.5UH 9A 15 MOHM SMD |
0 |
|
Datasheet |
HCP0703 | Nonstandard | Tape & Reel (TR) | Obsolete | Drum Core, Wirewound | Iron Powder | 1.5 µH | ±20% | 9 A | 18A | Shielded | 15mOhm Max | - | - | - | -55°C ~ 125°C | 100 kHz | - | Surface Mount | - | 0.287" L x 0.276" W (7.30mm x 7.00mm) | 0.118" (3.00mm) |
|
HCP0703-2R2-RFIXED IND 2.2UH 8A 20 MOHM SMD |
0 |
|
Datasheet |
HCP0703 | Nonstandard | Tape & Reel (TR) | Obsolete | Drum Core, Wirewound | Iron Powder | 2.2 µH | ±20% | 8 A | 14A | Shielded | 20mOhm Max | - | - | - | -55°C ~ 125°C | 100 kHz | - | Surface Mount | - | 0.287" L x 0.276" W (7.30mm x 7.00mm) | 0.118" (3.00mm) |
|
HCP0703-3R3-RFIXED IND 3.3UH 6A 30 MOHM SMD |
0 |
|
Datasheet |
HCP0703 | Nonstandard | Tape & Reel (TR) | Obsolete | Drum Core, Wirewound | Iron Powder | 3.3 µH | ±20% | 6 A | 13.5A | Shielded | 30mOhm Max | - | - | - | -55°C ~ 125°C | 100 kHz | - | Surface Mount | - | 0.287" L x 0.276" W (7.30mm x 7.00mm) | 0.118" (3.00mm) |
|
HCP0703-4R7-RFIXED IND 4.7UH 5.5A 40 MOHM SMD |
0 |
|
Datasheet |
HCP0703 | Nonstandard | Tape & Reel (TR) | Obsolete | Drum Core, Wirewound | Iron Powder | 4.7 µH | ±20% | 5.5 A | 10A | Shielded | 40mOhm Max | - | - | - | -55°C ~ 125°C | 100 kHz | - | Surface Mount | - | 0.287" L x 0.276" W (7.30mm x 7.00mm) | 0.118" (3.00mm) |
|
HCP0703-6R8-RFIXED IND 6.8UH 4.5A 60 MOHM SMD |
0 |
|
Datasheet |
HCP0703 | Nonstandard | Tape & Reel (TR) | Obsolete | Drum Core, Wirewound | Iron Powder | 6.8 µH | ±20% | 4.5 A | 8A | Shielded | 60mOhm Max | - | - | - | -55°C ~ 125°C | 100 kHz | - | Surface Mount | - | 0.287" L x 0.276" W (7.30mm x 7.00mm) | 0.118" (3.00mm) |
|
HCP0703-8R2-RFIXED IND 8.2UH 4A 68 MOHM SMD |
0 |
|
Datasheet |
HCP0703 | Nonstandard | Tape & Reel (TR) | Obsolete | Drum Core, Wirewound | Iron Powder | 8.2 µH | ±20% | 4 A | 7.5A | Shielded | 68mOhm Max | - | - | - | -55°C ~ 125°C | 100 kHz | - | Surface Mount | - | 0.287" L x 0.276" W (7.30mm x 7.00mm) | 0.118" (3.00mm) |
|
HCP0703-R15-RFIXED IND 150NH 26A 2.5 MOHM SMD |
0 |
|
Datasheet |
HCP0703 | Nonstandard | Tape & Reel (TR) | Obsolete | Drum Core, Wirewound | Iron Powder | 150 nH | ±20% | 26 A | 52A | Shielded | 2.5mOhm Max | - | - | - | -55°C ~ 125°C | 100 kHz | - | Surface Mount | - | 0.287" L x 0.276" W (7.30mm x 7.00mm) | 0.118" (3.00mm) |
