Fixed Inductors
| Photo | Mfr. Part # | Availability | Quantity | Datasheet | Series | Package/Case | Packaging | Product Status | Type | Material - Core | Inductance | Tolerance | Current Rating (Amps) | Current - Saturation (Isat) | Shielding | DC Resistance (DCR) | Q @ Freq | Frequency - Self Resonant | Ratings | Operating Temperature | Inductance Frequency - Test | Features | Mounting Type | Supplier Device Package | Size / Dimension | Height - Seated (Max) |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
PM1608-3R3MFIXED IND 3.3UH 2A 80 MOHM SMD |
0 |
|
Datasheet |
PM1608 | Nonstandard | Tape & Reel (TR) | Obsolete | Drum Core, Wirewound | Ferrite | 3.3 µH | ±20% | 2 A | 2A | Unshielded | 80mOhm Max | - | - | - | -40°C ~ 85°C | 100 kHz | - | Surface Mount | - | 0.260" L x 0.175" W (6.60mm x 4.45mm) | 0.115" (2.92mm) |
|
|
PM1608-4R7MFIXED IND 4.7UH 1.5A 90 MOHM SMD |
0 |
|
Datasheet |
PM1608 | Nonstandard | Tape & Reel (TR) | Obsolete | Drum Core, Wirewound | Ferrite | 4.7 µH | ±20% | 1.5 A | 1.5A | Unshielded | 90mOhm Max | - | - | - | -40°C ~ 85°C | 100 kHz | - | Surface Mount | - | 0.260" L x 0.175" W (6.60mm x 4.45mm) | 0.115" (2.92mm) |
|
|
PM1608-681MFIXED IND 680UH 120MA 9.2OHM SMD |
0 |
|
Datasheet |
PM1608 | Nonstandard | Tape & Reel (TR) | Obsolete | Drum Core, Wirewound | Ferrite | 680 µH | ±20% | 120 mA | 140mA | Unshielded | 9.2Ohm Max | - | - | - | -40°C ~ 85°C | 100 kHz | - | Surface Mount | - | 0.260" L x 0.175" W (6.60mm x 4.45mm) | 0.115" (2.92mm) |
|
PM1608S-103MFIXED IND 10MH 20MA 32.8 OHM SMD |
0 |
|
Datasheet |
PM1608S | Nonstandard | Tape & Reel (TR) | Obsolete | Drum Core, Wirewound | Ferrite | 10 mH | ±20% | 20 mA | - | Shielded | 32.8Ohm Max | - | 800kHz | - | -40°C ~ 85°C | 100 kHz | - | Surface Mount | - | 0.260" L x 0.175" W (6.60mm x 4.45mm) | 0.115" (2.92mm) |
|
|

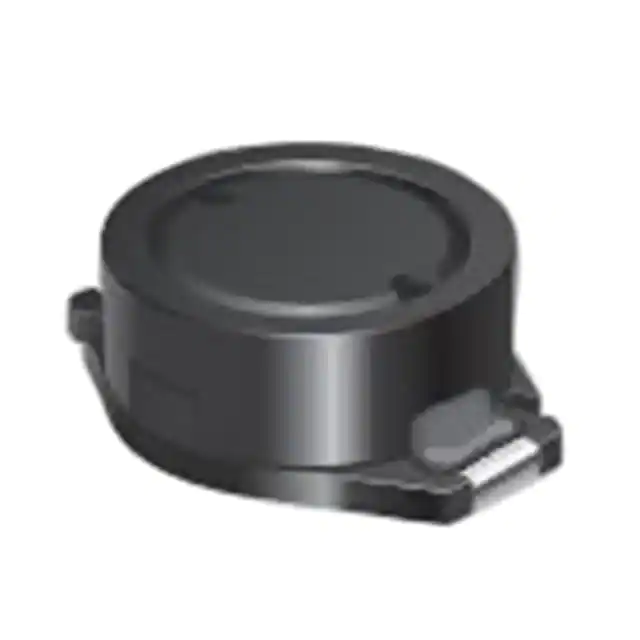

PM1608S-151MFIXED IND 150UH 260MA 590MOHM SM |
0 |
|
Datasheet |
PM1608S | Nonstandard | Tape & Reel (TR) | Obsolete | Drum Core, Wirewound | Ferrite | 150 µH | ±20% | 260 mA | - | Shielded | 590mOhm Max | - | 9MHz | - | -40°C ~ 85°C | 100 kHz | - | Surface Mount | - | 0.260" L x 0.175" W (6.60mm x 4.45mm) | 0.115" (2.92mm) |
|
|
PM1608S-152MFIXED IND 1.5MH 120MA 4.2OHM SMD |
0 |
|
Datasheet |
PM1608S | Nonstandard | Tape & Reel (TR) | Obsolete | Drum Core, Wirewound | Ferrite | 1.5 mH | ±20% | 120 mA | - | Shielded | 4.2Ohm Max | - | 2MHz | - | -40°C ~ 85°C | 100 kHz | - | Surface Mount | - | 0.260" L x 0.175" W (6.60mm x 4.45mm) | 0.115" (2.92mm) |
|
|
PM1608S-1R0MFIXED IND 1UH 3A 40 MOHM SMD |
0 |
|
Datasheet |
PM1608S | Nonstandard | Tape & Reel (TR) | Obsolete | Drum Core, Wirewound | Ferrite | 1 µH | ±20% | 3 A | - | Shielded | 40mOhm Max | - | 250MHz | - | -40°C ~ 85°C | 100 kHz | - | Surface Mount | - | 0.260" L x 0.175" W (6.60mm x 4.45mm) | 0.115" (2.92mm) |
|
|
PM1608S-220MFIXED IND 22UH 700MA 110MOHM SMD |
0 |
|
Datasheet |
PM1608S | Nonstandard | Tape & Reel (TR) | Obsolete | Drum Core, Wirewound | Ferrite | 22 µH | ±20% | 700 mA | - | Shielded | 110mOhm Max | - | 25MHz | - | -40°C ~ 85°C | 100 kHz | - | Surface Mount | - | 0.260" L x 0.175" W (6.60mm x 4.45mm) | 0.115" (2.92mm) |
|
PM1608S-221MFIXED IND 220UH 220MA 770MOHM SM |
0 |
|
Datasheet |
PM1608S | Nonstandard | Tape & Reel (TR) | Obsolete | Drum Core, Wirewound | Ferrite | 220 µH | ±20% | 220 mA | - | Shielded | 770mOhm Max | - | 6MHz | - | -40°C ~ 85°C | 100 kHz | - | Surface Mount | - | 0.260" L x 0.175" W (6.60mm x 4.45mm) | 0.115" (2.92mm) |
|
|
PM1608S-332MFIXED IND 3.3MH 80MA 11 OHM SMD |
0 |
|
Datasheet |
PM1608S | Nonstandard | Tape & Reel (TR) | Obsolete | Drum Core, Wirewound | Ferrite | 3.3 mH | ±20% | 80 mA | - | Shielded | 11Ohm Max | - | 1MHz | - | -40°C ~ 85°C | 100 kHz | - | Surface Mount | - | 0.260" L x 0.175" W (6.60mm x 4.45mm) | 0.115" (2.92mm) |
|
|
PM1608S-472MFIXED IND 4.7MH 60MA 13.9OHM SMD |
0 |
|
Datasheet |
PM1608S | Nonstandard | Tape & Reel (TR) | Obsolete | Drum Core, Wirewound | Ferrite | 4.7 mH | ±20% | 60 mA | - | Shielded | 13.9Ohm Max | - | 1MHz | - | -40°C ~ 85°C | 100 kHz | - | Surface Mount | - | 0.260" L x 0.175" W (6.60mm x 4.45mm) | 0.115" (2.92mm) |
|
|
PM1608S-680MFIXED IND 68UH 400MA 290MOHM SMD |
0 |
|
Datasheet |
PM1608S | Nonstandard | Tape & Reel (TR) | Obsolete | Drum Core, Wirewound | Ferrite | 68 µH | ±20% | 400 mA | - | Shielded | 290mOhm Max | - | 15MHz | - | -40°C ~ 85°C | 100 kHz | - | Surface Mount | - | 0.260" L x 0.175" W (6.60mm x 4.45mm) | 0.115" (2.92mm) |
|
|
PM1608S-681MFIXED IND 680UH 180MA 2.2OHM SMD |
0 |
|
Datasheet |
PM1608S | Nonstandard | Tape & Reel (TR) | Obsolete | Drum Core, Wirewound | Ferrite | 680 µH | ±20% | 180 mA | - | Shielded | 2.2Ohm Max | - | 3MHz | - | -40°C ~ 85°C | 100 kHz | - | Surface Mount | - | 0.260" L x 0.175" W (6.60mm x 4.45mm) | 0.115" (2.92mm) |
|
|
PM1608S-682MFIXED IND 6.8MH 40MA 25 OHM SMD |
0 |
|
Datasheet |
PM1608S | Nonstandard | Tape & Reel (TR) | Obsolete | Drum Core, Wirewound | Ferrite | 6.8 mH | ±20% | 40 mA | - | Shielded | 25Ohm Max | - | 1MHz | - | -40°C ~ 85°C | 100 kHz | - | Surface Mount | - | 0.260" L x 0.175" W (6.60mm x 4.45mm) | 0.115" (2.92mm) |
|
PM42S-100FIXED IND 10UH 610MA 200MOHM SMD |
0 |
|
Datasheet |
PM42S | Nonstandard | Tape & Reel (TR) | Obsolete | Drum Core, Wirewound | Ferrite | 10 µH | ±30% | 610 mA | - | Shielded | 200mOhm Max | - | - | - | -30°C ~ 100°C | 10 kHz | - | Surface Mount | - | 0.189" L x 0.189" W (4.80mm x 4.80mm) | 0.079" (2.00mm) |
|
|
PM42S-120FIXED IND 12UH 560MA 210MOHM SMD |
0 |
|
Datasheet |
PM42S | Nonstandard | Tape & Reel (TR) | Obsolete | Drum Core, Wirewound | Ferrite | 12 µH | ±30% | 560 mA | - | Shielded | 210mOhm Max | - | - | - | -30°C ~ 100°C | 10 kHz | - | Surface Mount | - | 0.189" L x 0.189" W (4.80mm x 4.80mm) | 0.079" (2.00mm) |
|
|
PM42S-121FIXED IND 120UH 180MA 2.39OHM SM |
0 |
|
Datasheet |
PM42S | Nonstandard | Tape & Reel (TR) | Obsolete | Drum Core, Wirewound | Ferrite | 120 µH | ±30% | 180 mA | - | Shielded | 2.39Ohm Max | - | - | - | -30°C ~ 100°C | 10 kHz | - | Surface Mount | - | 0.189" L x 0.189" W (4.80mm x 4.80mm) | 0.079" (2.00mm) |
|
|
PM42S-151FIXED IND 150UH 150MA 2.67OHM SM |
0 |
|
Datasheet |
PM42S | Nonstandard | Tape & Reel (TR) | Obsolete | Drum Core, Wirewound | Ferrite | 150 µH | ±30% | 150 mA | - | Shielded | 2.67Ohm Max | - | - | - | -30°C ~ 100°C | 10 kHz | - | Surface Mount | - | 0.189" L x 0.189" W (4.80mm x 4.80mm) | 0.079" (2.00mm) |
|
|
PM42S-181FIXED IND 180UH 140MA 4 OHM SMD |
0 |
|
Datasheet |
PM42S | Nonstandard | Tape & Reel (TR) | Obsolete | Drum Core, Wirewound | Ferrite | 180 µH | ±30% | 140 mA | - | Shielded | 4Ohm Max | - | - | - | -30°C ~ 100°C | 10 kHz | - | Surface Mount | - | 0.189" L x 0.189" W (4.80mm x 4.80mm) | 0.079" (2.00mm) |
|
|
PM42S-2R7FIXED IND 2.7UH 1.28A 105MOHM SM |
0 |
|
Datasheet |
PM42S | Nonstandard | Tape & Reel (TR) | Obsolete | Drum Core, Wirewound | Ferrite | 2.7 µH | ±30% | 1.28 A | - | Shielded | 105mOhm Max | - | - | - | -30°C ~ 100°C | 7.96 MHz | - | Surface Mount | - | 0.189" L x 0.189" W (4.80mm x 4.80mm) | 0.079" (2.00mm) |
