Fixed Inductors
| Photo | Mfr. Part # | Availability | Quantity | Datasheet | Series | Package/Case | Packaging | Product Status | Type | Material - Core | Inductance | Tolerance | Current Rating (Amps) | Current - Saturation (Isat) | Shielding | DC Resistance (DCR) | Q @ Freq | Frequency - Self Resonant | Ratings | Operating Temperature | Inductance Frequency - Test | Features | Mounting Type | Supplier Device Package | Size / Dimension | Height - Seated (Max) |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|

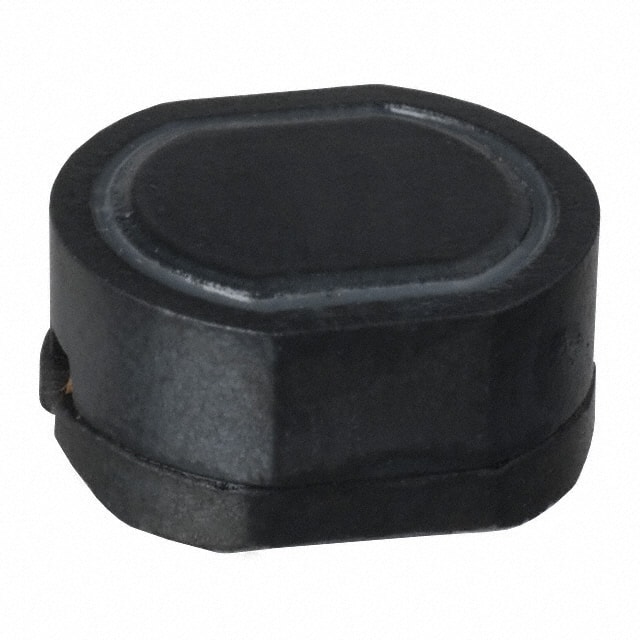

PM105S-121MFIXED IND 120UH 730MA 380MOHM SM |
0 |
|
Datasheet |
PM105S | Nonstandard | Tape & Reel (TR) | Obsolete | Drum Core, Wirewound | Ferrite | 120 µH | ±20% | 730 mA | - | Shielded | 380mOhm Max | - | 7MHz | - | -30°C ~ 100°C | 1 kHz | - | Surface Mount | - | 0.394" L x 0.362" W (10.00mm x 9.20mm) | 0.217" (5.50mm) |
|
|
PM105S-181MFIXED IND 180UH 600MA 620MOHM SM |
0 |
|
Datasheet |
PM105S | Nonstandard | Tape & Reel (TR) | Obsolete | Drum Core, Wirewound | Ferrite | 180 µH | ±20% | 600 mA | - | Shielded | 620mOhm Max | - | 5MHz | - | -30°C ~ 100°C | 1 kHz | - | Surface Mount | - | 0.394" L x 0.362" W (10.00mm x 9.20mm) | 0.217" (5.50mm) |
|
|
PM105S-391MFIXED IND 390UH 410MA 1.18OHM SM |
0 |
|
Datasheet |
PM105S | Nonstandard | Tape & Reel (TR) | Obsolete | Drum Core, Wirewound | Ferrite | 390 µH | ±20% | 410 mA | - | Shielded | 1.18Ohm Max | - | 4MHz | - | -30°C ~ 100°C | 1 kHz | - | Surface Mount | - | 0.394" L x 0.362" W (10.00mm x 9.20mm) | 0.217" (5.50mm) |
|
ELJ-RE1N5DF2FIXED IND 1.5NH 500MA 70MOHM SMD |
0 |
|
Datasheet |
RE | 0603 (1608 Metric) | Tape & Reel (TR) | Obsolete | Multilayer | Non-Magnetic | 1.5 nH | ±0.3nH | 500 mA | - | Unshielded | 70mOhm Max | 8 @ 100MHz | 6GHz | - | -40°C ~ 85°C | 100 MHz | - | Surface Mount | 0603 (1608 Metric) | 0.063" L x 0.031" W (1.60mm x 0.80mm) | 0.031" (0.80mm) |
|
|
ELJ-RE1N8DF2FIXED IND 1.8NH 500MA 80MOHM SMD |
0 |
|
Datasheet |
RE | 0603 (1608 Metric) | Tape & Reel (TR) | Obsolete | Multilayer | Non-Magnetic | 1.8 nH | ±0.3nH | 500 mA | - | Unshielded | 80mOhm Max | 8 @ 100MHz | 6GHz | - | -40°C ~ 85°C | 100 MHz | - | Surface Mount | 0603 (1608 Metric) | 0.063" L x 0.031" W (1.60mm x 0.80mm) | 0.031" (0.80mm) |
|
|
ELJ-RER10JF3FIXED IND 100NH 200MA 1.8OHM SMD |
0 |
|
Datasheet |
RE | 0603 (1608 Metric) | Tape & Reel (TR) | Obsolete | Multilayer | Non-Magnetic | 100 nH | ±5% | 200 mA | - | Unshielded | 1.8Ohm Max | 10 @ 100MHz | 1.3GHz | - | -40°C ~ 85°C | 100 MHz | - | Surface Mount | 0603 (1608 Metric) | 0.063" L x 0.031" W (1.60mm x 0.80mm) | 0.031" (0.80mm) |
|
ELJ-FCR22KFFIXED IND 220NH 190MA 700MOHM SM |
0 |
|
Datasheet |
FC | 1008 (2520 Metric) | Tape & Reel (TR) | Obsolete | Wirewound | - | 220 nH | ±10% | 190 mA | - | Unshielded | 700mOhm Max | 25 @ 25.2MHz | 230MHz | - | -20°C ~ 85°C | 25.2 MHz | - | Surface Mount | 1008 (2520 Metric) | 0.098" L x 0.079" W (2.50mm x 2.00mm) | 0.071" (1.80mm) |
|
|
ELJ-FCR33KFFIXED IND 330NH 170MA 850MOHM SM |
0 |
|
Datasheet |
FC | 1008 (2520 Metric) | Tape & Reel (TR) | Obsolete | Wirewound | - | 330 nH | ±10% | 170 mA | - | Unshielded | 850mOhm Max | 25 @ 25.2MHz | 190MHz | - | -20°C ~ 85°C | 25.2 MHz | - | Surface Mount | 1008 (2520 Metric) | 0.098" L x 0.079" W (2.50mm x 2.00mm) | 0.071" (1.80mm) |
|
|
ELJ-FCR39KFFIXED IND 390NH 160MA 950MOHM SM |
0 |
|
Datasheet |
FC | 1008 (2520 Metric) | Tape & Reel (TR) | Obsolete | Wirewound | - | 390 nH | ±10% | 160 mA | - | Unshielded | 950mOhm Max | 25 @ 25.2MHz | 175MHz | - | -20°C ~ 85°C | 25.2 MHz | - | Surface Mount | 1008 (2520 Metric) | 0.098" L x 0.079" W (2.50mm x 2.00mm) | 0.071" (1.80mm) |
|
|
ELJ-FCR47KFFIXED IND 470NH 155MA 1 OHM SMD |
0 |
|
Datasheet |
FC | 1008 (2520 Metric) | Tape & Reel (TR) | Obsolete | Wirewound | - | 470 nH | ±10% | 155 mA | - | Unshielded | 1Ohm Max | 25 @ 25.2MHz | 160MHz | - | -20°C ~ 85°C | 25.2 MHz | - | Surface Mount | 1008 (2520 Metric) | 0.098" L x 0.079" W (2.50mm x 2.00mm) | 0.071" (1.80mm) |
|
|
ELJ-FCR56KFFIXED IND 560NH 150MA 1.1OHM SMD |
0 |
|
Datasheet |
FC | 1008 (2520 Metric) | Tape & Reel (TR) | Obsolete | Wirewound | - | 560 nH | ±10% | 150 mA | - | Unshielded | 1.1Ohm Max | 25 @ 25.2MHz | 155MHz | - | -20°C ~ 85°C | 25.2 MHz | - | Surface Mount | 1008 (2520 Metric) | 0.098" L x 0.079" W (2.50mm x 2.00mm) | 0.071" (1.80mm) |
|
|
ELJ-FCR68KFFIXED IND 680NH 140MA 1.25OHM SM |
0 |
|
Datasheet |
FC | 1008 (2520 Metric) | Tape & Reel (TR) | Obsolete | Wirewound | - | 680 nH | ±10% | 140 mA | - | Unshielded | 1.25Ohm Max | 25 @ 25.2MHz | 135MHz | - | -20°C ~ 85°C | 25.2 MHz | - | Surface Mount | 1008 (2520 Metric) | 0.098" L x 0.079" W (2.50mm x 2.00mm) | 0.071" (1.80mm) |
|
ELJ-RF1N0DFFIXED IND 1NH 400MA 50 MOHM SMD |
0 |
|
Datasheet |
RF | 0402 (1005 Metric) | Tape & Reel (TR) | Obsolete | Multilayer | Non-Magnetic | 1 nH | ±0.3nH | 400 mA | - | Unshielded | 50mOhm Max | 8 @ 100MHz | 6GHz | - | -20°C ~ 85°C | 100 MHz | - | Surface Mount | 0402 (1005 Metric) | 0.039" L x 0.020" W (1.00mm x 0.50mm) | 0.022" (0.55mm) |
|
|
ELJ-RF1N2DFFIXED IND 1.2NH 400MA 60MOHM SMD |
0 |
|
Datasheet |
RF | 0402 (1005 Metric) | Tape & Reel (TR) | Obsolete | Multilayer | Non-Magnetic | 1.2 nH | ±0.3nH | 400 mA | - | Unshielded | 60mOhm Max | 8 @ 100MHz | 6GHz | - | -20°C ~ 85°C | 100 MHz | - | Surface Mount | 0402 (1005 Metric) | 0.039" L x 0.020" W (1.00mm x 0.50mm) | 0.022" (0.55mm) |
|
|
ELJ-RF1N5DFFIXED IND 1.5NH 400MA 70MOHM SMD |
0 |
|
Datasheet |
RF | 0402 (1005 Metric) | Tape & Reel (TR) | Obsolete | Multilayer | Non-Magnetic | 1.5 nH | ±0.3nH | 400 mA | - | Unshielded | 70mOhm Max | 8 @ 100MHz | 6GHz | - | -20°C ~ 85°C | 100 MHz | - | Surface Mount | 0402 (1005 Metric) | 0.039" L x 0.020" W (1.00mm x 0.50mm) | 0.022" (0.55mm) |
|
|
ELJ-RF1N8DFFIXED IND 1.8NH 400MA 80MOHM SMD |
0 |
|
Datasheet |
RF | 0402 (1005 Metric) | Tape & Reel (TR) | Obsolete | Multilayer | Non-Magnetic | 1.8 nH | ±0.3nH | 400 mA | - | Unshielded | 80mOhm Max | 8 @ 100MHz | 6GHz | - | -20°C ~ 85°C | 100 MHz | - | Surface Mount | 0402 (1005 Metric) | 0.039" L x 0.020" W (1.00mm x 0.50mm) | 0.022" (0.55mm) |
|
|
ELJ-RF4N7DFFIXED IND 4.7NH 360MA 170MOHM SM |
0 |
|
Datasheet |
RF | 0402 (1005 Metric) | Tape & Reel (TR) | Obsolete | Multilayer | Non-Magnetic | 4.7 nH | ±0.3nH | 360 mA | - | Unshielded | 170mOhm Max | 8 @ 100MHz | 4.8GHz | - | -20°C ~ 85°C | 100 MHz | - | Surface Mount | 0402 (1005 Metric) | 0.039" L x 0.020" W (1.00mm x 0.50mm) | 0.022" (0.55mm) |
|
|
ELJ-RF15NJFFIXED IND 15NH 240MA 600MOHM SMD |
0 |
|
Datasheet |
RF | 0402 (1005 Metric) | Tape & Reel (TR) | Obsolete | Multilayer | Non-Magnetic | 15 nH | ±5% | 240 mA | - | Unshielded | 600mOhm Max | 8 @ 100MHz | 2.5GHz | - | -20°C ~ 85°C | 100 MHz | - | Surface Mount | 0402 (1005 Metric) | 0.039" L x 0.020" W (1.00mm x 0.50mm) | 0.022" (0.55mm) |
|
|
ELJ-RF22NJFFIXED IND 22NH 200MA 800MOHM SMD |
0 |
|
Datasheet |
RF | 0402 (1005 Metric) | Tape & Reel (TR) | Obsolete | Multilayer | Non-Magnetic | 22 nH | ±5% | 200 mA | - | Unshielded | 800mOhm Max | 8 @ 100MHz | 2GHz | - | -20°C ~ 85°C | 100 MHz | - | Surface Mount | 0402 (1005 Metric) | 0.039" L x 0.020" W (1.00mm x 0.50mm) | 0.022" (0.55mm) |
|
|
ELJ-RF39NJFFIXED IND 39NH 150MA 1.7 OHM SMD |
0 |
|
Datasheet |
RF | 0402 (1005 Metric) | Tape & Reel (TR) | Obsolete | Multilayer | Non-Magnetic | 39 nH | ±5% | 150 mA | - | Unshielded | 1.7Ohm Max | 8 @ 100MHz | 1.8GHz | - | -20°C ~ 85°C | 100 MHz | - | Surface Mount | 0402 (1005 Metric) | 0.039" L x 0.020" W (1.00mm x 0.50mm) | 0.022" (0.55mm) |
