Fixed Inductors
| Photo | Mfr. Part # | Availability | Quantity | Datasheet | Series | Package/Case | Packaging | Product Status | Type | Material - Core | Inductance | Tolerance | Current Rating (Amps) | Current - Saturation (Isat) | Shielding | DC Resistance (DCR) | Q @ Freq | Frequency - Self Resonant | Ratings | Operating Temperature | Inductance Frequency - Test | Features | Mounting Type | Supplier Device Package | Size / Dimension | Height - Seated (Max) |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
S0603-10NF1SFIXED IND 10NH 700MA 160MOHM SMD |
0 |
|
Datasheet |
S0603 | 0603 (1608 Metric) | Bulk | Active | Drum Core, Wirewound | Alumina | 10 nH | ±1% | 700 mA | - | Unshielded | 160mOhm Max | 28 @ 250MHz | 4.8GHz | - | -55°C ~ 125°C | 250 MHz | - | Surface Mount | 0603 (1608 Metric) | 0.062" L x 0.035" W (1.58mm x 0.89mm) | 0.040" (1.02mm) |
|
|
S0603-15NF1SFIXED IND 15NH 700MA 200MOHM SMD |
0 |
|
Datasheet |
S0603 | 0603 (1608 Metric) | Bulk | Active | Drum Core, Wirewound | Alumina | 15 nH | ±1% | 700 mA | - | Unshielded | 200mOhm Max | 32 @ 250MHz | 4GHz | - | -55°C ~ 125°C | 250 MHz | - | Surface Mount | 0603 (1608 Metric) | 0.062" L x 0.035" W (1.58mm x 0.89mm) | 0.040" (1.02mm) |
|
|
S0603-22NF1SFIXED IND 22NH 700MA 220MOHM SMD |
0 |
|
Datasheet |
S0603 | 0603 (1608 Metric) | Bulk | Active | Drum Core, Wirewound | Alumina | 22 nH | ±1% | 700 mA | - | Unshielded | 220mOhm Max | 35 @ 250MHz | 3GHz | - | -55°C ~ 125°C | 250 MHz | - | Surface Mount | 0603 (1608 Metric) | 0.062" L x 0.035" W (1.58mm x 0.89mm) | 0.040" (1.02mm) |
|
|
S0603-3N3F1SFIXED IND 3.3NH 700MA 100MOHM SM |
0 |
|
Datasheet |
S0603 | 0603 (1608 Metric) | Bulk | Active | Drum Core, Wirewound | Alumina | 3.3 nH | ±1% | 700 mA | - | Unshielded | 100mOhm Max | 18 @ 250MHz | 6GHz | - | -55°C ~ 125°C | 250 MHz | - | Surface Mount | 0603 (1608 Metric) | 0.062" L x 0.035" W (1.58mm x 0.89mm) | 0.040" (1.02mm) |
|
|
S0603-5N6F1SFIXED IND 5.6NH 700MA 190MOHM SM |
0 |
|
Datasheet |
S0603 | 0603 (1608 Metric) | Bulk | Active | Drum Core, Wirewound | Alumina | 5.6 nH | ±1% | 700 mA | - | Unshielded | 190mOhm Max | 18 @ 250MHz | 5.8GHz | - | -55°C ~ 125°C | 250 MHz | - | Surface Mount | 0603 (1608 Metric) | 0.062" L x 0.035" W (1.58mm x 0.89mm) | 0.040" (1.02mm) |
|
|
S0603-8N2F1SFIXED IND 8.2NH 700MA 150MOHM SM |
0 |
|
Datasheet |
S0603 | 0603 (1608 Metric) | Bulk | Active | Drum Core, Wirewound | Alumina | 8.2 nH | ±1% | 700 mA | - | Unshielded | 150mOhm Max | 24 @ 250MHz | 4.8GHz | - | -55°C ~ 125°C | 250 MHz | - | Surface Mount | 0603 (1608 Metric) | 0.062" L x 0.035" W (1.58mm x 0.89mm) | 0.040" (1.02mm) |
|

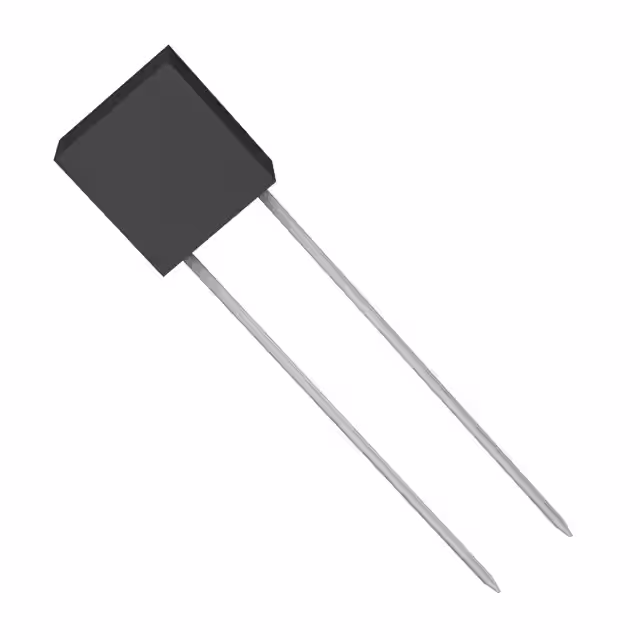

2727-23FFIXED IND 680UH 100MA 19 OHM TH |
0 |
|
Datasheet |
2727 | Radial, Vertical | Bulk | Active | Toroidal | Iron | 680 µH | ±1% | 100 mA | - | Unshielded | 19Ohm Max | 55 @ 790kHz | 2.8MHz | - | -55°C ~ 125°C | 790 kHz | - | Through Hole | - | 0.280" L x 0.160" W (7.11mm x 4.06mm) | 0.300" (7.62mm) |
|
|
2727-24FFIXED IND 820UH 92MA 23 OHM TH |
0 |
|
Datasheet |
2727 | Radial, Vertical | Bulk | Active | Toroidal | Iron | 820 µH | ±1% | 92 mA | - | Unshielded | 23Ohm Max | 50 @ 790kHz | 2.5MHz | - | -55°C ~ 125°C | 790 kHz | - | Through Hole | - | 0.280" L x 0.160" W (7.11mm x 4.06mm) | 0.300" (7.62mm) |
|
|
2727-25FFIXED IND 1MH 84MA 27 OHM TH |
0 |
|
Datasheet |
2727 | Radial, Vertical | Bulk | Active | Toroidal | Iron | 1 mH | ±1% | 84 mA | - | Unshielded | 27Ohm Max | 50 @ 790kHz | 2.2MHz | - | -55°C ~ 125°C | 790 kHz | - | Through Hole | - | 0.280" L x 0.160" W (7.11mm x 4.06mm) | 0.300" (7.62mm) |
|
|
2727R-23FFIXED IND 680UH 100MA 19 OHM TH |
0 |
|
Datasheet |
2727R | Radial, Vertical | Bulk | Active | Toroidal | Iron | 680 µH | ±1% | 100 mA | - | Unshielded | 19Ohm Max | 55 @ 790kHz | 2.8MHz | - | -55°C ~ 125°C | 790 kHz | - | Through Hole | - | 0.280" L x 0.160" W (7.11mm x 4.06mm) | 0.300" (7.62mm) |
|
|
2727R-24FFIXED IND 820UH 92MA 23 OHM TH |
0 |
|
Datasheet |
2727R | Radial, Vertical | Bulk | Active | Toroidal | Iron | 820 µH | ±1% | 92 mA | - | Unshielded | 23Ohm Max | 50 @ 790kHz | 2.5MHz | - | -55°C ~ 125°C | 790 kHz | - | Through Hole | - | 0.280" L x 0.160" W (7.11mm x 4.06mm) | 0.300" (7.62mm) |
|
|
2727R-25FFIXED IND 1MH 84MA 27 OHM TH |
0 |
|
Datasheet |
2727R | Radial, Vertical | Bulk | Active | Toroidal | Iron | 1 mH | ±1% | 84 mA | - | Unshielded | 27Ohm Max | 50 @ 790kHz | 2.2MHz | - | -55°C ~ 125°C | 790 kHz | - | Through Hole | - | 0.280" L x 0.160" W (7.11mm x 4.06mm) | 0.300" (7.62mm) |
|
|
195B100CHOKE, HEAVY CURRENT CHASSIS MOU |
0 |
|
Datasheet |
195 | Nonstandard | Bulk | Active | Wirewound | - | 500 µH | ±15% | 100 A | - | Unshielded | 2mOhm | - | - | - | - | - | - | Chassis Mount | - | 6.374" L x 6.252" W (161.90mm x 158.80mm) | 5.374" (136.50mm) |
|
ML05KT4R7FIXED IND 4.7UH 30MA 1 OHM SMD |
2,990 |
|
Datasheet |
ML | 0805 (2012 Metric) | Tape & Reel (TR) | Active | Multilayer | Ferrite | 4.7 µH | ±10% | 30 mA | - | Unshielded | 1Ohm Max | 45 @ 10MHz | 35MHz | - | -40°C ~ 125°C | 10 MHz | - | Surface Mount | 0805 | 0.079" L x 0.049" W (2.00mm x 1.25mm) | 0.057" (1.45mm) |
|
XGL3520-451MECFIXED INDUCTOR 0.45UH SMD |
2,471 |
|
Datasheet |
XGL3520 | Nonstandard | Strip | Active | Molded | - | 450 nH | ±20% | 12 A | 7.8A | Shielded | 6.8mOhm Max | - | 120MHz | AEC-Q200 | -40°C ~ 125°C | 1 MHz | - | Surface Mount | - | 0.138" L x 0.126" W (3.50mm x 3.20mm) | 0.079" (2.00mm) |
|
XFL2010-121MECFIXED INDUCTOR 0.12UH SMD |
2,158 |
|
Datasheet |
XFL2010 | Nonstandard | Strip | Active | - | - | 120 nH | ±20% | 2.7 A | 4.9A | Shielded | 22mOhm Max | - | 730MHz | AEC-Q200 | -40°C ~ 125°C | 1 MHz | - | Surface Mount | - | 0.079" L x 0.075" W (2.00mm x 1.90mm) | 0.039" (1.00mm) |
|
WL05GT56NFIXED IND 56NH 500MA 340MOHM SMD |
1,992 |
|
Datasheet |
WL | 0805 (2012 Metric) | Tape & Reel (TR) | Active | Drum Core, Wirewound | Ceramic | 56 nH | ±2% | 500 mA | - | Unshielded | 340mOhm Max | 60 @ 500MHz | 1.55GHz | AEC-Q200 | -40°C ~ 125°C | 200 MHz | - | Surface Mount | 0805 | 0.090" L x 0.068" W (2.29mm x 1.73mm) | 0.060" (1.52mm) |
|
XGL5030-351MECPOWER INDUCTOR, SHIELDED, COMPOS |
1,563 |
|
Datasheet |
XGL5030 | Nonstandard | Strip | Active | Molded | Metal Composite | 350 nH | ±20% | 22.8 A | 24.5A | Shielded | 2.2mOhm Max | - | 100MHz | AEC-Q200 | -40°C ~ 165°C | 1 MHz | - | Surface Mount | - | 0.216" L x 0.208" W (5.48mm x 5.28mm) | 0.126" (3.20mm) |
|
|
XFL2006-472MECFIXED IND 4.7UH 660MA 732MOHM SM |
1,425 |
|
Datasheet |
XFL2006 | Nonstandard | Tape & Reel (TR) | Active | Molded | Metal Composite | 4.7 µH | ±20% | 660 mA | 310mA | Shielded | 732mOhm | - | 68MHz | - | -40°C ~ 85°C | 100 kHz | - | Surface Mount | - | 0.079" L x 0.075" W (2.00mm x 1.90mm) | 0.024" (0.60mm) |
|
0402DC-6N7XGRWFIXED IND 6.7NH 1.65A 63MOHM SMD |
910 |
|
Datasheet |
0402DC | 0402 (1005 Metric) | Strip | Active | Wirewound | Ceramic | 6.7 nH | ±2% | 1.65 A | - | Unshielded | 63mOhm Max | 69 @ 900MHz | 10.4GHz | AEC-Q200 | -40°C ~ 125°C | 250 MHz | - | Surface Mount | 0402 | 0.044" L x 0.026" W (1.11mm x 0.66mm) | 0.026" (0.65mm) |
