Fixed Inductors
| Photo | Mfr. Part # | Availability | Quantity | Datasheet | Series | Package/Case | Packaging | Product Status | Type | Material - Core | Inductance | Tolerance | Current Rating (Amps) | Current - Saturation (Isat) | Shielding | DC Resistance (DCR) | Q @ Freq | Frequency - Self Resonant | Ratings | Operating Temperature | Inductance Frequency - Test | Features | Mounting Type | Supplier Device Package | Size / Dimension | Height - Seated (Max) |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|

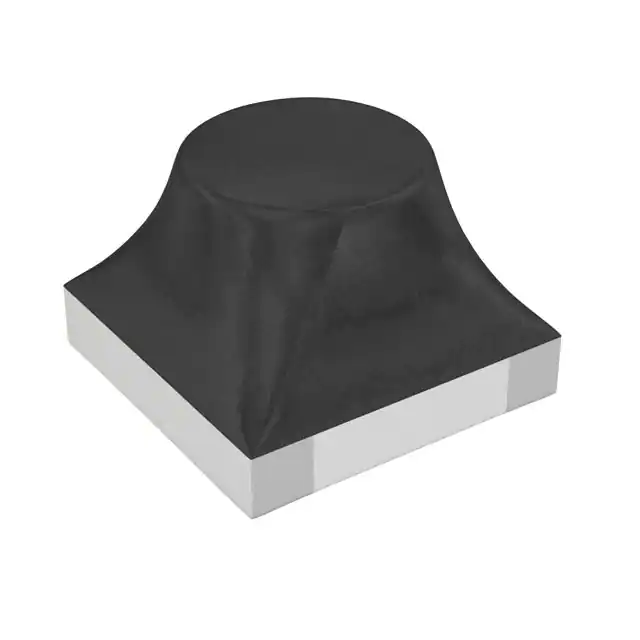

103-123FSFIXED IND 12UH 160MA 3.8 OHM SMD |
0 |
|
Datasheet |
103 | Nonstandard, 2 Lead | Tape & Reel (TR) | Active | - | Ferrite | 12 µH | ±1% | 160 mA | - | Unshielded | 3.8Ohm Max | 25 @ 2.5MHz | 35MHz | - | -55°C ~ 125°C | 2.5 MHz | - | Surface Mount | - | 0.100" L x 0.100" W (2.54mm x 2.54mm) | 0.075" (1.91mm) |
|
|
103-151FSFIXED IND 150NH 745MA 175MOHM SM |
0 |
|
Datasheet |
103 | Nonstandard, 2 Lead | Tape & Reel (TR) | Active | - | Ferrite | 150 nH | ±1% | 745 mA | - | Unshielded | 175mOhm Max | 25 @ 25MHz | 650MHz | - | -55°C ~ 125°C | 25 MHz | - | Surface Mount | - | 0.100" L x 0.100" W (2.54mm x 2.54mm) | 0.075" (1.91mm) |
|
|
103-152FSFIXED IND 1.5UH 340MA 840MOHM SM |
0 |
|
Datasheet |
103 | Nonstandard, 2 Lead | Tape & Reel (TR) | Active | - | Ferrite | 1.5 µH | ±1% | 340 mA | - | Unshielded | 840mOhm Max | 22 @ 7.9MHz | 115MHz | - | -55°C ~ 125°C | 7.9 MHz | - | Surface Mount | - | 0.100" L x 0.100" W (2.54mm x 2.54mm) | 0.075" (1.91mm) |
|
|
103-153FSFIXED IND 15UH 135MA 5.6 OHM SMD |
0 |
|
Datasheet |
103 | Nonstandard, 2 Lead | Tape & Reel (TR) | Active | - | Ferrite | 15 µH | ±1% | 135 mA | - | Unshielded | 5.6Ohm Max | 25 @ 2.5MHz | 30MHz | - | -55°C ~ 125°C | 2.5 MHz | - | Surface Mount | - | 0.100" L x 0.100" W (2.54mm x 2.54mm) | 0.075" (1.91mm) |
|
|
103-181FSFIXED IND 180NH 695MA 200MOHM SM |
0 |
|
Datasheet |
103 | Nonstandard, 2 Lead | Tape & Reel (TR) | Active | - | Ferrite | 180 nH | ±1% | 695 mA | - | Unshielded | 200mOhm Max | 25 @ 25MHz | 550MHz | - | -55°C ~ 125°C | 25 MHz | - | Surface Mount | - | 0.100" L x 0.100" W (2.54mm x 2.54mm) | 0.075" (1.91mm) |
|
|
103-182FSFIXED IND 1.8UH 325MA 920MOHM SM |
0 |
|
Datasheet |
103 | Nonstandard, 2 Lead | Tape & Reel (TR) | Active | - | Ferrite | 1.8 µH | ±1% | 325 mA | - | Unshielded | 920mOhm Max | 22 @ 7.9MHz | 105MHz | - | -55°C ~ 125°C | 7.9 MHz | - | Surface Mount | - | 0.100" L x 0.100" W (2.54mm x 2.54mm) | 0.075" (1.91mm) |
|
|
103-183FSFIXED IND 18UH 130MA 5.8 OHM SMD |
0 |
|
Datasheet |
103 | Nonstandard, 2 Lead | Tape & Reel (TR) | Active | - | Ferrite | 18 µH | ±1% | 130 mA | - | Unshielded | 5.8Ohm Max | 25 @ 2.5MHz | 28MHz | - | -55°C ~ 125°C | 2.5 MHz | - | Surface Mount | - | 0.100" L x 0.100" W (2.54mm x 2.54mm) | 0.075" (1.91mm) |
|
|
103-221FSFIXED IND 220NH 665MA 220MOHM SM |
0 |
|
Datasheet |
103 | Nonstandard, 2 Lead | Tape & Reel (TR) | Active | - | Ferrite | 220 nH | ±1% | 665 mA | - | Unshielded | 220mOhm Max | 25 @ 25MHz | 450MHz | - | -55°C ~ 125°C | 25 MHz | - | Surface Mount | - | 0.100" L x 0.100" W (2.54mm x 2.54mm) | 0.075" (1.91mm) |
|
|
103-222FSFIXED IND 2.2UH 310MA 1 OHM SMD |
0 |
|
Datasheet |
103 | Nonstandard, 2 Lead | Tape & Reel (TR) | Active | - | Ferrite | 2.2 µH | ±1% | 310 mA | - | Unshielded | 1Ohm Max | 22 @ 7.9MHz | 85MHz | - | -55°C ~ 125°C | 7.9 MHz | - | Surface Mount | - | 0.100" L x 0.100" W (2.54mm x 2.54mm) | 0.075" (1.91mm) |
|
|
103-223FSFIXED IND 22UH 125MA 6.4 OHM SMD |
0 |
|
Datasheet |
103 | Nonstandard, 2 Lead | Tape & Reel (TR) | Active | - | Ferrite | 22 µH | ±1% | 125 mA | - | Unshielded | 6.4Ohm Max | 25 @ 2.5MHz | 25MHz | - | -55°C ~ 125°C | 2.5 MHz | - | Surface Mount | - | 0.100" L x 0.100" W (2.54mm x 2.54mm) | 0.075" (1.91mm) |
|
|
103-271FSFIXED IND 270NH 650MA 230MOHM SM |
0 |
|
Datasheet |
103 | Nonstandard, 2 Lead | Tape & Reel (TR) | Active | - | Ferrite | 270 nH | ±1% | 650 mA | - | Unshielded | 230mOhm Max | 25 @ 25MHz | 375MHz | - | -55°C ~ 125°C | 25 MHz | - | Surface Mount | - | 0.100" L x 0.100" W (2.54mm x 2.54mm) | 0.075" (1.91mm) |
|
|
103-272FSFIXED IND 2.7UH 290MA 1.15OHM SM |
0 |
|
Datasheet |
103 | Nonstandard, 2 Lead | Tape & Reel (TR) | Active | - | Ferrite | 2.7 µH | ±1% | 290 mA | - | Unshielded | 1.15Ohm Max | 24 @ 7.9MHz | 77MHz | - | -55°C ~ 125°C | 7.9 MHz | - | Surface Mount | - | 0.100" L x 0.100" W (2.54mm x 2.54mm) | 0.075" (1.91mm) |
|
|
103-273FSFIXED IND 27UH 120MA 6.9 OHM SMD |
0 |
|
Datasheet |
103 | Nonstandard, 2 Lead | Tape & Reel (TR) | Active | - | Ferrite | 27 µH | ±1% | 120 mA | - | Unshielded | 6.9Ohm Max | 25 @ 2.5MHz | 22MHz | - | -55°C ~ 125°C | 2.5 MHz | - | Surface Mount | - | 0.100" L x 0.100" W (2.54mm x 2.54mm) | 0.075" (1.91mm) |
|
|
103-331FSFIXED IND 330NH 645MA 235MOHM SM |
0 |
|
Datasheet |
103 | Nonstandard, 2 Lead | Tape & Reel (TR) | Active | - | Ferrite | 330 nH | ±1% | 645 mA | - | Unshielded | 235mOhm Max | 25 @ 25MHz | 300MHz | - | -55°C ~ 125°C | 25 MHz | - | Surface Mount | - | 0.100" L x 0.100" W (2.54mm x 2.54mm) | 0.075" (1.91mm) |
|
|
103-332FSFIXED IND 3.3UH 260MA 1.4OHM SMD |
0 |
|
Datasheet |
103 | Nonstandard, 2 Lead | Tape & Reel (TR) | Active | - | Ferrite | 3.3 µH | ±1% | 260 mA | - | Unshielded | 1.4Ohm Max | 24 @ 7.9MHz | 70MHz | - | -55°C ~ 125°C | 7.9 MHz | - | Surface Mount | - | 0.100" L x 0.100" W (2.54mm x 2.54mm) | 0.075" (1.91mm) |
|
|
103-391FSFIXED IND 390NH 635MA 240MOHM SM |
0 |
|
Datasheet |
103 | Nonstandard, 2 Lead | Tape & Reel (TR) | Active | - | Ferrite | 390 nH | ±1% | 635 mA | - | Unshielded | 240mOhm Max | 22 @ 25MHz | 235MHz | - | -55°C ~ 125°C | 25 MHz | - | Surface Mount | - | 0.100" L x 0.100" W (2.54mm x 2.54mm) | 0.075" (1.91mm) |
|
|
103-392FSFIXED IND 3.9UH 250MA 1.55OHM SM |
0 |
|
Datasheet |
103 | Nonstandard, 2 Lead | Tape & Reel (TR) | Active | - | Ferrite | 3.9 µH | ±1% | 250 mA | - | Unshielded | 1.55Ohm Max | 24 @ 7.9MHz | 68MHz | - | -55°C ~ 125°C | 7.9 MHz | - | Surface Mount | - | 0.100" L x 0.100" W (2.54mm x 2.54mm) | 0.075" (1.91mm) |
|
|
103-471FSFIXED IND 470NH 610MA 260MOHM SM |
0 |
|
Datasheet |
103 | Nonstandard, 2 Lead | Tape & Reel (TR) | Active | - | Ferrite | 470 nH | ±1% | 610 mA | - | Unshielded | 260mOhm Max | 22 @ 25MHz | 215MHz | - | -55°C ~ 125°C | 25 MHz | - | Surface Mount | - | 0.100" L x 0.100" W (2.54mm x 2.54mm) | 0.075" (1.91mm) |
|
|
103-472FSFIXED IND 4.7UH 230MA 1.8OHM SMD |
0 |
|
Datasheet |
103 | Nonstandard, 2 Lead | Tape & Reel (TR) | Active | - | Ferrite | 4.7 µH | ±1% | 230 mA | - | Unshielded | 1.8Ohm Max | 24 @ 7.9MHz | 60MHz | - | -55°C ~ 125°C | 7.9 MHz | - | Surface Mount | - | 0.100" L x 0.100" W (2.54mm x 2.54mm) | 0.075" (1.91mm) |
|
|
103-561FSFIXED IND 560NH 590MA 278MOHM SM |
0 |
|
Datasheet |
103 | Nonstandard, 2 Lead | Tape & Reel (TR) | Active | - | Ferrite | 560 nH | ±1% | 590 mA | - | Unshielded | 278mOhm Max | 22 @ 25MHz | 195MHz | - | -55°C ~ 125°C | 25 MHz | - | Surface Mount | - | 0.100" L x 0.100" W (2.54mm x 2.54mm) | 0.075" (1.91mm) |
