Fixed Inductors
| Photo | Mfr. Part # | Availability | Quantity | Datasheet | Series | Package/Case | Packaging | Product Status | Type | Material - Core | Inductance | Tolerance | Current Rating (Amps) | Current - Saturation (Isat) | Shielding | DC Resistance (DCR) | Q @ Freq | Frequency - Self Resonant | Ratings | Operating Temperature | Inductance Frequency - Test | Features | Mounting Type | Supplier Device Package | Size / Dimension | Height - Seated (Max) |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
15HC-10FIXED IND 10UH 15A 10 MOHM TH |
0 |
|
Datasheet |
HC | Radial, Horizontal Cylinder (Open) | Bulk | Active | Drum Core, Wirewound | Ferrite | 10 µH | ±10% | 15 A | 17A | Unshielded | 10mOhm Max | - | - | - | - | 1 kHz | - | Through Hole | - | 0.725" Dia x 1.687" L (18.42mm x 42.85mm) | - |
|

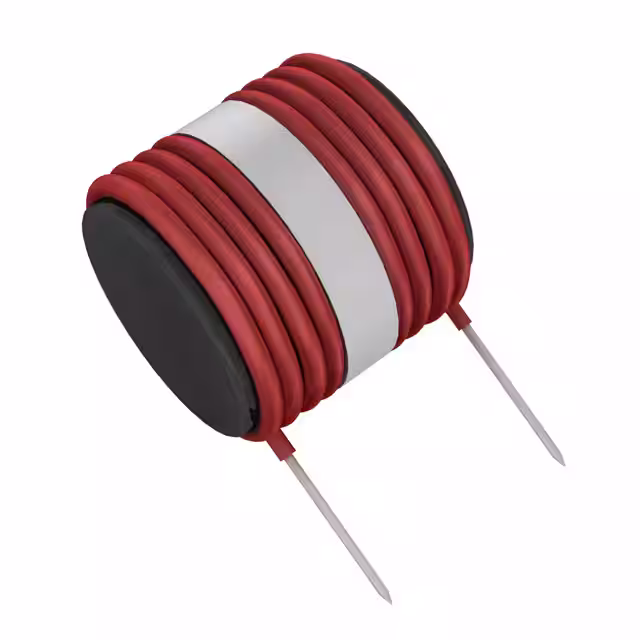

15HC-100FIXED IND 100UH 15A 30 MOHM TH |
0 |
|
Datasheet |
HC | Radial, Horizontal Cylinder (Open) | Bulk | Active | Drum Core, Wirewound | Ferrite | 100 µH | ±10% | 15 A | 5A | Unshielded | 30mOhm Max | - | - | - | - | 1 kHz | - | Through Hole | - | 1.500" Dia x 1.625" L (38.10mm x 41.28mm) | - |
|

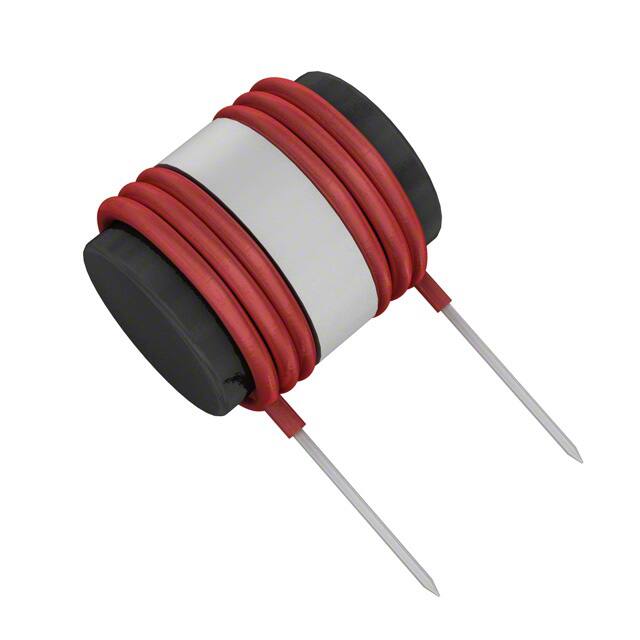

15HC-27FIXED IND 27UH 15A 15 MOHM TH |
0 |
|
Datasheet |
HC | Radial, Horizontal Cylinder (Open) | Bulk | Active | Drum Core, Wirewound | Ferrite | 27 µH | ±10% | 15 A | 14A | Unshielded | 15mOhm Max | - | - | - | - | 1 kHz | - | Through Hole | - | 1.000" Dia x 1.375" L (25.40mm x 34.93mm) | - |
|

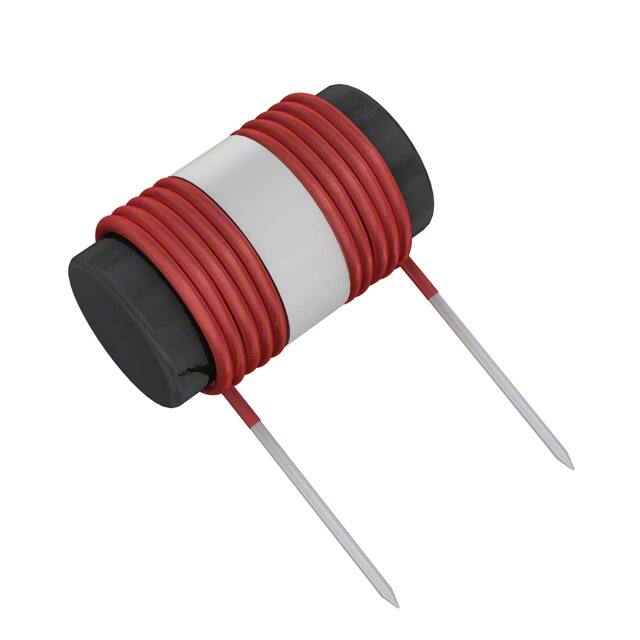

15HC-5FIXED IND 5UH 15A 8 MOHM TH |
0 |
|
Datasheet |
HC | Radial, Horizontal Cylinder (Open) | Bulk | Active | Drum Core, Wirewound | Ferrite | 5 µH | ±10% | 15 A | 20A | Unshielded | 8mOhm Max | - | - | - | - | 1 kHz | - | Through Hole | - | 0.725" Dia x 1.375" L (18.42mm x 34.93mm) | - |
|

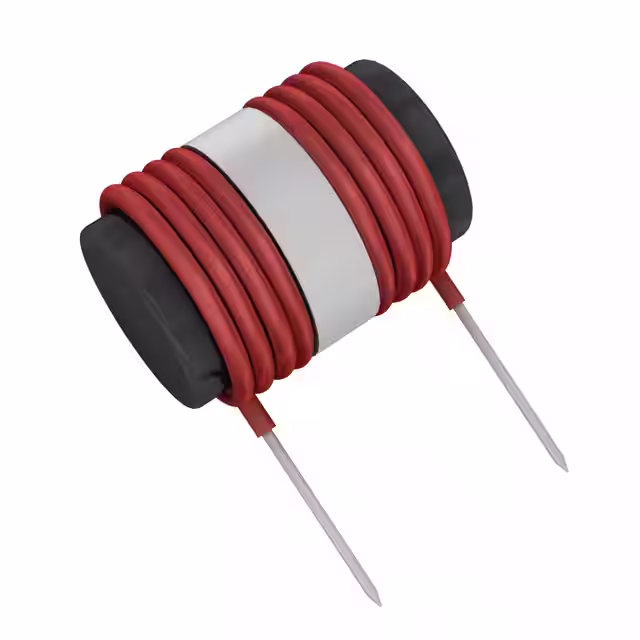

15HC-50FIXED IND 50UH 15A 20 MOHM TH |
0 |
|
Datasheet |
HC | Radial, Horizontal Cylinder (Open) | Bulk | Active | Drum Core, Wirewound | Ferrite | 50 µH | ±10% | 15 A | 9A | Unshielded | 20mOhm Max | - | - | - | - | 1 kHz | - | Through Hole | - | 1.000" Dia x 1.625" L (25.40mm x 41.28mm) | - |
|
15HCR-10FIXED IND 10UH 15A 10 MOHM TH |
0 |
|
Datasheet |
HCR | Radial, Horizontal Cylinder (Open) | Bulk | Active | Drum Core, Wirewound | Ferrite | 10 µH | ±10% | 15 A | 17A | Unshielded | 10mOhm Max | - | - | - | - | 1 kHz | - | Through Hole | - | 0.725" Dia x 1.687" L (18.42mm x 42.85mm) | - |
|
|
15HCR-100FIXED IND 100UH 15A 30 MOHM TH |
0 |
|
Datasheet |
HCR | Radial, Horizontal Cylinder (Open) | Bulk | Active | Drum Core, Wirewound | Ferrite | 100 µH | ±10% | 15 A | 5A | Unshielded | 30mOhm Max | - | - | - | - | 1 kHz | - | Through Hole | - | 1.500" Dia x 1.625" L (38.10mm x 41.28mm) | - |
|
|
15HCR-27FIXED IND 27UH 15A 15 MOHM TH |
0 |
|
Datasheet |
HCR | Radial, Horizontal Cylinder (Open) | Bulk | Active | Drum Core, Wirewound | Ferrite | 27 µH | ±10% | 15 A | 14A | Unshielded | 15mOhm Max | - | - | - | - | 1 kHz | - | Through Hole | - | 1.000" Dia x 1.375" L (25.40mm x 34.93mm) | - |
|
|
15HCR-5FIXED IND 5UH 15A 8 MOHM TH |
0 |
|
Datasheet |
HCR | Radial, Horizontal Cylinder (Open) | Bulk | Active | Drum Core, Wirewound | Ferrite | 5 µH | ±10% | 15 A | 20A | Unshielded | 8mOhm Max | - | - | - | - | 1 kHz | - | Through Hole | - | 0.725" Dia x 1.375" L (18.42mm x 34.93mm) | - |
|
|
15HCR-50FIXED IND 50UH 15A 20 MOHM TH |
0 |
|
Datasheet |
HCR | Radial, Horizontal Cylinder (Open) | Bulk | Active | Drum Core, Wirewound | Ferrite | 50 µH | ±10% | 15 A | 9A | Unshielded | 20mOhm Max | - | - | - | - | 1 kHz | - | Through Hole | - | 1.000" Dia x 1.625" L (25.40mm x 41.28mm) | - |
|

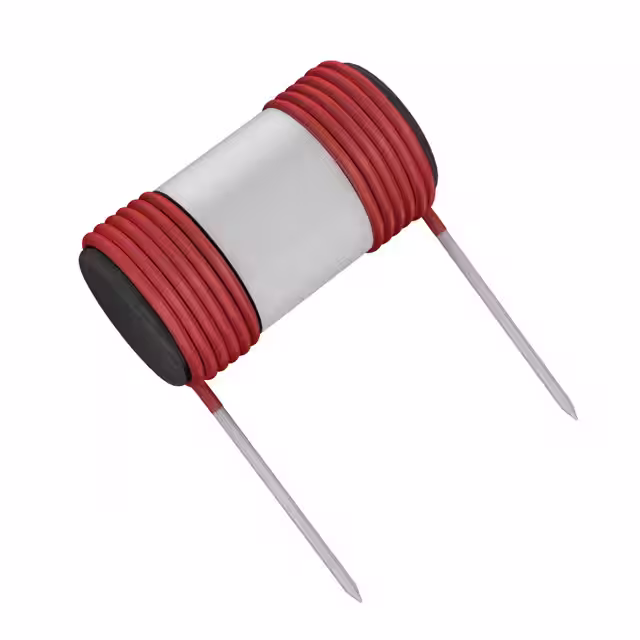

10HC-10FIXED IND 10UH 10A 12 MOHM TH |
0 |
|
Datasheet |
HC | Radial, Horizontal Cylinder (Open) | Bulk | Active | Drum Core, Wirewound | Ferrite | 10 µH | ±10% | 10 A | 17A | Unshielded | 12mOhm Max | - | - | - | - | 1 kHz | - | Through Hole | - | 1.375" Dia x 0.687" L (34.93mm x 17.45mm) | - |
|

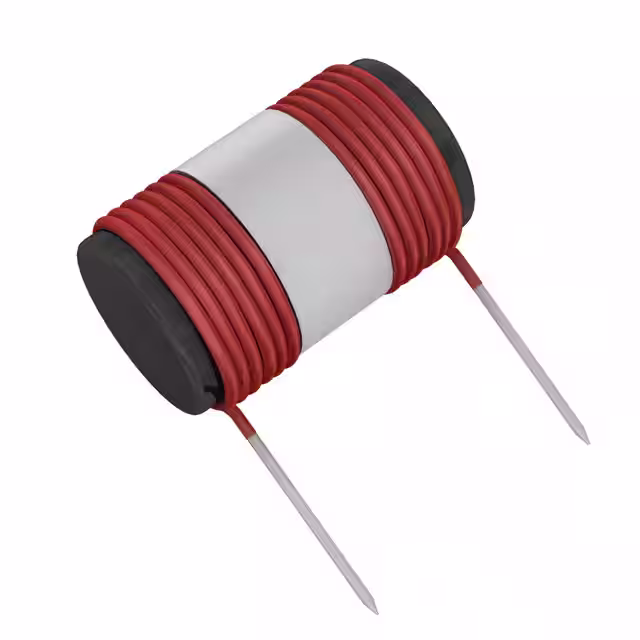

10HC-100FIXED IND 100UH 10A 30 MOHM TH |
0 |
|
Datasheet |
HC | Radial, Horizontal Cylinder (Open) | Bulk | Active | Drum Core, Wirewound | Ferrite | 100 µH | ±10% | 10 A | 6A | Unshielded | 30mOhm Max | - | - | - | - | 1 kHz | - | Through Hole | - | 1.625" Dia x 0.937" L (41.28mm x 23.80mm) | - |
|

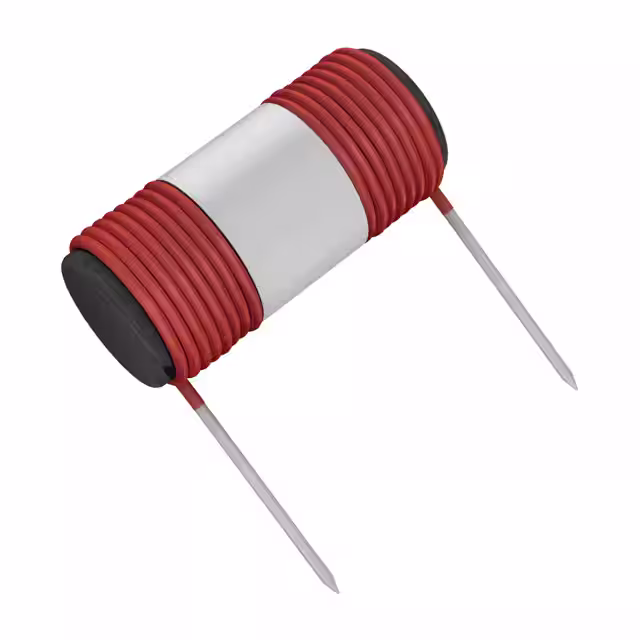

10HC-15FIXED IND 15UH 10A 15 MOHM TH |
0 |
|
Datasheet |
HC | Radial, Horizontal Cylinder (Open) | Bulk | Active | Drum Core, Wirewound | Ferrite | 15 µH | ±10% | 10 A | 16A | Unshielded | 15mOhm Max | - | - | - | - | 1 kHz | - | Through Hole | - | 1.625" Dia x 0.687" L (41.28mm x 17.45mm) | - |
|

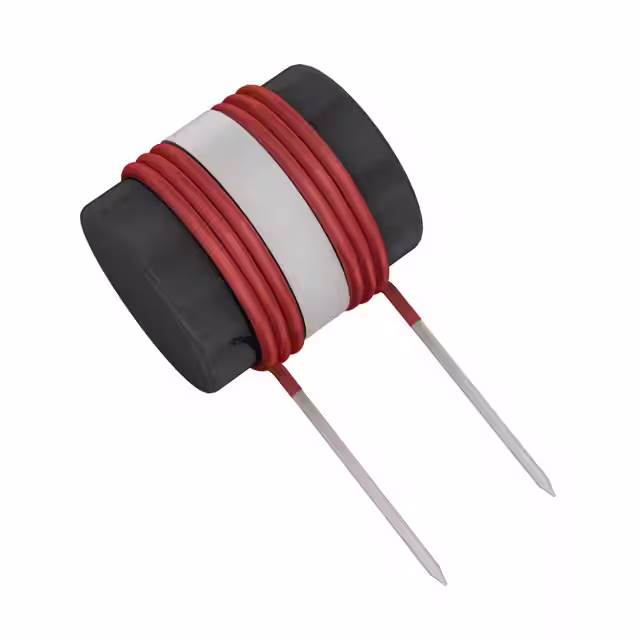

10HC-27FIXED IND 27UH 10A 18 MOHM TH |
0 |
|
Datasheet |
HC | Radial, Horizontal Cylinder (Open) | Bulk | Active | Drum Core, Wirewound | Ferrite | 27 µH | ±10% | 10 A | 15A | Unshielded | 18mOhm Max | - | - | - | - | 1 kHz | - | Through Hole | - | 1.125" Dia x 0.937" L (28.58mm x 23.80mm) | - |
|
10HC-5FIXED IND 5UH 10A 10 MOHM TH |
0 |
|
Datasheet |
HC | Radial, Horizontal Cylinder (Open) | Bulk | Active | Drum Core, Wirewound | Ferrite | 5 µH | ±10% | 10 A | 19A | Unshielded | 10mOhm Max | - | - | - | - | 1 kHz | - | Through Hole | - | 1.125" Dia x 0.687" L (28.58mm x 17.45mm) | - |
|

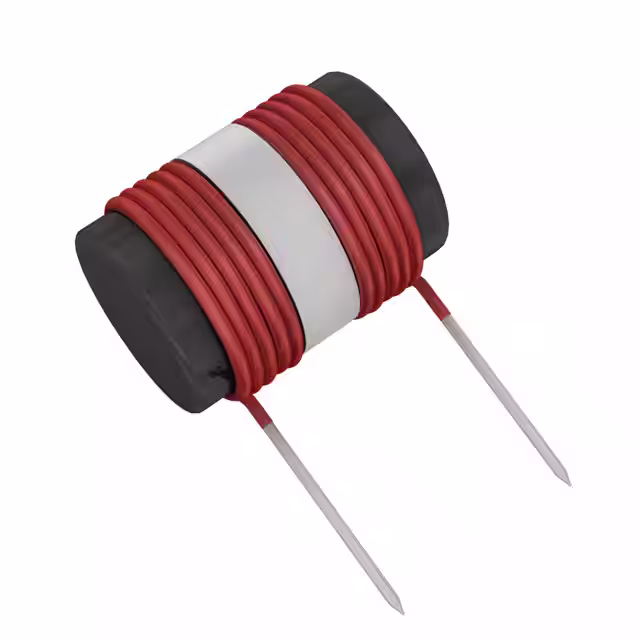

10HC-50FIXED IND 50UH 10A 25 MOHM TH |
0 |
|
Datasheet |
HC | Radial, Horizontal Cylinder (Open) | Bulk | Active | Drum Core, Wirewound | Ferrite | 50 µH | ±10% | 10 A | 9A | Unshielded | 25mOhm Max | - | - | - | - | 1 kHz | - | Through Hole | - | 1.375" Dia x 0.937" L (34.93mm x 23.80mm) | - |
|

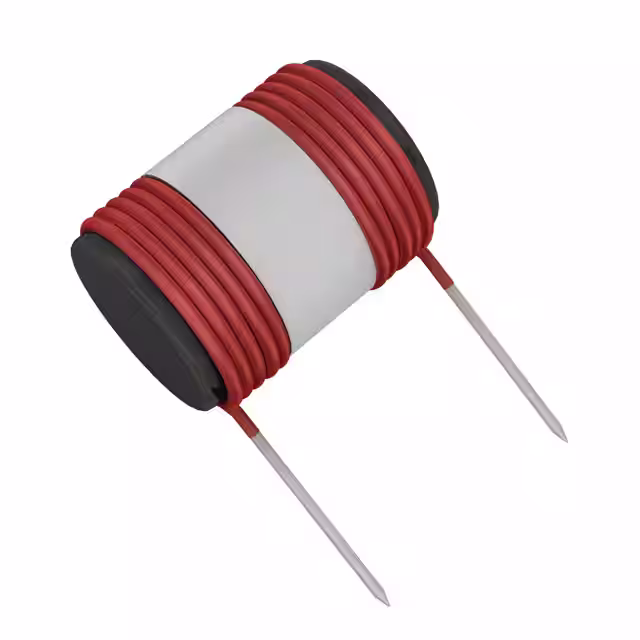

10HC-68FIXED IND 68UH 10A 27 MOHM TH |
0 |
|
Datasheet |
HC | Radial, Horizontal Cylinder (Open) | Bulk | Active | Drum Core, Wirewound | Ferrite | 68 µH | ±10% | 10 A | 9A | Unshielded | 27mOhm Max | - | - | - | - | 1 kHz | - | Through Hole | - | 1.375" Dia x 0.937" L (34.93mm x 23.80mm) | - |
|
|
10HCR-10FIXED IND 10UH 10A 12 MOHM TH |
0 |
|
Datasheet |
HCR | Radial, Horizontal Cylinder (Open) | Bulk | Active | Drum Core, Wirewound | Ferrite | 10 µH | ±10% | 10 A | 17A | Unshielded | 12mOhm Max | - | - | - | - | 1 kHz | - | Through Hole | - | 1.375" Dia x 0.687" L (34.93mm x 17.45mm) | - |
|
|
10HCR-100FIXED IND 100UH 10A 30 MOHM TH |
0 |
|
Datasheet |
HCR | Radial, Horizontal Cylinder (Open) | Bulk | Active | Drum Core, Wirewound | Ferrite | 100 µH | ±10% | 10 A | 6A | Unshielded | 30mOhm Max | - | - | - | - | 1 kHz | - | Through Hole | - | 1.625" Dia x 0.937" L (41.28mm x 23.80mm) | - |
|
|
10HCR-15FIXED IND 15UH 10A 15 MOHM TH |
0 |
|
Datasheet |
HCR | Radial, Horizontal Cylinder (Open) | Bulk | Active | Drum Core, Wirewound | Ferrite | 15 µH | ±10% | 10 A | 16A | Unshielded | 15mOhm Max | - | - | - | - | 1 kHz | - | Through Hole | - | 1.625" Dia x 0.687" L (41.28mm x 17.45mm) | - |
