Fixed Inductors
| Photo | Mfr. Part # | Availability | Quantity | Datasheet | Series | Package/Case | Packaging | Product Status | Type | Material - Core | Inductance | Tolerance | Current Rating (Amps) | Current - Saturation (Isat) | Shielding | DC Resistance (DCR) | Q @ Freq | Frequency - Self Resonant | Ratings | Operating Temperature | Inductance Frequency - Test | Features | Mounting Type | Supplier Device Package | Size / Dimension | Height - Seated (Max) |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
3094R-562JSFIXED IND 5.6UH 160MA 1.8OHM SMD |
0 |
|
Datasheet |
3094R | 2-SMD | Tape & Reel (TR) | Active | - | Iron | 5.6 µH | ±5% | 160 mA | - | Unshielded | 1.8Ohm Max | 65 @ 7.9MHz | 40MHz | - | -55°C ~ 125°C | 7.9 MHz | - | Surface Mount | - | 0.163" L x 0.133" W (4.14mm x 3.38mm) | 0.140" (3.56mm) |
|
|
3094R-563JSFIXED IND 56UH 70MA 10 OHM SMD |
0 |
|
Datasheet |
3094R | 2-SMD | Tape & Reel (TR) | Active | - | Iron | 56 µH | ±5% | 70 mA | - | Unshielded | 10Ohm Max | 70 @ 2.5MHz | 11MHz | - | -55°C ~ 125°C | 2.5 MHz | - | Surface Mount | - | 0.163" L x 0.133" W (4.14mm x 3.38mm) | 0.140" (3.56mm) |
|
|
3094R-564JSFIXED IND 560UH 33MA 45 OHM SMD |
0 |
|
Datasheet |
3094R | 2-SMD | Tape & Reel (TR) | Active | - | Iron | 560 µH | ±5% | 33 mA | - | Unshielded | 45Ohm Max | 35 @ 790kHz | 2.1MHz | - | -55°C ~ 125°C | 790 kHz | - | Surface Mount | - | 0.163" L x 0.133" W (4.14mm x 3.38mm) | 0.140" (3.56mm) |
|
|
3094R-680JSFIXED IND 68NH 840MA 70 MOHM SMD |
0 |
|
Datasheet |
3094R | 2-SMD | Tape & Reel (TR) | Active | - | Iron | 68 nH | ±5% | 840 mA | - | Unshielded | 70mOhm Max | 65 @ 100MHz | 700MHz | - | -55°C ~ 125°C | 100 MHz | - | Surface Mount | - | 0.163" L x 0.133" W (4.14mm x 3.38mm) | 0.140" (3.56mm) |
|
|
3094R-681JSFIXED IND 680NH 430MA 260MOHM SM |
0 |
|
Datasheet |
3094R | 2-SMD | Tape & Reel (TR) | Active | - | Iron | 680 nH | ±5% | 430 mA | - | Unshielded | 260mOhm Max | 70 @ 25MHz | 160MHz | - | -55°C ~ 125°C | 25 MHz | - | Surface Mount | - | 0.163" L x 0.133" W (4.14mm x 3.38mm) | 0.140" (3.56mm) |
|
|
3094R-682JSFIXED IND 6.8UH 140MA 2.4OHM SMD |
0 |
|
Datasheet |
3094R | 2-SMD | Tape & Reel (TR) | Active | - | Iron | 6.8 µH | ±5% | 140 mA | - | Unshielded | 2.4Ohm Max | 65 @ 7.9MHz | 37MHz | - | -55°C ~ 125°C | 7.9 MHz | - | Surface Mount | - | 0.163" L x 0.133" W (4.14mm x 3.38mm) | 0.140" (3.56mm) |
|
|
3094R-683JSFIXED IND 68UH 67MA 11 OHM SMD |
0 |
|
Datasheet |
3094R | 2-SMD | Tape & Reel (TR) | Active | - | Iron | 68 µH | ±5% | 67 mA | - | Unshielded | 11Ohm Max | 65 @ 2.5MHz | 10MHz | - | -55°C ~ 125°C | 2.5 MHz | - | Surface Mount | - | 0.163" L x 0.133" W (4.14mm x 3.38mm) | 0.140" (3.56mm) |
|
|
3094R-684JSFIXED IND 680UH 30MA 55 OHM SMD |
0 |
|
Datasheet |
3094R | 2-SMD | Tape & Reel (TR) | Active | - | Iron | 680 µH | ±5% | 30 mA | - | Unshielded | 55Ohm Max | 35 @ 790kHz | 1.9MHz | - | -55°C ~ 125°C | 790 kHz | - | Surface Mount | - | 0.163" L x 0.133" W (4.14mm x 3.38mm) | 0.140" (3.56mm) |
|
|
3094R-820JSFIXED IND 82NH 840MA 70 MOHM SMD |
0 |
|
Datasheet |
3094R | 2-SMD | Tape & Reel (TR) | Active | - | Iron | 82 nH | ±5% | 840 mA | - | Unshielded | 70mOhm Max | 65 @ 100MHz | 650MHz | - | -55°C ~ 125°C | 100 MHz | - | Surface Mount | - | 0.163" L x 0.133" W (4.14mm x 3.38mm) | 0.140" (3.56mm) |
|
|
3094R-821JSFIXED IND 820NH 400MA 300MOHM SM |
0 |
|
Datasheet |
3094R | 2-SMD | Tape & Reel (TR) | Active | - | Iron | 820 nH | ±5% | 400 mA | - | Unshielded | 300mOhm Max | 75 @ 25MHz | 150MHz | - | -55°C ~ 125°C | 25 MHz | - | Surface Mount | - | 0.163" L x 0.133" W (4.14mm x 3.38mm) | 0.140" (3.56mm) |
|
|
3094R-822JSFIXED IND 8.2UH 130MA 3 OHM SMD |
0 |
|
Datasheet |
3094R | 2-SMD | Tape & Reel (TR) | Active | - | Iron | 8.2 µH | ±5% | 130 mA | - | Unshielded | 3Ohm Max | 65 @ 7.9MHz | 34MHz | - | -55°C ~ 125°C | 7.9 MHz | - | Surface Mount | - | 0.163" L x 0.133" W (4.14mm x 3.38mm) | 0.140" (3.56mm) |
|
|
3094R-823JSFIXED IND 82UH 64MA 12 OHM SMD |
0 |
|
Datasheet |
3094R | 2-SMD | Tape & Reel (TR) | Active | - | Iron | 82 µH | ±5% | 64 mA | - | Unshielded | 12Ohm Max | 60 @ 2.5MHz | 9MHz | - | -55°C ~ 125°C | 2.5 MHz | - | Surface Mount | - | 0.163" L x 0.133" W (4.14mm x 3.38mm) | 0.140" (3.56mm) |
|
|
3094R-824JSFIXED IND 820UH 26MA 70 MOHM SMD |
0 |
|
Datasheet |
3094R | 2-SMD | Tape & Reel (TR) | Active | - | Iron | 820 µH | ±5% | 26 mA | - | Unshielded | 70mOhm Max | 30 @ 790kHz | 1.8MHz | - | -55°C ~ 125°C | 790 kHz | - | Surface Mount | - | 0.163" L x 0.133" W (4.14mm x 3.38mm) | 0.140" (3.56mm) |
|
|
106HT5603HHORIZONTAL TOROIDAL INDUCTOR |
0 |
|
Datasheet |
106HT | Radial, Horizontal Cylinder (Open) | Bulk | Active | Toroidal | - | 560 µH | ±10% | 3.6 A | 4.1A | Shielded | 155mOhm Max | - | 870kHz | - | -55°C ~ 200°C | 10 kHz | - | Through Hole | Radial | 1.339" Dia (34.00mm) | 0.762" (19.35mm) |
|
|
3A501RADIAL-LEADED HIGH CURRENT CHOKE |
0 |
|
Datasheet |
A | Radial, Horizontal Cylinder | Bulk | Active | Wirewound | Ferrite | 5 µH | ±10% | 3 A | - | Unshielded | 15mOhm | - | 40MHz | - | -55°C ~ 125°C | 1 kHz | - | Through Hole | Radial | 0.625" Dia x 0.875" L (15.88mm x 22.23mm) | - |
|
|
38HF3302HHORIZONTAL TOROIDAL INDUCTOR |
0 |
|
Datasheet |
HF | Radial, Horizontal Cylinder (Open) | Bulk | Active | Toroidal | - | 33 µH | ±10% | 2.026 A | 2.3A | Unshielded | 80mOhm Max | - | 10kHz | - | -55°C ~ 130°C | 1 kHz | - | Through Hole | Radial | 0.460" Dia (11.68mm) | 0.180" (4.57mm) |
|
|
050T5005HIGH INDUCTANCE TOROID INDUCTOR |
0 |
|
Datasheet |
T-Small | Radial | Bulk | Active | Toroidal | - | 50 mH | ±2% | 74 mA | - | Unshielded | 25Ohm | - | 100kHz | - | -40°C ~ 105°C | 1 kHz | - | Through Hole | Radial | 0.700" Dia (17.78mm) | 0.400" (10.16mm) |
|

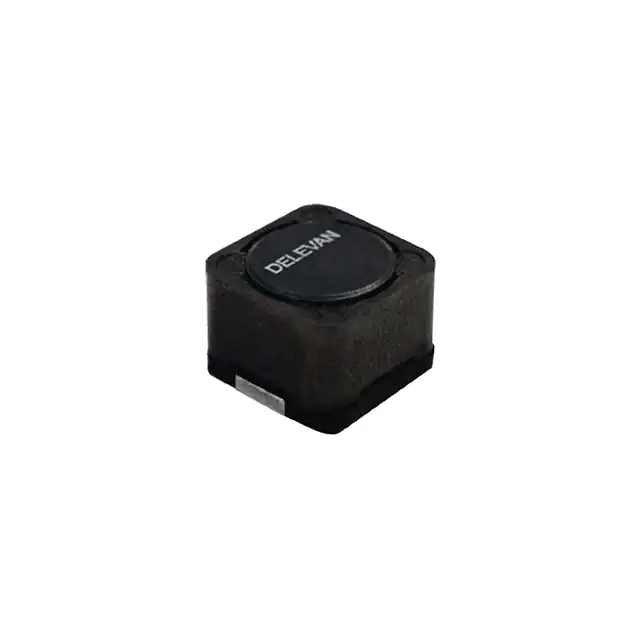

HRSPD127-123MFIXED IND 12UH 3.9A 41 MOHM SMD |
0 |
|
Datasheet |
HRSPD127 | Nonstandard | Tape & Reel (TR) | Active | - | Ferrite | 12 µH | ±20% | 3.9 A | 5.2A | Shielded | 41mOhm Max | - | - | - | -55°C ~ 130°C | 100 kHz | - | Surface Mount | - | 0.475" L x 0.475" W (12.07mm x 12.07mm) | 0.355" (9.02mm) |
|
|
HRSPD127-124MFIXED IND 120UH 1.6A 201MOHM SMD |
0 |
|
Datasheet |
HRSPD127 | Nonstandard | Tape & Reel (TR) | Active | - | Ferrite | 120 µH | ±20% | 1.6 A | 1.65A | Shielded | 201mOhm Max | - | - | - | -55°C ~ 130°C | 10 kHz | - | Surface Mount | - | 0.475" L x 0.475" W (12.07mm x 12.07mm) | 0.355" (9.02mm) |
|
|
HRSPD127-153MFIXED IND 15UH 3.6A 47 MOHM SMD |
0 |
|
Datasheet |
HRSPD127 | Nonstandard | Tape & Reel (TR) | Active | - | Ferrite | 15 µH | ±20% | 3.6 A | 4.48A | Shielded | 47mOhm Max | - | - | - | -55°C ~ 130°C | 100 kHz | - | Surface Mount | - | 0.475" L x 0.475" W (12.07mm x 12.07mm) | 0.355" (9.02mm) |
