Fixed Inductors
| Photo | Mfr. Part # | Availability | Quantity | Datasheet | Series | Package/Case | Packaging | Product Status | Type | Material - Core | Inductance | Tolerance | Current Rating (Amps) | Current - Saturation (Isat) | Shielding | DC Resistance (DCR) | Q @ Freq | Frequency - Self Resonant | Ratings | Operating Temperature | Inductance Frequency - Test | Features | Mounting Type | Supplier Device Package | Size / Dimension | Height - Seated (Max) |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|

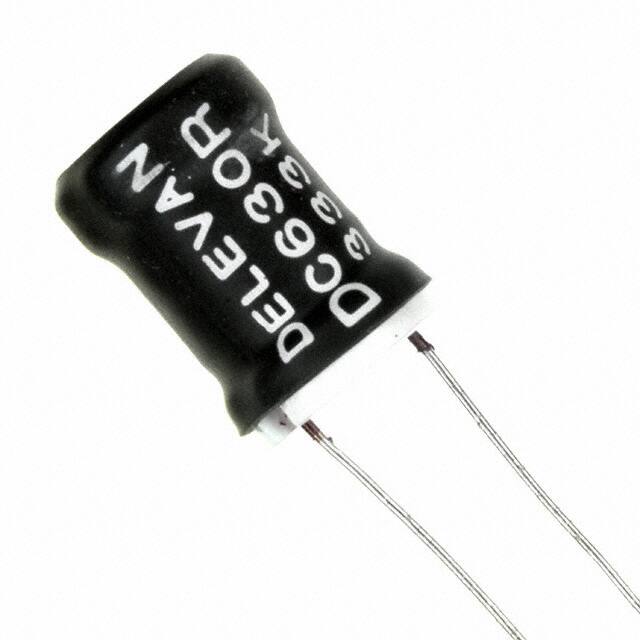

DC630R-333KFIXED IND 33UH 4.95A 40 MOHM TH |
0 |
|
Datasheet |
DC630R | Radial, Vertical Cylinder | Bulk | Active | Drum Core, Wirewound | Ferrite | 33 µH | ±10% | 4.95 A | 11.9A | Unshielded | 40mOhm Max | - | - | - | -55°C ~ 125°C | 10 kHz | - | Through Hole | - | 0.630" Dia (16.00mm) | 0.830" (21.08mm) |
|

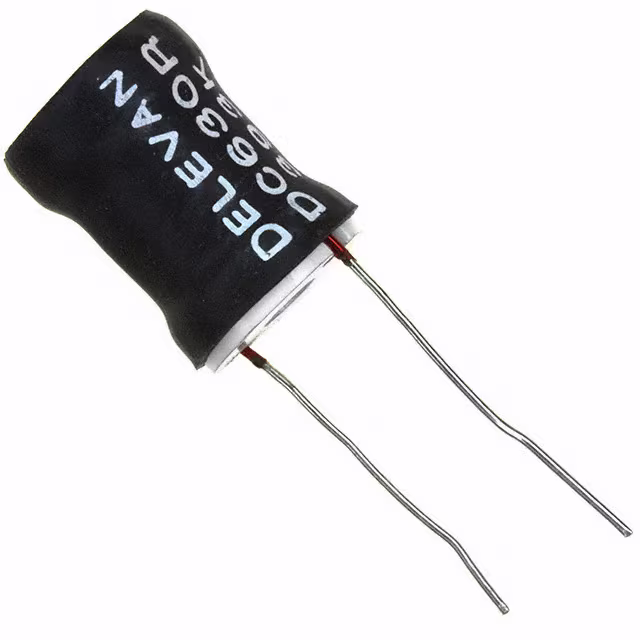

DC630R-393KFIXED IND 39UH 4.43A 50 MOHM TH |
0 |
|
Datasheet |
DC630R | Radial, Vertical Cylinder | Bulk | Active | Drum Core, Wirewound | Ferrite | 39 µH | ±10% | 4.43 A | 10.9A | Unshielded | 50mOhm Max | - | - | - | -55°C ~ 125°C | 10 kHz | - | Through Hole | - | 0.630" Dia (16.00mm) | 0.830" (21.08mm) |
|

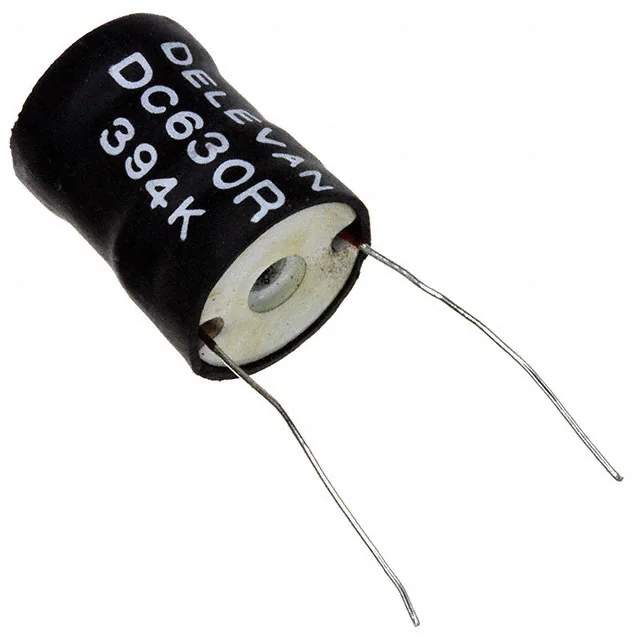

DC630R-394KFIXED IND 390UH 1.66A 342MOHM TH |
0 |
|
Datasheet |
DC630R | Radial, Vertical Cylinder | Bulk | Active | Drum Core, Wirewound | Ferrite | 390 µH | ±10% | 1.66 A | 3.4A | Unshielded | 342mOhm Max | - | - | - | -55°C ~ 125°C | 10 kHz | - | Through Hole | - | 0.630" Dia (16.00mm) | 0.830" (21.08mm) |
|

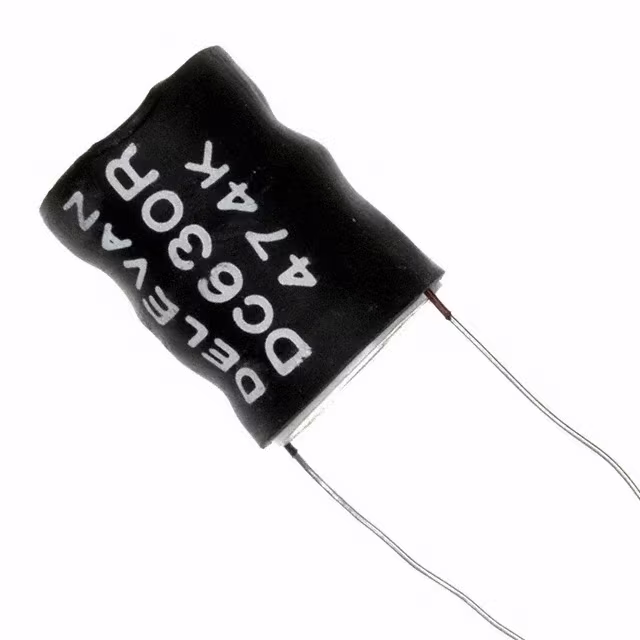

DC630R-474KFIXED IND 470UH 1.58A 377MOHM TH |
0 |
|
Datasheet |
DC630R | Radial, Vertical Cylinder | Bulk | Active | Drum Core, Wirewound | Ferrite | 470 µH | ±10% | 1.58 A | 3.1A | Unshielded | 377mOhm Max | - | - | - | -55°C ~ 125°C | 10 kHz | - | Through Hole | - | 0.630" Dia (16.00mm) | 0.830" (21.08mm) |
|

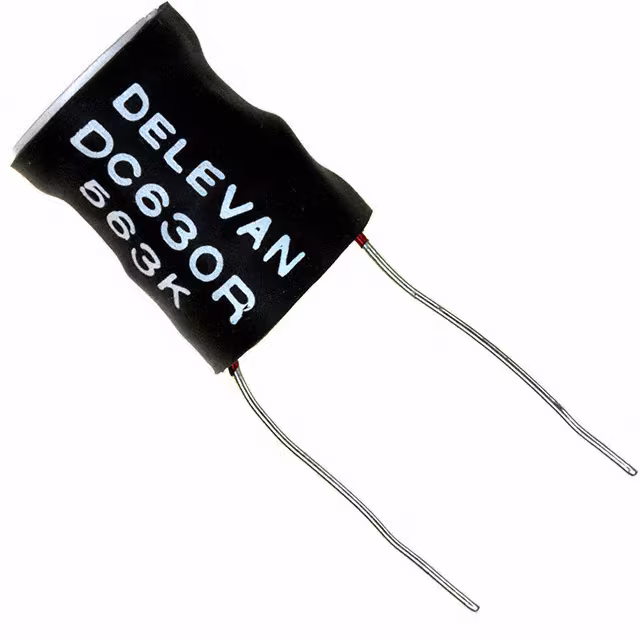

DC630R-563KFIXED IND 56UH 3.77A 69 MOHM TH |
0 |
|
Datasheet |
DC630R | Radial, Vertical Cylinder | Bulk | Active | Drum Core, Wirewound | Ferrite | 56 µH | ±10% | 3.77 A | 9.2A | Unshielded | 69mOhm Max | - | - | - | -55°C ~ 125°C | 10 kHz | - | Through Hole | - | 0.630" Dia (16.00mm) | 0.830" (21.08mm) |
|

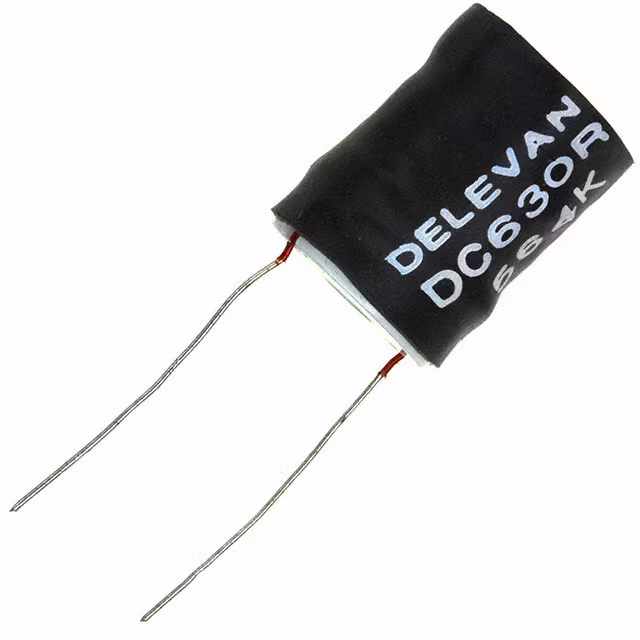

DC630R-564KFIXED IND 560UH 1.52A 408MOHM TH |
0 |
|
Datasheet |
DC630R | Radial, Vertical Cylinder | Bulk | Active | Drum Core, Wirewound | Ferrite | 560 µH | ±10% | 1.52 A | 2.9A | Unshielded | 408mOhm Max | - | - | - | -55°C ~ 125°C | 10 kHz | - | Through Hole | - | 0.630" Dia (16.00mm) | 0.830" (21.08mm) |
|

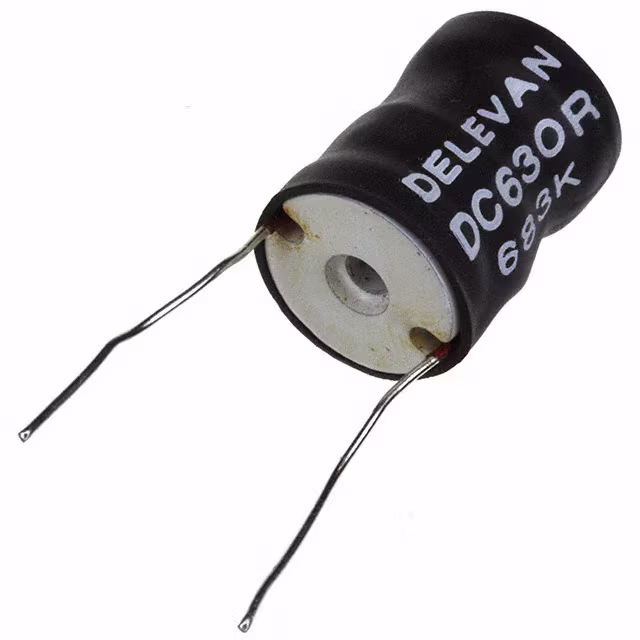

DC630R-683KFIXED IND 68UH 3.57A 77 MOHM TH |
0 |
|
Datasheet |
DC630R | Radial, Vertical Cylinder | Bulk | Active | Drum Core, Wirewound | Ferrite | 68 µH | ±10% | 3.57 A | 8.3A | Unshielded | 77mOhm Max | - | - | - | -55°C ~ 125°C | 10 kHz | - | Through Hole | - | 0.630" Dia (16.00mm) | 0.830" (21.08mm) |
|

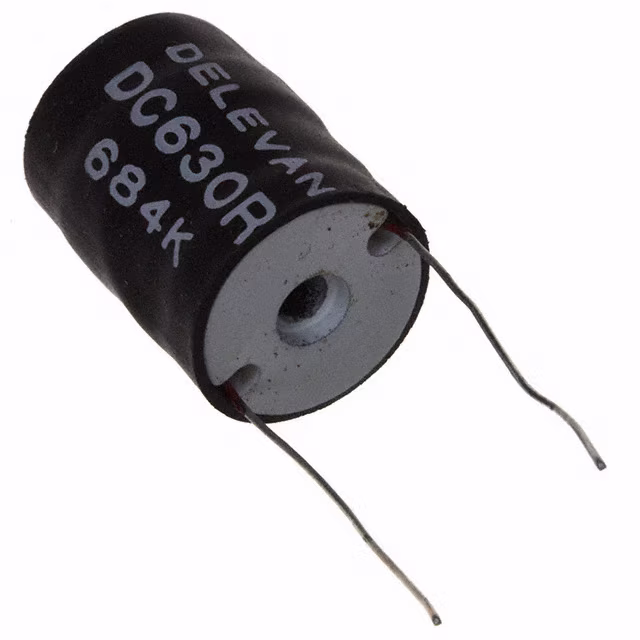

DC630R-684KFIXED IND 680UH 1.42A 468MOHM TH |
0 |
|
Datasheet |
DC630R | Radial, Vertical Cylinder | Bulk | Active | Drum Core, Wirewound | Ferrite | 680 µH | ±10% | 1.42 A | 2.6A | Unshielded | 468mOhm Max | - | - | - | -55°C ~ 125°C | 10 kHz | - | Through Hole | - | 0.630" Dia (16.00mm) | 0.830" (21.08mm) |
|

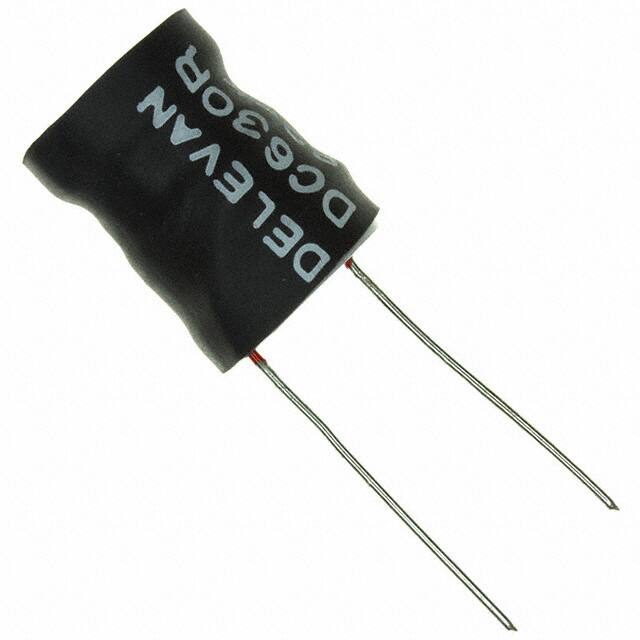

DC630R-823KFIXED IND 82UH 3.44A 83 MOHM TH |
0 |
|
Datasheet |
DC630R | Radial, Vertical Cylinder | Bulk | Active | Drum Core, Wirewound | Ferrite | 82 µH | ±10% | 3.44 A | 7.6A | Unshielded | 83mOhm Max | - | - | - | -55°C ~ 125°C | 10 kHz | - | Through Hole | - | 0.630" Dia (16.00mm) | 0.830" (21.08mm) |
|
PL10104FIXED IND 1.3UH 25A 0.48MOHM SMD |
0 |
|
Datasheet |
- | Nonstandard | Tube | Active | Planar | - | 1.3 µH | ±15% | 25 A | 26A | Unshielded | 0.48mOhm Max | - | - | - | -40°C ~ 130°C | - | - | Surface Mount | - | 0.780" L x 0.770" W (19.81mm x 19.56mm) | 0.290" (7.37mm) |
|
|
PL10104NLFIXED IND 1.3UH 25A 0.48MOHM SMD |
0 |
|
Datasheet |
- | Nonstandard | Tube | Active | Planar | - | 1.3 µH | ±15% | 25 A | 26A | Unshielded | 0.48mOhm Max | - | - | - | -40°C ~ 130°C | - | - | Surface Mount | - | 0.780" L x 0.770" W (19.81mm x 19.56mm) | 0.290" (7.37mm) |
|
|
22M204JMOLDED AXL UNSHIELDED RF COILS |
0 |
|
Datasheet |
22M | Axial | Tape & Reel (TR) | Active | Molded | - | 2 mH | ±5% | 67 mA | - | Unshielded | 29Ohm Max | 65 @ 250kHz | 2.1MHz | - | -55°C ~ 105°C | 250 kHz | - | Through Hole | Axial | 0.215" Dia x 0.560" L (5.46mm x 14.22mm) | - |
|
|
PL8706NLTFIXED IND 27.4UH 4.2A 38.15 MOHM |
0 |
|
Datasheet |
- | Nonstandard | Tape & Reel (TR) | Active | Toroidal | - | 27.4 µH | ±20% | 4.2 A | - | Unshielded | 38.15mOhm | - | - | - | -40°C ~ 130°C | - | - | Surface Mount | - | 0.725" L x 0.575" W (18.42mm x 14.61mm) | 0.380" (9.65mm) |
|
PL8706TFIXED IND 27.4UH 4.2A 38.15 MOHM |
0 |
|
Datasheet |
- | Nonstandard | Tape & Reel (TR) | Active | Toroidal | - | 27.4 µH | ±20% | 4.2 A | - | Unshielded | 38.15mOhm | - | - | - | -40°C ~ 130°C | - | - | Surface Mount | - | 0.725" L x 0.575" W (18.42mm x 14.61mm) | 0.380" (9.65mm) |
|
|
PL8707NLTFIXED IND 40.5UH 3.3A 53.21 MOHM |
0 |
|
Datasheet |
- | Nonstandard | Tape & Reel (TR) | Active | Toroidal | - | 40.5 µH | ±20% | 3.3 A | - | Unshielded | 53.21mOhm | - | - | - | -40°C ~ 130°C | - | - | Surface Mount | - | 0.725" L x 0.575" W (18.42mm x 14.61mm) | 0.380" (9.65mm) |
|
PL8707TFIXED IND 40.5UH 3.3A 53.21 MOHM |
0 |
|
Datasheet |
- | Nonstandard | Tape & Reel (TR) | Active | Toroidal | - | 40.5 µH | ±20% | 3.3 A | - | Unshielded | 53.21mOhm | - | - | - | -40°C ~ 130°C | - | - | Surface Mount | - | 0.725" L x 0.575" W (18.42mm x 14.61mm) | 0.380" (9.65mm) |
|
|
PL8708NLTFIXED IND 50.5UH 2.3A 73.89 MOHM |
0 |
|
Datasheet |
- | Nonstandard | Tape & Reel (TR) | Active | Toroidal | - | 50.5 µH | ±20% | 2.3 A | - | Unshielded | 73.89mOhm | - | - | - | -40°C ~ 130°C | - | - | Surface Mount | - | 0.725" L x 0.575" W (18.42mm x 14.61mm) | 0.380" (9.65mm) |
|
PL8708TFIXED IND 50.5UH 2.3A 73.89 MOHM |
0 |
|
Datasheet |
- | Nonstandard | Tape & Reel (TR) | Active | Toroidal | - | 50.5 µH | ±20% | 2.3 A | - | Unshielded | 73.89mOhm | - | - | - | -40°C ~ 130°C | - | - | Surface Mount | - | 0.725" L x 0.575" W (18.42mm x 14.61mm) | 0.380" (9.65mm) |
|
|
2150-18GFIXED IND 5.6UH 1.04A 130MOHM TH |
0 |
|
Datasheet |
2150 | Axial | Tape & Reel (TR) | Active | Molded | Iron | 5.6 µH | ±2% | 1.04 A | - | Unshielded | 130mOhm Max | 35 @ 7.9MHz | 55MHz | - | -55°C ~ 105°C | 7.9 MHz | - | Through Hole | - | 0.220" Dia x 0.560" L (5.59mm x 14.22mm) | - |
|
|
2150-20GFIXED IND 6.8UH 835MA 200MOHM TH |
0 |
|
Datasheet |
2150 | Axial | Tape & Reel (TR) | Active | Molded | Iron | 6.8 µH | ±2% | 835 mA | - | Unshielded | 200mOhm Max | 35 @ 7.9MHz | 50MHz | - | -55°C ~ 105°C | 7.9 MHz | - | Through Hole | - | 0.220" Dia x 0.560" L (5.59mm x 14.22mm) | - |
