Fixed Inductors
| Photo | Mfr. Part # | Availability | Quantity | Datasheet | Series | Package/Case | Packaging | Product Status | Type | Material - Core | Inductance | Tolerance | Current Rating (Amps) | Current - Saturation (Isat) | Shielding | DC Resistance (DCR) | Q @ Freq | Frequency - Self Resonant | Ratings | Operating Temperature | Inductance Frequency - Test | Features | Mounting Type | Supplier Device Package | Size / Dimension | Height - Seated (Max) |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
744761075CFIXED IND 7.5NH 700MA 100MOHM SM Würth Elektronik |
2,855 |
|
Datasheet |
WE-KI | 0603 (1608 Metric) | Tape & Reel (TR) | Active | Drum Core, Wirewound | Ceramic | 7.5 nH | ±5% | 700 mA | - | Unshielded | 100mOhm Max | 28 @ 250MHz | 4.8GHz | - | -40°C ~ 125°C | 250 MHz | - | Surface Mount | 0603 (1608 Metric) | 0.065" L x 0.045" W (1.65mm x 1.15mm) | 0.043" (1.10mm) |
|
|
744761043CFIXED IND 4.3NH 700MA 70MOHM SMD Würth Elektronik |
2,719 |
|
Datasheet |
WE-KI | 0603 (1608 Metric) | Tape & Reel (TR) | Active | Drum Core, Wirewound | Ceramic | 4.3 nH | ±5% | 700 mA | - | Unshielded | 70mOhm Max | 22 @ 250MHz | 5.9GHz | - | -40°C ~ 125°C | 250 MHz | - | Surface Mount | 0603 (1608 Metric) | 0.065" L x 0.045" W (1.65mm x 1.15mm) | 0.043" (1.10mm) |
|
744760027CFIXED IND 2.7NH 800MA 80MOHM SMD Würth Elektronik |
2,209 |
|
Datasheet |
WE-KI | Nonstandard | Tape & Reel (TR) | Active | Drum Core, Wirewound | Ceramic | 2.7 nH | ±0.2nH | 800 mA | - | Unshielded | 80mOhm Max | 30 @ 1GHz | 7.9GHz | - | -40°C ~ 125°C | 250 MHz | - | Surface Mount | 0805 | 0.090" L x 0.067" W (2.29mm x 1.70mm) | 0.058" (1.48mm) |
|
|
74476014CFIXED IND 47NH 500MA 310MOHM SMD Würth Elektronik |
2,000 |
|
Datasheet |
WE-KI | Nonstandard | Tape & Reel (TR) | Active | Drum Core, Wirewound | Ceramic | 47 nH | ±5% | 500 mA | - | Unshielded | 310mOhm Max | 50 @ 500MHz | 1.65GHz | - | -40°C ~ 125°C | 200 MHz | - | Surface Mount | 0805 | 0.090" L x 0.067" W (2.29mm x 1.70mm) | 0.058" (1.48mm) |
|
|
744760112CFIXED IND 12NH 600MA 150MOHM SMD Würth Elektronik |
1,886 |
|
Datasheet |
WE-KI | Nonstandard | Tape & Reel (TR) | Active | Drum Core, Wirewound | Ceramic | 12 nH | ±5% | 600 mA | - | Unshielded | 150mOhm Max | 45 @ 500MHz | 4GHz | - | -40°C ~ 125°C | 250 MHz | - | Surface Mount | 0805 | 0.090" L x 0.067" W (2.29mm x 1.70mm) | 0.058" (1.48mm) |
|

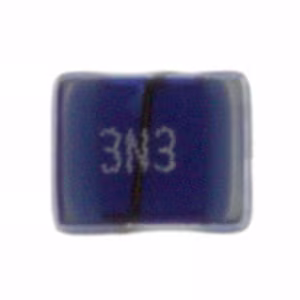

744762033AFIXED IND 3.3NH 1A 60 MOHM SMD Würth Elektronik |
1,854 |
|
Datasheet |
WE-KI | 1008 (2520 Metric) | Tape & Reel (TR) | Active | Drum Core, Wirewound | Ceramic | 3.3 nH | ±0.3nH | 1 A | - | Unshielded | 60mOhm Max | 50 @ 1GHz | 6GHz | AEC-Q200 | -40°C ~ 125°C | 100 MHz | - | Surface Mount | 1008 (2520 Metric) | 0.102" L x 0.083" W (2.60mm x 2.10mm) | 0.075" (1.90mm) |
|
|
74476013CFIXED IND 33NH 500MA 270MOHM SMD Würth Elektronik |
1,788 |
|
Datasheet |
WE-KI | Nonstandard | Tape & Reel (TR) | Active | Drum Core, Wirewound | Ceramic | 33 nH | ±5% | 500 mA | - | Unshielded | 270mOhm Max | 60 @ 500MHz | 2.05GHz | - | -40°C ~ 125°C | 250 MHz | - | Surface Mount | 0805 | 0.090" L x 0.067" W (2.29mm x 1.70mm) | 0.058" (1.48mm) |
|
|
744760312CFIXED IND 1.2UH 150MA 4.6OHM SMD Würth Elektronik |
1,518 |
|
Datasheet |
WE-KI | Nonstandard | Tape & Reel (TR) | Active | Drum Core, Wirewound | Ceramic | 1.2 µH | ±5% | 150 mA | - | Unshielded | 4.6Ohm Max | 20 @ 25MHz | 200MHz | - | -40°C ~ 125°C | 7.9 MHz | - | Surface Mount | 0805 | 0.090" L x 0.067" W (2.29mm x 1.70mm) | 0.058" (1.48mm) |
|
|
744760227CFIXED IND 270NH 350MA 1.29OHM SM Würth Elektronik |
1,509 |
|
Datasheet |
WE-KI | Nonstandard | Tape & Reel (TR) | Active | Drum Core, Wirewound | Ceramic | 270 nH | ±5% | 350 mA | - | Unshielded | 1.29Ohm Max | 35 @ 250MHz | 650MHz | - | -40°C ~ 125°C | 100 MHz | - | Surface Mount | 0805 | 0.090" L x 0.067" W (2.29mm x 1.70mm) | 0.058" (1.48mm) |
|
|
744760118CFIXED IND 18NH 500MA 200MOHM SMD Würth Elektronik |
1,352 |
|
Datasheet |
WE-KI | Nonstandard | Tape & Reel (TR) | Active | Drum Core, Wirewound | Ceramic | 18 nH | ±5% | 500 mA | - | Unshielded | 200mOhm Max | 50 @ 500MHz | 3.3GHz | - | -40°C ~ 125°C | 250 MHz | - | Surface Mount | 0805 | 0.090" L x 0.067" W (2.29mm x 1.70mm) | 0.058" (1.48mm) |
