Fixed Inductors
| Photo | Mfr. Part # | Availability | Quantity | Datasheet | Series | Package/Case | Packaging | Product Status | Type | Material - Core | Inductance | Tolerance | Current Rating (Amps) | Current - Saturation (Isat) | Shielding | DC Resistance (DCR) | Q @ Freq | Frequency - Self Resonant | Ratings | Operating Temperature | Inductance Frequency - Test | Features | Mounting Type | Supplier Device Package | Size / Dimension | Height - Seated (Max) |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
-BR-Series.jpg)
|
BRC2016T680MFIXED IND 68UH 190MA 2.8 OHM SMD Taiyo Yuden |
0 |
|
Datasheet |
BR, C Type | 0806 (2016 Metric) | Tape & Reel (TR) | Active | Drum Core, Wirewound | Ferrite | 68 µH | ±20% | 190 mA | 200mA | Unshielded | 2.8Ohm Max | - | 8MHz | - | -40°C ~ 105°C | 100 kHz | - | Surface Mount | 0806 (2016 Metric) | 0.079" L x 0.063" W (2.00mm x 1.60mm) | 0.071" (1.80mm) |
.jpg)
|
LK1005R18K-TVFIXED IND 180NH 25MA 760MOHM SMD Taiyo Yuden |
0 |
|
Datasheet |
LK | 0402 (1005 Metric) | Tape & Reel (TR) | Obsolete | Multilayer | - | 180 nH | ±10% | 25 mA | - | Shielded | 760mOhm | 10 @ 25MHz | 150MHz | AEC-Q200 | -40°C ~ 85°C | 25 MHz | - | Surface Mount | 0402 (1005 Metric) | 0.039" L x 0.020" W (1.00mm x 0.50mm) | 0.022" (0.55mm) |
|
|
LK1005R68K-TVFIXED IND 680NH 20MA 550MOHM SMD Taiyo Yuden |
0 |
|
Datasheet |
LK | 0402 (1005 Metric) | Tape & Reel (TR) | Obsolete | Multilayer | - | 680 nH | ±10% | 20 mA | - | Shielded | 550mOhm | 20 @ 10MHz | 70MHz | AEC-Q200 | -40°C ~ 85°C | 10 MHz | - | Surface Mount | 0402 (1005 Metric) | 0.039" L x 0.020" W (1.00mm x 0.50mm) | 0.022" (0.55mm) |
|
LLQEA201212T101KFIXED IND 100UH 50MA 4 OHM SMD Taiyo Yuden |
0 |
|
Datasheet |
LLQE | 0805 (2012 Metric) | Tape & Reel (TR) | Active | Wirewound | Ferrite | 100 µH | ±10% | 50 mA | - | Unshielded | 5.2Ohm Max | - | 8MHz | - | -40°C ~ 105°C | 796 kHz | - | Surface Mount | 0805 | 0.079" L x 0.049" W (2.00mm x 1.25mm) | 0.057" (1.45mm) |
|
|
LLQEA201212T100KFIXED IND 10UH 150MA 360MOHM SMD Taiyo Yuden |
0 |
|
Datasheet |
LLQE | 0805 (2012 Metric) | Tape & Reel (TR) | Active | Wirewound | Ferrite | 10 µH | ±10% | 150 mA | - | Unshielded | 468mOhm Max | - | 32MHz | - | -40°C ~ 105°C | 2.52 MHz | - | Surface Mount | 0805 | 0.079" L x 0.049" W (2.00mm x 1.25mm) | 0.057" (1.45mm) |
|
|
NRS4018T150MDGJ8FIXED IND 15 UH 0.85A 0.252 OHM Taiyo Yuden |
0 |
|
- |
NR, S Type | 1616 (4040 Metric) | Tape & Reel (TR) | Active | Wirewound | Ferrite | 15 µH | ±20% | 850 mA | 1.1A | Unshielded | 210mOhm | - | 18MHz | - | -40°C ~ 125°C | 100 kHz | - | Surface Mount | 1616 | 0.157" L x 0.157" W (4.00mm x 4.00mm) | 0.071" (1.80mm) |
|
|
LBXND4040TKL150MDGFIXED IND 15 UH 0.85A 0.252 OHM Taiyo Yuden |
0 |
|
- |
LBXN | 1616 (4040 Metric) | Tape & Reel (TR) | Active | Wirewound | Ferrite | 15 µH | ±20% | 850 mA | 1.1A | Unshielded | 210mOhm | - | 18MHz | - | -40°C ~ 125°C | 100 kHz | - | Surface Mount | 1616 | 0.157" L x 0.157" W (4.00mm x 4.00mm) | 0.071" (1.80mm) |
|
|
LMXND4040TKL150MDGFIXED IND 15 UH 0.85A 0.252 OHM Taiyo Yuden |
0 |
|
- |
LMXN | 1616 (4040 Metric) | Tape & Reel (TR) | Active | Wirewound | Ferrite | 15 µH | ±20% | 850 mA | 1.1A | Shielded | 210mOhm | - | 18MHz | - | -40°C ~ 125°C | 100 kHz | - | Surface Mount | 1616 | 0.157" L x 0.157" W (4.00mm x 4.00mm) | 0.071" (1.80mm) |
|
LCXNE3030MKTR47NNFIXED IND 470NH 1.9A 39.6MOHM SM Taiyo Yuden |
0 |
|
- |
LCXN | 1212 (3030 Metric) | Tape & Reel (TR) | Active | Wirewound | Ferrite | 470 nH | ±30% | 1.9 A | 2.6A | Unshielded | 33mOhm | - | 160MHz | AEC-Q200 | -40°C ~ 125°C | 100 kHz | - | Surface Mount | 1212 | 0.118" L x 0.118" W (3.00mm x 3.00mm) | 0.047" (1.20mm) |
|

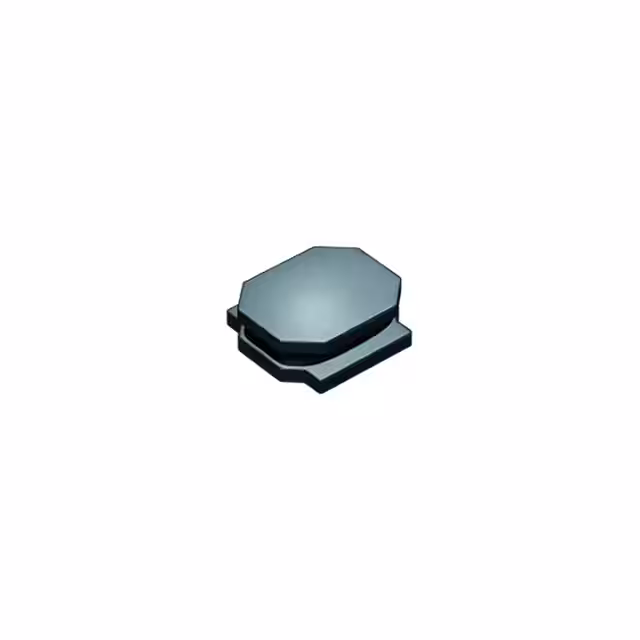

NRS5020T470MMGJFIXED IND 47UH 0.56A 522 MOHM SM Taiyo Yuden |
0 |
|
Datasheet |
NR, S Type | Nonstandard | Tape & Reel (TR) | Active | Drum Core, Wirewound | Ferrite | 47 µH | ±20% | 560 mA | 630mA | Shielded | 522mOhm Max | - | 12MHz | - | -25°C ~ 125°C | 100 kHz | - | Surface Mount | - | 0.193" L x 0.193" W (4.90mm x 4.90mm) | 0.079" (2.00mm) |
