Fixed Inductors
| Photo | Mfr. Part # | Availability | Quantity | Datasheet | Series | Package/Case | Packaging | Product Status | Type | Material - Core | Inductance | Tolerance | Current Rating (Amps) | Current - Saturation (Isat) | Shielding | DC Resistance (DCR) | Q @ Freq | Frequency - Self Resonant | Ratings | Operating Temperature | Inductance Frequency - Test | Features | Mounting Type | Supplier Device Package | Size / Dimension | Height - Seated (Max) |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|

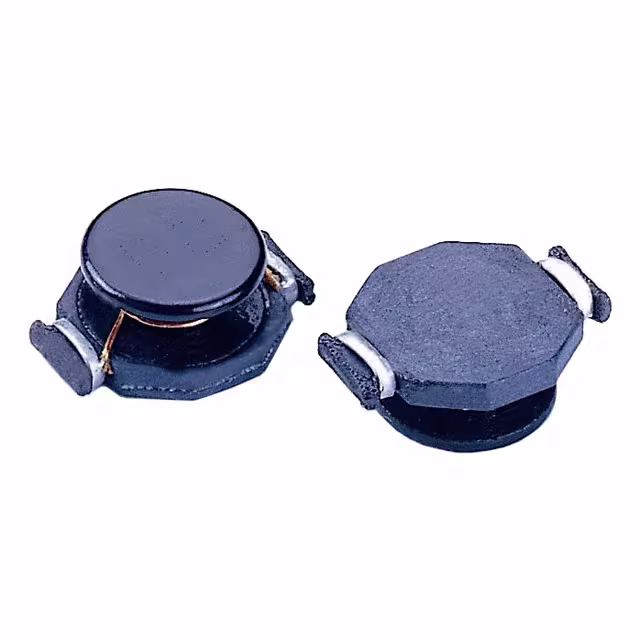

SC3316FH-R56FIXED IND 560NH 11.5A 5 MOHM SMD Signal Transformer |
0 |
|
Datasheet |
SC3316FH | Nonstandard | Tape & Reel (TR) | Active | Wirewound | - | 560 nH | ±30% | 11.5 A | 13A | Unshielded | 5mOhm Max | - | - | - | -40°C ~ 125°C | 100 kHz | - | Surface Mount | - | 0.512" L x 0.394" W (13.00mm x 10.00mm) | 0.250" (6.35mm) |
|
SC43-4R7FIXED IND 4.7UH 1.72A 94MOHM SMD Signal Transformer |
0 |
|
Datasheet |
SC43 | Nonstandard | Tape & Reel (TR) | Active | Wirewound | - | 4.7 µH | ±20% | 1.72 A | 1.7A | Unshielded | 94mOhm Max | - | - | - | -40°C ~ 125°C | 7.96 MHz | - | Surface Mount | - | 0.189" L x 0.169" W (4.80mm x 4.30mm) | 0.138" (3.50mm) |
|
F1A1-383818-1R2NFIXED IND 1.2UH 1.9A 88 MOHM Signal Transformer |
0 |
|
Datasheet |
F1A1-383818 | Nonstandard | Tape & Reel (TR) | Active | Drum Core, Wirewound | - | 1.2 µH | ±30% | 1.9 A | 1.8A | Shielded | 88Ohm Max | - | - | - | -40°C ~ 105°C | 100 kHz | - | Surface Mount | - | 0.150" L x 0.150" W (3.80mm x 3.80mm) | 0.071" (1.80mm) |
|
|
F1A1-383818-3R9NFIXED IND 3.9UH 1.35A 150 MOHM Signal Transformer |
0 |
|
Datasheet |
F1A1-383818 | Nonstandard | Tape & Reel (TR) | Active | Drum Core, Wirewound | - | 3.9 µH | ±30% | 1.35 A | 1A | Shielded | 150Ohm Max | - | - | - | -40°C ~ 105°C | 100 kHz | - | Surface Mount | - | 0.150" L x 0.150" W (3.80mm x 3.80mm) | 0.071" (1.80mm) |
|

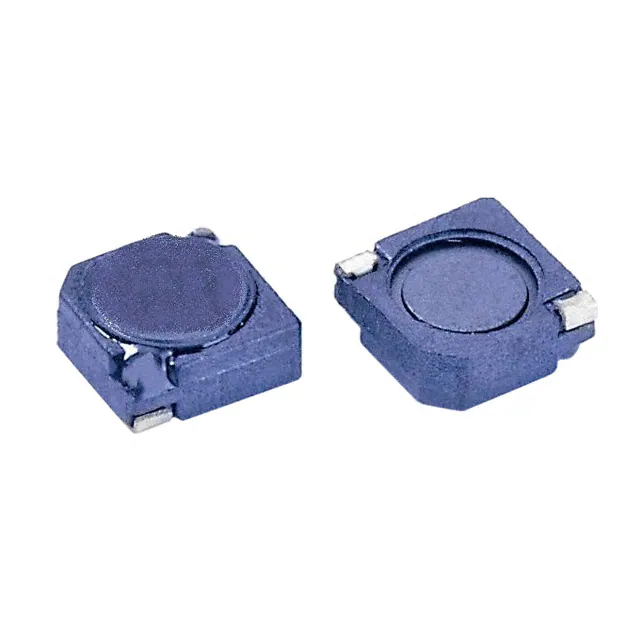

SCC5D23-150FIXED IND 15UH 1.3A 166 MOHM SMD Signal Transformer |
0 |
|
Datasheet |
SCC5D23 | Nonstandard | Tape & Reel (TR) | Obsolete | - | - | 15 µH | ±20% | 1.3 A | 820mA | Shielded | 166mOhm Max | - | - | - | -40°C ~ 125°C | 100 kHz | - | Surface Mount | - | 0.236" L x 0.236" W (6.00mm x 6.00mm) | 0.098" (2.50mm) |
|
|
SCC5D23-181FIXED IND 180UH 370MA 1.9OHM SMD Signal Transformer |
0 |
|
Datasheet |
SCC5D23 | Nonstandard | Tape & Reel (TR) | Obsolete | - | - | 180 µH | ±20% | 370 mA | 230mA | Shielded | 1.9Ohm Max | - | - | - | -40°C ~ 125°C | 100 kHz | - | Surface Mount | - | 0.236" L x 0.236" W (6.00mm x 6.00mm) | 0.098" (2.50mm) |
|
|
SCC5D23-271FIXED IND 270UH 320MA 2.73OHM SM Signal Transformer |
0 |
|
Datasheet |
SCC5D23 | Nonstandard | Tape & Reel (TR) | Obsolete | - | - | 270 µH | ±20% | 320 mA | 190mA | Shielded | 2.73Ohm Max | - | - | - | -40°C ~ 125°C | 100 kHz | - | Surface Mount | - | 0.236" L x 0.236" W (6.00mm x 6.00mm) | 0.098" (2.50mm) |
|
|
SCC5D23-2R7FIXED IND 2.7UH 2.8A 44 MOHM SMD Signal Transformer |
0 |
|
Datasheet |
SCC5D23 | Nonstandard | Tape & Reel (TR) | Obsolete | - | - | 2.7 µH | ±20% | 2.8 A | 2.08A | Shielded | 44mOhm Max | - | - | - | -40°C ~ 125°C | 100 kHz | - | Surface Mount | - | 0.236" L x 0.236" W (6.00mm x 6.00mm) | 0.098" (2.50mm) |
|
|
SCC5D23-330FIXED IND 33UH 900MA 378MOHM SMD Signal Transformer |
0 |
|
Datasheet |
SCC5D23 | Nonstandard | Tape & Reel (TR) | Obsolete | - | - | 33 µH | ±20% | 900 mA | 580mA | Shielded | 378mOhm Max | - | - | - | -40°C ~ 125°C | 100 kHz | - | Surface Mount | - | 0.236" L x 0.236" W (6.00mm x 6.00mm) | 0.098" (2.50mm) |
|
|
SCC5D23-391FIXED IND 390UH 240MA 4.06OHM SM Signal Transformer |
0 |
|
Datasheet |
SCC5D23 | Nonstandard | Tape & Reel (TR) | Obsolete | - | - | 390 µH | ±20% | 240 mA | 170mA | Shielded | 4.06Ohm Max | - | - | - | -40°C ~ 125°C | 100 kHz | - | Surface Mount | - | 0.236" L x 0.236" W (6.00mm x 6.00mm) | 0.098" (2.50mm) |
