Fixed Inductors
| Photo | Mfr. Part # | Availability | Quantity | Datasheet | Series | Package/Case | Packaging | Product Status | Type | Material - Core | Inductance | Tolerance | Current Rating (Amps) | Current - Saturation (Isat) | Shielding | DC Resistance (DCR) | Q @ Freq | Frequency - Self Resonant | Ratings | Operating Temperature | Inductance Frequency - Test | Features | Mounting Type | Supplier Device Package | Size / Dimension | Height - Seated (Max) |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
PG0006.102NLTFIXED IND 1UH 20A 1.75 MOHM SMD Pulse Electronics |
944 |
|
Datasheet |
PG0006NL | Nonstandard | Tape & Reel (TR) | Active | - | - | 1 µH | ±20% | 20 A | 20A | Unshielded | 1.75mOhm Max | - | - | - | -40°C ~ 130°C | 100 kHz | - | Surface Mount | - | 0.528" L x 0.523" W (13.40mm x 13.28mm) | 0.236" (6.00mm) |
|
PA5119.901NLTFIXED IND 900NH 14A 4.6 MOHM SMD Pulse Electronics |
2,024 |
|
Datasheet |
PA5119.XXXNLT | Nonstandard | Tape & Reel (TR) | Active | - | - | 900 nH | ±10% | 14 A | 28A | Shielded | 4.6mOhm | - | - | - | -40°C ~ 130°C | 100 kHz | - | Surface Mount | - | 0.480" L x 0.386" W (12.20mm x 9.80mm) | 0.197" (5.00mm) |
|
PE-53700NLFIXED IND 5.2UH 15.4A 6.2MOHM SM Pulse Electronics |
3,582 |
|
Datasheet |
SLIC | Nonstandard | Bulk | Active | Toroidal | - | 5.2 µH | - | 15.4 A | - | Unshielded | 6.2mOhm Max | - | - | - | -40°C ~ 130°C | - | - | Surface Mount | - | 0.940" L x 0.940" W (23.88mm x 23.88mm) | 0.390" (9.91mm) |
|
PB2020.223NLTFIXED IND 22UH 8.1A 20 MOHM SMD Pulse Electronics |
978 |
|
Datasheet |
PB2020NL | Nonstandard | Tape & Reel (TR) | Active | Wirewound | - | 22 µH | ±20% | 8.1 A | 13A | Unshielded | 20mOhm Max | - | - | - | -40°C ~ 130°C | - | - | Surface Mount | - | 0.940" L x 0.820" W (23.87mm x 20.83mm) | 0.400" (10.16mm) |
|
PA2050.583NLFIXED IND 57.8UH 5A 34.5MOHM SMD Pulse Electronics |
9,388 |
|
Datasheet |
PA2050NL | Nonstandard | Tray | Active | Wirewound | - | 57.8 µH | ±10% | 5 A | 6.2A | Shielded | 34.5mOhm | - | - | - | -40°C ~ 130°C | - | - | Surface Mount | - | 0.875" L x 0.750" W (22.23mm x 19.05mm) | 0.480" (12.20mm) |
|

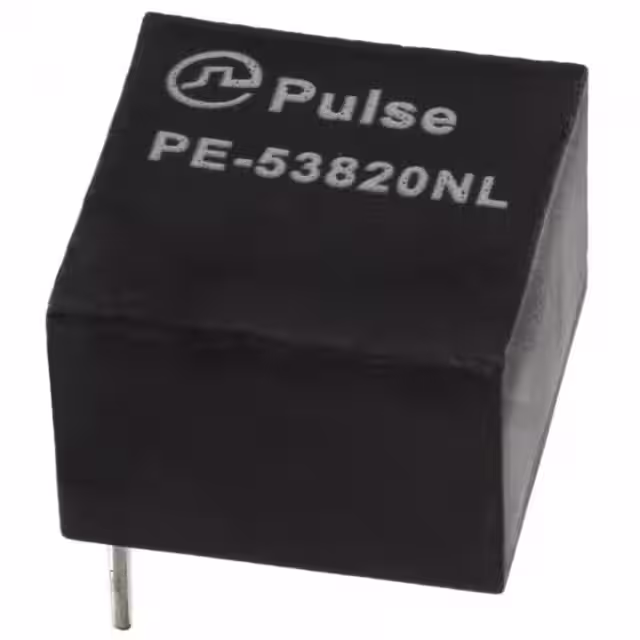

PE-53820NLFIXED IND 115UH 670MA 400MOHM TH Pulse Electronics |
921 |
|
Datasheet |
- | Radial, Vertical - Corner Terminals | Tray | Active | Toroidal | - | 115 µH | ±20% | 670 mA | - | Shielded | 400mOhm | - | - | - | -40°C ~ 130°C | - | - | Through Hole | - | 0.495" L x 0.495" W (12.57mm x 12.57mm) | 0.375" (9.52mm) |
|

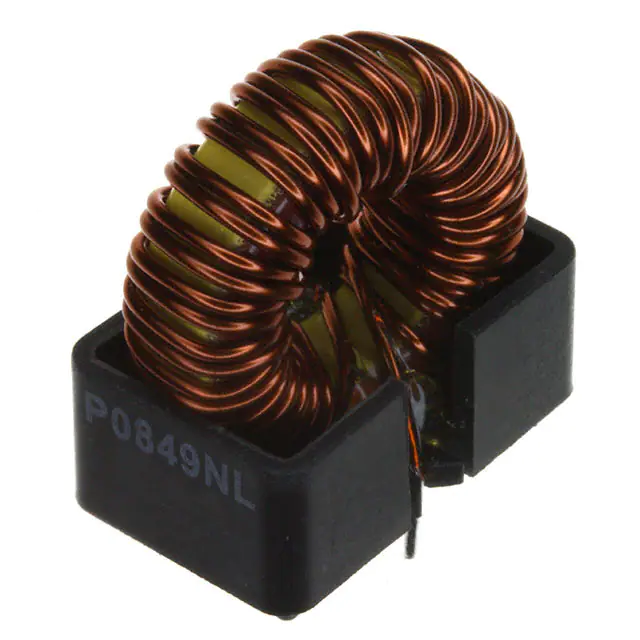

P0849NLFIXED IND 33UH 5A 47 MOHM TH Pulse Electronics |
1,080 |
|
Datasheet |
KlipMount™ | Radial, Vertical (Open) | Tray | Active | Toroidal | - | 33 µH | ±20% | 5 A | - | Shielded | 47mOhm | - | - | - | -40°C ~ 130°C | - | - | Through Hole | - | 0.950" L x 0.600" W (24.13mm x 15.24mm) | 1.350" (34.29mm) |
|

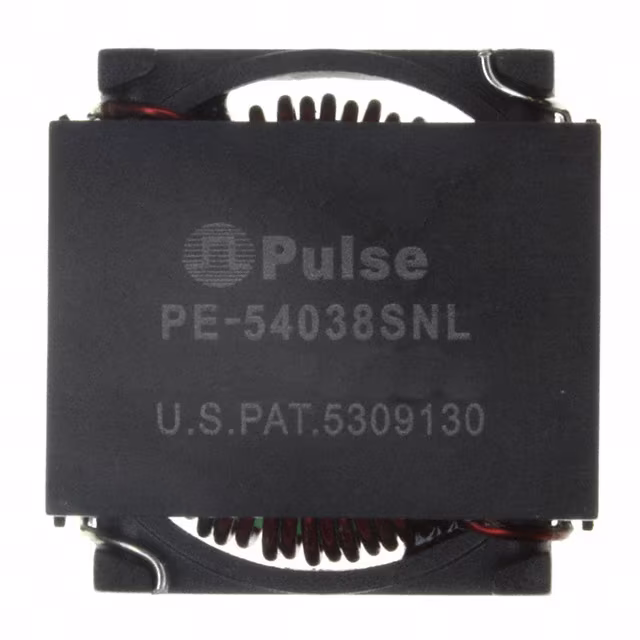

PE-54038SNLTFIXED IND 77UH 2.7A 90 MOHM SMD Pulse Electronics |
2,115 |
|
Datasheet |
- | Nonstandard | Tape & Reel (TR) | Active | Toroidal | - | 77 µH | ±20% | 2.7 A | - | Shielded | 90mOhm | - | - | - | -40°C ~ 130°C | - | - | Surface Mount | - | 0.940" L x 0.940" W (23.88mm x 23.88mm) | 0.400" (10.16mm) |
|

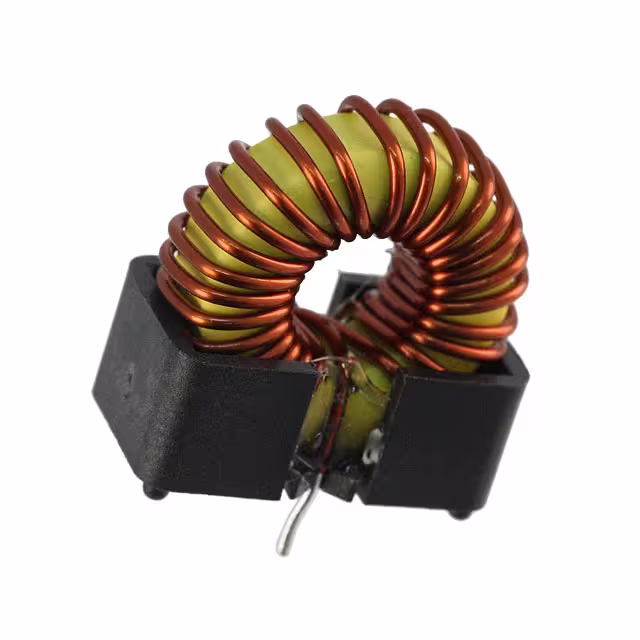

PE-92111KNLFIXED IND 40UH 4A 27 MOHM TH Pulse Electronics |
744 |
|
Datasheet |
- | Radial, Vertical (Open) | Tray | Active | Toroidal | - | 40 µH | ±20% | 4 A | - | Unshielded | 27mOhm Max | - | - | - | -40°C ~ 130°C | 20 kHz | - | Through Hole | - | 0.850" L x 0.450" W (21.59mm x 11.43mm) | 0.950" (24.13mm) |
|

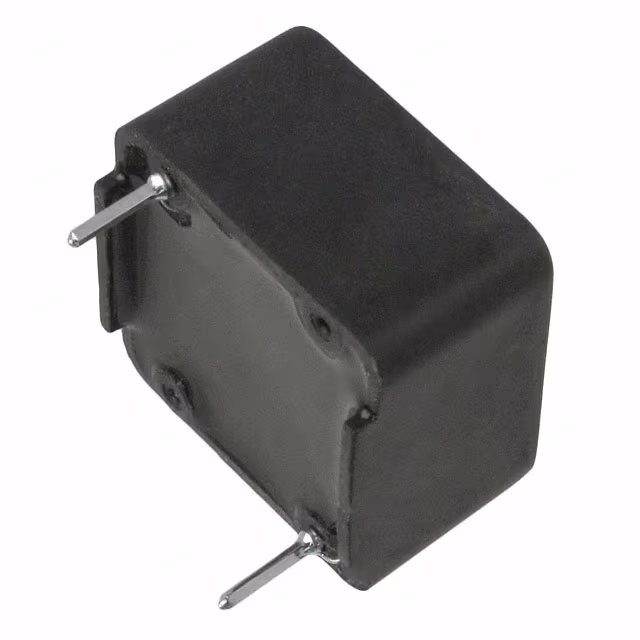

PE-52629NLFIXED IND 680UH 850MA 1.5 OHM TH Pulse Electronics |
130 |
|
Datasheet |
- | Radial, Horizontal - Corner Terminals | Tube | Active | Toroidal | - | 680 µH | ±20% | 850 mA | - | Unshielded | 1.5Ohm Max | - | - | - | -40°C ~ 130°C | 20 kHz | - | Through Hole | - | 0.710" L x 0.710" W (18.03mm x 18.03mm) | 0.460" (11.68mm) |
