Fixed Inductors
| Photo | Mfr. Part # | Availability | Quantity | Datasheet | Series | Package/Case | Packaging | Product Status | Type | Material - Core | Inductance | Tolerance | Current Rating (Amps) | Current - Saturation (Isat) | Shielding | DC Resistance (DCR) | Q @ Freq | Frequency - Self Resonant | Ratings | Operating Temperature | Inductance Frequency - Test | Features | Mounting Type | Supplier Device Package | Size / Dimension | Height - Seated (Max) |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
PM5432.472NLTFIXED IND 4.7UH 10.5A 14.4 MOHM Pulse Electronics |
1,898 |
|
Datasheet |
PM5432.XXXNLT | Nonstandard | Tape & Reel (TR) | Active | - | - | 4.7 µH | ±20% | 10.5 A | - | Shielded | 14.4mOhm Max | - | 21MHz | AEC-Q200 | -55°C ~ 155°C | 100 kHz | - | Surface Mount | - | 0.268" L x 0.260" W (6.80mm x 6.60mm) | 0.236" (6.00mm) |
|
|
PM5432.103NLTFIXED IND 10UH 7A 29.82MOHM SMD Pulse Electronics |
998 |
|
Datasheet |
PM5432.XXXNLT | Nonstandard | Tape & Reel (TR) | Active | - | - | 10 µH | ±20% | 7 A | - | Shielded | 29.82mOhm Max | - | 14MHz | AEC-Q200 | -55°C ~ 155°C | 100 kHz | - | Surface Mount | - | 0.268" L x 0.260" W (6.80mm x 6.60mm) | 0.236" (6.00mm) |
|
|
PM5432.153NLTFIXED IND 15UH 6A 43.75MOHM SMD Pulse Electronics |
116 |
|
Datasheet |
PM5432.XXXNLT | Nonstandard | Tape & Reel (TR) | Active | - | - | 15 µH | ±20% | 6 A | - | Shielded | 43.75mOhm Max | - | 11MHz | AEC-Q200 | -55°C ~ 155°C | 100 kHz | - | Surface Mount | - | 0.268" L x 0.260" W (6.80mm x 6.60mm) | 0.236" (6.00mm) |
|

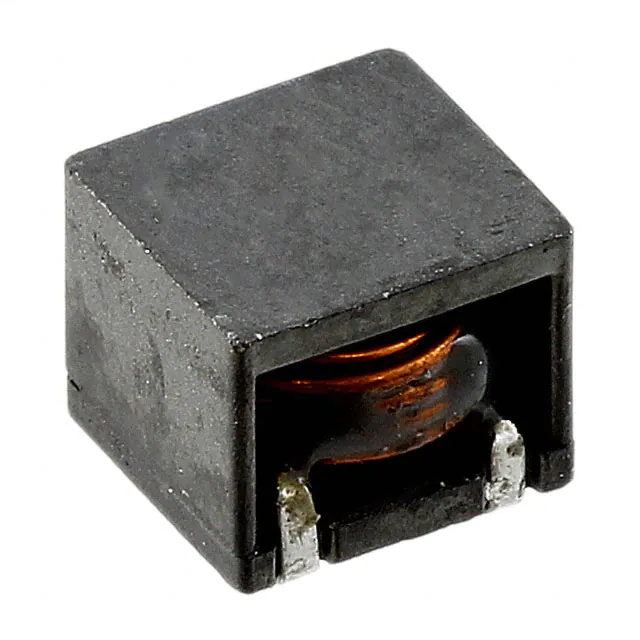

PG0871.102NLTFIXED IND 1UH 17.5A 2.3 MOHM SMD Pulse Electronics |
2,775 |
|
Datasheet |
PG0871NL | Nonstandard | Tape & Reel (TR) | Active | Wirewound | - | 1 µH | ±20% | 17.5 A | 17.5A | Shielded | 2.3mOhm | - | - | - | -40°C ~ 130°C | 100 kHz | - | Surface Mount | - | 0.299" L x 0.291" W (7.60mm x 7.40mm) | 0.252" (6.40mm) |
|
|
PG0871.222NLTFIXED IND 2.2UH 9.5A 7.6MOHM SMD Pulse Electronics |
1,391 |
|
Datasheet |
PG0871NL | Nonstandard | Tape & Reel (TR) | Active | Wirewound | - | 2.2 µH | ±20% | 9.5 A | 12A | Shielded | 7.6mOhm | - | - | - | -40°C ~ 130°C | 100 kHz | - | Surface Mount | - | 0.299" L x 0.291" W (7.60mm x 7.40mm) | 0.252" (6.40mm) |
|

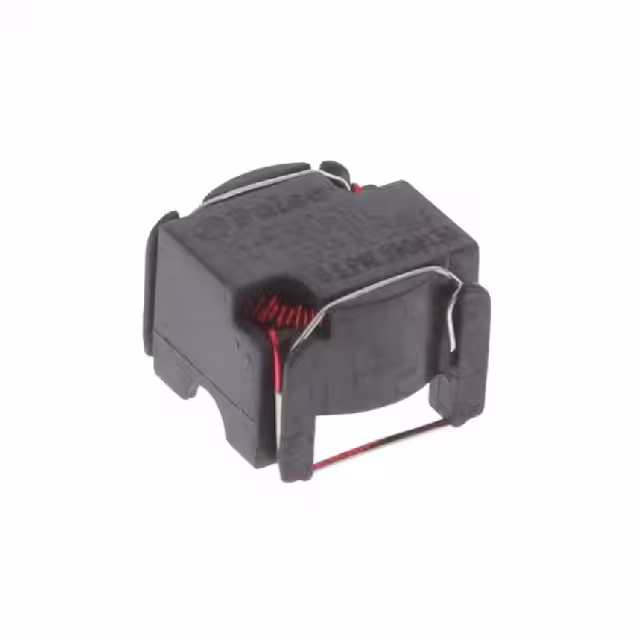

PE-53606NLTFIXED IND 114UH 940MA 405MOHM SM Pulse Electronics |
4,111 |
|
Datasheet |
SLIC | Nonstandard | Tape & Reel (TR) | Active | Toroidal | - | 114 µH | - | 940 mA | - | Unshielded | 405mOhm Max | - | - | - | -40°C ~ 130°C | - | - | Surface Mount | - | 0.440" L x 0.435" W (11.18mm x 11.05mm) | 0.360" (9.14mm) |
|
PE-53821SNLFIXED IND 78UH 820MA 300MOHM SMD Pulse Electronics |
562 |
|
Datasheet |
- | Nonstandard | Bulk | Active | Toroidal | - | 78 µH | ±20% | 820 mA | - | Shielded | 300mOhm | - | - | - | -40°C ~ 130°C | - | - | Surface Mount | - | 0.570" L x 0.565" W (14.48mm x 14.35mm) | 0.360" (9.14mm) |
|

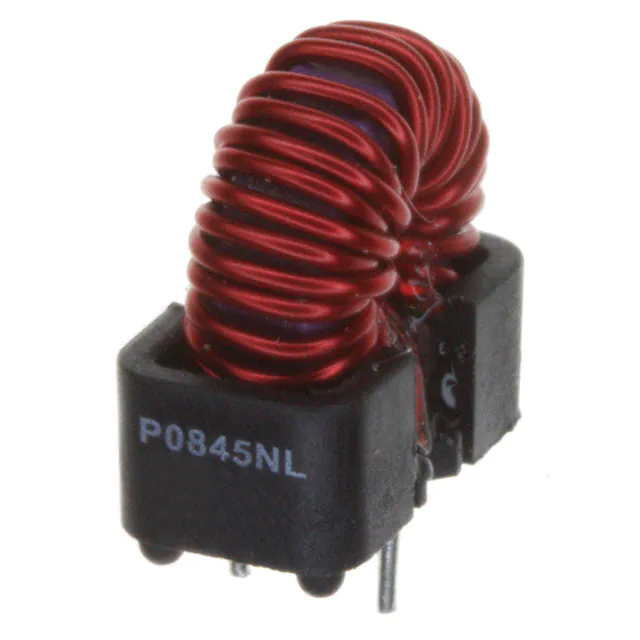

P0845NLFIXED IND 10.2UH 4.3A 26 MOHM TH Pulse Electronics |
947 |
|
Datasheet |
KlipMount™ | Radial, Vertical (Open) | Tray | Active | Toroidal | - | 10.2 µH | ±20% | 4.3 A | - | Shielded | 26mOhm | - | - | - | -40°C ~ 130°C | - | - | Through Hole | - | 0.580" L x 0.350" W (14.74mm x 8.89mm) | 0.715" (18.17mm) |
|
PG0702.102NLTFIXED IND 1UH 26A 1.76 MOHM SMD Pulse Electronics |
2,191 |
|
Datasheet |
PG0702NL | Nonstandard | Tape & Reel (TR) | Active | Wirewound | - | 1 µH | ±20% | 26 A | 26A | Shielded | 1.76mOhm | - | - | - | -40°C ~ 130°C | 100 kHz | - | Surface Mount | - | 0.425" L x 0.362" W (10.80mm x 9.20mm) | 0.315" (8.00mm) |
|

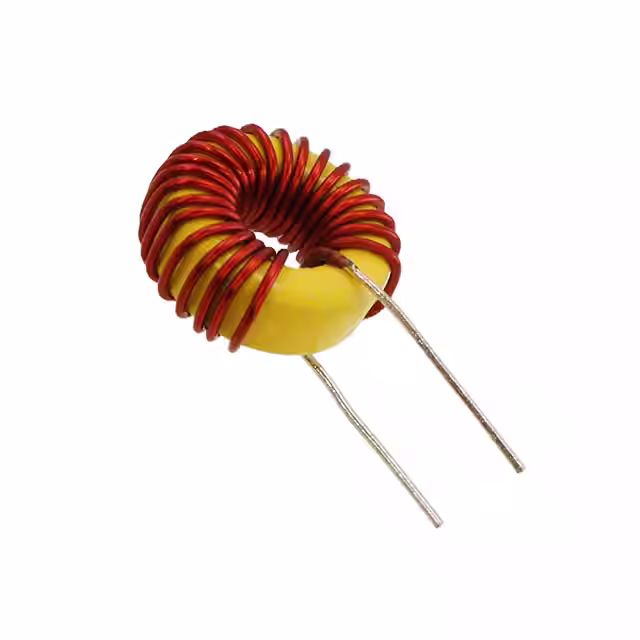

PE-92100NLFIXED IND 25UH 2.6A 43 MOHM TH Pulse Electronics |
1,299 |
|
Datasheet |
- | Radial, Vertical (Open) | Tray | Active | Toroidal | - | 25 µH | ±20% | 2.6 A | - | Unshielded | 43mOhm Max | - | - | - | -40°C ~ 130°C | 20 kHz | - | Through Hole | - | 0.550" Dia x 0.250" W (13.97mm x 6.35mm) | - |
