Fixed Inductors
| Photo | Mfr. Part # | Availability | Quantity | Datasheet | Series | Package/Case | Packaging | Product Status | Type | Material - Core | Inductance | Tolerance | Current Rating (Amps) | Current - Saturation (Isat) | Shielding | DC Resistance (DCR) | Q @ Freq | Frequency - Self Resonant | Ratings | Operating Temperature | Inductance Frequency - Test | Features | Mounting Type | Supplier Device Package | Size / Dimension | Height - Seated (Max) |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
PA3784.151HLFIXED IND 150NH 67A 0.18MOHM SMD Pulse Electronics |
4,061 |
|
Datasheet |
PA3784.XXXHL | Nonstandard | Tray | Active | - | - | 150 nH | ±10% | 67 A | 83A | Unshielded | 0.18mOhm | - | - | - | -40°C ~ 130°C | 100 kHz | - | Surface Mount | - | 0.394" L x 0.315" W (10.00mm x 8.00mm) | 0.315" (8.00mm) |
|

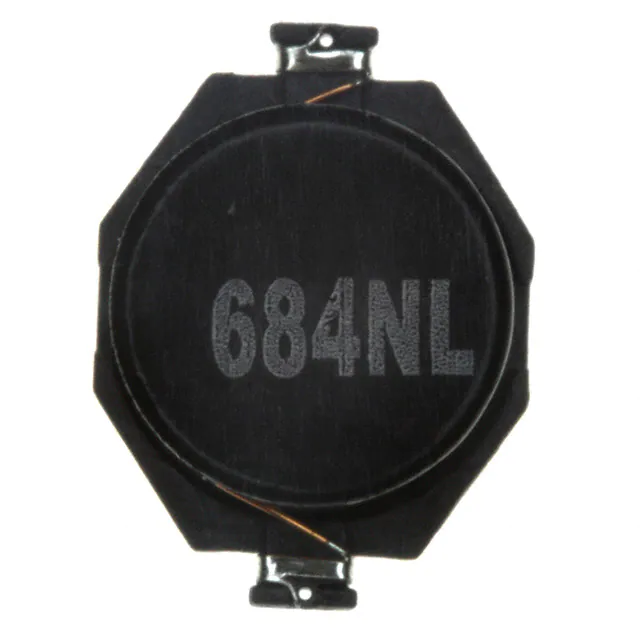

P0752.684NLTFIXED IND 680UH 400MA 2.17OHM SM Pulse Electronics |
2,993 |
|
Datasheet |
P0752NL | Nonstandard | Tape & Reel (TR) | Active | Wirewound | - | 680 µH | ±20% | 400 mA | 400mA | Unshielded | 2.17Ohm Max | - | - | - | -40°C ~ 130°C | 100 kHz | - | Surface Mount | - | 0.510" L x 0.370" W (12.95mm x 9.40mm) | 0.215" (5.46mm) |
|

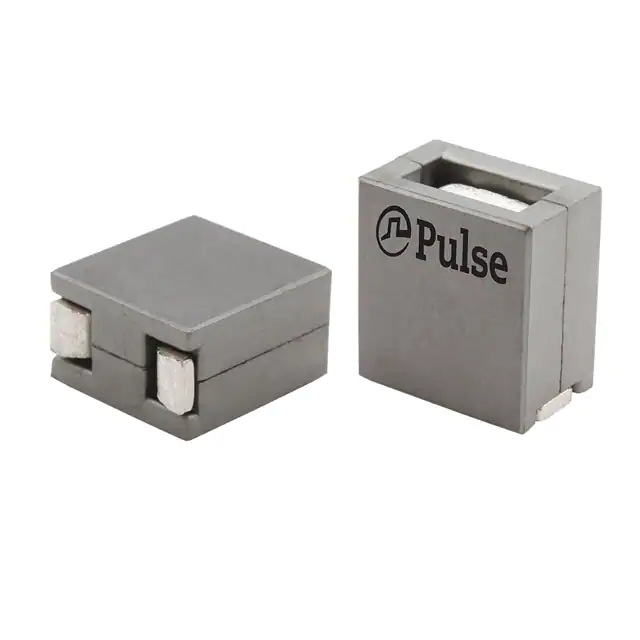

PA5034.331HLTIND PWR BEAD 330NH 40A SMD Pulse Electronics |
1,785 |
|
Datasheet |
PA5034.XXXHLT | Nonstandard | Tape & Reel (TR) | Active | - | - | 330 nH | ±15% | 40 A | 40A | Shielded | 0.4mOhm | - | - | - | -40°C ~ 130°C | 100 kHz | - | Surface Mount | - | 0.394" L x 0.276" W (10.00mm x 7.00mm) | 0.394" (10.00mm) |
|

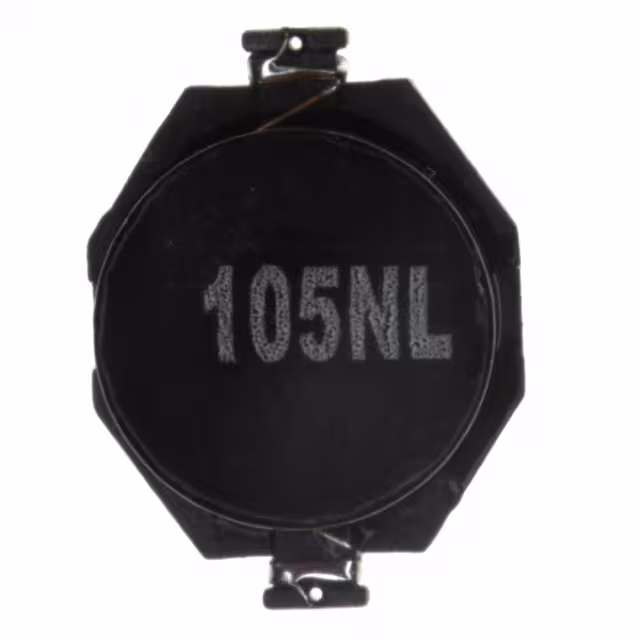

P0752.105NLTFIXED IND 1MH 300MA 3.3 OHM SMD Pulse Electronics |
4,411 |
|
Datasheet |
P0752NL | Nonstandard | Tape & Reel (TR) | Active | Wirewound | - | 1 mH | ±20% | 300 mA | 300mA | Unshielded | 3.3Ohm Max | - | - | - | -40°C ~ 130°C | 100 kHz | - | Surface Mount | - | 0.510" L x 0.370" W (12.95mm x 9.40mm) | 0.215" (5.46mm) |
|
PA5003.182NLTFIXED IND 1.8UH 10.1A 12.7 MOHM Pulse Electronics |
4,170 |
|
Datasheet |
PA5003.XXXNLT | Nonstandard | Tape & Reel (TR) | Active | Molded | Ferrite | 1.8 µH | ±20% | 10.1 A | 12.3A | Shielded | 12.7mOhm Max | - | - | - | -40°C ~ 125°C | 100 kHz | - | Surface Mount | - | 0.217" L x 0.209" W (5.50mm x 5.30mm) | 0.122" (3.10mm) |
|
PA5041.151HLTFIXED IND 150NH 40A 0.29MOHM SMD Pulse Electronics |
2,843 |
|
Datasheet |
PA5041 | Nonstandard | Tape & Reel (TR) | Active | - | - | 150 nH | ±10% | 40 A | 72A | Shielded | 0.29mOhm | - | - | - | -40°C ~ 130°C | 100 kHz | - | Surface Mount | - | 0.283" L x 0.264" W (7.20mm x 6.70mm) | 0.441" (11.20mm) |
|
PA5615.101HLTINDUCTOR PWR BEAD 1000NH 84A Pulse Electronics |
3,130 |
|
Datasheet |
PA5615.XXXHLT | Nonstandard | Tape & Reel (TR) | Active | - | - | 100 nH | ±15% | 85 A | 84A | Unshielded | 125mOhm | - | - | - | -40°C ~ 125°C | 100 kHz | - | Surface Mount | - | 0.394" L x 0.236" W (10.00mm x 6.00mm) | 0.335" (8.50mm) |
|
PA4342.153ANLTFIXED IND 15UH 5A 45 MOHM SMD Pulse Electronics |
701 |
|
Datasheet |
PA4342.XXXANLT | Nonstandard | Tape & Reel (TR) | Active | Molded | - | 15 µH | ±20% | 5 A | 6A | Shielded | 45mOhm Max | - | - | - | -55°C ~ 155°C | 100 kHz | - | Surface Mount | - | 0.433" L x 0.394" W (11.00mm x 10.00mm) | 0.157" (4.00mm) |
|
|
PA3784.121HLFIXED IND 120NH 70A 0.18MOHM SMD Pulse Electronics |
3,572 |
|
Datasheet |
PA3784.XXXHL | Nonstandard | Tray | Active | - | - | 120 nH | ±10% | 70 A | 94A | Unshielded | 0.18mOhm | - | - | - | -40°C ~ 130°C | 100 kHz | - | Surface Mount | - | 0.394" L x 0.315" W (10.00mm x 8.00mm) | 0.315" (8.00mm) |
|
PA4310.334NLTFIXED IND 330UH 1.8A 941MOHM SMD Pulse Electronics |
5,797 |
|
Datasheet |
PA4310.XXXNL | Nonstandard | Tape & Reel (TR) | Active | Wirewound | - | 330 µH | ±20% | 1.8 A | - | Unshielded | 941mOhm Max | - | - | - | -40°C ~ 125°C | 100 kHz | - | Surface Mount | - | 0.504" L x 0.504" W (12.80mm x 12.80mm) | 0.315" (8.00mm) |
