Fixed Inductors
| Photo | Mfr. Part # | Availability | Quantity | Datasheet | Series | Package/Case | Packaging | Product Status | Type | Material - Core | Inductance | Tolerance | Current Rating (Amps) | Current - Saturation (Isat) | Shielding | DC Resistance (DCR) | Q @ Freq | Frequency - Self Resonant | Ratings | Operating Temperature | Inductance Frequency - Test | Features | Mounting Type | Supplier Device Package | Size / Dimension | Height - Seated (Max) |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
PA4349.223ANLTFIXED IND 22UH 22A 11 MOHM SMD Pulse Electronics |
508 |
|
Datasheet |
PA4349.XXXANLT | Nonstandard | Tape & Reel (TR) | Active | Molded | - | 22 µH | ±20% | 18 A | 14A | Shielded | 11mOhm Max | - | 5MHz | AEC-Q200 | -55°C ~ 155°C | 100 kHz | - | Surface Mount | - | 0.925" L x 0.866" W (23.50mm x 22.00mm) | 0.512" (13.00mm) |
|
|
PA4349.682ANLTFIXED IND 6.8UH 40A 3.1 MOHM SMD Pulse Electronics |
441 |
|
Datasheet |
PA4349.XXXANLT | Nonstandard | Tape & Reel (TR) | Active | Molded | - | 6.8 µH | ±20% | 36 A | 32A | Shielded | 3.1mOhm Max | - | 9MHz | AEC-Q200 | -55°C ~ 155°C | 100 kHz | - | Surface Mount | - | 0.925" L x 0.866" W (23.50mm x 22.00mm) | 0.512" (13.00mm) |
|

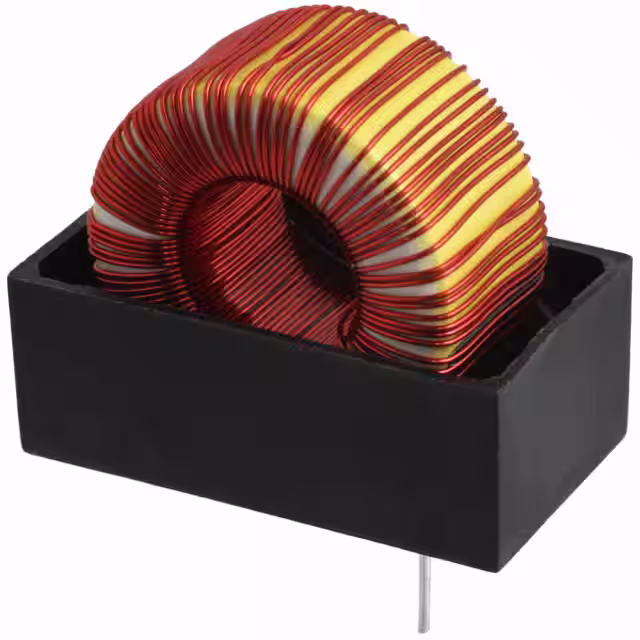

PE-53121NLFIXED IND 1.5MH 620MA 1 OHM TH Pulse Electronics |
140 |
|
Datasheet |
- | Radial, Vertical (Open) | Tube | Active | Toroidal | - | 1.5 mH | ±20% | 620 mA | - | Unshielded | 1Ohm Max | - | - | - | -40°C ~ 130°C | - | - | Through Hole | - | 1.440" L x 0.800" W (36.57mm x 20.32mm) | 1.440" (36.57mm) |
|
AFDI002828118R2M06INDUCTOR CHOKE Pulse Electronics |
500 |
|
Datasheet |
AFDI | Radial | Tape & Reel (TR) | Active | Drum Core, Wirewound | Metal | 8.2 µH | ±20% | 40 A | 32A | Shielded | 2.8mOhm Max | - | - | AEC-Q200 | -50°C ~ 155°C | 100 kHz | - | Through Hole | Radial | 1.102" L x 1.102" W (28.00mm x 28.00mm) | 0.429" (10.90mm) |
|
|
AFDI002828114R7M06INDUCTOR CHOKE Pulse Electronics |
435 |
|
Datasheet |
AFDI | Radial | Tray | Active | Drum Core, Wirewound | Metal | 4.7 µH | ±20% | 53 A | 52A | Shielded | 1.43mOhm Max | - | - | AEC-Q200 | -50°C ~ 155°C | 100 kHz | - | Through Hole | Radial | 1.102" L x 1.102" W (28.00mm x 28.00mm) | 0.429" (10.90mm) |
|

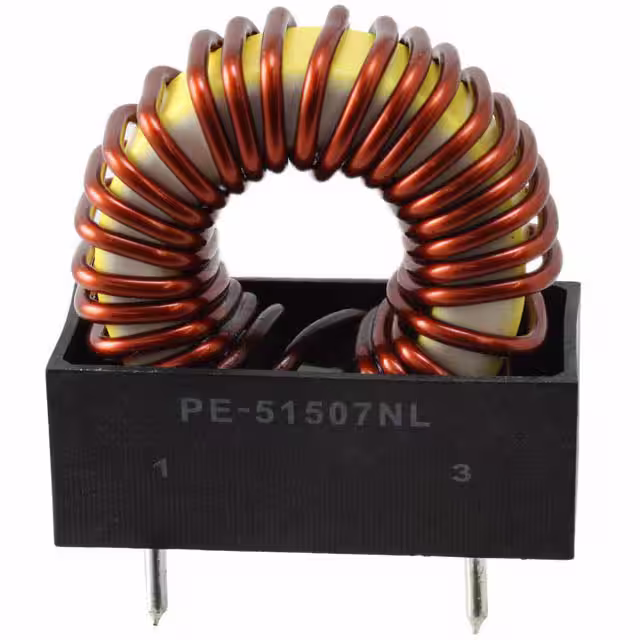

PE-51507NLFIXED IND 32UH 16A 9.2 MOHM TH Pulse Electronics |
139 |
|
Datasheet |
- | Radial, Vertical, 4 Leads (Open) | Tube | Active | Toroidal | - | 32 µH | - | 16 A | - | Unshielded | 9.2mOhm Max | - | - | - | -40°C ~ 130°C | 50 kHz | - | Through Hole | - | 1.950" L x 0.910" W (49.53mm x 23.11mm) | 2.000" (50.80mm) |
.jpg)
|
PE-1008CM102KTTFIXED IND 1UH 200MA 1.8 OHM SMD Pulse Electronics |
4,147 |
|
Datasheet |
1008CM | 1008 (2520 Metric) | Tape & Reel (TR) | Active | Drum Core, Wirewound | Ceramic | 1 µH | ±10% | 200 mA | - | Unshielded | 1.8Ohm Max | 40 @ 50MHz | 300MHz | - | -40°C ~ 125°C | 25 MHz | - | Surface Mount | 1008 (2520 Metric) | 0.115" L x 0.110" W (2.92mm x 2.79mm) | 0.090" (2.29mm) |
|
PE-0805CM100JTTFIXED IND 10NH 600MA 100MOHM SMD Pulse Electronics |
12,143 |
|
Datasheet |
0805CM | 0805 (2012 Metric) | Tape & Reel (TR) | Active | Drum Core, Wirewound | Ceramic | 10 nH | ±5% | 600 mA | - | Unshielded | 100mOhm Max | 60 @ 500MHz | 3.9GHz | - | -40°C ~ 125°C | 250 MHz | - | Surface Mount | 0805 (2012 Metric) | 0.090" L x 0.066" W (2.29mm x 1.68mm) | 0.062" (1.58mm) |
|
|
PE-0805CM151JTTFIXED IND 150NH 350MA 560MOHM SM Pulse Electronics |
2,155 |
|
Datasheet |
0805CM | 0805 (2012 Metric) | Tape & Reel (TR) | Active | Drum Core, Wirewound | Ceramic | 150 nH | ±5% | 350 mA | - | Unshielded | 560mOhm Max | 50 @ 250MHz | 900MHz | - | -40°C ~ 125°C | 100 MHz | - | Surface Mount | 0805 (2012 Metric) | 0.090" L x 0.066" W (2.29mm x 1.68mm) | 0.062" (1.58mm) |
|
PA4334.821NLTFIXED IND 820NH 2.47A 39MOHM SMD Pulse Electronics |
12,990 |
|
Datasheet |
PA4334.XXXNLT | Nonstandard | Tape & Reel (TR) | Active | Drum Core, Wirewound | Iron | 820 nH | ±30% | 2.47 A | 2.05A | Shielded | 39mOhm Max | - | 107MHz | - | -40°C ~ 125°C | 1 MHz | - | Surface Mount | - | 0.126" L x 0.126" W (3.20mm x 3.20mm) | 0.047" (1.20mm) |
