制造商 | Series | Package/Case | Packaging | Product Status | Type | Material - Core | Inductance | Tolerance | Current Rating (Amps) | Current - Saturation (Isat) | Shielding | DC Resistance (DCR) | Q @ Freq | Frequency - Self Resonant | Ratings | Operating Temperature | Inductance Frequency - Test | Features | Mounting Type | Supplier Device Package | Size / Dimension | Height - Seated (Max) |
---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
Photo | Mfr. Part # | Availability | Price | Quantity | Datasheet | Series | Package/Case | Packaging | Product Status | Type | Material - Core | Inductance | Tolerance | Current Rating (Amps) | Current - Saturation (Isat) | Shielding | DC Resistance (DCR) | Q @ Freq | Frequency - Self Resonant | Ratings | Operating Temperature | Inductance Frequency - Test | Features | Mounting Type | Supplier Device Package | Size / Dimension | Height - Seated (Max) |
---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
![]() |
PA3288.301HLFIXED IND 300NH 64A 0.29MOHM SMD Pulse Electronics |
0 | - |
|
![]() Datasheet |
PA3288.XXXHL | Nonstandard | Tray | Active | - | - | 300 nH | ±15% | 64 A | 34A | Unshielded | 0.29mOhm | - | - | - | -40°C ~ 130°C | 100 kHz | - | Surface Mount | - | 0.362" L x 0.244" W (9.20mm x 6.20mm) | 0.315" (8.00mm) |
![]() |

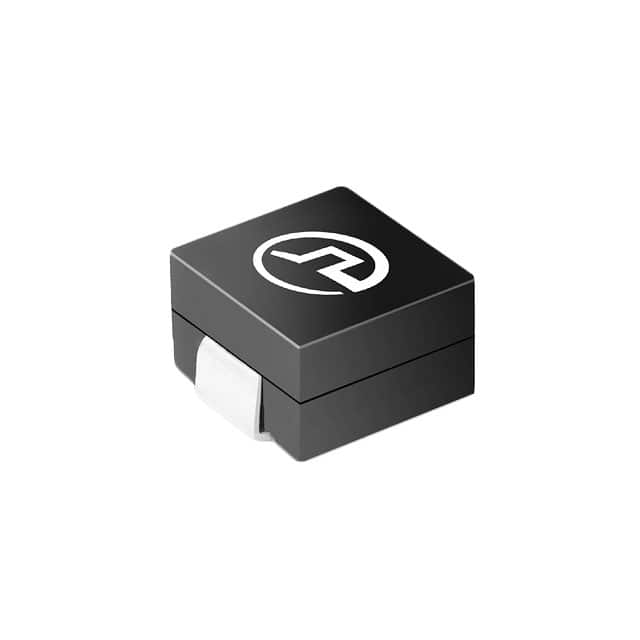

PA3790.181HLFIXED IND 180NH 57A 0.29MOHM SMD Pulse Electronics |
0 | - |
|
![]() Datasheet |
PA3790.XXXHL | Nonstandard | Tray | Active | - | - | 180 nH | ±15% | 57 A | 84A | Shielded | 0.29mOhm | - | - | - | -40°C ~ 130°C | 100 kHz | - | Surface Mount | - | 0.492" L x 0.315" W (12.50mm x 8.00mm) | 0.315" (8.00mm) |
|

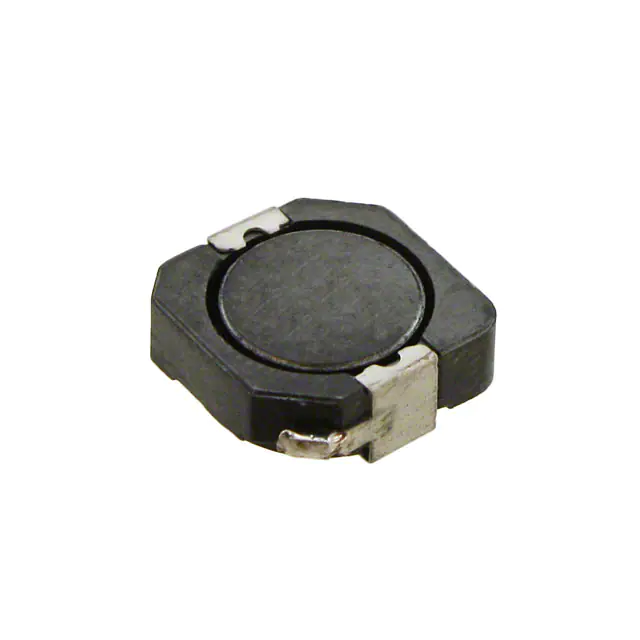

PF0560.522NLFIXED IND 5.2UH 5.4A 22 MOHM SMD Pulse Electronics |
0 | - |
|
![]() Datasheet |
PF0560NL | Nonstandard | Tray | Active | Wirewound | - | 5.2 µH | ±30% | 5.4 A | 5.5A | Shielded | 22mOhm Max | - | 34MHz | - | -40°C ~ 125°C | 100 kHz | - | Surface Mount | - | 0.409" L x 0.406" W (10.40mm x 10.30mm) | 0.157" (4.00mm) |
![]() |
PG0642.102NLFIXED IND 1UH 14.5A 5.8 MOHM SMD Pulse Electronics |
0 | - |
|
![]() Datasheet |
PG0642NL | Nonstandard | Tray | Active | Wirewound | - | 1 µH | ±20% | 14.5 A | 22A | Shielded | 5.8mOhm | - | - | - | -40°C ~ 125°C | 100 kHz | - | Surface Mount | - | 0.311" L x 0.299" W (7.90mm x 7.60mm) | 0.197" (5.00mm) |
![]() |
PG0642.222NLFIXED IND 2.2UH 10A 12.7MOHM SMD Pulse Electronics |
0 | - |
|
![]() Datasheet |
PG0642NL | Nonstandard | Tray | Active | Wirewound | - | 2.2 µH | ±20% | 10 A | 14A | Shielded | 12.7mOhm | - | - | - | -40°C ~ 125°C | 100 kHz | - | Surface Mount | - | 0.311" L x 0.299" W (7.90mm x 7.60mm) | 0.197" (5.00mm) |
![]() |
PG0642.401NLFIXED IND 400NH 20A 3.3 MOHM SMD Pulse Electronics |
0 | - |
|
![]() Datasheet |
PG0642NL | Nonstandard | Tray | Active | Wirewound | - | 400 nH | ±20% | 20 A | 32A | Shielded | 3.3mOhm | - | - | - | -40°C ~ 125°C | 100 kHz | - | Surface Mount | - | 0.311" L x 0.299" W (7.90mm x 7.60mm) | 0.197" (5.00mm) |
![]() |
PG0702.102NLFIXED IND 1UH 26A 1.76 MOHM SMD Pulse Electronics |
0 | - |
|
![]() Datasheet |
PG0702NL | Nonstandard | Tray | Active | Wirewound | - | 1 µH | ±20% | 26 A | 26A | Shielded | 1.76mOhm | - | - | - | -40°C ~ 130°C | 100 kHz | - | Surface Mount | - | 0.425" L x 0.362" W (10.80mm x 9.20mm) | 0.315" (8.00mm) |
![]() |

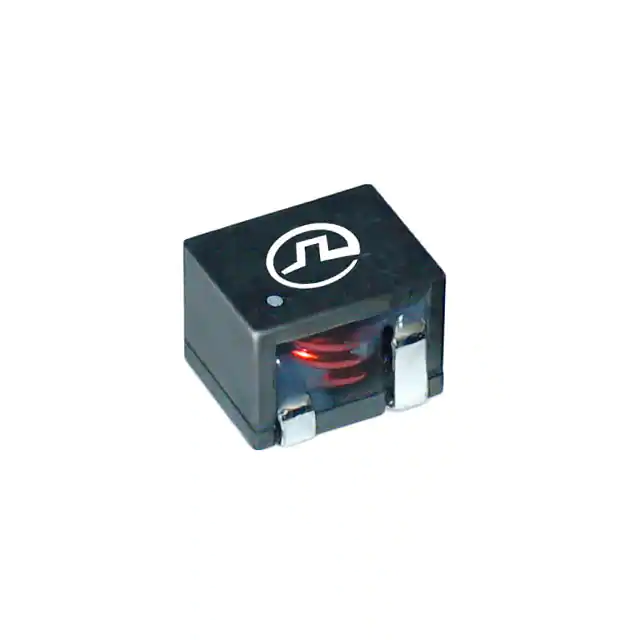

PG1083.682NLFIXED IND 6.8UH 22A 3.8 MOHM SMD Pulse Electronics |
0 | - |
|
![]() Datasheet |
PG1083NL | Nonstandard | Tray | Active | Wirewound | - | 6.8 µH | ±20% | 22 A | 20A | Unshielded | 3.8mOhm Max | - | - | - | -40°C ~ 130°C | 100 kHz | - | Surface Mount | - | 0.854" L x 0.846" W (21.70mm x 21.50mm) | 0.492" (12.50mm) |
![]() |

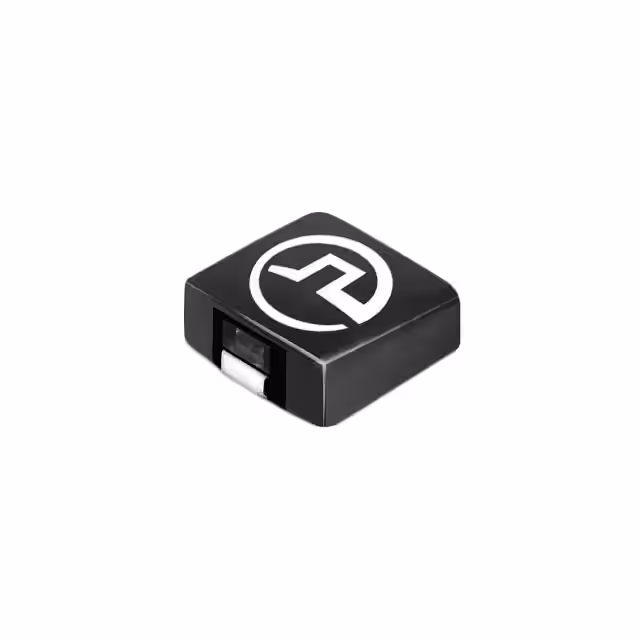

PG0255.401NLFIXED IND 400NH 29A 1.15MOHM SMD Pulse Electronics |
0 | - |
|
![]() Datasheet |
PG0255NL | Nonstandard | Tray | Active | Wirewound | - | 400 nH | ±15% | 29 A | 29A | Shielded | 1.15mOhm Max | - | - | - | -40°C ~ 125°C | 100 kHz | - | Surface Mount | - | 0.453" L x 0.406" W (11.50mm x 10.30mm) | 0.157" (4.00mm) |
![]() |
PA0513.261NLFIXED IND 260NH 45A 0.32MOHM SMD Pulse Electronics |
0 | - |
|
![]() Datasheet |
PA0513NL | Nonstandard | Tray | Obsolete | - | - | 260 nH | ±20% | 45 A | 60A | Shielded | 0.32mOhm | - | - | - | -40°C ~ 130°C | - | - | Surface Mount | - | 0.530" L x 0.510" W (13.46mm x 12.95mm) | 0.315" (8.00mm) |
