Fixed Inductors
| Photo | Mfr. Part # | Availability | Quantity | Datasheet | Series | Package/Case | Packaging | Product Status | Type | Material - Core | Inductance | Tolerance | Current Rating (Amps) | Current - Saturation (Isat) | Shielding | DC Resistance (DCR) | Q @ Freq | Frequency - Self Resonant | Ratings | Operating Temperature | Inductance Frequency - Test | Features | Mounting Type | Supplier Device Package | Size / Dimension | Height - Seated (Max) |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
B2086FIXED IND 4MH 100MA 3.6 OHM SMD Pulse Electronics |
0 |
|
- |
- | 10-SMD, Gull Wing | Tray | Obsolete | - | - | 4 mH | ±10% | 100 mA | - | Unshielded | 3.6Ohm Max | - | - | - | -40°C ~ 125°C | 1 kHz | - | Surface Mount | 10-SMT | 0.555" L x 0.525" W (14.10mm x 13.34mm) | 0.485" (12.32mm) |
|
|
BX8171AFIXED IND 20MH 4 OHM TH Pulse Electronics |
0 |
|
Datasheet |
- | Radial | Tray | Obsolete | - | - | 20 mH | ±4% | - | - | Unshielded | 4Ohm Max | - | - | - | -40°C ~ 85°C | 10 kHz | - | Through Hole | - | 0.736" L x 0.566" W (18.70mm x 14.37mm) | 0.500" (12.70mm) |
|
|
BX8259WFIXED IND 600UH 812 MOHM SMD Pulse Electronics |
0 |
|
Datasheet |
- | 8-SMD, Gull Wing | Tray | Obsolete | - | - | 600 µH | - | - | - | Unshielded | 812mOhm Max | - | - | - | -40°C ~ 85°C | 1 kHz | - | Surface Mount | 8-SMT | 0.425" L x 0.413" W (10.80mm x 10.50mm) | 0.248" (6.30mm) |
|
PE-51509FIXED IND 14UH 10A 9 MOHM TH Pulse Electronics |
0 |
|
- |
- | Radial, Vertical, 4 Leads (Open) | Tray | Obsolete | Toroidal | - | 14 µH | - | 10 A | - | Unshielded | 9mOhm Max | - | - | - | -40°C ~ 130°C | 50 kHz | - | Through Hole | - | 1.200" L x 0.600" W (30.48mm x 15.24mm) | 1.200" (30.48mm) |
|
|

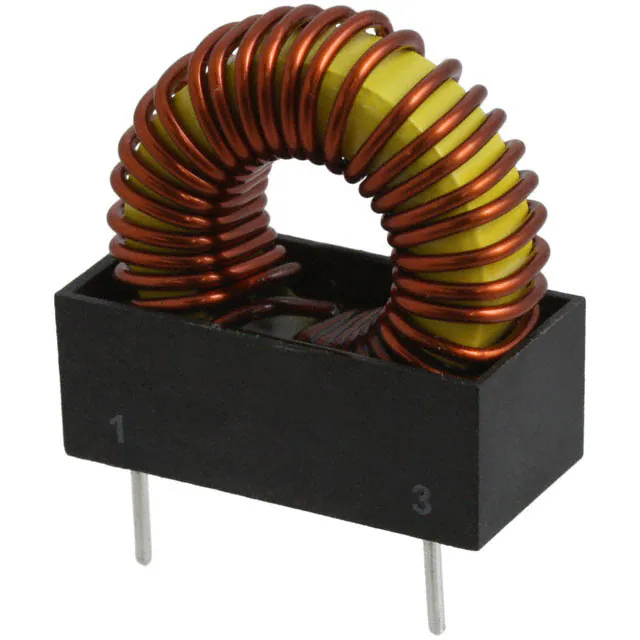

PE-51514FIXED IND 32UH 6.6A 25 MOHM TH Pulse Electronics |
0 |
|
- |
- | Radial, Vertical, 4 Leads (Open) | Tray | Obsolete | Toroidal | - | 32 µH | - | 6.6 A | - | Unshielded | 25mOhm Max | - | - | - | -40°C ~ 130°C | 50 kHz | - | Through Hole | - | 1.200" L x 0.600" W (30.48mm x 15.24mm) | 1.200" (30.48mm) |
|
|
PE-52625FIXED IND 150UH 1.7A 420 MOHM TH Pulse Electronics |
0 |
|
Datasheet |
- | Radial, Horizontal - Corner Terminals | Tube | Obsolete | Toroidal | - | 150 µH | ±20% | 1.7 A | - | Unshielded | 420mOhm Max | - | - | - | -40°C ~ 130°C | 20 kHz | - | Through Hole | - | 0.710" L x 0.710" W (18.03mm x 18.03mm) | 0.460" (11.68mm) |
|
|
PE-52626FIXED IND 220UH 1.5A 420 MOHM TH Pulse Electronics |
0 |
|
Datasheet |
- | Radial, Horizontal - Corner Terminals | Tube | Active | Toroidal | - | 220 µH | ±20% | 1.5 A | - | Unshielded | 420mOhm Max | - | - | - | -40°C ~ 130°C | 20 kHz | - | Through Hole | - | 0.710" L x 0.710" W (18.03mm x 18.03mm) | 0.460" (11.68mm) |
|
|
PE-52627FIXED IND 330UH 1A 780 MOHM TH Pulse Electronics |
0 |
|
Datasheet |
- | Radial, Horizontal - Corner Terminals | Tube | Active | Toroidal | - | 330 µH | ±20% | 1 A | - | Unshielded | 780mOhm Max | - | - | - | -40°C ~ 130°C | 20 kHz | - | Through Hole | - | 0.710" L x 0.710" W (18.03mm x 18.03mm) | 0.460" (11.68mm) |
|
|
PE-52628FIXED IND 470UH 900MA 1.26OHM TH Pulse Electronics |
0 |
|
Datasheet |
- | Radial, Horizontal - Corner Terminals | Tube | Obsolete | Toroidal | - | 470 µH | ±20% | 900 mA | - | Unshielded | 1.26Ohm Max | - | - | - | -40°C ~ 130°C | 20 kHz | - | Through Hole | - | 0.710" L x 0.710" W (18.03mm x 18.03mm) | 0.460" (11.68mm) |
|
|
PE-52629FIXED IND 680UH 850MA 1.5 OHM TH Pulse Electronics |
0 |
|
Datasheet |
- | Radial, Horizontal - Corner Terminals | Tube | Obsolete | Toroidal | - | 680 µH | ±20% | 850 mA | - | Unshielded | 1.5Ohm Max | - | - | - | -40°C ~ 130°C | 20 kHz | - | Through Hole | - | 0.710" L x 0.710" W (18.03mm x 18.03mm) | 0.460" (11.68mm) |
