FETs, MOSFETs
| 制造商 | Series | Package/Case | Packaging | Product Status | FET Type | Technology | Drain to Source Voltage (Vdss) | Current - Continuous Drain (Id) @ 25°C | Drive Voltage (Max Rds On, Min Rds On) | Rds On (Max) @ Id, Vgs | Vgs(th) (Max) @ Id | Gate Charge (Qg) (Max) @ Vgs | Vgs (Max) | Input Capacitance (Ciss) (Max) @ Vds | FET Feature | Power Dissipation (Max) | Operating Temperature | Grade | Qualification | Mounting Type | Supplier Device Package |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
全部重置
应用所有
结果:
| Photo | Mfr. Part # | Availability | Price | Quantity | Datasheet | Series | Package/Case | Packaging | Product Status | FET Type | Technology | Drain to Source Voltage (Vdss) | Current - Continuous Drain (Id) @ 25°C | Drive Voltage (Max Rds On, Min Rds On) | Rds On (Max) @ Id, Vgs | Vgs(th) (Max) @ Id | Gate Charge (Qg) (Max) @ Vgs | Vgs (Max) | Input Capacitance (Ciss) (Max) @ Vds | FET Feature | Power Dissipation (Max) | Operating Temperature | Grade | Qualification | Mounting Type | Supplier Device Package |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
;;2.jpg)
|
STD7N65M2MOSFET N-CH 650V 5A DPAK STMicroelectronics |
68 | - |
|
Datasheet |
MDmesh™ | TO-252-3, DPAK (2 Leads + Tab), SC-63 | Tape & Reel (TR) | Active | N-Channel | MOSFET (Metal Oxide) | 650 V | 5A (Tc) | 10V | 1.15Ohm @ 2.5A, 10V | 4V @ 250µA | 9 nC @ 10 V | ±25V | 270 pF @ 100 V | - | 60W (Tc) | -55°C ~ 150°C (TJ) | - | - | Surface Mount | DPAK |
|
|
STD3N40K3MOSFET N CH 400V 2A DPAK STMicroelectronics |
63 | - |
|
Datasheet |
SuperMESH3™ | TO-252-3, DPAK (2 Leads + Tab), SC-63 | Tape & Reel (TR) | Obsolete | N-Channel | MOSFET (Metal Oxide) | 400 V | 2A (Tc) | 10V | 3.4Ohm @ 900mA, 10V | 4.5V @ 50µA | 11 nC @ 10 V | ±30V | 165 pF @ 50 V | - | 30W (Tc) | -55°C ~ 150°C (TJ) | - | - | Surface Mount | DPAK |
|
STP5N60M2MOSFET N-CH 600V 3.7A TO220 STMicroelectronics |
15 | - |
|
Datasheet |
MDmesh™ II Plus | TO-220-3 | Tube | Active | N-Channel | MOSFET (Metal Oxide) | 600 V | 3.7A (Tc) | 10V | 1.4Ohm @ 1.85A, 10V | 4V @ 250µA | 4.5 nC @ 10 V | ±25V | 165 pF @ 100 V | - | 45W (Tc) | 150°C (TJ) | - | - | Through Hole | TO-220 |
|
STS9NF30LMOSFET N-CH 30V 9A 8SO STMicroelectronics |
0 | - |
|
Datasheet |
STripFET™ II | 8-SOIC (0.154", 3.90mm Width) | Tape & Reel (TR) | Obsolete | N-Channel | MOSFET (Metal Oxide) | 30 V | 9A (Tc) | 5V, 10V | 20mOhm @ 4.5A, 10V | 1V @ 250µA | 12.5 nC @ 4.5 V | ±18V | 730 pF @ 25 V | - | 2.5W (Tc) | 150°C (TJ) | - | - | Surface Mount | 8-SOIC |
|
|
STD40NF3LLT4MOSFET N-CH 30V 40A DPAK STMicroelectronics |
0 | - |
|
- |
STripFET™ II | TO-252-3, DPAK (2 Leads + Tab), SC-63 | Tape & Reel (TR) | Obsolete | N-Channel | MOSFET (Metal Oxide) | 30 V | 40A (Tc) | 4.5V, 10V | 11mOhm @ 20A, 10V | 1V @ 250µA | 33 nC @ 4.5 V | ±16V | 1650 pF @ 25 V | - | 80W (Tc) | -55°C ~ 175°C (TJ) | - | - | Surface Mount | DPAK |
|
STW15N80K5MOSFET N-CH 800V 14A TO247 STMicroelectronics |
0 | - |
|
Datasheet |
SuperMESH5™ | TO-247-3 | Tube | Active | N-Channel | MOSFET (Metal Oxide) | 800 V | 14A (Tc) | 10V | 375mOhm @ 7A, 10V | 5V @ 100µA | 32 nC @ 10 V | ±30V | 1100 pF @ 100 V | - | 190W (Tc) | -55°C ~ 150°C (TJ) | - | - | Through Hole | TO-247-3 |
|
STI18NM60NMOSFET N-CH 600V 13A I2PAK STMicroelectronics |
0 | - |
|
Datasheet |
MDmesh™ II | TO-262-3 Long Leads, I2PAK, TO-262AA | Tube | Obsolete | N-Channel | MOSFET (Metal Oxide) | 600 V | 13A (Tc) | 10V | 285mOhm @ 6.5A, 10V | 4V @ 250µA | 35 nC @ 10 V | ±25V | 1000 pF @ 50 V | - | 110W (Tc) | -55°C ~ 150°C (TJ) | - | - | Through Hole | TO-262 (I2PAK) |
|
|
STD2NK70ZT4MOSFET N-CH 700V 1.6A DPAK STMicroelectronics |
0 | - |
|
Datasheet |
SuperMESH™ | TO-252-3, DPAK (2 Leads + Tab), SC-63 | Tape & Reel (TR) | Obsolete | N-Channel | MOSFET (Metal Oxide) | 700 V | 1.6A (Tc) | 10V | 7Ohm @ 800mA, 10V | 4.5V @ 50µA | 11.4 nC @ 10 V | ±30V | 280 pF @ 25 V | - | 45W (Tc) | -55°C ~ 150°C (TJ) | - | - | Surface Mount | DPAK |
|

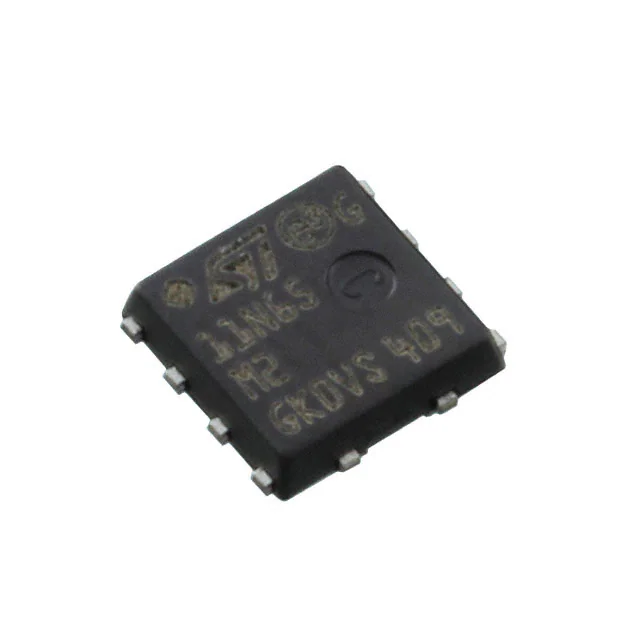

STL11N65M2MOSFET N-CH 650V POWERFLAT 5X5 H STMicroelectronics |
0 | - |
|
- |
- | - | Tape & Reel (TR) | Obsolete | N-Channel | MOSFET (Metal Oxide) | 650 V | 7A (Tc) | 10V | 670mOhm @ 3.5A, 10V | 4V @ 250µA | 12.4 nC @ 10 V | ±25V | 410 pF @ 100 V | - | 85W (Tc) | -55°C ~ 150°C (TA) | - | - | Surface Mount | - |
|
STB55NF03LT4MOSFET N-CH 30V 55A D2PAK STMicroelectronics |
0 | - |
|
- |
STripFET™ II | TO-263-3, D2PAK (2 Leads + Tab), TO-263AB | Tape & Reel (TR) | Obsolete | N-Channel | MOSFET (Metal Oxide) | 30 V | 55A (Tc) | 4.5V, 10V | 13mOhm @ 27.5A, 10V | 1V @ 250µA | 27 nC @ 4.5 V | ±16V | 1265 pF @ 25 V | - | 80W (Tc) | 175°C (TJ) | - | - | Surface Mount | D2PAK |
