FETs, MOSFETs
| Photo | Mfr. Part # | Availability | Quantity | Datasheet | Series | Package/Case | Packaging | Product Status | FET Type | Technology | Drain to Source Voltage (Vdss) | Current - Continuous Drain (Id) @ 25°C | Drive Voltage (Max Rds On, Min Rds On) | Rds On (Max) @ Id, Vgs | Vgs(th) (Max) @ Id | Gate Charge (Qg) (Max) @ Vgs | Vgs (Max) | Input Capacitance (Ciss) (Max) @ Vds | FET Feature | Power Dissipation (Max) | Operating Temperature | Grade | Qualification | Mounting Type | Supplier Device Package |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
SUD50N02-09P-E3MOSFET N-CH 20V TO252 |
0 |
|
Datasheet |
TrenchFET® | TO-252-3, DPAK (2 Leads + Tab), SC-63 | Tape & Reel (TR) | Obsolete | N-Channel | MOSFET (Metal Oxide) | 20 V | 20A (Ta) | 4.5V, 10V | 9.5mOhm @ 20A, 10V | 3V @ 250µA | 16 nC @ 4.5 V | ±20V | 1300 pF @ 10 V | - | 6.5W (Ta), 39.5W (Tc) | -55°C ~ 175°C (TJ) | - | - | Surface Mount | TO-252AA |
;;2.jpg)
|
STD3PK50ZMOSFET P-CH 500V 2.8A DPAK |
0 |
|
Datasheet |
SuperMESH™ | TO-252-3, DPAK (2 Leads + Tab), SC-63 | Tape & Reel (TR) | Obsolete | P-Channel | MOSFET (Metal Oxide) | 500 V | 2.8A (Tc) | 10V | 4Ohm @ 1.4A, 10V | 4.5V @ 100µA | 20 nC @ 10 V | ±30V | 620 pF @ 25 V | - | 70W (Tc) | -55°C ~ 150°C (TJ) | - | - | Surface Mount | DPAK |
|
MCTL1D6N06YH-TPN-CHANNEL MOSFET,TOLL-8L |
0 |
|
- |
- | 8-PowerSFN | Tape & Reel (TR) | Active | N-Channel | MOSFET (Metal Oxide) | 60 V | 245A (Tc) | 10V | 1.6mOhm @ 50A, 10V | 4V @ 250µA | 118.3 nC @ 10 V | ±20V | 7331 pF @ 30 V | - | 167W (Tj) | -55°C ~ 150°C (TJ) | - | - | Surface Mount | TOLL-8L |
|
AUIRF1405ZS-7TRLMOSFET N-CH 55V 120A D2PAK |
0 |
|
Datasheet |
HEXFET® | TO-263-7, D2PAK (6 Leads + Tab), TO-263CB | Tape & Reel (TR) | Obsolete | N-Channel | MOSFET (Metal Oxide) | 55 V | 120A (Tc) | 10V | 4.9mOhm @ 88A, 10V | 4V @ 150µA | 230 nC @ 10 V | ±20V | 5360 pF @ 25 V | - | 230W (Tc) | -55°C ~ 175°C (TJ) | - | - | Surface Mount | D2PAK (7-Lead) |
|
STI35N65M5MOSFET N-CH 650V 27A I2PAK |
0 |
|
Datasheet |
MDmesh™ V | TO-262-3 Long Leads, I2PAK, TO-262AA | Tube | Obsolete | N-Channel | MOSFET (Metal Oxide) | 650 V | 27A (Tc) | 10V | 98mOhm @ 13.5A, 10V | 5V @ 250µA | 83 nC @ 10 V | ±25V | 3750 pF @ 100 V | - | 160W (Tc) | 150°C (TJ) | - | - | Through Hole | I2PAK |
|

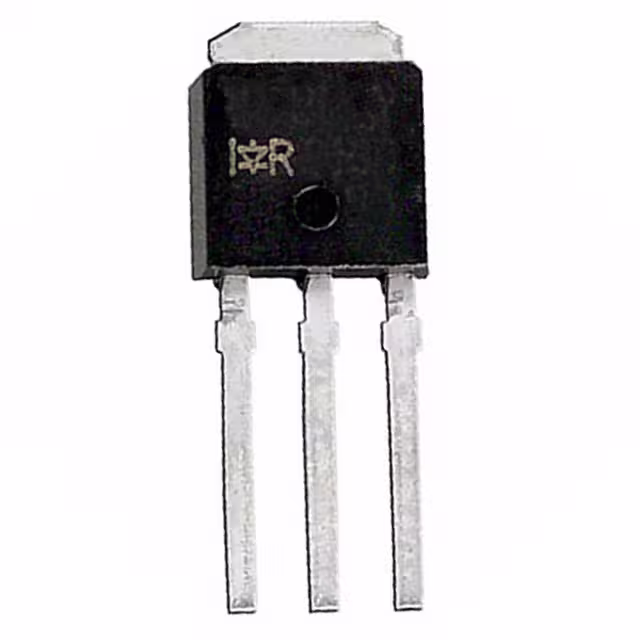

IRLU3103MOSFET N-CH 30V 55A I-PAK |
0 |
|
Datasheet |
HEXFET® | TO-251-3 Short Leads, IPAK, TO-251AA | Tube | Obsolete | N-Channel | MOSFET (Metal Oxide) | 30 V | 55A (Tc) | 4.5V, 10V | 19mOhm @ 33A, 10V | 1V @ 250µA | 50 nC @ 4.5 V | ±16V | 1600 pF @ 25 V | - | 107W (Tc) | -55°C ~ 175°C (TJ) | - | - | Through Hole | IPAK |
|
|
ST410N4F7D8AGDICE |
0 |
|
- |
- | - | Tape & Reel (TR) | Active | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - |
|
FDS4072N3MOSFET N-CH 40V 12.4A 8SO |
0 |
|
Datasheet |
PowerTrench® | 8-SOIC (0.154", 3.90mm Width) Exposed Pad | Tape & Reel (TR) | Obsolete | N-Channel | MOSFET (Metal Oxide) | 40 V | 12.4A (Ta) | 4.5V, 10V | 10mOhm @ 13.7A, 10V | 3V @ 250µA | 46 nC @ 4.5 V | ±12V | 4299 pF @ 20 V | - | 3W (Ta) | -55°C ~ 150°C (TJ) | - | - | Surface Mount | 8-SO FLMP |
|
|
FDS4080N3MOSFET N-CH 40V 13A 8SO |
0 |
|
Datasheet |
PowerTrench® | 8-SOIC (0.154", 3.90mm Width) Exposed Pad | Tape & Reel (TR) | Obsolete | N-Channel | MOSFET (Metal Oxide) | 40 V | 13A (Ta) | 10V | 10.5mOhm @ 13A, 10V | 5V @ 250µA | 40 nC @ 10 V | ±20V | 1750 pF @ 20 V | - | 3W (Ta) | -55°C ~ 150°C (TJ) | - | - | Surface Mount | 8-SO FLMP |
|
BUK961R7-40E,118MOSFET N-CH 40V 120A D2PAK |
0 |
|
Datasheet |
TrenchMOS™ | TO-263-3, D2PAK (2 Leads + Tab), TO-263AB | Tape & Reel (TR) | Obsolete | N-Channel | MOSFET (Metal Oxide) | 40 V | 120A (Tc) | 5V, 10V | 1.5mOhm @ 25A, 10V | 2.1V @ 1mA | 105.4 nC @ 5 V | ±10V | 15010 pF @ 25 V | - | 324W (Tc) | -55°C ~ 175°C (TJ) | - | - | Surface Mount | D2PAK |
|
|
IPB100N12S305ATMA2MOSFET_(120V 300V) |
0 |
|
Datasheet |
- | TO-263-3, D2PAK (2 Leads + Tab), TO-263AB | Tape & Reel (TR) | Active | N-Channel | MOSFET (Metal Oxide) | 120 V | 100A (Tc) | 10V | 5.1mOhm @ 100A, 10V | 4V @ 240µA | 185 nC @ 10 V | ±20V | 11570 pF @ 25 V | - | 300W (Tc) | -55°C ~ 175°C (TJ) | Automotive | AEC-Q101 | Surface Mount | PG-TO263-3-2 |
|
|
IRF7201MOSFET N-CH 30V 7.3A 8SO |
0 |
|
Datasheet |
HEXFET® | 8-SOIC (0.154", 3.90mm Width) | Tube | Obsolete | N-Channel | MOSFET (Metal Oxide) | 30 V | 7.3A (Tc) | 4.5V, 10V | 30mOhm @ 7.3A, 10V | 1V @ 250µA | 28 nC @ 10 V | ±20V | 550 pF @ 25 V | - | 2.5W (Tc) | -55°C ~ 150°C (TJ) | - | - | Surface Mount | 8-SO |
|
IXFA130N10T2-TRLMOSFET N-CH 100V 130A TO263 |
0 |
|
- |
HiPerFET™, TrenchT2™ | TO-263-3, D2PAK (2 Leads + Tab), TO-263AB | Tape & Reel (TR) | Active | N-Channel | MOSFET (Metal Oxide) | 100 V | 130A (Tc) | 10V | 10.1mOhm @ 65A, 10V | 4.5V @ 1mA | 130 nC @ 10 V | ±20V | 6600 pF @ 25 V | - | 360W (Tc) | -55°C ~ 175°C (TJ) | - | - | Surface Mount | TO-263 (D2PAK) |
|
IRL3705NSTRLMOSFET N-CH 55V 89A D2PAK |
0 |
|
Datasheet |
HEXFET® | TO-263-3, D2PAK (2 Leads + Tab), TO-263AB | Tape & Reel (TR) | Obsolete | N-Channel | MOSFET (Metal Oxide) | 55 V | 89A (Tc) | 4V, 10V | 10mOhm @ 46A, 10V | 2V @ 250µA | 98 nC @ 5 V | ±16V | 3600 pF @ 25 V | - | 3.8W (Ta), 170W (Tc) | -55°C ~ 175°C (TJ) | - | - | Surface Mount | D2PAK |
|
IPP100N08S2L07AKSA1MOSFET N-CH 75V 100A TO220-3 |
0 |
|
Datasheet |
OptiMOS™ | TO-220-3 | Tube | Obsolete | N-Channel | MOSFET (Metal Oxide) | 75 V | 100A (Tc) | 4.5V, 10V | 6.8mOhm @ 80A, 10V | 2V @ 250µA | 246 nC @ 10 V | ±20V | 5400 pF @ 25 V | - | 300W (Tc) | -55°C ~ 175°C (TJ) | - | - | Through Hole | PG-TO220-3-1 |
|
IXTP18N60PMMOSFET N-CH 600V 9A TO220 |
0 |
|
- |
Polar | TO-220-3 Full Pack, Isolated Tab | Tube | Obsolete | N-Channel | MOSFET (Metal Oxide) | 600 V | 9A (Tc) | 10V | 420mOhm @ 9A, 10V | 5.5V @ 250µA | 49 nC @ 10 V | ±30V | 2500 pF @ 25 V | - | 90W (Tc) | -55°C ~ 150°C (TJ) | - | - | Through Hole | TO-220 Isolated Tab |
|
STW14NM50FDMOSFET N-CH 500V 14A TO247-3 |
0 |
|
Datasheet |
FDmesh™ | TO-247-3 | Tube | Obsolete | N-Channel | MOSFET (Metal Oxide) | 500 V | 14A (Tc) | 10V | 400mOhm @ 6A, 10V | 5V @ 250µA | 12 nC @ 10 V | ±30V | 1000 pF @ 25 V | - | 160W (Tc) | -65°C ~ 150°C (TJ) | - | - | Through Hole | TO-247-3 |
|
STV300NH02LMOSFET N-CH 24V 200A 10POWERSO |
0 |
|
Datasheet |
STripFET™ III | PowerSO-10 Exposed Bottom Pad | Tape & Reel (TR) | Obsolete | N-Channel | MOSFET (Metal Oxide) | 24 V | 200A (Tc) | 10V, 5V | 1mOhm @ 80A, 10V | 2V @ 250µA | 109 nC @ 10 V | ±20V | 7055 pF @ 15 V | - | 300W (Tc) | -55°C ~ 175°C (TJ) | - | - | Surface Mount | 10-PowerSO |
|
SPB160N04S203CTMA1MOSFET N-CH 40V 160A TO263-7 |
0 |
|
Datasheet |
OptiMOS™ | TO-263-7, D2PAK (6 Leads + Tab) | Tape & Reel (TR) | Obsolete | N-Channel | MOSFET (Metal Oxide) | 40 V | 160A (Tc) | 10V | 2.9mOhm @ 80A, 10V | 4V @ 250µA | 170 nC @ 10 V | ±20V | 7320 pF @ 25 V | - | 300W (Tc) | -55°C ~ 175°C (TJ) | - | - | Surface Mount | PG-TO263-7-3 |
|
|
SPB160N04S2L03DTMA1MOSFET N-CH 40V 160A TO263-7 |
0 |
|
Datasheet |
OptiMOS™ | TO-263-7, D2PAK (6 Leads + Tab) | Tape & Reel (TR) | Obsolete | N-Channel | MOSFET (Metal Oxide) | 40 V | 160A (Tc) | 10V | 2.7mOhm @ 80A, 10V | 2V @ 250µA | 230 nC @ 10 V | ±20V | 8000 pF @ 25 V | - | 300W (Tc) | -55°C ~ 175°C (TJ) | - | - | Surface Mount | PG-TO263-7-3 |
