Aluminum - Polymer Capacitors
| Photo | Mfr. Part # | Availability | Quantity | Datasheet | Series | Packaging | Product Status | Type | Capacitance | Tolerance | Voltage - Rated | ESR (Equivalent Series Resistance) | Lifetime @ Temp. | Operating Temperature | Ratings | Applications | Features | Ripple Current @ Low Frequency | Ripple Current @ High Frequency | Impedance | Lead Spacing | Size / Dimension | Height - Seated (Max) | Surface Mount Land Size | Mounting Type |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
EEH-ZT1V221UPCAP ALUMHYB 220UF 20% 35V SMD Panasonic Electronic Components |
636 |
|
Datasheet |
ZTU | Tape & Reel (TR) | Active | Hybrid | 220 µF | ±20% | 35 V | 22mOhm | 4000 Hrs @ 135°C | -55°C ~ 135°C | AEC-Q200 | Automotive | - | 270 mA @ 100 Hz | 1.8 A @ 100 kHz | - | - | 0.315" Dia (8.00mm) | 0.413" (10.50mm) | 0.327" L x 0.327" W (8.30mm x 8.30mm) | Surface Mount |
|
EEH-ZS1V471UVCAP ALUMHYB 470UF 20% 35V SMD Panasonic Electronic Components |
127 |
|
Datasheet |
ZSU Anti-Vibration | Tape & Reel (TR) | Active | Hybrid | 470 µF | ±20% | 35 V | 14mOhm | 4000 Hrs @ 125°C | -55°C ~ 125°C | AEC-Q200 | Automotive | - | 700 mA @ 120 Hz | 3.5 A @ 100 kHz | - | - | 0.394" Dia (10.00mm) | 0.516" (13.10mm) | 0.406" L x 0.406" W (10.30mm x 10.30mm) | Surface Mount |
-Series-(THT-Tape-And-Box)-Photo-G12.jpg)
|
EEH-AZSV681UBCAP ALUM HYBRID 680UF 20% 35V TH Panasonic Electronic Components |
2,027 |
|
Datasheet |
ZSU-A | Cut Tape (CT) | Active | Hybrid | 680 µF | ±20% | 35 V | 11mOhm | 4000 Hrs @ 125°C | -55°C ~ 125°C | AEC-Q200 | Automotive | - | 800 mA @ 120 Hz | 4 A @ 100 kHz | - | 0.197" (5.00mm) | 0.394" Dia (10.00mm) | 0.657" (16.70mm) | - | Through Hole |
|
|
EEH-AZSE102UBCAP ALUMHYB 1000UF 20% 25V TH Panasonic Electronic Components |
951 |
|
Datasheet |
ZSU-A | Cut Tape (CT) | Active | Hybrid | 1000 µF | ±20% | 25 V | 11mOhm | 4000 Hrs @ 125°C | -55°C ~ 125°C | AEC-Q200 | Automotive | - | 800 mA @ 120 Hz | 4 A @ 100 kHz | - | 0.197" (5.00mm) | 0.394" Dia (10.00mm) | 0.657" (16.70mm) | - | Through Hole |
|

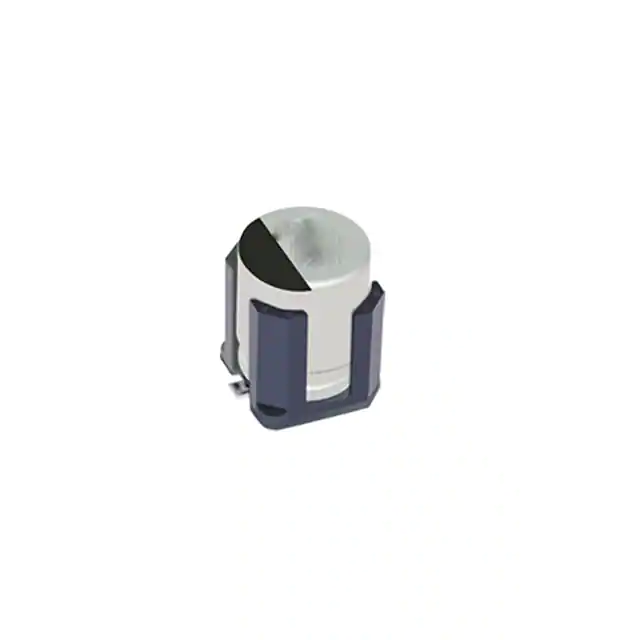

EEH-ZT1H101VCAP ALUMHYB 100UF 20% 50V SMD Panasonic Electronic Components |
1,417 |
|
Datasheet |
ZT | Tape & Reel (TR) | Active | Hybrid | 100 µF | ±20% | 50 V | 23mOhm | 4000 Hrs @ 125°C | -55°C ~ 125°C | AEC-Q200 | Automotive | - | 435 mA @ 100 Hz | 2.9 A @ 100 kHz | - | - | 0.394" Dia (10.00mm) | 0.425" (10.80mm) | 0.406" L x 0.406" W (10.30mm x 10.30mm) | Surface Mount |
|

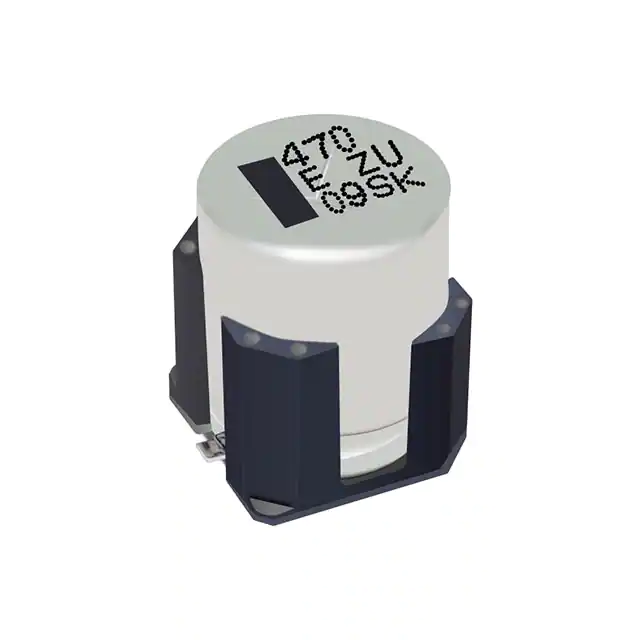

EEH-ZU1E471VCAP ALUMHYB 470UF 20% 25V SMD Panasonic Electronic Components |
977 |
|
Datasheet |
ZU, Anti-Vibration | Tape & Reel (TR) | Active | Hybrid | 470 µF | ±20% | 25 V | 10mOhm | 4000 Hrs @ 135°C | -55°C ~ 135°C | AEC-Q200 | Automotive | - | 750 mA @ 100 Hz | 5 A @ 100 kHz | - | - | 0.394" Dia (10.00mm) | 0.516" (13.10mm) | 0.406" L x 0.406" W (10.30mm x 10.30mm) | Surface Mount |
|
|
EEH-ZU1J101VCAP ALUMHYB 100UF 20% 63V SMD Panasonic Electronic Components |
793 |
|
Datasheet |
ZU, Anti-Vibration | Tape & Reel (TR) | Active | Hybrid | 100 µF | ±20% | 63 V | 12mOhm | 4000 Hrs @ 135°C | -55°C ~ 135°C | AEC-Q200 | Automotive | - | 690 mA @ 100 Hz | 4.6 A @ 100 kHz | - | - | 0.394" Dia (10.00mm) | 0.516" (13.10mm) | 0.406" L x 0.406" W (10.30mm x 10.30mm) | Surface Mount |
-Series-(SMD%2C-High-Temp.-Reflow)-Photo-G12.jpg)
|

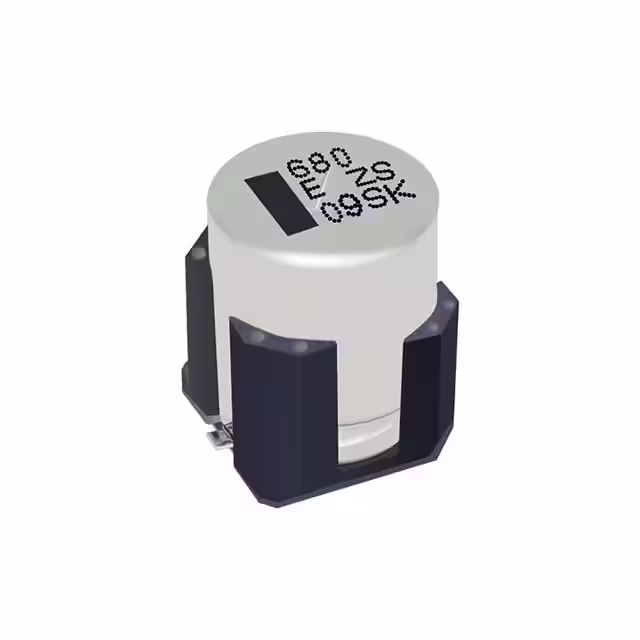

EEH-ZS1V681UPCAP ALUMHYB 680UF 20% 35V SMD Panasonic Electronic Components |
1,107 |
|
Datasheet |
ZSU | Tape & Reel (TR) | Active | Hybrid | 680 µF | ±20% | 35 V | 11mOhm | 4000 Hrs @ 125°C | -55°C ~ 125°C | AEC-Q200 | Automotive | - | 800 mA @ 120 Hz | 4 A @ 100 kHz | - | - | 0.394" Dia (10.00mm) | 0.661" (16.80mm) | 0.406" L x 0.406" W (10.30mm x 10.30mm) | Surface Mount |
|
|
EEH-ZL1V471PCAP ALUMHYB 470UF 20% 35V SMD Panasonic Electronic Components |
1,416 |
|
Datasheet |
ZL | Tape & Reel (TR) | Active | Hybrid | 470 µF | ±20% | 35 V | 16mOhm | 4000 Hrs @ 135°C | -55°C ~ 135°C | AEC-Q200 | Automotive | High Vibration | 330 mA @ 100 Hz | 2.2 A @ 100 kHz | - | - | 0.394" Dia (10.00mm) | 0.413" (10.50mm) | 0.406" L x 0.406" W (10.30mm x 10.30mm) | Surface Mount |
|
|
EEH-ZS1E102UPCAP ALUMHYB 1000UF 20% 25V SMD Panasonic Electronic Components |
507 |
|
Datasheet |
ZSU | Tape & Reel (TR) | Active | Hybrid | 1000 µF | ±20% | 25 V | 11mOhm | 4000 Hrs @ 125°C | -55°C ~ 125°C | AEC-Q200 | Automotive | - | 800 mA @ 120 Hz | 4 A @ 100 kHz | - | - | 0.394" Dia (10.00mm) | 0.661" (16.80mm) | 0.406" L x 0.406" W (10.30mm x 10.30mm) | Surface Mount |
