Aluminum - Polymer Capacitors
| Photo | Mfr. Part # | Availability | Quantity | Datasheet | Series | Packaging | Product Status | Type | Capacitance | Tolerance | Voltage - Rated | ESR (Equivalent Series Resistance) | Lifetime @ Temp. | Operating Temperature | Ratings | Applications | Features | Ripple Current @ Low Frequency | Ripple Current @ High Frequency | Impedance | Lead Spacing | Size / Dimension | Height - Seated (Max) | Surface Mount Land Size | Mounting Type |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
10SEP120M+TSSCAP ALUM POLY 120UF 20% 10V TH Panasonic Electronic Components |
0 |
|
Datasheet |
OS-CON™, SEP | Tape & Box (TB) | Active | Polymer | 120 µF | ±20% | 10 V | 35mOhm | 3000 Hrs @ 105°C | -55°C ~ 105°C | - | General Purpose | - | 128 mA @ 120 Hz | 2.56 A @ 100 kHz | - | 0.138" (3.50mm) | 0.315" Dia (8.00mm) | 0.276" (7.00mm) | - | Through Hole |
|

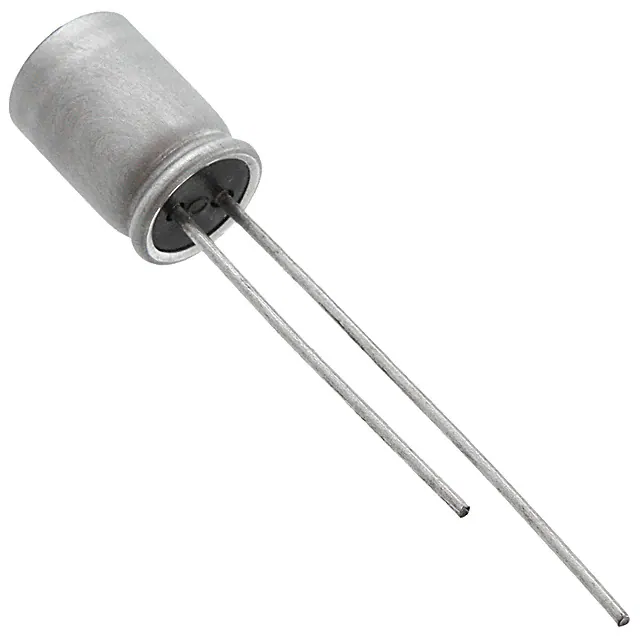

2SEPC330MWCAP ALUM POLY 330UF 20% 2.5V TH Panasonic Electronic Components |
0 |
|
Datasheet |
OS-CON™, SEPC | Bulk | Obsolete | Polymer | 330 µF | ±20% | 2.5 V | 7mOhm | 5000 Hrs @ 105°C | -55°C ~ 105°C | - | General Purpose | - | 280 mA @ 120 Hz | 5.6 A @ 100 kHz | - | 0.098" (2.50mm) | 0.248" Dia (6.30mm) | 0.354" (9.00mm) | - | Through Hole |
|
EEF-LX0E331RCAP ALUM POLY 330UF 20% 2.5V SMD Panasonic Electronic Components |
0 |
|
Datasheet |
SP-Cap LX | Tape & Reel (TR) | Active | Polymer | 330 µF | ±20% | 2.5 V | 6mOhm | 2000 Hrs @ 105°C | -55°C ~ 105°C | - | General Purpose | - | - | 7.5 A @ 100 kHz | - | - | 0.287" L x 0.169" W (7.30mm x 4.30mm) | 0.079" (2.00mm) | 0.287" L x 0.169" W (7.30mm x 4.30mm) | Surface Mount |
|
EEF-SX0D391XRCAP ALUM POLY 390UF 20% 2V SMD Panasonic Electronic Components |
0 |
|
Datasheet |
SP-Cap SX | Tape & Reel (TR) | Not For New Designs | Polymer | 390 µF | ±20% | 2 V | 6mOhm | 2000 Hrs @ 105°C | -55°C ~ 105°C | - | General Purpose | - | - | - | - | - | 0.287" L x 0.169" W (7.30mm x 4.30mm) | 0.079" (2.00mm) | - | Surface Mount |
|
|
EEF-LS0D221RCAP ALUM POLY 220UF 20% 2V SMD Panasonic Electronic Components |
0 |
|
Datasheet |
SP-Cap LS | Tape & Reel (TR) | Active | Polymer | 220 µF | ±20% | 2 V | 6mOhm | 2000 Hrs @ 105°C | -55°C ~ 105°C | - | General Purpose | - | - | 7.5 A @ 100 kHz | - | - | 0.287" L x 0.169" W (7.30mm x 4.30mm) | 0.047" (1.20mm) | 0.287" L x 0.169" W (7.30mm x 4.30mm) | Surface Mount |
|
EEF-HX0D471R6CAP ALUM POLY 470UF 20% 2V SMD Panasonic Electronic Components |
0 |
|
Datasheet |
SP-Cap HX | Tape & Reel (TR) | Active | Polymer | 470 µF | ±20% | 2 V | 6mOhm | 1000 Hrs @ 125°C | -55°C ~ 125°C | - | General Purpose | - | - | 7.5 A @ 100 kHz | - | - | 0.287" L x 0.169" W (7.30mm x 4.30mm) | 0.079" (2.00mm) | 0.287" L x 0.169" W (7.30mm x 4.30mm) | Surface Mount |
|
EEF-CT1V150RCAP ALUM POLY 15UF 20% 35V SMD Panasonic Electronic Components |
0 |
|
Datasheet |
SP-Cap CT | Tape & Reel (TR) | Active | Polymer | 15 µF | ±20% | 35 V | 40mOhm | 2000 Hrs @ 105°C | -55°C ~ 105°C | - | General Purpose | - | - | 3.2 A @ 100 kHz | - | - | 0.287" L x 0.169" W (7.30mm x 4.30mm) | 0.059" (1.50mm) | - | Surface Mount |
|
20SEPF390M+TSSCAP ALUM POLY 390UF 20% 20V TH Panasonic Electronic Components |
0 |
|
Datasheet |
OS-CON™, SEPF | Tape & Box (TB) | Active | Polymer | 390 µF | ±20% | 20 V | 14mOhm | 5000 Hrs @ 105°C | -55°C ~ 105°C | - | General Purpose | - | 247.5 mA @ 120 Hz | 4.95 A @ 100 kHz | - | 0.138" (3.50mm) | 0.315" Dia (8.00mm) | 0.472" (12.00mm) | - | Through Hole |
|
|
EEF-CS1V100RCAP ALUM POLY 10UF 20% 35V SMD Panasonic Electronic Components |
0 |
|
Datasheet |
SP-Cap CS | Tape & Reel (TR) | Active | Polymer | 10 µF | ±20% | 35 V | 40mOhm | 2000 Hrs @ 105°C | -55°C ~ 105°C | - | General Purpose | - | - | 3.2 A @ 100 kHz | - | - | 0.287" L x 0.169" W (7.30mm x 4.30mm) | 0.075" (1.90mm) | 0.287" L x 0.169" W (7.30mm x 4.30mm) | Surface Mount |
|
20SEQP68M+TCAP ALUM POLY 68UF 20% 20V TH Panasonic Electronic Components |
0 |
|
Datasheet |
OS-CON™, SEQP | Tape & Reel (TR) | Active | Polymer | 68 µF | ±20% | 20 V | 40mOhm | 1000 Hrs @ 125°C | -55°C ~ 125°C | - | General Purpose | - | 37.95 mA @ 120 Hz | 759 mA @ 100 kHz | - | 0.197" (5.00mm) | 0.394" Dia (10.00mm) | 0.315" (8.00mm) | - | Through Hole |
